Server that creates a named pipe, listens on its input stream, and sends responses to the client. More...

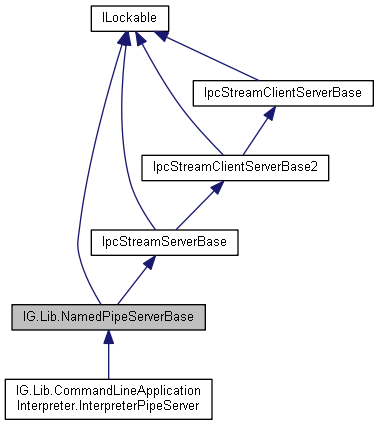

Inheritance diagram for IG.Lib.NamedPipeServerBase:

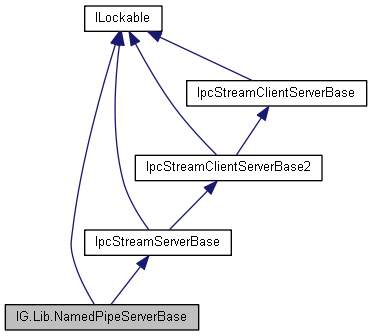

Collaboration diagram for IG.Lib.NamedPipeServerBase:

Public Member Functions
	NamedPipeServerBase (string pipeName, bool startImmediately=true)
	Constructs a new pip server. More...

	NamedPipeServerBase (string pipeName, string requestEnd, string responseEnd, string errorBegin, bool startImmediately=true)
	Constructs a new named pipe server with the specified pipe name and other paramters. More...

override bool	IsConnected ()
	Returns true if server pipe is connected, . More...

override void	ClosePipe ()
	Closes the Server's pipe and the associated streams. More...

override void	SendDummyRequest ()
	Sends a dummy request in order for the serving function to stop blocking More...

override string	ToString ()
	Returns a stirng containing the server data. More...

Public Member Functions inherited from IG.Lib.IpcStreamServerBase
override void	CloseInput ()
	Closes the inpt stream. More...

override void	CloseOutput ()
	Closes the outut stream. More...

virtual void	StopServer ()

virtual string	GetResponse (string request)
	Returns response string for given request string. More...

void	ThreadServe ()
	Launches a named pipe server in a new thread. More...

void	AbortWorkingThread (double timeoutSeconds=0)
	Aborts the working thread. More...

override void	ClearData ()
	Clears all the data related to servig requests (i.e. request and response strings, error flags, exceptions, etc.). More...

Public Member Functions inherited from IG.Lib.IpcStreamClientServerBase2
virtual bool	IsErrorResponse (string responseString)
	Returns true if the specified response string represents an error response (exception), false if not. More...

virtual string	GetErrorMessage (string responseString)
	Returns error message that corresponds to the specified response string. More...

Public Member Functions inherited from IG.Lib.IpcStreamClientServerBase
delegate string	ResponseDelegate (string request)
	Provides an answer string to the specified request string. More...

void	SetMessagePreix (string messagePrefix)
	Changes message prefix for the current object. More...

void	messageSeparator (char messageSeparator)
	Changes message separator for the current object. More...

void	SetMessageFalseSeparator (char messageFalseSeparator)
	Changes message false separator for the current object. More...

string	CreateMessage (string messageName, string[] messageArguments)
	Creates a built-in message (possibly with arguments) that is to be interpreted directly by the receiver (stream client or server) and is not executed via ordinary path. More...

string	CreateResponseOrRequestString (string originalResponseOrRequestString, bool multiLine)
	Generates request and response string in such a way that it can not be mixed up with a message. More...

void	InterpretRequestOrResponseLine (ref string responseOrRequestString, out bool isMessage, out string messageOrCommandName, out string[] messageArguments)
	Returns the (eventually decoded) request or response string corresponding to the stirng that is read form the communication pipeline, and also parameters that specify whether the request string represents a message or not. Eventual command or message parameters are also returned. More...

void	WriteMessage (StreamWriter outputStream, string message, string[] args)
	Writes a mesage to the output stream. What is written is decorated message (including the standard message prefix and separator) and message arguments. More...

virtual void	WorkMessage (string messageName, string[] messageArguments, IpcStage context, ref bool worked)

virtual void	RespondToMessage (string messageName, string[] messageArguments, ref bool responded)
	Responds to a received message. More...

Protected Member Functions
override void	CloseConnection ()
	Closes the server pipe. More...

override void	WaitForConnection ()
	Waits until a client connects to the specified server pipe. More...

virtual void	WaitForConnection (NamedPipeServerStream pipe)
	Waits until a client connects to the specified server pipe. More...

Protected Member Functions inherited from IG.Lib.IpcStreamServerBase
virtual string	GetErrorMessage (Exception ex)
	Returns error message corresponding to the specified exception. More...

virtual string	ReadRequest ()
	Reads the next request from the pipe. More...

virtual void	SendResponse (string responseString)
	Sends the specified response string back to the server. More...

virtual void	SendResponse ()
	Sends the response (i.e., the IpcStreamClientServerBase2.ResponseString) back to the client. More...

virtual void	RespondToRequest ()
	Reads a single request from the client and sends back the response. More...

virtual void	ServeInCurrentThread ()
	Enters the serving loop. More...

Properties
override string	Name `[get, set]`
	Server name. The same as pipe name. More...

string	PipeName `[get, set]`

NamedPipeServerStream	ServerPipe `[get, protected set]`
	Named pipe used for communication by the server. More...

override StreamReader	InputStream `[get, protected set]`
	Input stream of the server. More...

override StreamWriter	OutputStream `[get, protected set]`
	Output stream of the server's named pipe. More...

Properties inherited from IG.Lib.IpcStreamServerBase
bool	IsResponseSent `[get, protected set]`
	Auxiliary flag telling whether response to a request has already been sent to the client. Used for synchronization of diffeeent parts of the response generation process, which enables e.g special handling of Exceptions. More...

bool	StopServe `[get, protected set]`
	Whether the pipe should be closed. More...

bool	IsServerRunning `[get, protected set]`
	Flag telling whether the server is currently running. More...

virtual ResponseDelegate	ResponseMethod `[get, set]`
	Delegate that calculates response to given request. More...

ThreadPriority	ThreadPriority `[get, set]`
	Priority of the server thread. More...

Properties inherited from IG.Lib.IpcStreamClientServerBase2
abstract string	Name `[get, set]`

static string	DefaultPipeName `[get, set]`
	Default pipe name. More...

static string	DefaultErrorBegin `[get]`
	Default string that begins an error report. More...

string	ErrorBegin `[get, protected set]`

abstract StreamReader	InputStream `[get, protected set]`
	Input stream writer of the server's named pipe. More...

abstract StreamWriter	OutputStream `[get, protected set]`
	Output stream reader of the server's named pipe. More...

bool	IsError `[get, protected set]`

string	RequestString `[get, protected set]`
	The last request string that was read from the pipe. More...

string	ResponseString `[get, protected set]`
	The last answer string that was written to the pipe. More...

Exception	LastException `[get, protected set]`
	Returns the last exception thrown when serving request. More...

string	LastErrorMessage `[get, protected set]`
	Returns the last error message. More...

string	LastRequestString `[get, protected set]`
	Returns the last request string. More...

string	LastResponseString `[get, protected set]`
	Returns the last response string. More...

Properties inherited from IG.Lib.IpcStreamClientServerBase
object	Lock `[get]`
	Objectt for locking the current object. More...

static object	LockGlobal `[get]`
	Static lock object used by all instances of this class (and possibly by other classes). More...

StringBuilder	StringBuilderInternal `[get]`

static int	DefaultOutputLevel `[get, set]`
	Default level of output for this kind of class. More...

virtual int	OutputLevel `[get, set]`
	Level of output generated by operatins. More...

static string	DefaultMessagePrefix `[get, set]`

static char	DefaultMessageSeparator `[get, set]`

static char	DefaultMessageFalseSeparator `[get, set]`

string	MessagePrefix `[get, protected set]`

char	MessageSeparator `[get, protected set]`

char	MessageFalseSeparator `[get, protected set]`

string	MessagePrefixWithSeparator `[get, protected set]`
	Gets the mesage prefix with separator. If some string is a message, everything that follows this string until the first separator is a message name. More...

static string	DefaultMsgRequestBegin `[get]`
	Default message that begins any mulltiline request. More...

static string	DefaultMsgRequestEnd `[get]`
	Default message that ends any mulltiline request. More...

static string	DefaultMsgResponseBegin `[get]`
	Default message that begins any multiline response. More...

static string	DefaultMsgResponseEnd `[get]`
	Default message that ends any multiline response. More...

static string	DefaultMsgTestSquare `[get]`
	Default message that requests a test computation of square to be performed on the other side (a sort of ping command). More...

static string	DefaultMsgTestSpeed `[get]`
	Default message that requests a speed test to be performed on the other side (a sort of ping command). More...

string	MsgRequestBegin `[get, protected set]`

string	MsgRequestEnd `[get, protected set]`

string	MsgResponseBegin `[get, protected set]`
	Message that begins any multiline response (only when multiline responses are allowed). More...

string	MsgResponseEnd `[get, protected set]`
	Message that ends any multiline response (only when multiline responses are allowed). More...

string	MsgTestSquare `[get, protected set]`
	Message that requests square of its argument to be sent back. Used as a kind of verifiable ping. More...

string	MsgTestSpeed `[get, protected set]`
	Message that requires a kind of speed test to be performed on the other side. More...

static string	DefaultStopRequest `[get, set]`
	Default stop request string - request string that will stop the server. More...

string	StopRequest `[get, set]`
	Request that causes the server stop listening and closing the pipe. More...

static string	DefaultGenericResponse `[get, set]`
	Default generic response (sent in absence of any other method to generate the response). More...

string	GenericResponse `[get, protected set]`
	Generic response that is sent back to the client in abscence of any method generating responses to specific requests. More...

static string	DefaultStoppedResponse `[get, set]`
	Default stopped response (sent after the srver has sttopped on request). More...

string	StoppedResponse `[get, protected set]`
	Stopped response that is sent back to the client after the server stops on its request. More...

static bool	DefaultIsMultilineResponse `[get]`
	Default pipe name. More...

static bool	DefaultIsMultilineRequest `[get]`
	Default pipe name. More...

virtual bool	IsMultilineRequest `[get, protected set]`
	Whether or not multi line requests are allowed. More...

virtual bool	IsMultilineResponse `[get, protected set]`
	Whether or not multi line responses are allowed. More...

Properties inherited from IG.Lib.ILockable
object	Lock `[get]`

Private Member Functions
	NamedPipeServerBase ()
	Prevent default constructor. More...

Private Attributes
string	_pipeName = DefaultPipeName

NamedPipeServerStream	_serverPipe = null

bool	_isTesting = true

StreamReader	_inputStream = null

StreamWriter	_outputStream = null

Additional Inherited Members
Public Attributes inherited from IG.Lib.IpcStreamClientServerBase
const int	MinimalMessagePreffixLength = 3

Static Protected Member Functions inherited from IG.Lib.IpcStreamServerBase
static string	DefaultResponseMethod (string request)
	The deefault method that returns response to the specified request. More...

Protected Attributes inherited from IG.Lib.IpcStreamServerBase
ThreadPriority	_threadPriority = UtilSystem.ThreadPriority

Protected Attributes inherited from IG.Lib.IpcStreamClientServerBase
object	_lock = new object()

Detailed Description

Server that creates a named pipe, listens on its input stream, and sends responses to the client.

$A Igor xx Mar14;

Constructor & Destructor Documentation

IG.Lib.NamedPipeServerBase.NamedPipeServerBase ( )

inlineprivate

Prevent default constructor.

IG.Lib.NamedPipeServerBase.NamedPipeServerBase	(	string	pipeName,
		bool	startImmediately = `true`
	)

inline

Constructs a new pip server.

Parameters

pipeName	Name of the pipe used for client-server communication.
startImmediately	If true then server is started immediately after created.

IG.Lib.NamedPipeServerBase.NamedPipeServerBase	(	string	pipeName,
		string	requestEnd,
		string	responseEnd,
		string	errorBegin,
		bool	startImmediately = `true`
	)

inline

Constructs a new named pipe server with the specified pipe name and other paramters.

Parameters

pipeName	Name of the pipe.
requestEnd	Line that ends each request. If null or empty string then the requests are single line.
responseEnd	Line that ends each response. If null or empty string then the responses are single line.
errorBegin	String that begins an error response. If null or empty string then default string remains in use
startImmediately	If true then server is started immediately after created.

Member Function Documentation

override void IG.Lib.NamedPipeServerBase.CloseConnection ( )

inlineprotectedvirtual

Closes the server pipe.

Implements IG.Lib.IpcStreamClientServerBase2.

override bool IG.Lib.NamedPipeServerBase.IsConnected ( )

inlinevirtual

Returns true if server pipe is connected, .

Implements IG.Lib.IpcStreamClientServerBase2.

override void IG.Lib.NamedPipeServerBase.WaitForConnection ( )

inlineprotectedvirtual

Waits until a client connects to the specified server pipe.

Implements IG.Lib.IpcStreamServerBase.

virtual void IG.Lib.NamedPipeServerBase.WaitForConnection ( NamedPipeServerStream pipe )

inlineprotectedvirtual

Waits until a client connects to the specified server pipe.

Parameters

pipe	Pipe that waits for connection to be established.

override void IG.Lib.NamedPipeServerBase.ClosePipe ( )

inlinevirtual

Closes the Server's pipe and the associated streams.

Implements IG.Lib.IpcStreamClientServerBase2.

override void IG.Lib.NamedPipeServerBase.SendDummyRequest ( )

inlinevirtual

Sends a dummy request in order for the serving function to stop blocking

Implements IG.Lib.IpcStreamServerBase.

override string IG.Lib.NamedPipeServerBase.ToString ( )

inline

Returns a stirng containing the server data.

Member Data Documentation

string IG.Lib.NamedPipeServerBase._pipeName = DefaultPipeName

private

NamedPipeServerStream IG.Lib.NamedPipeServerBase._serverPipe = null

private

bool IG.Lib.NamedPipeServerBase._isTesting = true

private

StreamReader IG.Lib.NamedPipeServerBase._inputStream = null

private

StreamWriter IG.Lib.NamedPipeServerBase._outputStream = null

private

Property Documentation

override string IG.Lib.NamedPipeServerBase.Name

getset

Server name. The same as pipe name.

string IG.Lib.NamedPipeServerBase.PipeName

getset

NamedPipeServerStream IG.Lib.NamedPipeServerBase.ServerPipe

getprotected set

Named pipe used for communication by the server.

override StreamReader IG.Lib.NamedPipeServerBase.InputStream

getprotected set

Input stream of the server.

override StreamWriter IG.Lib.NamedPipeServerBase.OutputStream

getprotected set

Output stream of the server's named pipe.

The documentation for this class was generated from the following file:

igbase/data/streams/IpcNamedPipes.cs

Public Member Functions

Protected Member Functions

Properties

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

Property Documentation
