Base class for named pipe servers and clients, contains common stuff for both. More...

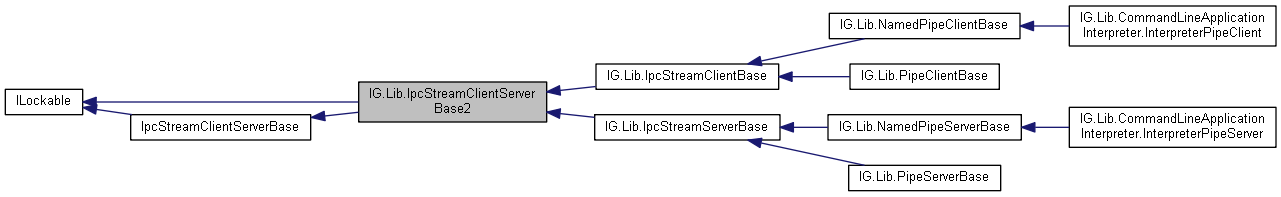

Inheritance diagram for IG.Lib.IpcStreamClientServerBase2:

Collaboration diagram for IG.Lib.IpcStreamClientServerBase2:

Public Member Functions
virtual bool	IsErrorResponse (string responseString)
	Returns true if the specified response string represents an error response (exception), false if not. More...

virtual string	GetErrorMessage (string responseString)
	Returns error message that corresponds to the specified response string. More...

abstract void	ClosePipe ()
	Closes the pipe and streams that depend on it. More...

abstract void	CloseInput ()
	Closes the inpt stream. More...

abstract void	CloseOutput ()
	Closes the outut stream. More...

abstract void	ClearData ()
	Clears all the data related to servig requests (i.e. request and response strings, error flags, exceptions, etc.). More...

abstract bool	IsConnected ()
	Returns true if server pipe is connected, . More...

Public Member Functions inherited from IG.Lib.IpcStreamClientServerBase
delegate string	ResponseDelegate (string request)
	Provides an answer string to the specified request string. More...

void	SetMessagePreix (string messagePrefix)
	Changes message prefix for the current object. More...

void	messageSeparator (char messageSeparator)
	Changes message separator for the current object. More...

void	SetMessageFalseSeparator (char messageFalseSeparator)
	Changes message false separator for the current object. More...

string	CreateMessage (string messageName, string[] messageArguments)
	Creates a built-in message (possibly with arguments) that is to be interpreted directly by the receiver (stream client or server) and is not executed via ordinary path. More...

string	CreateResponseOrRequestString (string originalResponseOrRequestString, bool multiLine)
	Generates request and response string in such a way that it can not be mixed up with a message. More...

void	InterpretRequestOrResponseLine (ref string responseOrRequestString, out bool isMessage, out string messageOrCommandName, out string[] messageArguments)
	Returns the (eventually decoded) request or response string corresponding to the stirng that is read form the communication pipeline, and also parameters that specify whether the request string represents a message or not. Eventual command or message parameters are also returned. More...

void	WriteMessage (StreamWriter outputStream, string message, string[] args)
	Writes a mesage to the output stream. What is written is decorated message (including the standard message prefix and separator) and message arguments. More...

virtual void	WorkMessage (string messageName, string[] messageArguments, IpcStage context, ref bool worked)

virtual void	RespondToMessage (string messageName, string[] messageArguments, ref bool responded)
	Responds to a received message. More...

Protected Member Functions
abstract void	CloseConnection ()
	Closes connection of the server pype. More...

Properties
abstract string	Name `[get, set]`

static string	DefaultPipeName `[get, set]`
	Default pipe name. More...

static string	DefaultErrorBegin `[get]`
	Default string that begins an error report. More...

string	ErrorBegin `[get, protected set]`

abstract StreamReader	InputStream `[get, protected set]`
	Input stream writer of the server's named pipe. More...

abstract StreamWriter	OutputStream `[get, protected set]`
	Output stream reader of the server's named pipe. More...

bool	IsError `[get, protected set]`

string	RequestString `[get, protected set]`
	The last request string that was read from the pipe. More...

string	ResponseString `[get, protected set]`
	The last answer string that was written to the pipe. More...

Exception	LastException `[get, protected set]`
	Returns the last exception thrown when serving request. More...

string	LastErrorMessage `[get, protected set]`
	Returns the last error message. More...

string	LastRequestString `[get, protected set]`
	Returns the last request string. More...

string	LastResponseString `[get, protected set]`
	Returns the last response string. More...

Properties inherited from IG.Lib.IpcStreamClientServerBase
object	Lock `[get]`
	Objectt for locking the current object. More...

static object	LockGlobal `[get]`
	Static lock object used by all instances of this class (and possibly by other classes). More...

StringBuilder	StringBuilderInternal `[get]`

static int	DefaultOutputLevel `[get, set]`
	Default level of output for this kind of class. More...

virtual int	OutputLevel `[get, set]`
	Level of output generated by operatins. More...

static string	DefaultMessagePrefix `[get, set]`

static char	DefaultMessageSeparator `[get, set]`

static char	DefaultMessageFalseSeparator `[get, set]`

string	MessagePrefix `[get, protected set]`

char	MessageSeparator `[get, protected set]`

char	MessageFalseSeparator `[get, protected set]`

string	MessagePrefixWithSeparator `[get, protected set]`
	Gets the mesage prefix with separator. If some string is a message, everything that follows this string until the first separator is a message name. More...

static string	DefaultMsgRequestBegin `[get]`
	Default message that begins any mulltiline request. More...

static string	DefaultMsgRequestEnd `[get]`
	Default message that ends any mulltiline request. More...

static string	DefaultMsgResponseBegin `[get]`
	Default message that begins any multiline response. More...

static string	DefaultMsgResponseEnd `[get]`
	Default message that ends any multiline response. More...

static string	DefaultMsgTestSquare `[get]`
	Default message that requests a test computation of square to be performed on the other side (a sort of ping command). More...

static string	DefaultMsgTestSpeed `[get]`
	Default message that requests a speed test to be performed on the other side (a sort of ping command). More...

string	MsgRequestBegin `[get, protected set]`

string	MsgRequestEnd `[get, protected set]`

string	MsgResponseBegin `[get, protected set]`
	Message that begins any multiline response (only when multiline responses are allowed). More...

string	MsgResponseEnd `[get, protected set]`
	Message that ends any multiline response (only when multiline responses are allowed). More...

string	MsgTestSquare `[get, protected set]`
	Message that requests square of its argument to be sent back. Used as a kind of verifiable ping. More...

string	MsgTestSpeed `[get, protected set]`
	Message that requires a kind of speed test to be performed on the other side. More...

static string	DefaultStopRequest `[get, set]`
	Default stop request string - request string that will stop the server. More...

string	StopRequest `[get, set]`
	Request that causes the server stop listening and closing the pipe. More...

static string	DefaultGenericResponse `[get, set]`
	Default generic response (sent in absence of any other method to generate the response). More...

string	GenericResponse `[get, protected set]`
	Generic response that is sent back to the client in abscence of any method generating responses to specific requests. More...

static string	DefaultStoppedResponse `[get, set]`
	Default stopped response (sent after the srver has sttopped on request). More...

string	StoppedResponse `[get, protected set]`
	Stopped response that is sent back to the client after the server stops on its request. More...

static bool	DefaultIsMultilineResponse `[get]`
	Default pipe name. More...

static bool	DefaultIsMultilineRequest `[get]`
	Default pipe name. More...

virtual bool	IsMultilineRequest `[get, protected set]`
	Whether or not multi line requests are allowed. More...

virtual bool	IsMultilineResponse `[get, protected set]`
	Whether or not multi line responses are allowed. More...

Properties inherited from IG.Lib.ILockable
object	Lock `[get]`

Private Attributes
string	_errorBegin = DefaultErrorBegin
	String (line) that ends a response (only when multiline responses are allowed). More...

Static Private Attributes
static string	_defaultPipeName = "IGLibServerPipe"

static string	_defaultErrorBegin = "$$ERROR__83753093759$$: "

Additional Inherited Members
Public Attributes inherited from IG.Lib.IpcStreamClientServerBase
const int	MinimalMessagePreffixLength = 3

Protected Attributes inherited from IG.Lib.IpcStreamClientServerBase
object	_lock = new object()

Detailed Description

Base class for named pipe servers and clients, contains common stuff for both.

$A Igor xx Mar14;

Member Function Documentation

virtual bool IG.Lib.IpcStreamClientServerBase2.IsErrorResponse ( string responseString )

inlinevirtual

Returns true if the specified response string represents an error response (exception), false if not.

Parameters

responseString Response string that is inspected.

virtual string IG.Lib.IpcStreamClientServerBase2.GetErrorMessage ( string responseString )

inlinevirtual

Returns error message that corresponds to the specified response string.

Exception is thrown if the response string does not represent an error response.

Parameters

responseString Response string for which erro message is returned.

abstract void IG.Lib.IpcStreamClientServerBase2.ClosePipe ( )

pure virtual

Closes the pipe and streams that depend on it.

Implemented in IG.Lib.PipeClientBase, IG.Lib.NamedPipeClientBase, IG.Lib.PipeServerBase, and IG.Lib.NamedPipeServerBase.

Referenced by IG.Lib.CommandLineApplicationInterpreter.RemovePipeClients(), and IG.Lib.CommandLineApplicationInterpreter.RemovePipeServers().

abstract void IG.Lib.IpcStreamClientServerBase2.CloseInput ( )

pure virtual

Closes the inpt stream.

Implemented in IG.Lib.IpcStreamServerBase, and IG.Lib.IpcStreamClientBase.

abstract void IG.Lib.IpcStreamClientServerBase2.CloseOutput ( )

pure virtual

Closes the outut stream.

Implemented in IG.Lib.IpcStreamServerBase, and IG.Lib.IpcStreamClientBase.

abstract void IG.Lib.IpcStreamClientServerBase2.ClearData ( )

pure virtual

Clears all the data related to servig requests (i.e. request and response strings, error flags, exceptions, etc.).

Implemented in IG.Lib.IpcStreamServerBase, and IG.Lib.IpcStreamClientBase.

abstract void IG.Lib.IpcStreamClientServerBase2.CloseConnection ( )

protectedpure virtual

Closes connection of the server pype.

Implemented in IG.Lib.PipeClientBase, IG.Lib.NamedPipeClientBase, IG.Lib.PipeServerBase, and IG.Lib.NamedPipeServerBase.

abstract bool IG.Lib.IpcStreamClientServerBase2.IsConnected ( )

pure virtual

Returns true if server pipe is connected, .

Implemented in IG.Lib.PipeClientBase, IG.Lib.NamedPipeClientBase, IG.Lib.PipeServerBase, and IG.Lib.NamedPipeServerBase.

Member Data Documentation

string IG.Lib.IpcStreamClientServerBase2._defaultPipeName = "IGLibServerPipe"

staticprivate

string IG.Lib.IpcStreamClientServerBase2._defaultErrorBegin = "$$ERROR__83753093759$$: "

staticprivate

string IG.Lib.IpcStreamClientServerBase2._errorBegin = DefaultErrorBegin

private

String (line) that ends a response (only when multiline responses are allowed).

Property Documentation

abstract string IG.Lib.IpcStreamClientServerBase2.Name

getset

Referenced by IG.Lib.CommandLineApplicationInterpreter.RemovePipeClients(), and IG.Lib.CommandLineApplicationInterpreter.RemovePipeServers().

string IG.Lib.IpcStreamClientServerBase2.DefaultPipeName

staticgetset

Default pipe name.

string IG.Lib.IpcStreamClientServerBase2.DefaultErrorBegin

staticget

Default string that begins an error report.

string IG.Lib.IpcStreamClientServerBase2.ErrorBegin

getprotected set

abstract StreamReader IG.Lib.IpcStreamClientServerBase2.InputStream

getprotected set

Input stream writer of the server's named pipe.

abstract StreamWriter IG.Lib.IpcStreamClientServerBase2.OutputStream

getprotected set

Output stream reader of the server's named pipe.

bool IG.Lib.IpcStreamClientServerBase2.IsError

getprotected set

string IG.Lib.IpcStreamClientServerBase2.RequestString

getprotected set

The last request string that was read from the pipe.

string IG.Lib.IpcStreamClientServerBase2.ResponseString

getprotected set

The last answer string that was written to the pipe.

Exception IG.Lib.IpcStreamClientServerBase2.LastException

getprotected set

Returns the last exception thrown when serving request.

string IG.Lib.IpcStreamClientServerBase2.LastErrorMessage

getprotected set

Returns the last error message.

string IG.Lib.IpcStreamClientServerBase2.LastRequestString

getprotected set

Returns the last request string.

string IG.Lib.IpcStreamClientServerBase2.LastResponseString

getprotected set

Returns the last response string.

The documentation for this class was generated from the following file:

igbase/data/streams/IpcStreamClientServerBase2.cs
