Base class for client and server classes with stream-based communication. More...

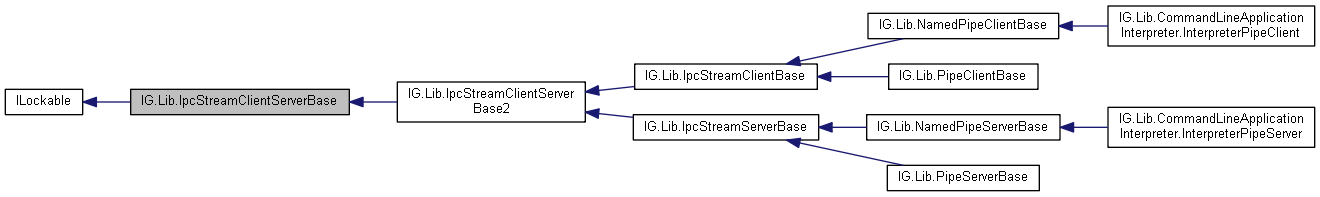

Inheritance diagram for IG.Lib.IpcStreamClientServerBase:

Collaboration diagram for IG.Lib.IpcStreamClientServerBase:

Public Member Functions
delegate string	ResponseDelegate (string request)
	Provides an answer string to the specified request string. More...

void	SetMessagePreix (string messagePrefix)
	Changes message prefix for the current object. More...

void	messageSeparator (char messageSeparator)
	Changes message separator for the current object. More...

void	SetMessageFalseSeparator (char messageFalseSeparator)
	Changes message false separator for the current object. More...

string	CreateMessage (string messageName, string[] messageArguments)
	Creates a built-in message (possibly with arguments) that is to be interpreted directly by the receiver (stream client or server) and is not executed via ordinary path. More...

string	CreateResponseOrRequestString (string originalResponseOrRequestString, bool multiLine)
	Generates request and response string in such a way that it can not be mixed up with a message. More...

void	InterpretRequestOrResponseLine (ref string responseOrRequestString, out bool isMessage, out string messageOrCommandName, out string[] messageArguments)
	Returns the (eventually decoded) request or response string corresponding to the stirng that is read form the communication pipeline, and also parameters that specify whether the request string represents a message or not. Eventual command or message parameters are also returned. More...

void	WriteMessage (StreamWriter outputStream, string message, string[] args)
	Writes a mesage to the output stream. What is written is decorated message (including the standard message prefix and separator) and message arguments. More...

virtual void	WorkMessage (string messageName, string[] messageArguments, IpcStage context, ref bool worked)

virtual void	RespondToMessage (string messageName, string[] messageArguments, ref bool responded)
	Responds to a received message. More...

Public Attributes
const int	MinimalMessagePreffixLength = 3

Protected Attributes
object	_lock = new object()

Properties
object	Lock `[get]`
	Objectt for locking the current object. More...

static object	LockGlobal `[get]`
	Static lock object used by all instances of this class (and possibly by other classes). More...

StringBuilder	StringBuilderInternal `[get]`

static int	DefaultOutputLevel `[get, set]`
	Default level of output for this kind of class. More...

virtual int	OutputLevel `[get, set]`
	Level of output generated by operatins. More...

static string	DefaultMessagePrefix `[get, set]`

static char	DefaultMessageSeparator `[get, set]`

static char	DefaultMessageFalseSeparator `[get, set]`

string	MessagePrefix `[get, protected set]`

char	MessageSeparator `[get, protected set]`

char	MessageFalseSeparator `[get, protected set]`

string	MessagePrefixWithSeparator `[get, protected set]`
	Gets the mesage prefix with separator. If some string is a message, everything that follows this string until the first separator is a message name. More...

static string	DefaultMsgRequestBegin `[get]`
	Default message that begins any mulltiline request. More...

static string	DefaultMsgRequestEnd `[get]`
	Default message that ends any mulltiline request. More...

static string	DefaultMsgResponseBegin `[get]`
	Default message that begins any multiline response. More...

static string	DefaultMsgResponseEnd `[get]`
	Default message that ends any multiline response. More...

static string	DefaultMsgTestSquare `[get]`
	Default message that requests a test computation of square to be performed on the other side (a sort of ping command). More...

static string	DefaultMsgTestSpeed `[get]`
	Default message that requests a speed test to be performed on the other side (a sort of ping command). More...

string	MsgRequestBegin `[get, protected set]`

string	MsgRequestEnd `[get, protected set]`

string	MsgResponseBegin `[get, protected set]`
	Message that begins any multiline response (only when multiline responses are allowed). More...

string	MsgResponseEnd `[get, protected set]`
	Message that ends any multiline response (only when multiline responses are allowed). More...

string	MsgTestSquare `[get, protected set]`
	Message that requests square of its argument to be sent back. Used as a kind of verifiable ping. More...

string	MsgTestSpeed `[get, protected set]`
	Message that requires a kind of speed test to be performed on the other side. More...

static string	DefaultStopRequest `[get, set]`
	Default stop request string - request string that will stop the server. More...

string	StopRequest `[get, set]`
	Request that causes the server stop listening and closing the pipe. More...

static string	DefaultGenericResponse `[get, set]`
	Default generic response (sent in absence of any other method to generate the response). More...

string	GenericResponse `[get, protected set]`
	Generic response that is sent back to the client in abscence of any method generating responses to specific requests. More...

static string	DefaultStoppedResponse `[get, set]`
	Default stopped response (sent after the srver has sttopped on request). More...

string	StoppedResponse `[get, protected set]`
	Stopped response that is sent back to the client after the server stops on its request. More...

static bool	DefaultIsMultilineResponse `[get]`
	Default pipe name. More...

static bool	DefaultIsMultilineRequest `[get]`
	Default pipe name. More...

virtual bool	IsMultilineRequest `[get, protected set]`
	Whether or not multi line requests are allowed. More...

virtual bool	IsMultilineResponse `[get, protected set]`
	Whether or not multi line responses are allowed. More...

Properties inherited from IG.Lib.ILockable
object	Lock `[get]`

Private Attributes
StringBuilder	_sb = new StringBuilder()

int	_otputLevel = DefaultOutputLevel

string	_messagePrefix = DefaultMessagePrefix

char	_messageSeparator = DefaultMessageSeparator

char	_messageFalseSeparator = DefaultMessageFalseSeparator

string	_messagePrefixWithSeparator = null

string	_msgRequestBegin = DefaultMsgRequestBegin
	Message that begins any multiline request (only when multiline requests are allowed). More...

string	_msgRequestEnd = DefaultMsgRequestEnd
	Message that ends any multiline request (only when multiline requests are allowed). More...

string	_msgResponseBegin = DefaultMsgResponseBegin

string	_msgResponseEnd = DefaultMsgResponseEnd

string	_msgTestSquare = DefaultMsgTestSquare

string	_msgTestSpeed = DefaultMsgTestSpeed

string	_stopRequest = DefaultStopRequest

string	_genericResponse = DefaultGenericResponse

string	_stoppedResponse = DefaultStoppedResponse

bool	_isMultilineRequest = DefaultIsMultilineRequest

bool	_isMultilineResponse = DefaultIsMultilineResponse

Static Private Attributes
static object	_lockGlobal = null

static int	_defatultOutputLevel = 1

static string	_defaultMessagePrefix = "IGLibMsg"

static char	_defaultMessageSeparator = '_'

static char	_defaultMessageFalseSeparator = '.'

static string	_defaultMsgRequestBegin = "RequestBegin"

static string	_defaultMsgRequestEnd = "RequestEnd"

static string	_defaultMsgResponseBegin = "ResponseBegin"

static string	_defaultMsgResponseEnd = "ResponseEnd"

static string	_defaultMsgTestSquare = "TestStuare"

static string	_defaultMsgTestSpeed = "TestSpeed"

static string	_defaultStopRequest = "stop"

static string	_defaultGenericResponse = "IGLib_PipeServer_GenericResponse"

static string	_defaultStoppedResponse = "IGLib_PipeServer_StoppedResponse"

static bool	_defaultIsMultilineResponse = true

static bool	_defaultIsMultilineRequest = true

Detailed Description

Base class for client and server classes with stream-based communication.

$A Igor xx Aug14;

Member Function Documentation

delegate string IG.Lib.IpcStreamClientServerBase.ResponseDelegate ( string request )

Provides an answer string to the specified request string.

Parameters

request Request string.

Returns: Answer to the request.

void IG.Lib.IpcStreamClientServerBase.SetMessagePreix ( string messagePrefix )

inline

Changes message prefix for the current object.

This setter method is provided in order to keep the MessagePrefix setter protected.

Parameters

messagePrefix New message prefix. Must be at least MinimalMessagePreffixLength characters long.

void IG.Lib.IpcStreamClientServerBase.messageSeparator ( char messageSeparator )

inline

Changes message separator for the current object.

This setter method is provided in order to keep the MessageSeparator setter protected.

Parameters

messageSeparator New message separator must not be a separator or a white space character.

void IG.Lib.IpcStreamClientServerBase.SetMessageFalseSeparator ( char messageFalseSeparator )

inline

Changes message false separator for the current object.

This setter method is provided in order to keep the MessageFalseSeparator setter protected.

Parameters

messageFalseSeparator New message false separator must not be a separator or a white space character.

string IG.Lib.IpcStreamClientServerBase.CreateMessage	(	string	messageName,
		string[]	messageArguments
	)

inline

Creates a built-in message (possibly with arguments) that is to be interpreted directly by the receiver (stream client or server) and is not executed via ordinary path.

Messages commands are composed of message prefix, separator (jointly MessagePrefixWithSeparator), and message name. The first two are fixed parts whire the latter varies and defines the message.

Parameters

messageName	Name of the message (a kind of command name).
messageArguments	Optional arguments of the message.

Returns

string IG.Lib.IpcStreamClientServerBase.CreateResponseOrRequestString	(	string	originalResponseOrRequestString,
		bool	multiLine
	)

inline

Generates request and response string in such a way that it can not be mixed up with a message.

If the original string begins with the message prefix theen a false separator is inserted after the part that is the same as message prefix. In this way the string can be distinguished form a message and can be correctly decoded on the other side of the communication pipeline (simply by removng the false separator).

Parameters

originalResponseOrRequestString	Original response string that is sent to the other side.
multiLine	Specifies whether request or response, respectively, can be a multiline string.

Returns: The created request string that can be distinguished form a command.

void IG.Lib.IpcStreamClientServerBase.InterpretRequestOrResponseLine	(	ref string	responseOrRequestString,
		out bool	isMessage,
		out string	messageOrCommandName,
		out string[]	messageArguments
	)

inline

Returns the (eventually decoded) request or response string corresponding to the stirng that is read form the communication pipeline, and also parameters that specify whether the request string represents a message or not. Eventual command or message parameters are also returned.

Parameters

responseOrRequestString	Original response or request string that is to be decoded.
isMessage	Output flag telling whether the string is a message or not.
messageOrCommandName	Name of the message or command extracted from the string.
messageArguments	Message or command arguments.

void IG.Lib.IpcStreamClientServerBase.WriteMessage	(	StreamWriter	outputStream,
		string	message,
		string[]	args
	)

inline

Writes a mesage to the output stream. What is written is decorated message (including the standard message prefix and separator) and message arguments.

Parameters

outputStream	Stream where the message is written to.
message	Message name. The name is decorated with prefix and separator when message is written to a stream.
args	Arguments of the message. Can be null for message without arguments.

virtual void IG.Lib.IpcStreamClientServerBase.WorkMessage	(	string	messageName,
		string[]	messageArguments,
		IpcStage	context,
		ref bool	worked
	)

inlinevirtual

virtual void IG.Lib.IpcStreamClientServerBase.RespondToMessage	(	string	messageName,
		string[]	messageArguments,
		ref bool	responded
	)

inlinevirtual

Responds to a received message.

Parameters

messageName	Name of the message upon which action is taken.
messageArguments	Arguments of the message.
responded	Set to true if message has already been responded.

Member Data Documentation

object IG.Lib.IpcStreamClientServerBase._lock = new object()

protected

object IG.Lib.IpcStreamClientServerBase._lockGlobal = null

staticprivate

StringBuilder IG.Lib.IpcStreamClientServerBase._sb = new StringBuilder()

private

int IG.Lib.IpcStreamClientServerBase._defatultOutputLevel = 1

staticprivate

int IG.Lib.IpcStreamClientServerBase._otputLevel = DefaultOutputLevel

private

const int IG.Lib.IpcStreamClientServerBase.MinimalMessagePreffixLength = 3

string IG.Lib.IpcStreamClientServerBase._defaultMessagePrefix = "IGLibMsg"

staticprivate

char IG.Lib.IpcStreamClientServerBase._defaultMessageSeparator = '_'

staticprivate

char IG.Lib.IpcStreamClientServerBase._defaultMessageFalseSeparator = '.'

staticprivate

string IG.Lib.IpcStreamClientServerBase._messagePrefix = DefaultMessagePrefix

private

char IG.Lib.IpcStreamClientServerBase._messageSeparator = DefaultMessageSeparator

private

char IG.Lib.IpcStreamClientServerBase._messageFalseSeparator = DefaultMessageFalseSeparator

private

string IG.Lib.IpcStreamClientServerBase._messagePrefixWithSeparator = null

private

string IG.Lib.IpcStreamClientServerBase._defaultMsgRequestBegin = "RequestBegin"

staticprivate

string IG.Lib.IpcStreamClientServerBase._defaultMsgRequestEnd = "RequestEnd"

staticprivate

string IG.Lib.IpcStreamClientServerBase._defaultMsgResponseBegin = "ResponseBegin"

staticprivate

string IG.Lib.IpcStreamClientServerBase._defaultMsgResponseEnd = "ResponseEnd"

staticprivate

string IG.Lib.IpcStreamClientServerBase._defaultMsgTestSquare = "TestStuare"

staticprivate

string IG.Lib.IpcStreamClientServerBase._defaultMsgTestSpeed = "TestSpeed"

staticprivate

string IG.Lib.IpcStreamClientServerBase._msgRequestBegin = DefaultMsgRequestBegin

private

Message that begins any multiline request (only when multiline requests are allowed).

string IG.Lib.IpcStreamClientServerBase._msgRequestEnd = DefaultMsgRequestEnd

private

Message that ends any multiline request (only when multiline requests are allowed).

string IG.Lib.IpcStreamClientServerBase._msgResponseBegin = DefaultMsgResponseBegin

private

string IG.Lib.IpcStreamClientServerBase._msgResponseEnd = DefaultMsgResponseEnd

private

string IG.Lib.IpcStreamClientServerBase._msgTestSquare = DefaultMsgTestSquare

private

string IG.Lib.IpcStreamClientServerBase._msgTestSpeed = DefaultMsgTestSpeed

private

string IG.Lib.IpcStreamClientServerBase._defaultStopRequest = "stop"

staticprivate

string IG.Lib.IpcStreamClientServerBase._stopRequest = DefaultStopRequest

private

string IG.Lib.IpcStreamClientServerBase._defaultGenericResponse = "IGLib_PipeServer_GenericResponse"

staticprivate

string IG.Lib.IpcStreamClientServerBase._genericResponse = DefaultGenericResponse

private

string IG.Lib.IpcStreamClientServerBase._defaultStoppedResponse = "IGLib_PipeServer_StoppedResponse"

staticprivate

string IG.Lib.IpcStreamClientServerBase._stoppedResponse = DefaultStoppedResponse

private

bool IG.Lib.IpcStreamClientServerBase._defaultIsMultilineResponse = true

staticprivate

bool IG.Lib.IpcStreamClientServerBase._defaultIsMultilineRequest = true

staticprivate

bool IG.Lib.IpcStreamClientServerBase._isMultilineRequest = DefaultIsMultilineRequest

private

bool IG.Lib.IpcStreamClientServerBase._isMultilineResponse = DefaultIsMultilineResponse

private

Property Documentation

object IG.Lib.IpcStreamClientServerBase.Lock

get

Objectt for locking the current object.

object IG.Lib.IpcStreamClientServerBase.LockGlobal

staticget

Static lock object used by all instances of this class (and possibly by other classes).

StringBuilder IG.Lib.IpcStreamClientServerBase.StringBuilderInternal

getprotected

int IG.Lib.IpcStreamClientServerBase.DefaultOutputLevel

staticgetset

Default level of output for this kind of class.

virtual int IG.Lib.IpcStreamClientServerBase.OutputLevel

getset

Level of output generated by operatins.

Referenced by IG.Lib.CommandLineApplicationInterpreter.CreatePipeClient(), and IG.Lib.CommandLineApplicationInterpreter.CreatePipeServer().

string IG.Lib.IpcStreamClientServerBase.DefaultMessagePrefix

staticgetset

char IG.Lib.IpcStreamClientServerBase.DefaultMessageSeparator

staticgetset

char IG.Lib.IpcStreamClientServerBase.DefaultMessageFalseSeparator

staticgetset

string IG.Lib.IpcStreamClientServerBase.MessagePrefix

getprotected set

char IG.Lib.IpcStreamClientServerBase.MessageSeparator

getprotected set

char IG.Lib.IpcStreamClientServerBase.MessageFalseSeparator

getprotected set

string IG.Lib.IpcStreamClientServerBase.MessagePrefixWithSeparator

getprotected set

Gets the mesage prefix with separator. If some string is a message, everything that follows this string until the first separator is a message name.

A protected getter is defined that is only allowed to set the property to null (invalidate it). If a non-null value is set then an exception is thrown.

string IG.Lib.IpcStreamClientServerBase.DefaultMsgRequestBegin

staticget

Default message that begins any mulltiline request.

string IG.Lib.IpcStreamClientServerBase.DefaultMsgRequestEnd

staticget

Default message that ends any mulltiline request.

string IG.Lib.IpcStreamClientServerBase.DefaultMsgResponseBegin

staticget

Default message that begins any multiline response.

string IG.Lib.IpcStreamClientServerBase.DefaultMsgResponseEnd

staticget

Default message that ends any multiline response.

string IG.Lib.IpcStreamClientServerBase.DefaultMsgTestSquare

staticget

Default message that requests a test computation of square to be performed on the other side (a sort of ping command).

string IG.Lib.IpcStreamClientServerBase.DefaultMsgTestSpeed

staticget

Default message that requests a speed test to be performed on the other side (a sort of ping command).

string IG.Lib.IpcStreamClientServerBase.MsgRequestBegin

getprotected set

string IG.Lib.IpcStreamClientServerBase.MsgRequestEnd

getprotected set

string IG.Lib.IpcStreamClientServerBase.MsgResponseBegin

getprotected set

Message that begins any multiline response (only when multiline responses are allowed).

string IG.Lib.IpcStreamClientServerBase.MsgResponseEnd

getprotected set

Message that ends any multiline response (only when multiline responses are allowed).

string IG.Lib.IpcStreamClientServerBase.MsgTestSquare

getprotected set

Message that requests square of its argument to be sent back. Used as a kind of verifiable ping.

string IG.Lib.IpcStreamClientServerBase.MsgTestSpeed

getprotected set

Message that requires a kind of speed test to be performed on the other side.

string IG.Lib.IpcStreamClientServerBase.DefaultStopRequest

staticgetset

Default stop request string - request string that will stop the server.

string IG.Lib.IpcStreamClientServerBase.StopRequest

getset

Request that causes the server stop listening and closing the pipe.

string IG.Lib.IpcStreamClientServerBase.DefaultGenericResponse

staticgetset

Default generic response (sent in absence of any other method to generate the response).

string IG.Lib.IpcStreamClientServerBase.GenericResponse

getprotected set

Generic response that is sent back to the client in abscence of any method generating responses to specific requests.

string IG.Lib.IpcStreamClientServerBase.DefaultStoppedResponse

staticgetset

Default stopped response (sent after the srver has sttopped on request).

string IG.Lib.IpcStreamClientServerBase.StoppedResponse

getprotected set

Stopped response that is sent back to the client after the server stops on its request.

bool IG.Lib.IpcStreamClientServerBase.DefaultIsMultilineResponse

staticget

Default pipe name.

bool IG.Lib.IpcStreamClientServerBase.DefaultIsMultilineRequest

staticget

Default pipe name.

virtual bool IG.Lib.IpcStreamClientServerBase.IsMultilineRequest

getprotected set

Whether or not multi line requests are allowed.

virtual bool IG.Lib.IpcStreamClientServerBase.IsMultilineResponse

getprotected set

Whether or not multi line responses are allowed.

The documentation for this class was generated from the following file:

igbase/data/streams/IpcStreamClientServerBase.cs

Public Member Functions

Public Attributes

Protected Attributes

Properties

Private Attributes

Static Private Attributes

Detailed Description

Member Function Documentation

Member Data Documentation

Property Documentation
