Server that creates a named pipe, listens on its input stream, and sends responses to the client. More...

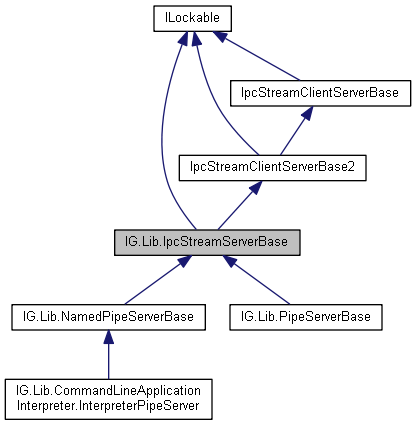

Inheritance diagram for IG.Lib.IpcStreamServerBase:

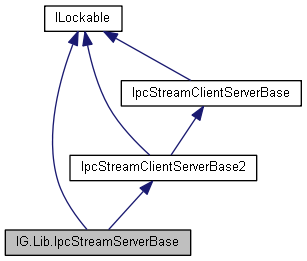

Collaboration diagram for IG.Lib.IpcStreamServerBase:

Public Member Functions
override void	CloseInput ()
	Closes the inpt stream. More...

override void	CloseOutput ()
	Closes the outut stream. More...

abstract void	SendDummyRequest ()

virtual void	StopServer ()

virtual string	GetResponse (string request)
	Returns response string for given request string. More...

void	ThreadServe ()
	Launches a named pipe server in a new thread. More...

void	AbortWorkingThread (double timeoutSeconds=0)
	Aborts the working thread. More...

override void	ClearData ()
	Clears all the data related to servig requests (i.e. request and response strings, error flags, exceptions, etc.). More...

Public Member Functions inherited from IG.Lib.IpcStreamClientServerBase2
virtual bool	IsErrorResponse (string responseString)
	Returns true if the specified response string represents an error response (exception), false if not. More...

virtual string	GetErrorMessage (string responseString)
	Returns error message that corresponds to the specified response string. More...

abstract void	ClosePipe ()
	Closes the pipe and streams that depend on it. More...

abstract bool	IsConnected ()
	Returns true if server pipe is connected, . More...

Public Member Functions inherited from IG.Lib.IpcStreamClientServerBase
delegate string	ResponseDelegate (string request)
	Provides an answer string to the specified request string. More...

void	SetMessagePreix (string messagePrefix)
	Changes message prefix for the current object. More...

void	messageSeparator (char messageSeparator)
	Changes message separator for the current object. More...

void	SetMessageFalseSeparator (char messageFalseSeparator)
	Changes message false separator for the current object. More...

string	CreateMessage (string messageName, string[] messageArguments)
	Creates a built-in message (possibly with arguments) that is to be interpreted directly by the receiver (stream client or server) and is not executed via ordinary path. More...

string	CreateResponseOrRequestString (string originalResponseOrRequestString, bool multiLine)
	Generates request and response string in such a way that it can not be mixed up with a message. More...

void	InterpretRequestOrResponseLine (ref string responseOrRequestString, out bool isMessage, out string messageOrCommandName, out string[] messageArguments)
	Returns the (eventually decoded) request or response string corresponding to the stirng that is read form the communication pipeline, and also parameters that specify whether the request string represents a message or not. Eventual command or message parameters are also returned. More...

void	WriteMessage (StreamWriter outputStream, string message, string[] args)
	Writes a mesage to the output stream. What is written is decorated message (including the standard message prefix and separator) and message arguments. More...

virtual void	WorkMessage (string messageName, string[] messageArguments, IpcStage context, ref bool worked)

virtual void	RespondToMessage (string messageName, string[] messageArguments, ref bool responded)
	Responds to a received message. More...

Protected Member Functions
abstract void	WaitForConnection ()
	Waits until a client connects to the specified server pipe. More...

virtual string	GetErrorMessage (Exception ex)
	Returns error message corresponding to the specified exception. More...

virtual string	ReadRequest ()
	Reads the next request from the pipe. More...

virtual void	SendResponse (string responseString)
	Sends the specified response string back to the server. More...

virtual void	SendResponse ()
	Sends the response (i.e., the IpcStreamClientServerBase2.ResponseString) back to the client. More...

virtual void	RespondToRequest ()
	Reads a single request from the client and sends back the response. More...

virtual void	ServeInCurrentThread ()
	Enters the serving loop. More...

Protected Member Functions inherited from IG.Lib.IpcStreamClientServerBase2
abstract void	CloseConnection ()
	Closes connection of the server pype. More...

Static Protected Member Functions
static string	DefaultResponseMethod (string request)
	The deefault method that returns response to the specified request. More...

Protected Attributes
ThreadPriority	_threadPriority = UtilSystem.ThreadPriority

Protected Attributes inherited from IG.Lib.IpcStreamClientServerBase
object	_lock = new object()

Properties
bool	IsResponseSent `[get, protected set]`
	Auxiliary flag telling whether response to a request has already been sent to the client. Used for synchronization of diffeeent parts of the response generation process, which enables e.g special handling of Exceptions. More...

bool	StopServe `[get, protected set]`
	Whether the pipe should be closed. More...

bool	IsServerRunning `[get, protected set]`
	Flag telling whether the server is currently running. More...

virtual ResponseDelegate	ResponseMethod `[get, set]`
	Delegate that calculates response to given request. More...

ThreadPriority	ThreadPriority `[get, set]`
	Priority of the server thread. More...

Properties inherited from IG.Lib.IpcStreamClientServerBase2
abstract string	Name `[get, set]`

static string	DefaultPipeName `[get, set]`
	Default pipe name. More...

static string	DefaultErrorBegin `[get]`
	Default string that begins an error report. More...

string	ErrorBegin `[get, protected set]`

abstract StreamReader	InputStream `[get, protected set]`
	Input stream writer of the server's named pipe. More...

abstract StreamWriter	OutputStream `[get, protected set]`
	Output stream reader of the server's named pipe. More...

bool	IsError `[get, protected set]`

string	RequestString `[get, protected set]`
	The last request string that was read from the pipe. More...

string	ResponseString `[get, protected set]`
	The last answer string that was written to the pipe. More...

Exception	LastException `[get, protected set]`
	Returns the last exception thrown when serving request. More...

string	LastErrorMessage `[get, protected set]`
	Returns the last error message. More...

string	LastRequestString `[get, protected set]`
	Returns the last request string. More...

string	LastResponseString `[get, protected set]`
	Returns the last response string. More...

Properties inherited from IG.Lib.IpcStreamClientServerBase
object	Lock `[get]`
	Objectt for locking the current object. More...

static object	LockGlobal `[get]`
	Static lock object used by all instances of this class (and possibly by other classes). More...

StringBuilder	StringBuilderInternal `[get]`

static int	DefaultOutputLevel `[get, set]`
	Default level of output for this kind of class. More...

virtual int	OutputLevel `[get, set]`
	Level of output generated by operatins. More...

static string	DefaultMessagePrefix `[get, set]`

static char	DefaultMessageSeparator `[get, set]`

static char	DefaultMessageFalseSeparator `[get, set]`

string	MessagePrefix `[get, protected set]`

char	MessageSeparator `[get, protected set]`

char	MessageFalseSeparator `[get, protected set]`

string	MessagePrefixWithSeparator `[get, protected set]`
	Gets the mesage prefix with separator. If some string is a message, everything that follows this string until the first separator is a message name. More...

static string	DefaultMsgRequestBegin `[get]`
	Default message that begins any mulltiline request. More...

static string	DefaultMsgRequestEnd `[get]`
	Default message that ends any mulltiline request. More...

static string	DefaultMsgResponseBegin `[get]`
	Default message that begins any multiline response. More...

static string	DefaultMsgResponseEnd `[get]`
	Default message that ends any multiline response. More...

static string	DefaultMsgTestSquare `[get]`
	Default message that requests a test computation of square to be performed on the other side (a sort of ping command). More...

static string	DefaultMsgTestSpeed `[get]`
	Default message that requests a speed test to be performed on the other side (a sort of ping command). More...

string	MsgRequestBegin `[get, protected set]`

string	MsgRequestEnd `[get, protected set]`

string	MsgResponseBegin `[get, protected set]`
	Message that begins any multiline response (only when multiline responses are allowed). More...

string	MsgResponseEnd `[get, protected set]`
	Message that ends any multiline response (only when multiline responses are allowed). More...

string	MsgTestSquare `[get, protected set]`
	Message that requests square of its argument to be sent back. Used as a kind of verifiable ping. More...

string	MsgTestSpeed `[get, protected set]`
	Message that requires a kind of speed test to be performed on the other side. More...

static string	DefaultStopRequest `[get, set]`
	Default stop request string - request string that will stop the server. More...

string	StopRequest `[get, set]`
	Request that causes the server stop listening and closing the pipe. More...

static string	DefaultGenericResponse `[get, set]`
	Default generic response (sent in absence of any other method to generate the response). More...

string	GenericResponse `[get, protected set]`
	Generic response that is sent back to the client in abscence of any method generating responses to specific requests. More...

static string	DefaultStoppedResponse `[get, set]`
	Default stopped response (sent after the srver has sttopped on request). More...

string	StoppedResponse `[get, protected set]`
	Stopped response that is sent back to the client after the server stops on its request. More...

static bool	DefaultIsMultilineResponse `[get]`
	Default pipe name. More...

static bool	DefaultIsMultilineRequest `[get]`
	Default pipe name. More...

virtual bool	IsMultilineRequest `[get, protected set]`
	Whether or not multi line requests are allowed. More...

virtual bool	IsMultilineResponse `[get, protected set]`
	Whether or not multi line responses are allowed. More...

Properties inherited from IG.Lib.ILockable
object	Lock `[get]`

Private Attributes
bool	_stopServe = false

bool	_isServerRunning = false

ResponseDelegate	_responseMethod = DefaultResponseMethod

Thread	_workingThread = null

Additional Inherited Members
Public Attributes inherited from IG.Lib.IpcStreamClientServerBase
const int	MinimalMessagePreffixLength = 3

Detailed Description

Server that creates a named pipe, listens on its input stream, and sends responses to the client.

$A Igor xx Mar14;

Member Function Documentation

abstract void IG.Lib.IpcStreamServerBase.WaitForConnection ( )

protectedpure virtual

Waits until a client connects to the specified server pipe.

Implemented in IG.Lib.PipeServerBase, and IG.Lib.NamedPipeServerBase.

override void IG.Lib.IpcStreamServerBase.CloseInput ( )

inlinevirtual

Closes the inpt stream.

Implements IG.Lib.IpcStreamClientServerBase2.

override void IG.Lib.IpcStreamServerBase.CloseOutput ( )

inlinevirtual

Closes the outut stream.

Implements IG.Lib.IpcStreamClientServerBase2.

abstract void IG.Lib.IpcStreamServerBase.SendDummyRequest ( )

pure virtual

Implemented in IG.Lib.PipeServerBase, and IG.Lib.NamedPipeServerBase.

virtual void IG.Lib.IpcStreamServerBase.StopServer ( )

inlinevirtual

Referenced by IG.Lib.CommandLineApplicationInterpreter.RemovePipeServers().

static string IG.Lib.IpcStreamServerBase.DefaultResponseMethod ( string request )

inlinestaticprotected

The deefault method that returns response to the specified request.

Just returns a string that tells which was the request string.

Parameters

request

virtual string IG.Lib.IpcStreamServerBase.GetResponse ( string request )

inlinevirtual

Returns response string for given request string.

This method will generally be overridden in derived classes.

Parameters

request The request string.

Returns: Response to the request string.

Reimplemented in IG.Lib.CommandLineApplicationInterpreter.InterpreterPipeServer.

virtual string IG.Lib.IpcStreamServerBase.GetErrorMessage ( Exception ex )

inlineprotectedvirtual

Returns error message corresponding to the specified exception.

Parameters

ex

virtual string IG.Lib.IpcStreamServerBase.ReadRequest ( )

inlineprotectedvirtual

Reads the next request from the pipe.

virtual void IG.Lib.IpcStreamServerBase.SendResponse ( string responseString )

inlineprotectedvirtual

Sends the specified response string back to the server.

Parameters

responseString

virtual void IG.Lib.IpcStreamServerBase.SendResponse ( )

inlineprotectedvirtual

Sends the response (i.e., the IpcStreamClientServerBase2.ResponseString) back to the client.

virtual void IG.Lib.IpcStreamServerBase.RespondToRequest ( )

inlineprotectedvirtual

Reads a single request from the client and sends back the response.

virtual void IG.Lib.IpcStreamServerBase.ServeInCurrentThread ( )

inlineprotectedvirtual

Enters the serving loop.

Within the loop, only ReadRequest() and RespondToRequest() are executed. The latter must handle things like stopping requests.

void IG.Lib.IpcStreamServerBase.ThreadServe ( )

inline

Launches a named pipe server in a new thread.

Referenced by IG.Lib.CommandLineApplicationInterpreter.CreatePipeServer().

void IG.Lib.IpcStreamServerBase.AbortWorkingThread ( double timeoutSeconds = 0 )

inline

Aborts the working thread.

Parameters

timeoutSeconds

override void IG.Lib.IpcStreamServerBase.ClearData ( )

inlinevirtual

Clears all the data related to servig requests (i.e. request and response strings, error flags, exceptions, etc.).

Implements IG.Lib.IpcStreamClientServerBase2.

Member Data Documentation

bool IG.Lib.IpcStreamServerBase._stopServe = false

private

bool IG.Lib.IpcStreamServerBase._isServerRunning = false

private

ResponseDelegate IG.Lib.IpcStreamServerBase._responseMethod = DefaultResponseMethod

private

Thread IG.Lib.IpcStreamServerBase._workingThread = null

private

ThreadPriority IG.Lib.IpcStreamServerBase._threadPriority = UtilSystem.ThreadPriority

protected

Property Documentation

bool IG.Lib.IpcStreamServerBase.IsResponseSent

getprotected set

Auxiliary flag telling whether response to a request has already been sent to the client. Used for synchronization of diffeeent parts of the response generation process, which enables e.g special handling of Exceptions.

bool IG.Lib.IpcStreamServerBase.StopServe

getprotected set

Whether the pipe should be closed.

bool IG.Lib.IpcStreamServerBase.IsServerRunning

getprotected set

Flag telling whether the server is currently running.

virtual ResponseDelegate IG.Lib.IpcStreamServerBase.ResponseMethod

getset

Delegate that calculates response to given request.

ThreadPriority IG.Lib.IpcStreamServerBase.ThreadPriority

getset

Priority of the server thread.

Setting priority changes priority of the server thread if it exists.

The documentation for this class was generated from the following file:

igbase/data/streams/IpcStreamServerBase.cs

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Properties

Private Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

Member Data Documentation

Property Documentation
