Base class for plotting classes that plot on VTK windows (class VtkPlotter). More...

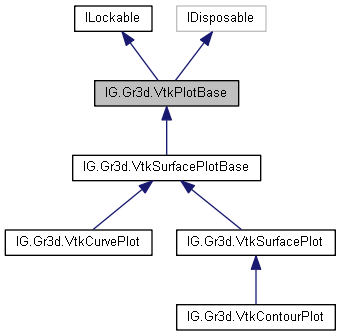

Inheritance diagram for IG.Gr3d.VtkPlotBase:

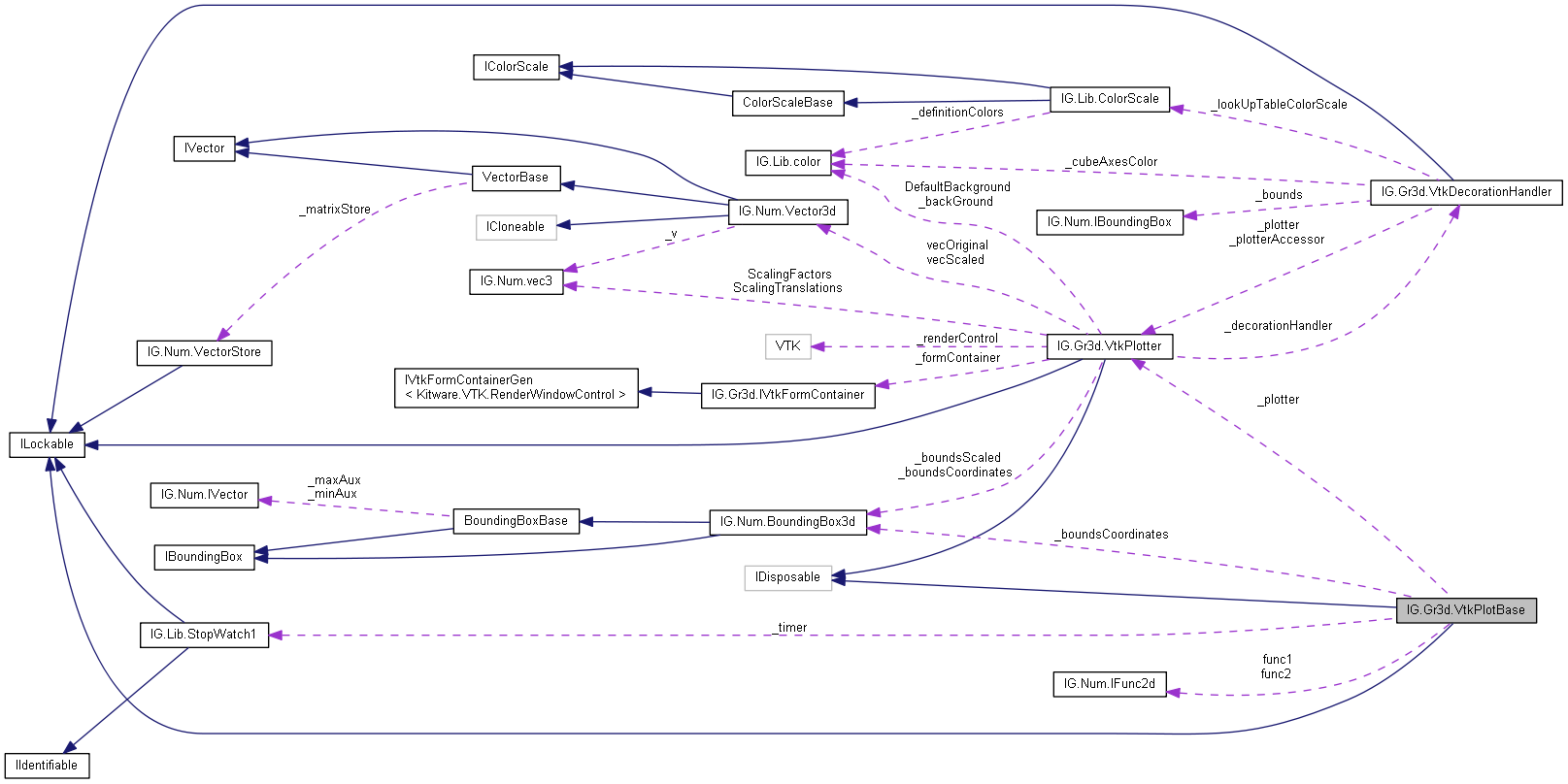

Collaboration diagram for IG.Gr3d.VtkPlotBase:

Classes
class	ExampleFunc2dLinear
	Function f(x,y)=x+y. More...

class	ExampleFunc2dShifted
	Function defined as some other function shifted for the specified value. More...

class	ExampleFunc2dSquare
	Function f(x,y)=xx+yy. More...

class	ExampleFunc2dXY
	Function f(x,y)=x*y. More...

class	ExampleFuncDiff
	Difference between the two auxiliary functions. More...

class	ExampleFunctionTorusKnot
	Functions for all 3 co-ordinates of parametric curve definition of a p-q torus knot . Used in the ExampleCurvePlotTorusKnot. More...

class	ExampleSineFunctionForLissajous
	Sine function with the specified frequency factor and phase. Used in the ExampleLissajous. More...

class	ExampleValueFunctionDiff21
	3D function of coordinates that returns difference between func2 and func1 at the first two coordinates. More...

class	Func2dX
	2D function that returns the first parameter. Used as the first componnet of parametric definition of surfce that is defined by a single function of 2 variables. More...

class	Func2dY
	2D function that returns the second parameter. Used as the second componnet of parametric definition of surfce that is defined by a single function of 2 variables. More...

class	Func2dZero
	Auxiliary 2D function that returns 0. More...

class	Func3dZ
	3D function that returns the third component of its 3D vector argument. Used e.g. for coloring graphs by heights. More...

class	Func3dZero
	3D function that returns 0. Used e.g. for coloring graphs by heights. More...

Public Member Functions
	VtkPlotBase (VtkPlotter plotter)
	Constructor. More...

bool	ContainsActor (vtkActor actor)
	Returns true if the specified VTK Actor is contained on (registered with) the current VtkPlotBase object, or false otherwise. More...

void	AddActor (vtkActor actor)
	Adds the specified actor to the list of actors of the current VTK plotter. More...

void	AddActors (params vtkActor[] actors)
	Adds the specified actors to the list of actors of the current VTK plotter. More...

void	AddActorsToPlotter ()
	Adds all actors from the current plot to the plotter that this plot is assigned to. More...

void	AddActorsToPlotter (VtkPlotter plotter)
	Adds all actors from the current plot to the specified plotter. More...

void	RemoveActor (vtkActor actor)
	Removes the specified actor from the list of actors of the current VTK plotter, and disposes unmanaged resources used by that object. More...

void	RemoveActors (params vtkActor[] actors)
	Removes the specified actors from the list of actors of the current VTK plotter, and disposes unmanaged resources used by that objects. More...

void	RemoveActors ()
	Removes all actors that are currently contained on the list of actors of the current object. More...

void	UpdateBoundsOnActors (IBoundingBox bounds)
	Updates the specified bounding box in such a way that all actors from the current plot object fit into it. More...

void	ScaleActors ()
	Scales all actors on the current plot by the plotter's scaling method. More...

bool	ContainsAlgorithm (vtkAlgorithm algorithm)
	Returns true if the specified VTK algorithm is contained on (registered with) the current VtkPlotter object, or false otherwise. More...

void	AddAlgorithm (vtkAlgorithm algorithm)
	Adds the specified algorithm to the list of algorithms of the current VTK plotter. More...

void	AddAlgorithms (params vtkAlgorithm[] algorithms)
	Adds the specified algorithms to the list of algorithms of the current VTK plotter. More...

void	RemoveAlgorithm (vtkAlgorithm algorithm)
	Removes the specified algorithm from the list of algorithms of the current VTK plotter, and disposes unmanaged resources used by that object. More...

void	RemoveAlgorithms (params vtkAlgorithm[] algorithms)
	Removes the specified algorithms from the list of algorithms of the current VTK plotter, and disposes unmanaged resources used by that objects. More...

bool	ContainsMapper (vtkMapper mapper)
	Returns true if the specified VTK mapper is contained on (registered with) the current VtkPlotter object, or false otherwise. More...

void	AddMapper (vtkMapper mapper)
	Adds the specified mapper to the list of mappers of the current VTK plotter. More...

void	AddMappers (params vtkMapper[] mappers)
	Adds the specified mappers to the list of mappers of the current VTK plotter. More...

void	RemoveMapper (vtkMapper mapper)
	Removes the specified mapper from the list of mappers of the current VTK plotter, and disposes unmanaged resources used by that object. More...

void	RemoveMappers (params vtkMapper[] mappers)
	Removes the specified mappers from the list of mappers of the current VTK plotter, and disposes unmanaged resources used by that objects. More...

bool	ContainsDataset (vtkDataSet dataset)
	Returns true if the specified VTK dataset is contained on (registered with) the current VtkPlotter object, or false otherwise. More...

void	AddDataset (vtkDataSet dataset)
	Adds the specified dataset to the list of datasets of the current VTK plotter. More...

void	AddDatasets (params vtkDataSet[] datasets)
	Adds the specified datasets to the list of datasets of the current VTK plotter. More...

void	RemoveDataset (vtkDataSet dataset)
	Removes the specified dataset from the list of datasets of the current VTK plotter, and disposes unmanaged resources used by that object. More...

void	RemoveDatasets (params vtkDataSet[] datasets)
	Removes the specified datasets from the list of datasets of the current VTK plotter, and disposes unmanaged resources used by that objects. More...

void	UpdateBoundsCoordinates (bool forced, double x, double y, double z)
	Updates the bounding box of coordinates (BoundsCoordinates), if the conditions are met, in such a way that the point with the specified coordinates fits witin it. More...

void	UpdateBoundsCoordinates (double x, double y, double z)
	Updates the bounding box of coordinates (BoundsCoordinates), if the AutoUpdateBoundsCoordinates flag is true, in such a way that the point with the specified coordinates fits witin it. More...

void	UpdateBoundsCoordinates (bool forced, vec3 pointCoordinates)
	Updates the bounding box of coordinates (BoundsCoordinates), if the conditions are met, in such a way that the point with the specified coordinates fits witin it. More...

void	UpdateBoundsCoordinates (vec3 pointCoordinates)
	Updates the bounding box of coordinates (BoundsCoordinates), if the AutoUpdateBoundsCoordinates flag is true, in such a way that the point with the specified coordinates fits witin it. More...

abstract void	Create ()
	Creates the plot. More...

virtual void	ShowPlot ()
	Makes the associated plotter show the plots that are currently added. More...

virtual void	CreateAndShow ()
	Creates the plot and makes the associated plotter show it. More...

void	Dispose ()
	Implementation of IDisposable interface. More...

Static Public Member Functions
static void	ExampleCustomSurfaceComparison ()
	Custom comparison of two surfaces in 3D defined as functions of two variables. More...

static void	ExampleCurvePlotLissajous ()
	Example curve plot. Plots a curve whose projection on the XY plane is a Lissajous curve, but which also oscillates in the Z direction. More...

static void	ExampleCurvePlotLissajous (int a, int b)
	Example curve plot. Plots a curve whose projection on the XY plane is a Lissajous curve, but which also oscillates in the Z direction. More...

static void	ExampleCurvePlotTorusKnot ()
	Example curve plot. Plots a curve whose projection on the XY plane is a Lissajous curve, but which also oscillates in the Z direction. More...

static void	ExampleCurvePlotTorusKnot (int p, int q)
	Example curve plot. Plots a two-parameters torus knot. Parameters must be coprimes. More...

static void	ExamplePlotterDecoration ()
	Example that demonstrates how various plotter decorations can be set up. More...

static void	ExampleSurfacePlot ()
	Example of surface plots. More...

static void	ExampleSurfacePlotScaled ()
	Example of surface plots where graph is scaled automaticallly. More...

static void	ExampleSurfacePlotScaled (int numX, int numY)
	Example of surface plots where graph is scaled automatically. More...

static void	ExampleSurfacePlotManualScaled ()
	Example of surface plots where mesh is generated manually. Also shows scaling of graph. More...

static void	ExampleSurfacePlotManualScaled (int numX, int numY)
	Example of surface plots where mesh is generated manually. Also shows scaling of graph. More...

static void	ExampleContourPlot ()
	Examples of contour plots. More...

static void	CopyBounds (Func3d2dExamples.ParametricSurface func, VtkSurfacePlot plot)
	Copies bounds on parameters from the function definition of parametric surface to a plot object for plotting surfaces. More...

static void	ExampleParametricSurfacePlots ()
	Examples of various parametric surface plots. More...

Protected Member Functions
virtual void	Dispose (bool disposing)
	Does the job of freeing resources. More...

Protected Attributes
List< vtkActor >	_actors

List< vtkAlgorithm >	_algorithms

List< vtkMapper >	_mappers

List< vtkDataSet >	_dataSets

bool	_autoUpdateBoundsCoordinates = true

Properties
object	Lock `[get]`
	This object's central lock object to be used by other object. Do not use this object for locking in class' methods, for this you should use InternalLock. More...

int	OutputLevel `[get, set]`
	Level of output to the console for the current object. The defalult output level for newly created object is specified by VtkPlotter.DefaultOutputLevel. More...

StopWatch1	Timer `[get]`
	Stopwatch that can be used to measure the time efficiency of actions. More...

color	BackGround `[get, set]`
	Sets background color of the plotter that is used by the current plot object. More...

VtkPlotter	Plotter `[get, set]`
	VTK plotter that is used for rendering graphics produeced by the current plotting class, on a VTK rendering window. More...

List< vtkActor >	Actors `[get, set]`
	List of actors contained on the current class. More...

List< vtkAlgorithm >	algorithms `[get, set]`
	List of algorithms contained on the current class. More...

List< vtkMapper >	Mappers `[get, set]`
	List of mappers contained on the current class. More...

List< vtkDataSet >	DataSets `[get, set]`
	List of datasets contained on the current class. More...

bool	AutoUpdateBoundsCoordinates `[get, set]`
	Determines whether bounds on plotted geometry are automatically updated when new primitives are added. More...

BoundingBox3d	BoundsCoordinates `[get, protected set]`
	Bounds on coordinates of points that define the plots. everything on the plot should fit in these bounds. More...

Properties inherited from IG.Lib.ILockable
object	Lock `[get]`

Private Member Functions
	VtkPlotBase ()
	Prevent calling argument-less constructor in derived classes. More...

	~VtkPlotBase ()

Private Attributes
object	_mainLock = new object()

int	_outputLevel = VtkPlotter.DefaultOutputLevel

StopWatch1	_timer

VtkPlotter	_plotter

BoundingBox3d	_boundsCoordinates

bool	disposed = false

Static Private Attributes
static IFunc2d	func1 = new ExampleFunc2dShifted(new ExampleFunc2dSquare(), 0.5)
	First uxiliary function used in examples. More...

static IFunc2d	func2 = new ExampleFunc2dXY()
	Second uxiliary function used in examples. More...

Detailed Description

Base class for plotting classes that plot on VTK windows (class VtkPlotter).

Classes derived from this class produce pecific plots (such as surface or line plots) on the related VTK rendering window.

Interaction with a VTK rendering window is managed by an VtkPlotter

object.

$A Igor xx Nov11;

Constructor & Destructor Documentation

IG.Gr3d.VtkPlotBase.VtkPlotBase ( )

inlineprivate

Prevent calling argument-less constructor in derived classes.

IG.Gr3d.VtkPlotBase.VtkPlotBase ( VtkPlotter plotter )

inline

Constructor.

Parameters

plotter VTK plotter that is used for rendering graphics produeced by the current plotting class.

References IG.Gr3d.VtkPlotter.AddPlotObject().

IG.Gr3d.VtkPlotBase.~VtkPlotBase ( )

inlineprivate

Member Function Documentation

bool IG.Gr3d.VtkPlotBase.ContainsActor ( vtkActor actor )

inline

Returns true if the specified VTK Actor is contained on (registered with) the current VtkPlotBase object, or false otherwise.

Parameters

actor Actor whose existent on the list is checked for.

Returns

void IG.Gr3d.VtkPlotBase.AddActor ( vtkActor actor )

inline

Adds the specified actor to the list of actors of the current VTK plotter.

If the object is already on the list of actors then it is not inserted again.

Parameters

actor VTK Actor to be added on the currrent VtkPlotter object.

void IG.Gr3d.VtkPlotBase.AddActors ( params vtkActor[] actors )

inline

Adds the specified actors to the list of actors of the current VTK plotter.

Parameters

actors Objects to be added to the list.

void IG.Gr3d.VtkPlotBase.AddActorsToPlotter ( )

inline

Adds all actors from the current plot to the plotter that this plot is assigned to.

Referenced by IG.Gr3d.VtkPlotter.ShowFormContainerInThread().

void IG.Gr3d.VtkPlotBase.AddActorsToPlotter ( VtkPlotter plotter )

inline

Adds all actors from the current plot to the specified plotter.

Parameters

plotter Plotter to which actors from the current plot are added.

void IG.Gr3d.VtkPlotBase.RemoveActor ( vtkActor actor )

inline

Removes the specified actor from the list of actors of the current VTK plotter, and disposes unmanaged resources used by that object.

If the specified object is not on the list of actors then nothing happens.

Parameters

actor VTK Actor to be removed from the currrent VtkPlotter object.

void IG.Gr3d.VtkPlotBase.RemoveActors ( params vtkActor[] actors )

inline

Removes the specified actors from the list of actors of the current VTK plotter, and disposes unmanaged resources used by that objects.

If no objects are specified then nothing happens. Also for the specified objects that are null or are not on the list, nothing happens. If removing one of the objects throws an exception then the remaining objects are removed without any disturbance.

Parameters

actors Objects to be removed from the list.

Referenced by IG.Gr3d.VtkPlotBase.ExampleParametricSurfacePlots(), and IG.Gr3d.VtkPlotBase.ExampleSurfacePlot().

void IG.Gr3d.VtkPlotBase.RemoveActors ( )

inline

Removes all actors that are currently contained on the list of actors of the current object.

void IG.Gr3d.VtkPlotBase.UpdateBoundsOnActors ( IBoundingBox bounds )

inline

Updates the specified bounding box in such a way that all actors from the current plot object fit into it.

Parameters

bounds Bounds to be updated.

References IG.Num.IBoundingBox.Update().

Referenced by IG.Gr3d.VtkPlotter.CalculateBoundsFromPlotsActors().

void IG.Gr3d.VtkPlotBase.ScaleActors ( )

inline

Scales all actors on the current plot by the plotter's scaling method.

References IG.Gr3d.VtkPlotter.ScaleActorPlain().

Referenced by IG.Gr3d.VtkPlotter.ScaleActors().

bool IG.Gr3d.VtkPlotBase.ContainsAlgorithm ( vtkAlgorithm algorithm )

inline

Returns true if the specified VTK algorithm is contained on (registered with) the current VtkPlotter object, or false otherwise.

Parameters

algorithm object to be checked.

void IG.Gr3d.VtkPlotBase.AddAlgorithm ( vtkAlgorithm algorithm )

inline

Adds the specified algorithm to the list of algorithms of the current VTK plotter.

If the object is already on the list of algorithms then it is not inserted again.

Parameters

algorithm VTK algorithm to be added on the currrent VtkPlotter object.

void IG.Gr3d.VtkPlotBase.AddAlgorithms ( params vtkAlgorithm[] algorithms )

inline

Adds the specified algorithms to the list of algorithms of the current VTK plotter.

Parameters

algorithms Objects to be added to the list.

void IG.Gr3d.VtkPlotBase.RemoveAlgorithm ( vtkAlgorithm algorithm )

inline

Removes the specified algorithm from the list of algorithms of the current VTK plotter, and disposes unmanaged resources used by that object.

If the specified object is not on the list of algorithms then nothing happens.

Parameters

algorithm VTK algorithm to be removed from the currrent VtkPlotter object.

void IG.Gr3d.VtkPlotBase.RemoveAlgorithms ( params vtkAlgorithm[] algorithms )

inline

Removes the specified algorithms from the list of algorithms of the current VTK plotter, and disposes unmanaged resources used by that objects.

If no objects are specified then nothing happens. Also for the specified objects that are null or are not on the list, nothing happens. If removing one of the objects throws an exception then the remaining objects are removed without any disturbance.

Parameters

algorithms Objects to be removed from the list.

bool IG.Gr3d.VtkPlotBase.ContainsMapper ( vtkMapper mapper )

inline

Returns true if the specified VTK mapper is contained on (registered with) the current VtkPlotter object, or false otherwise.

Parameters

mapper Mapper to be checked.

void IG.Gr3d.VtkPlotBase.AddMapper ( vtkMapper mapper )

inline

Adds the specified mapper to the list of mappers of the current VTK plotter.

If the object is already on the list of mappers then it is not inserted again.

Parameters

mapper VTK mapper to be added on the currrent VtkPlotter object.

void IG.Gr3d.VtkPlotBase.AddMappers ( params vtkMapper[] mappers )

inline

Adds the specified mappers to the list of mappers of the current VTK plotter.

Parameters

mappers Objects to be added to the list.

void IG.Gr3d.VtkPlotBase.RemoveMapper ( vtkMapper mapper )

inline

Removes the specified mapper from the list of mappers of the current VTK plotter, and disposes unmanaged resources used by that object.

If the specified object is not on the list of mappers then nothing happens.

Parameters

mapper VTK mapper to be removed from the currrent VtkPlotter object.

void IG.Gr3d.VtkPlotBase.RemoveMappers ( params vtkMapper[] mappers )

inline

Removes the specified mappers from the list of mappers of the current VTK plotter, and disposes unmanaged resources used by that objects.

If no objects are specified then nothing happens. Also for the specified objects that are null or are not on the list, nothing happens. If removing one of the objects throws an exception then the remaining objects are removed without any disturbance.

Parameters

mappers Objects to be removed from the list.

bool IG.Gr3d.VtkPlotBase.ContainsDataset ( vtkDataSet dataset )

inline

Returns true if the specified VTK dataset is contained on (registered with) the current VtkPlotter object, or false otherwise.

Parameters

dataset dataset to be checked.

void IG.Gr3d.VtkPlotBase.AddDataset ( vtkDataSet dataset )

inline

Adds the specified dataset to the list of datasets of the current VTK plotter.

If the object is already on the list of datasets then it is not inserted again.

Parameters

dataset VTK dataset to be added on the currrent VtkPlotter object.

void IG.Gr3d.VtkPlotBase.AddDatasets ( params vtkDataSet[] datasets )

inline

Adds the specified datasets to the list of datasets of the current VTK plotter.

Parameters

datasets Objects to be added to the list.

void IG.Gr3d.VtkPlotBase.RemoveDataset ( vtkDataSet dataset )

inline

Removes the specified dataset from the list of datasets of the current VTK plotter, and disposes unmanaged resources used by that object.

If the specified object is not on the list of datasets then nothing happens.

Parameters

dataset VTK dataset to be removed from the currrent VtkPlotter object.

void IG.Gr3d.VtkPlotBase.RemoveDatasets ( params vtkDataSet[] datasets )

inline

Removes the specified datasets from the list of datasets of the current VTK plotter, and disposes unmanaged resources used by that objects.

If no objects are specified then nothing happens. Also for the specified objects that are null or are not on the list, nothing happens. If removing one of the objects throws an exception then the remaining objects are removed without any disturbance.

Parameters

datasets Objects to be removed from the list.

void IG.Gr3d.VtkPlotBase.UpdateBoundsCoordinates	(	bool	forced,
		double	x,
		double	y,
		double	z
	)

inline

Updates the bounding box of coordinates (BoundsCoordinates), if the conditions are met, in such a way that the point with the specified coordinates fits witin it.

Conditions are met if the forced flag is true or the AutoUpdateBoundsCoordinates flag is true.

Parameters

forced	Flag for forced update. If true then update is performed even if the auto updating flg (AutoUpdateBoundsCoordinates) is false.
x	X coordinate of the point to fit within the bounding box.
y	Y coordinate of the point to fit within the bounding box.
z	Z coordinate of the point to fit within the bounding box.

References IG.Num.BoundingBox3d.Update().

void IG.Gr3d.VtkPlotBase.UpdateBoundsCoordinates	(	double	x,
		double	y,
		double	z
	)

inline

Updates the bounding box of coordinates (BoundsCoordinates), if the AutoUpdateBoundsCoordinates flag is true, in such a way that the point with the specified coordinates fits witin it.

(AutoUpdateBoundsCoordinates) is false.

Parameters

x	X coordinate of the point to fit within the bounding box.
y	Y coordinate of the point to fit within the bounding box.
z	Z coordinate of the point to fit within the bounding box.

References IG.Num.BoundingBox3d.Update().

void IG.Gr3d.VtkPlotBase.UpdateBoundsCoordinates	(	bool	forced,
		vec3	pointCoordinates
	)

inline

Updates the bounding box of coordinates (BoundsCoordinates), if the conditions are met, in such a way that the point with the specified coordinates fits witin it.

Conditions are met if the forced flag is true or the AutoUpdateBoundsCoordinates flag is true.

Parameters

forced	Flag for forced update. If true then update is performed even if the auto updating flg (AutoUpdateBoundsCoordinates) is false.
pointCoordinates	Coordinates of the point to fit within the bounding box.

References IG.Num.BoundingBox3d.Update().

void IG.Gr3d.VtkPlotBase.UpdateBoundsCoordinates ( vec3 pointCoordinates )

inline

Updates the bounding box of coordinates (BoundsCoordinates), if the AutoUpdateBoundsCoordinates flag is true, in such a way that the point with the specified coordinates fits witin it.

(AutoUpdateBoundsCoordinates) is false.

Parameters

pointCoordinates Coordinates of the point to fit within the bounding box.

References IG.Num.BoundingBox3d.Update().

abstract void IG.Gr3d.VtkPlotBase.Create ( )

pure virtual

Creates the plot.

Implemented in IG.Gr3d.VtkSurfacePlot, and IG.Gr3d.VtkCurvePlot.

virtual void IG.Gr3d.VtkPlotBase.ShowPlot ( )

inlinevirtual

Makes the associated plotter show the plots that are currently added.

Warning: this does not create a plot.

Referenced by IG.Gr3d.VtkPlotBase.ExampleSurfacePlot(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlotManualScaled(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlotScaled(), IG.Forms.VectorFunctionPlotter2d.PlotParametricTest(), and IG.Script.ScriptGraphics3DBase.SurfaceFunctionTwoToruses().

virtual void IG.Gr3d.VtkPlotBase.CreateAndShow ( )

inlinevirtual

Creates the plot and makes the associated plotter show it.

Referenced by IG.Gr3d.VtkPlotBase.ExampleContourPlot(), IG.Gr3d.VtkPlotBase.ExampleCustomSurfaceComparison(), IG.Gr3d.VtkPlotBase.ExampleParametricSurfacePlots(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlot(), IG.Script.ScriptGraphics3DBase.SurfaceFunctionKleinBottle(), and IG.Script.ScriptGraphics3DBase.SurfaceFunctionSnailShell().

void IG.Gr3d.VtkPlotBase.Dispose ( )

inline

Implementation of IDisposable interface.

Referenced by IG.Gr3d.VtkPlotter.RemovePlotObject().

virtual void IG.Gr3d.VtkPlotBase.Dispose ( bool disposing )

inlineprotectedvirtual

Does the job of freeing resources.

This method can be eventually overridden in derived classes (if they use other resources that must be freed - in addition to such resources of the current class). In the case of overriding this method, you should usually call the base.Dispose(disposing ). in the overriding method.

Parameters

disposing Tells whether the method has been called form Dispose() method.

static void IG.Gr3d.VtkPlotBase.ExampleCustomSurfaceComparison ( )

inlinestatic

Custom comparison of two surfaces in 3D defined as functions of two variables.

On the main surface, wireframe is shown, surface is transparent and its color varies according to difference with the other surface.

The second surface is a wireframe and is very transparent.

Referenced by IG.Script.ScriptGraphics3DBase.Plot3dFunctionSurfaceComparison().

static void IG.Gr3d.VtkPlotBase.ExampleCurvePlotLissajous ( )

inlinestatic

Example curve plot. Plots a curve whose projection on the XY plane is a Lissajous curve, but which also oscillates in the Z direction.

Referenced by IG.Script.ScriptGraphics3DBase.Plot3dFunctionCurvePlotLissajous().

static void IG.Gr3d.VtkPlotBase.ExampleCurvePlotLissajous	(	int	a,
		int	b
	)

inlinestatic

Example curve plot. Plots a curve whose projection on the XY plane is a Lissajous curve, but which also oscillates in the Z direction.

Parameters

a	First parameter of the plotted Lissajous curve.
b	Second parameter of the plotted Lissajous curve.

Lissajous curves are well known from fugures created on oscilloscopes when the apparatus is connected to two oscillating voltages with different frequences (in ratios that can be )

static void IG.Gr3d.VtkPlotBase.ExampleCurvePlotTorusKnot ( )

inlinestatic

Example curve plot. Plots a curve whose projection on the XY plane is a Lissajous curve, but which also oscillates in the Z direction.

static void IG.Gr3d.VtkPlotBase.ExampleCurvePlotTorusKnot	(	int	p,
		int	q
	)

inlinestatic

Example curve plot. Plots a two-parameters torus knot. Parameters must be coprimes.

Parameters

p	First parameter of the torus knot.
q	Second parameter of the torus knot.

Lissajous curves are well known from fugures created on oscilloscopes when the apparatus is connected to two oscillating voltages with different frequences (in ratios that can be )

static void IG.Gr3d.VtkPlotBase.ExamplePlotterDecoration ( )

inlinestatic

Example that demonstrates how various plotter decorations can be set up.

Referenced by IG.Script.ScriptGraphics3DBase.Plot3dFunctionDecoration().

static void IG.Gr3d.VtkPlotBase.ExampleSurfacePlot ( )

inlinestatic

Example of surface plots.

Referenced by IG.Script.ScriptGraphics3DBase.Plot3dFunctionSurfacePlot().

static void IG.Gr3d.VtkPlotBase.ExampleSurfacePlotScaled ( )

inlinestatic

Example of surface plots where graph is scaled automaticallly.

Referenced by IG.Script.ScriptGraphics3DBase.Plot3dFunctionSurfacePlotScaled().

static void IG.Gr3d.VtkPlotBase.ExampleSurfacePlotScaled	(	int	numX,
		int	numY
	)

inlinestatic

Example of surface plots where graph is scaled automatically.

Parameters

numX	Number of plotting points in x direction.
numY	Number of plotting points in Y direction.

static void IG.Gr3d.VtkPlotBase.ExampleSurfacePlotManualScaled ( )

inlinestatic

Example of surface plots where mesh is generated manually. Also shows scaling of graph.

Referenced by IG.Script.ScriptGraphics3DBase.Plot3dFunctionSurfacePlotManualScaled().

static void IG.Gr3d.VtkPlotBase.ExampleSurfacePlotManualScaled	(	int	numX,
		int	numY
	)

inlinestatic

Example of surface plots where mesh is generated manually. Also shows scaling of graph.

Parameters

numX	Number of plotting points in x direction.
numY	Number of plotting points in Y direction.

static void IG.Gr3d.VtkPlotBase.ExampleContourPlot ( )

inlinestatic

Examples of contour plots.

Referenced by IG.Script.ScriptGraphics3DBase.Plot3dFunctionContourPlot().

static void IG.Gr3d.VtkPlotBase.CopyBounds	(	Func3d2dExamples.ParametricSurface	func,
		VtkSurfacePlot	plot
	)

inlinestatic

Copies bounds on parameters from the function definition of parametric surface to a plot object for plotting surfaces.

References IG.Gr3d.VtkSurfacePlot.NumX, IG.Gr3d.VtkSurfacePlot.NumY, and IG.Gr3d.VtkSurfacePlot.SetBoundsParameters().

Referenced by IG.Script.ScriptGraphics3DBase.SurfaceFunctionKleinBottle(), IG.Script.ScriptGraphics3DBase.SurfaceFunctionSnailShell(), and IG.Script.ScriptGraphics3DBase.SurfaceFunctionTwoToruses().

static void IG.Gr3d.VtkPlotBase.ExampleParametricSurfacePlots ( )

inlinestatic

Examples of various parametric surface plots.

Member Data Documentation

object IG.Gr3d.VtkPlotBase._mainLock = new object()

private

int IG.Gr3d.VtkPlotBase._outputLevel = VtkPlotter.DefaultOutputLevel

private

StopWatch1 IG.Gr3d.VtkPlotBase._timer

private

VtkPlotter IG.Gr3d.VtkPlotBase._plotter

private

List<vtkActor> IG.Gr3d.VtkPlotBase._actors

protected

List<vtkAlgorithm> IG.Gr3d.VtkPlotBase._algorithms

protected

List<vtkMapper> IG.Gr3d.VtkPlotBase._mappers

protected

List<vtkDataSet> IG.Gr3d.VtkPlotBase._dataSets

protected

bool IG.Gr3d.VtkPlotBase._autoUpdateBoundsCoordinates = true

protected

BoundingBox3d IG.Gr3d.VtkPlotBase._boundsCoordinates

private

bool IG.Gr3d.VtkPlotBase.disposed = false

private

IFunc2d IG.Gr3d.VtkPlotBase.func1 = new ExampleFunc2dShifted(new ExampleFunc2dSquare(), 0.5)

staticprivate

First uxiliary function used in examples.

IFunc2d IG.Gr3d.VtkPlotBase.func2 = new ExampleFunc2dXY()

staticprivate

Second uxiliary function used in examples.

Property Documentation

object IG.Gr3d.VtkPlotBase.Lock

get

This object's central lock object to be used by other object. Do not use this object for locking in class' methods, for this you should use InternalLock.

int IG.Gr3d.VtkPlotBase.OutputLevel

getset

Level of output to the console for the current object. The defalult output level for newly created object is specified by VtkPlotter.DefaultOutputLevel.

StopWatch1 IG.Gr3d.VtkPlotBase.Timer

get

Stopwatch that can be used to measure the time efficiency of actions.

color IG.Gr3d.VtkPlotBase.BackGround

getset

Sets background color of the plotter that is used by the current plot object.

Task is delegated to the plotter.

VtkPlotter IG.Gr3d.VtkPlotBase.Plotter

getset

VTK plotter that is used for rendering graphics produeced by the current plotting class, on a VTK rendering window.

Getter is not thread safe (for better efficiency).

List<vtkActor> IG.Gr3d.VtkPlotBase.Actors

getsetprotected

List of actors contained on the current class.

Setter is thread safe.

Lazy evaluation - list object is automatically generated when first accessed.

List<vtkAlgorithm> IG.Gr3d.VtkPlotBase.algorithms

getsetprotected

List of algorithms contained on the current class.

Setter is thread safe.

Lazy evaluation - list object is automatically generated when first accessed.

List<vtkMapper> IG.Gr3d.VtkPlotBase.Mappers

getsetprotected

List of mappers contained on the current class.

Setter is thread safe.

Lazy evaluation - list object is automatically generated when first accessed.

List<vtkDataSet> IG.Gr3d.VtkPlotBase.DataSets

getsetprotected

List of datasets contained on the current class.

Setter is thread safe.

Lazy evaluation - list object is automatically generated when first accessed.

bool IG.Gr3d.VtkPlotBase.AutoUpdateBoundsCoordinates

getset

Determines whether bounds on plotted geometry are automatically updated when new primitives are added.

BoundingBox3d IG.Gr3d.VtkPlotBase.BoundsCoordinates

getprotected set

Bounds on coordinates of points that define the plots. everything on the plot should fit in these bounds.

Referenced by IG.Gr3d.VtkPlotter.CalculateBoundsFromPlotsBounds().

The documentation for this class was generated from the following file:

extensions/igplot3d/plot3d/vtkbased/VtkPlotBase.cs

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Properties

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

Property Documentation
