IG.Gr3d.VtkPlotter Class Reference

Plotter class that uses a vtkRenderWindow object for plotting 3D graphics. More...

Inheritance diagram for IG.Gr3d.VtkPlotter:

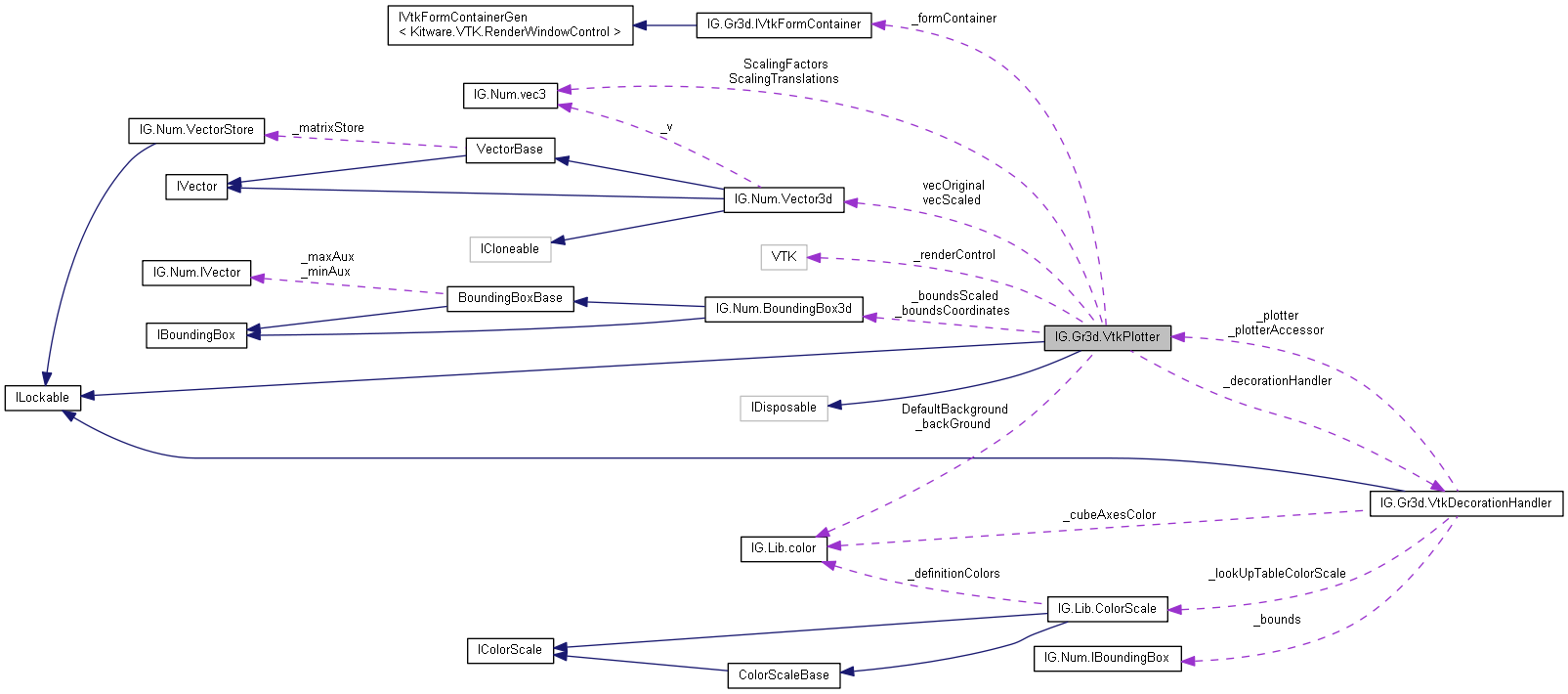

Collaboration diagram for IG.Gr3d.VtkPlotter:

Classes
class	Accessor
	Class that is used to access the VtkPlotter's window in classes that are not derived from that class. Access can be granted by either inheriting from this class or by uding this class as proxy class. More...

Public Member Functions
	VtkPlotter ()
	VtkPlotter (vtkRenderWindow window)
	Constructor. More...
	VtkPlotter (IVtkFormContainer formContainer)
	Constructor. More...
	VtkPlotter (Kitware.VTK.RenderWindowControl renderControl)
	Constructor. More...
void	ResetCamera ()
	Resets the camera position and shows complete plots. More...
void	SetWindow (vtkRenderWindow win)
	Sets the VTK render window. More...
IVtkFormContainer	CreateVtkFormContainer ()
	Tries to create and return a valid VTK Form container (of type IVtkFormContainer) that actually contains a VTK renderer control of type Kitware.VTK.RenderWindowControl. More...
bool	ContainsPlotObject (VtkPlotBase plotObject)
	Returns true if the specified VTK plotting object is contained on (registered with) the current VtkPlotter object, or false otherwise. More...
void	AddPlotObject (VtkPlotBase plotObject)
	Adds the specified plotting object to the list of plotting objects of the current VTK plotter. More...
void	AddPlotObjects (params VtkPlotBase[] plotObjects)
	Adds the specified plotting objects to the list of plotting objects of the current VTK plotter. More...
void	RemovePlotObject (VtkPlotBase plotObject)
	Removes the specified plotting object from the list of plotting objects of the current VTK plotter, and disposes unmanaged resources used by that object. More...
void	RemovePlotObjects (params VtkPlotBase[] plotObjects)
	Removes the specified plotting objects from the list of plotting objects of the current VTK plotter, and disposes unmanaged resources used by that objects. More...
void	setRenderer (vtkRenderer renderer)
	Sets the plotter's renderer. More...
int	GetRendererIndex (vtkRenderer renderer)
	Returns index of the specified renderer on the VTK window of the current plotter, or -1 if the specified renderer is not contaied in the window. More...
int	AddRenderer (vtkRenderer renderer, bool setActive)
	Adds the specified renderer to the VTK window of the current plotter object, and returns its index. More...
void	AddActor (vtkActor actor)
	Adds the specified actor to the active renderer fo the current VTK plotter. More...
void	RemoveAllActors ()
	Clears the active renderer (removes all actors on it). More...
void	RemoveActor (vtkActor actor)
	Removes the specified actor form the active renderer (if it exists on that renderer) and from any other renderer on which it is included (if not found on the active renderer) Nothing happens if the actor is not found on any renderer. More...
void	AddActor2D (vtkActor2D actor)
	Adds the specified 2D actor to the active renderer fo the current VTK plotter. More...
void	RemoveAllActor2Ds ()
	Clears the active renderer of 2D actors (removes all 2D actors on it). More...
void	RemoveActor2D (vtkActor2D actor)
	Removes the specified 2D actor form the active renderer (if it exists on that renderer) and from any other renderer on which it is included (if not found on the active renderer). Nothing happens if the actor is not found on any renderer. More...
void	CalculateBoundsFromPlotsBounds ()
	Recalculates bounds on co-ordinates according to all plots that are contained in the current plotter. More...
void	CalculateBoundsFromPlotsActors ()
	Recalculates bounds on co-ordinates according to all plots that are contained in the current plotter. More...
void	ShowPlotWithoutRender ()
	Basic things that must be done when showing the plot. More...
void	ShowPlot ()
	Shows the plot in the rendering window and allows user interactor for rotating, zooming, etc. More...
void	SetBoundsScaled (IBoundingBox bounds)
	Sets the bounds of scaled graphs. More...
void	ScaleCoordinatesPlain (IVector original, ref IVector scaled)
	Scales coordinates from the physical (original) coordinate system to the scaled graphical coordinates. More...
void	CalculateScalingParameters ()
	Calculates parameters for performing mapping on VTK actors. More...
void	ScaleActor (vtkActor actor)
	Performs scaling on the specified VTK actor. More...
void	ScaleActorPlain (vtkActor actor)
	Performs scaling on the specified VTK actor. More...
void	ScaleActors ()
	Scales all actors on all plots of the bounding box. More...
void	ScaleDecorations ()
	Scales decorations, including the axes, according to scaling defined on this plotter. More...
void	Dispose ()
	Implementation of IDisposable interface. More...

Static Public Member Functions
static void	ExampleAddTestGraph (VtkPlotter plotter)
	Adda a test graphics (a simple surface plot) to the specified plotter. More...

Public Attributes
VtkDecorationHandler	_decorationHandler
const bool	DefaultFormContainerModal = true
	Default value of the flag that specifies whether VTK form containers are launched as modal forms. More...

Static Public Attributes
static color	DefaultBackground = new color(1,1,1)
	Default background color for new windows. More...
static bool	DefaultIsAllowedVtkForm = false
	Default value for flag indicating whether the VtkForm is used for standalone VTK windows. More...
static bool	DefaultIsAllowedVtkFormPlain = true
	Default value for flag indicating whether the VtkFormPlain is used for stand-alone VTK windows. More...
static bool	DefaultFormContainerParallel = false
	Default value of the flag that specifies whether or not form containers that contain VTK graphics are launched in parallel thread. More...

Protected Member Functions
void	ShowPlotEventhandler ()
void	ShowFormContainerInThread ()
	Launches the form container. More...
void	ShowFormContainer ()
	Shows the form container. More...
virtual void	Dispose (bool disposing)
	Does the job of freeing resources. More...

Protected Attributes
bool	_isAllowedVtkForm = DefaultIsAllowedVtkForm
bool	_isAllowedVtkFormPlain = DefaultIsAllowedVtkFormPlain
List< VtkPlotBase >	_plotObjects
bool	_skipNullWindowCheck = false
bool	_windowCreated = false
	Whether the VTK window has been created, used for internal communication between some methods. More...
bool	_isScaled = false
vec3	ScalingFactors = new vec3()
	Scaling factors - mapping parameters used when scaling VTK actors. More...
vec3	ScalingTranslations = new vec3()
	Scaling translations - mapping parameters used when scaling VTK actors. More...

Static Protected Attributes
static int	_defaultOutputLevel = -1

Properties
object	Lock [get]
	This object's central lock object to be used by other object. Do not use this object for locking in class' methods, for this you should use InternalLock. More...
static int	DefaultOutputLevel [get, set]
	Gets or sets the default level of output for this class. More...
int	OutputLevel [get, set]
	Level of output to the console for the current object. More...
bool	IsWindowStandalone [get, set]
	Whether a stand-alone window is launched to render the scene. More...
int	WindowSizeX [get, set]
	Window size in x direction (used when a stand-alone window is launched for rendering). More...
int	WindowSizeY [get, set]
	Window size in y direction (used when a stand-alone window is launched for rendering). More...
int	WindowPositionX [get, set]
	Window position in x direction (used when a stand-alone window is launched for rendering). More...
int	WindowPositionY [get, set]
	Window position in y direction (used when a stand-alone window is launched for rendering). More...
color	BackGround [get, set]
	Background color for the current plotter. More...
vtkRenderWindow	Window [get, set]
	VTK window used for rendering 3D graphics. Warning: setter should only be used in constructors. More...
static bool	DefaultIsAllowedAnyVtkForm [get, set]
	Modifies or retrieves a boolean value indicating whether any VTK form can be used by plotters of the current type for standalone VTK windows by default. More...
bool	IsAllowedAnyVtkForm [get, set]
	Modifies or retrieves a boolean value indicating whether any VTK form can be used for standalone VTK windows by the current plotter. More...
bool	IsAllowedVtkForm [get, set]
	Whether the VtkForm is used for standalone VTK windows. More...
bool	IsAllowedVtkFormPlain [get, set]
	Whether the VtkFormPlain is used for stand-alone VTK windows. More...
IVtkFormContainer	FormContainer [get, set]
	Form that eventually contains VTK render control (of type Kitware.VTK.RenderWindowControl). More...
Kitware.VTK.RenderWindowControl	RenderControl [get, set]
	VTK control of type Kitware.VTK.RenderWindowControl that can be used for rendering VTK graphics. More...
VtkDecorationHandler	DecorationHandler [get, protected set]
	Decoration handler that handles graph axes, title, labels, etc. More...
List< VtkPlotBase >	PlottingObjects [get, set]
	List of plotting objects contained on the current class. More...
int	NumRenderers [get]
	Returns the number of renderers that are currently attached to the VTK window that is associated with the current VTK plotter object. More...
int	ActiveRendererIndex [get, set]
	Gets or sets the index of the active renderer. This is the renderer on which mathod such as AddActor operate. More...
vtkRenderer	Renderer [get, set]
	Gets the active renderer of the current VTK plotter. More...
BoundingBox3d	BoundsCoordinates [get, protected set]
	Bounds on coordinates of points that define the plots. Everything on the plot should fit in these bounds. More...
bool	FormContainerModal [get, set]
	Whether or not VTK form containers are launched as modal forms. More...
bool	FormContainerParallel [get, set]
	Whether or not form containers that contain VTK graphics are launched in parallel thread. More...
bool	IsScaled [get, set]
	Specifies whether coordinates of graphic objects are scaled when plottting. More...
BoundingBox3d	BoundsScaled [get, protected set]
	Bounds on scaled coordinates graphic objects. Everything on the scaled plot should fit in these bounds. More...
Properties inherited from IG.Lib.ILockable
object	Lock [get]

Private Member Functions
	~VtkPlotter ()

Private Attributes
object	_mainLock = new object()
int	_outputLevel = DefaultOutputLevel
bool	_isWindowStandalone = true
int	_windowSizeX = 600
int	_windowSizey = 600
int	_windowPositionX = 100
int	_windowPositionY = 50
color	_backGround = DefaultBackground
vtkRenderWindow	_window
IVtkFormContainer	_formContainer
Kitware.VTK.RenderWindowControl	_renderControl
int	_activeRendererIndex = 0
vtkRenderer	_activeRenderer
BoundingBox3d	_boundsCoordinates
bool	_formContainerModal = DefaultFormContainerModal
bool	_formContainerParallel = DefaultFormContainerParallel
BoundingBox3d	_boundsScaled
Vector3d	vecOriginal = new Vector3d(0)
Vector3d	vecScaled = new Vector3d(0)
bool	disposed = false

Detailed Description

Plotter class that uses a vtkRenderWindow object for plotting 3D graphics.

$A Igor xx Oct11;

Constructor & Destructor Documentation

IG.Gr3d.VtkPlotter.VtkPlotter ( )

inline

IG.Gr3d.VtkPlotter.VtkPlotter ( vtkRenderWindow  window )

inline

Constructor.

If a VTK window used for plotting is not specified (i.e., it is null) then a new window will be opened.

Parameters

window

VTK window to be used for plotting.

IG.Gr3d.VtkPlotter.VtkPlotter ( IVtkFormContainer  formContainer )

inline

Constructor.

Parameters

formContainer

VTK form container to be used for access to VTK render window for plotting.

IG.Gr3d.VtkPlotter.VtkPlotter ( Kitware.VTK.RenderWindowControl  renderControl )

inline

Constructor.

Parameters

formContainer

VTK control used for plotting.

IG.Gr3d.VtkPlotter.~VtkPlotter ( )

inlineprivate

Member Function Documentation

void IG.Gr3d.VtkPlotter.ResetCamera ( )

inline

Resets the camera position and shows complete plots.

$A Tako78 Oct12;

Referenced by IG.Gr3d.VtkPlotBase.ExampleSurfacePlot(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlotManualScaled(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlotScaled(), and IG.Forms.VectorFunctionPlotter2d.PlotParametricTest().

void IG.Gr3d.VtkPlotter.SetWindow ( vtkRenderWindow  win )

inline

Sets the VTK render window.

Use only in exceptional cases!

Parameters

win	Window to be set.

Referenced by IG.Gr3d.VtkFormsExamples.Plot3dFunctionVtkControl().

IVtkFormContainer IG.Gr3d.VtkPlotter.CreateVtkFormContainer ( )

inline

Tries to create and return a valid VTK Form container (of type IVtkFormContainer) that actually contains a VTK renderer control of type Kitware.VTK.RenderWindowControl.

Which type of forms are attempted to create is specified by properties like IsAllowedVtkForm and IsAllowedVtkFormPlain.

In some settings of conditional compilation, classes that should contain a proper VTK renderer control actually don't contain it. Therefore, this must be verified and a non-null object is returned only if it actually contains the proper VTK render control.

References IG.Gr3d.IVtkFormContainerGen< VtkControlType >.VtkRenderWindowControl.

bool IG.Gr3d.VtkPlotter.ContainsPlotObject ( VtkPlotBase  plotObject )

inline

Returns true if the specified VTK plotting object is contained on (registered with) the current VtkPlotter object, or false otherwise.

Parameters

plotObject

Plotting object to be checked.

void IG.Gr3d.VtkPlotter.AddPlotObject ( VtkPlotBase  plotObject )

inline

Adds the specified plotting object to the list of plotting objects of the current VTK plotter.

If the object is already on the list of plotting objects then it is not inserted again.

Parameters

plotObject

VTK plotting object to be added on the currrent VtkPlotter object.

Referenced by IG.Gr3d.VtkPlotBase.VtkPlotBase().

void IG.Gr3d.VtkPlotter.AddPlotObjects ( params VtkPlotBase[]  plotObjects )

inline

Adds the specified plotting objects to the list of plotting objects of the current VTK plotter.

Parameters

plotObjects

Objects to be added to the list.

void IG.Gr3d.VtkPlotter.RemovePlotObject ( VtkPlotBase  plotObject )

inline

Removes the specified plotting object from the list of plotting objects of the current VTK plotter, and disposes unmanaged resources used by that object.

If the specified object is not on the list of plotting objects then nothing happens.

Parameters

plotObject

VTK plotting object to be removed from the currrent VtkPlotter object.

References IG.Gr3d.VtkPlotBase.Dispose().

void IG.Gr3d.VtkPlotter.RemovePlotObjects ( params VtkPlotBase[]  plotObjects )

inline

Removes the specified plotting objects from the list of plotting objects of the current VTK plotter, and disposes unmanaged resources used by that objects.

If no objects are specified then nothing happens. Also for the specified objects that are null or are not on the list, nothing happens. If removing one of the objects throws an exception then the remaining objects are removed without any disturbance.

Parameters

plotObjects

Objects to be removed from the list.

void IG.Gr3d.VtkPlotter.setRenderer ( vtkRenderer  renderer )

inline

Sets the plotter's renderer.

This should be used only exceptionally. Access may be degraded to protected in the future and method accessed through accessor class.

Parameters

renderer

New renderer (can be null).

Referenced by IG.Gr3d.VtkFormsExamples.Plot3dFunctionVtkControl().

int IG.Gr3d.VtkPlotter.GetRendererIndex ( vtkRenderer  renderer )

inline

Returns index of the specified renderer on the VTK window of the current plotter, or -1 if the specified renderer is not contaied in the window.

This method can be used for setting active renderer through its reference (use the returned index in ActiveRendererIndex() since there is no direct method to set active renderer by its reference.

Parameters

renderer

Renderer whose index is returned.

References IG.Gr3d.UtilVtk.GetRenderers().

int IG.Gr3d.VtkPlotter.AddRenderer ( vtkRenderer  renderer, bool  setActive  )

inline

Adds the specified renderer to the VTK window of the current plotter object, and returns its index.

If the specified renderer already exist on the plotter object, then only its index is returned.

If specified so by the setActive parameter then the specified renderer also becomes the active renderer active after adding.

Parameters

renderer	Renderer to be added.
setActive	If true then the specified renderer is set as active renderer.

References IG.Gr3d.UtilVtk.ContainsRenderer(), and IG.Gr3d.UtilVtk.GetNumRenderers().

void IG.Gr3d.VtkPlotter.AddActor ( vtkActor  actor )

inline

Adds the specified actor to the active renderer fo the current VTK plotter.

Parameters

actor

References IG.Gr3d.UtilVtk.ContainsActor().

void IG.Gr3d.VtkPlotter.RemoveAllActors ( )

inline

Clears the active renderer (removes all actors on it).

References IG.Gr3d.UtilVtk.GetRenderers(), and IG.Gr3d.UtilVtk.RemoveAllActors().

void IG.Gr3d.VtkPlotter.RemoveActor ( vtkActor  actor )

inline

Removes the specified actor form the active renderer (if it exists on that renderer) and from any other renderer on which it is included (if not found on the active renderer) Nothing happens if the actor is not found on any renderer.

Parameters

actor

Actor to be removed.

References IG.Gr3d.UtilVtk.ContainsActor(), and IG.Gr3d.UtilVtk.GetRenderers().

void IG.Gr3d.VtkPlotter.AddActor2D ( vtkActor2D  actor )

inline

Adds the specified 2D actor to the active renderer fo the current VTK plotter.

Parameters

actor

A 2D actor to be added.

References IG.Gr3d.UtilVtk.ContainsActor2D().

void IG.Gr3d.VtkPlotter.RemoveAllActor2Ds ( )

inline

Clears the active renderer of 2D actors (removes all 2D actors on it).

References IG.Gr3d.UtilVtk.GetRenderers(), and IG.Gr3d.UtilVtk.RemoveAllActors2D().

void IG.Gr3d.VtkPlotter.RemoveActor2D ( vtkActor2D  actor )

inline

Removes the specified 2D actor form the active renderer (if it exists on that renderer) and from any other renderer on which it is included (if not found on the active renderer). Nothing happens if the actor is not found on any renderer.

Parameters

actor

The 2D actor to be removed.

References IG.Gr3d.UtilVtk.ContainsActor2D(), and IG.Gr3d.UtilVtk.GetRenderers().

void IG.Gr3d.VtkPlotter.CalculateBoundsFromPlotsBounds ( )

inline

Recalculates bounds on co-ordinates according to all plots that are contained in the current plotter.

References IG.Gr3d.VtkPlotBase.BoundsCoordinates.

void IG.Gr3d.VtkPlotter.CalculateBoundsFromPlotsActors ( )

inline

Recalculates bounds on co-ordinates according to all plots that are contained in the current plotter.

References IG.Gr3d.VtkPlotBase.UpdateBoundsOnActors().

void IG.Gr3d.VtkPlotter.ShowPlotEventhandler ( )

inlineprotected

void IG.Gr3d.VtkPlotter.ShowPlotWithoutRender ( )

inline

Basic things that must be done when showing the plot.

Referenced by IG.Gr3d.VtkControlBase.ExampleExternalLoadVtkGraphics_SurfacePlots(), and IG.Gr3d.VtkControlBase.VtkControlBase_LoadVtkGraphics().

static void IG.Gr3d.VtkPlotter.ExampleAddTestGraph ( VtkPlotter  plotter )

inlinestatic

Adda a test graphics (a simple surface plot) to the specified plotter.

Parameters

plotter

Plotter where test graphics is added.

References IG.Gr3d.VtkSurfacePlot.Create(), IG.Gr3d.VtkSurfacePlotBase.LineColorIsScaled, IG.Gr3d.VtkSurfacePlotBase.LinesVisible, IG.Gr3d.VtkSurfacePlotBase.LineWidth, IG.Gr3d.VtkContourPlot.NumContours, IG.Gr3d.VtkSurfacePlot.NumX, IG.Gr3d.VtkSurfacePlot.NumY, IG.Gr3d.VtkPlotBase.OutputLevel, IG.Gr3d.VtkSurfacePlotBase.PointSize, IG.Gr3d.VtkSurfacePlotBase.PointsVisible, IG.Gr3d.VtkSurfacePlot.SetBoundsParameters(), IG.Gr3d.VtkSurfacePlot.SetSurfaceDefinition(), IG.Gr3d.VtkSurfacePlotBase.SurfaceColor, IG.Gr3d.VtkSurfacePlotBase.SurfaceColorIsScaled, IG.Gr3d.VtkSurfacePlotBase.SurfaceColorOpacity, and IG.Gr3d.VtkSurfacePlotBase.SurfacesVisible.

void IG.Gr3d.VtkPlotter.ShowFormContainerInThread ( )

inlineprotected

Launches the form container.

References IG.Gr3d.VtkPlotBase.AddActorsToPlotter(), IG.Gr3d.VtkControlBase.LoadVtkGraphics, IG.Gr3d.VtkControlBase.VtkControl, IG.Gr3d.VtkControlBase.VtkRenderer, IG.Gr3d.VtkControlBase.VtkRenderWindow, and IG.Gr3d.VtkControlBase.VtkRenderWindowControl.

void IG.Gr3d.VtkPlotter.ShowFormContainer ( )

inlineprotected

Shows the form container.

Dependent on the value of the FormContainerParallel property, the form container may be shown in a parallel thread, which means that other form containers can be shown in parallel before the current one is closed.

void IG.Gr3d.VtkPlotter.ShowPlot ( )

inline

Shows the plot in the rendering window and allows user interactor for rotating, zooming, etc.

Referenced by IG.Gr3d.VtkPlotBase.ExampleCurvePlotLissajous(), IG.Gr3d.VtkPlotBase.ExampleCurvePlotTorusKnot(), and IG.Gr3d.VtkPlotBase.ExamplePlotterDecoration().

void IG.Gr3d.VtkPlotter.SetBoundsScaled ( IBoundingBox  bounds )

inline

Sets the bounds of scaled graphs.

Parameters

bounds

Bounds of scaled graph to be set. Bounds are just copied to the internal data structure.

Referenced by IG.Gr3d.VtkPlotBase.ExampleSurfacePlotScaled().

void IG.Gr3d.VtkPlotter.ScaleCoordinatesPlain ( IVector  original, ref IVector  scaled  )

inline

Scales coordinates from the physical (original) coordinate system to the scaled graphical coordinates.

Parameters

original	Vector of physical (original) coordinates.
scaled	Vector of graphical coordinates.

References IG.Num.BoundingBoxBase.Map().

void IG.Gr3d.VtkPlotter.CalculateScalingParameters ( )

inline

Calculates parameters for performing mapping on VTK actors.

References IG.Num.vec3.x, IG.Num.vec3.y, and IG.Num.vec3.z.

void IG.Gr3d.VtkPlotter.ScaleActor ( vtkActor  actor )

inline

Performs scaling on the specified VTK actor.

Also calculates parameters of mapping before scaling is applied.

Scaling is performed regardless of the value of the scaling flad (the IsScaled property).

Parameters

actor

Actor whose coordinates are mapped (scaled).

void IG.Gr3d.VtkPlotter.ScaleActorPlain ( vtkActor  actor )

inline

Performs scaling on the specified VTK actor.

Parameters of mapping must be calculated before this method is called. This is done by the CalculateScalingParameters method.

Scaling is performed regardless of the value of the scaling flad (the IsScaled property).

Parameters

actor

Actor whose coordinates are mapped (scaled).

References IG.Num.vec3.x, IG.Num.vec3.y, and IG.Num.vec3.z.

Referenced by IG.Gr3d.VtkPlotBase.ScaleActors().

void IG.Gr3d.VtkPlotter.ScaleActors ( )

inline

Scales all actors on all plots of the bounding box.

References IG.Gr3d.VtkPlotBase.ScaleActors().

void IG.Gr3d.VtkPlotter.ScaleDecorations ( )

inline

Scales decorations, including the axes, according to scaling defined on this plotter.

Scaling is performed regardless of the value of the scaling flad (the IsScaled property).

void IG.Gr3d.VtkPlotter.Dispose ( )

inline

Implementation of IDisposable interface.

virtual void IG.Gr3d.VtkPlotter.Dispose ( bool  disposing )

inlineprotectedvirtual

Does the job of freeing resources.

This method can be eventually overridden in derived classes (if they use other resources that must be freed - in addition to such resources of the current class). In the case of overriding this method, you should usually call the base.Dispose(disposing ). in the overriding method.

Parameters

disposing

Tells whether the method has been called form Dispose() method.

Member Data Documentation

object IG.Gr3d.VtkPlotter._mainLock = new object()

private

int IG.Gr3d.VtkPlotter._defaultOutputLevel = -1

staticprotected

int IG.Gr3d.VtkPlotter._outputLevel = DefaultOutputLevel

private

bool IG.Gr3d.VtkPlotter._isWindowStandalone = true

private

int IG.Gr3d.VtkPlotter._windowSizeX = 600

private

int IG.Gr3d.VtkPlotter._windowSizey = 600

private

int IG.Gr3d.VtkPlotter._windowPositionX = 100

private

int IG.Gr3d.VtkPlotter._windowPositionY = 50

private

color IG.Gr3d.VtkPlotter.DefaultBackground = new color(1,1,1)

static

Default background color for new windows.

color IG.Gr3d.VtkPlotter._backGround = DefaultBackground

private

vtkRenderWindow IG.Gr3d.VtkPlotter._window

private

bool IG.Gr3d.VtkPlotter.DefaultIsAllowedVtkForm = false

static

Default value for flag indicating whether the VtkForm is used for standalone VTK windows.

bool IG.Gr3d.VtkPlotter.DefaultIsAllowedVtkFormPlain = true

static

Default value for flag indicating whether the VtkFormPlain is used for stand-alone VTK windows.

bool IG.Gr3d.VtkPlotter._isAllowedVtkForm = DefaultIsAllowedVtkForm

protected

bool IG.Gr3d.VtkPlotter._isAllowedVtkFormPlain = DefaultIsAllowedVtkFormPlain

protected

IVtkFormContainer IG.Gr3d.VtkPlotter._formContainer

private

Kitware.VTK.RenderWindowControl IG.Gr3d.VtkPlotter._renderControl

private

VtkDecorationHandler IG.Gr3d.VtkPlotter._decorationHandler

List<VtkPlotBase> IG.Gr3d.VtkPlotter._plotObjects

protected

int IG.Gr3d.VtkPlotter._activeRendererIndex = 0

private

vtkRenderer IG.Gr3d.VtkPlotter._activeRenderer

private

BoundingBox3d IG.Gr3d.VtkPlotter._boundsCoordinates

private

bool IG.Gr3d.VtkPlotter._skipNullWindowCheck = false

protected

const bool IG.Gr3d.VtkPlotter.DefaultFormContainerModal = true

Default value of the flag that specifies whether VTK form containers are launched as modal forms.

bool IG.Gr3d.VtkPlotter._formContainerModal = DefaultFormContainerModal

private

bool IG.Gr3d.VtkPlotter.DefaultFormContainerParallel = false

static

Default value of the flag that specifies whether or not form containers that contain VTK graphics are launched in parallel thread.

bool IG.Gr3d.VtkPlotter._formContainerParallel = DefaultFormContainerParallel

private

bool IG.Gr3d.VtkPlotter._windowCreated = false

protected

Whether the VTK window has been created, used for internal communication between some methods.

bool IG.Gr3d.VtkPlotter._isScaled = false

protected

BoundingBox3d IG.Gr3d.VtkPlotter._boundsScaled

private

Vector3d IG.Gr3d.VtkPlotter.vecOriginal = new Vector3d(0)

private

Vector3d IG.Gr3d.VtkPlotter.vecScaled = new Vector3d(0)

private

vec3 IG.Gr3d.VtkPlotter.ScalingFactors = new vec3()

protected

Scaling factors - mapping parameters used when scaling VTK actors.

vec3 IG.Gr3d.VtkPlotter.ScalingTranslations = new vec3()

protected

Scaling translations - mapping parameters used when scaling VTK actors.

bool IG.Gr3d.VtkPlotter.disposed = false

private

Property Documentation

object IG.Gr3d.VtkPlotter.Lock

get

This object's central lock object to be used by other object. Do not use this object for locking in class' methods, for this you should use InternalLock.

int IG.Gr3d.VtkPlotter.DefaultOutputLevel

staticgetset

Gets or sets the default level of output for this class.

When accessed for the first time, the current value of Util.OutputLevel is returned.

If set to less than 0 then the first subsequent set access will return the current the current value of Util.OutputLevel.

int IG.Gr3d.VtkPlotter.OutputLevel

getset

Level of output to the console for the current object.

bool IG.Gr3d.VtkPlotter.IsWindowStandalone

getset

Whether a stand-alone window is launched to render the scene.

int IG.Gr3d.VtkPlotter.WindowSizeX

getset

Window size in x direction (used when a stand-alone window is launched for rendering).

Referenced by IG.Forms.VectorFunctionPlotter2d.ApplySurfacePlottterSettingsDefault().

int IG.Gr3d.VtkPlotter.WindowSizeY

getset

Window size in y direction (used when a stand-alone window is launched for rendering).

Referenced by IG.Forms.VectorFunctionPlotter2d.ApplySurfacePlottterSettingsDefault().

int IG.Gr3d.VtkPlotter.WindowPositionX

getset

Window position in x direction (used when a stand-alone window is launched for rendering).

int IG.Gr3d.VtkPlotter.WindowPositionY

getset

Window position in y direction (used when a stand-alone window is launched for rendering).

color IG.Gr3d.VtkPlotter.BackGround

getset

Background color for the current plotter.

If plotter is attached to a window that already has a renderer then background color of that renderer is set. If a renderer is created anew, this background color is assumed.

Referenced by IG.Forms.VectorFunctionPlotter2d.ApplySurfacePlottterSettingsDefault(), and IG.Gr3d.VtkPlotBase.ExamplePlotterDecoration().

vtkRenderWindow IG.Gr3d.VtkPlotter.Window

getsetprotected

VTK window used for rendering 3D graphics. Warning: setter should only be used in constructors.

bool IG.Gr3d.VtkPlotter.DefaultIsAllowedAnyVtkForm

staticgetset

Modifies or retrieves a boolean value indicating whether any VTK form can be used by plotters of the current type for standalone VTK windows by default.

bool IG.Gr3d.VtkPlotter.IsAllowedAnyVtkForm

getset

Modifies or retrieves a boolean value indicating whether any VTK form can be used for standalone VTK windows by the current plotter.

bool IG.Gr3d.VtkPlotter.IsAllowedVtkForm

getset

Whether the VtkForm is used for standalone VTK windows.

bool IG.Gr3d.VtkPlotter.IsAllowedVtkFormPlain

getset

Whether the VtkFormPlain is used for stand-alone VTK windows.

IVtkFormContainer IG.Gr3d.VtkPlotter.FormContainer

getsetprotected

Form that eventually contains VTK render control (of type Kitware.VTK.RenderWindowControl).

Kitware.VTK.RenderWindowControl IG.Gr3d.VtkPlotter.RenderControl

getsetprotected

VTK control of type Kitware.VTK.RenderWindowControl that can be used for rendering VTK graphics.

VtkDecorationHandler IG.Gr3d.VtkPlotter.DecorationHandler

getprotected set

Decoration handler that handles graph axes, title, labels, etc.

Referenced by IG.Forms.VectorFunctionPlotter2d.ApplySurfacePlottterSettingsDefault(), and IG.Gr3d.VtkPlotBase.ExamplePlotterDecoration().

List<VtkPlotBase> IG.Gr3d.VtkPlotter.PlottingObjects

getsetprotected

List of plotting objects contained on the current class.

Setter is thread safe.

Lazy evaluation - list object is automatically generated when first accessed.

int IG.Gr3d.VtkPlotter.NumRenderers

get

Returns the number of renderers that are currently attached to the VTK window that is associated with the current VTK plotter object.

If htere is currently no VTK rendering windows associated with the plotter, there still can be an active renderer that has been allocated for adding actors, and in this case 1 is returned.

int IG.Gr3d.VtkPlotter.ActiveRendererIndex

getset

Gets or sets the index of the active renderer. This is the renderer on which mathod such as AddActor operate.

vtkRenderer IG.Gr3d.VtkPlotter.Renderer

getsetprotected

Gets the active renderer of the current VTK plotter.

BoundingBox3d IG.Gr3d.VtkPlotter.BoundsCoordinates

getprotected set

Bounds on coordinates of points that define the plots. Everything on the plot should fit in these bounds.

bool IG.Gr3d.VtkPlotter.FormContainerModal

getsetprivate

Whether or not VTK form containers are launched as modal forms.

bool IG.Gr3d.VtkPlotter.FormContainerParallel

getsetprivate

Whether or not form containers that contain VTK graphics are launched in parallel thread.

bool IG.Gr3d.VtkPlotter.IsScaled

getset

Specifies whether coordinates of graphic objects are scaled when plottting.

Referenced by IG.Gr3d.VtkPlotBase.ExamplePlotterDecoration(), and IG.Gr3d.VtkPlotBase.ExampleSurfacePlotScaled().

BoundingBox3d IG.Gr3d.VtkPlotter.BoundsScaled

getprotected set

Bounds on scaled coordinates graphic objects. Everything on the scaled plot should fit in these bounds.

Getter always returns an allocated bounding box. By default, all coordinate bounds are set to [0, 1].

---

The documentation for this class was generated from the following file:

• extensions/igplot3d/plot3d/vtkbased/VtkPlotter.cs
