Contains basic settings for various surface and contour plots. More...

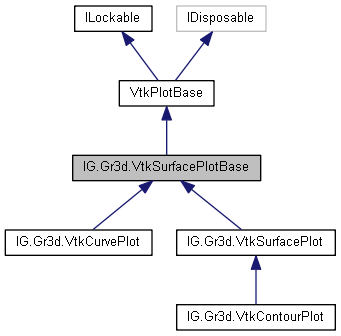

Inheritance diagram for IG.Gr3d.VtkSurfacePlotBase:

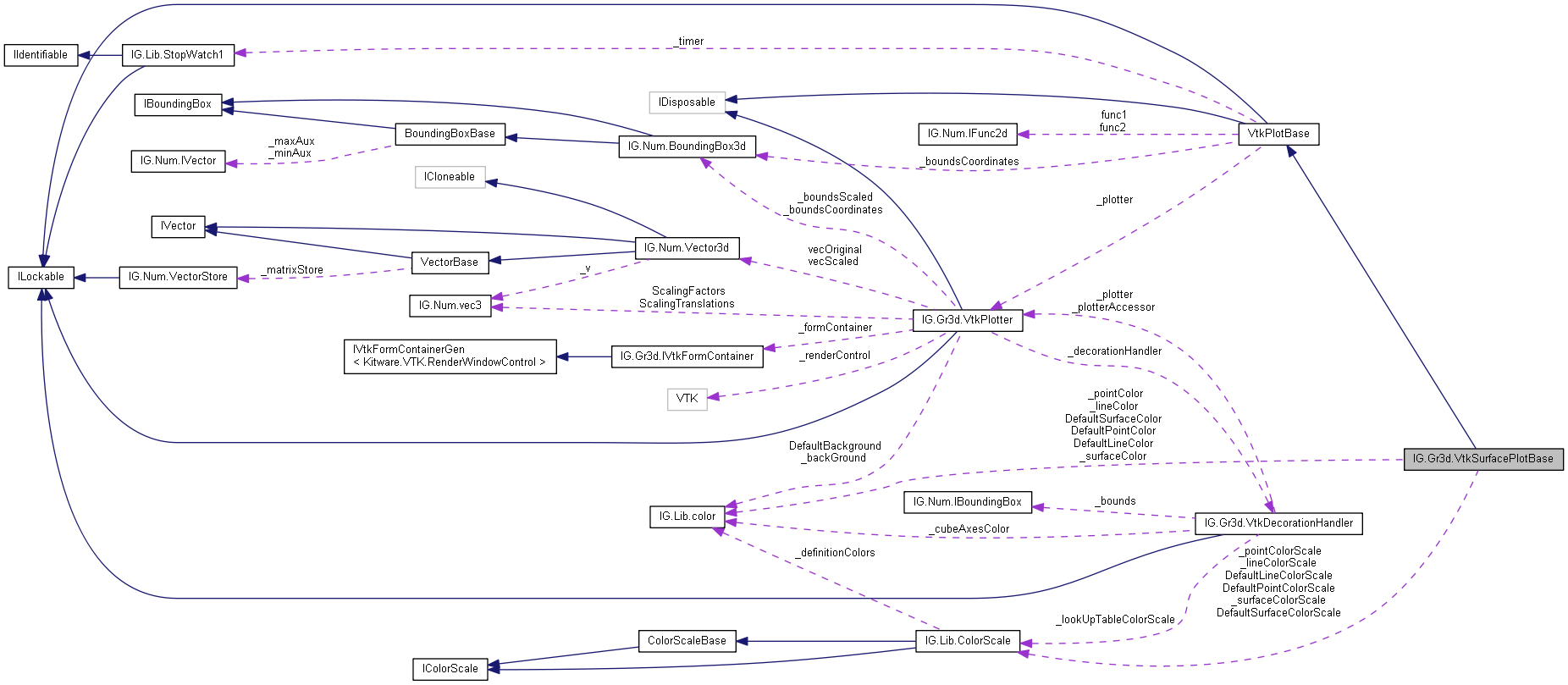

Collaboration diagram for IG.Gr3d.VtkSurfacePlotBase:

Public Member Functions
	VtkSurfacePlotBase (VtkPlotter plotter)
	Constructor. Just calls base constructor with the same name. More...

void	CreateCustomPlot ()
	Updates custom plots that have been accumulates since the last update (or since construction of the current plot object). More...

void	CreateCustomPlotAndShow ()

void	AddPoint (double x, double y, double z)
	Adds a point with specified coordinates to the set of graphic primitives that will be plotted when CreateCustomPlot is called. More...

void	AddPoint (vec3 p)
	Adds a point with specified coordinates to the set of graphic primitives that will be plotted when CreateCustomPlot is called. More...

void	AddPoints (params vec3[] points)
	Adds a set of points with specified coordinates to the set of graphic primitives that will be plotted when CreateCustomPlot is called. More...

void	AddLine (double x1, double y1, double z1, double x2, double y2, double z2)
	Adds a line with specified endpoint coordinates to the set of graphic primitives that will be plotted when CreateCustomPlot is called. More...

void	AddLine (vec3 p1, vec3 p2)

void	AddLines (params vec3[] points)

void	AddTriangle (double x1, double y1, double z1, double x2, double y2, double z2, double x3, double y3, double z3)

void	AddTriangle (vec3 p1, vec3 p2, vec3 p3)

void	AddTriangularStrip (params vec3[] points)

void	AddQuadrilateral (double x1, double y1, double z1, double x2, double y2, double z2, double x3, double y3, double z3, double x4, double y4, double z4)

void	AddQuadrilateral (vec3 p1, vec3 p2, vec3 p3, vec3 p4)

void	AddFilledTriangle (double x1, double y1, double z1, double x2, double y2, double z2, double x3, double y3, double z3)

void	AddFilledTriangle (vec3 p1, vec3 p2, vec3 p3)

void	AddFilledTriangularStrip (params vec3[] points)

void	AddBorderedTriangle (double x1, double y1, double z1, double x2, double y2, double z2, double x3, double y3, double z3)

void	AddBorderedTriangle (vec3 p1, vec3 p2, vec3 p3)

void	AddBorderedTriangularStrip (params vec3[] points)

void	AddFilledQuadrilateral (double x1, double y1, double z1, double x2, double y2, double z2, double x3, double y3, double z3, double x4, double y4, double z4)

void	AddFilledQuadrilateral (vec3 p1, vec3 p2, vec3 p3, vec3 p4)

void	AddBorderedQuadrilateral (double x1, double y1, double z1, double x2, double y2, double z2, double x3, double y3, double z3, double x4, double y4, double z4)

void	AddBorderedQuadrilateral (vec3 p1, vec3 p2, vec3 p3, vec3 p4)

Public Member Functions inherited from IG.Gr3d.VtkPlotBase
	VtkPlotBase (VtkPlotter plotter)
	Constructor. More...

bool	ContainsActor (vtkActor actor)
	Returns true if the specified VTK Actor is contained on (registered with) the current VtkPlotBase object, or false otherwise. More...

void	AddActor (vtkActor actor)
	Adds the specified actor to the list of actors of the current VTK plotter. More...

void	AddActors (params vtkActor[] actors)
	Adds the specified actors to the list of actors of the current VTK plotter. More...

void	AddActorsToPlotter ()
	Adds all actors from the current plot to the plotter that this plot is assigned to. More...

void	AddActorsToPlotter (VtkPlotter plotter)
	Adds all actors from the current plot to the specified plotter. More...

void	RemoveActor (vtkActor actor)
	Removes the specified actor from the list of actors of the current VTK plotter, and disposes unmanaged resources used by that object. More...

void	RemoveActors (params vtkActor[] actors)
	Removes the specified actors from the list of actors of the current VTK plotter, and disposes unmanaged resources used by that objects. More...

void	RemoveActors ()
	Removes all actors that are currently contained on the list of actors of the current object. More...

void	UpdateBoundsOnActors (IBoundingBox bounds)
	Updates the specified bounding box in such a way that all actors from the current plot object fit into it. More...

void	ScaleActors ()
	Scales all actors on the current plot by the plotter's scaling method. More...

bool	ContainsAlgorithm (vtkAlgorithm algorithm)
	Returns true if the specified VTK algorithm is contained on (registered with) the current VtkPlotter object, or false otherwise. More...

void	AddAlgorithm (vtkAlgorithm algorithm)
	Adds the specified algorithm to the list of algorithms of the current VTK plotter. More...

void	AddAlgorithms (params vtkAlgorithm[] algorithms)
	Adds the specified algorithms to the list of algorithms of the current VTK plotter. More...

void	RemoveAlgorithm (vtkAlgorithm algorithm)
	Removes the specified algorithm from the list of algorithms of the current VTK plotter, and disposes unmanaged resources used by that object. More...

void	RemoveAlgorithms (params vtkAlgorithm[] algorithms)
	Removes the specified algorithms from the list of algorithms of the current VTK plotter, and disposes unmanaged resources used by that objects. More...

bool	ContainsMapper (vtkMapper mapper)
	Returns true if the specified VTK mapper is contained on (registered with) the current VtkPlotter object, or false otherwise. More...

void	AddMapper (vtkMapper mapper)
	Adds the specified mapper to the list of mappers of the current VTK plotter. More...

void	AddMappers (params vtkMapper[] mappers)
	Adds the specified mappers to the list of mappers of the current VTK plotter. More...

void	RemoveMapper (vtkMapper mapper)
	Removes the specified mapper from the list of mappers of the current VTK plotter, and disposes unmanaged resources used by that object. More...

void	RemoveMappers (params vtkMapper[] mappers)
	Removes the specified mappers from the list of mappers of the current VTK plotter, and disposes unmanaged resources used by that objects. More...

bool	ContainsDataset (vtkDataSet dataset)
	Returns true if the specified VTK dataset is contained on (registered with) the current VtkPlotter object, or false otherwise. More...

void	AddDataset (vtkDataSet dataset)
	Adds the specified dataset to the list of datasets of the current VTK plotter. More...

void	AddDatasets (params vtkDataSet[] datasets)
	Adds the specified datasets to the list of datasets of the current VTK plotter. More...

void	RemoveDataset (vtkDataSet dataset)
	Removes the specified dataset from the list of datasets of the current VTK plotter, and disposes unmanaged resources used by that object. More...

void	RemoveDatasets (params vtkDataSet[] datasets)
	Removes the specified datasets from the list of datasets of the current VTK plotter, and disposes unmanaged resources used by that objects. More...

void	UpdateBoundsCoordinates (bool forced, double x, double y, double z)
	Updates the bounding box of coordinates (BoundsCoordinates), if the conditions are met, in such a way that the point with the specified coordinates fits witin it. More...

void	UpdateBoundsCoordinates (double x, double y, double z)
	Updates the bounding box of coordinates (BoundsCoordinates), if the AutoUpdateBoundsCoordinates flag is true, in such a way that the point with the specified coordinates fits witin it. More...

void	UpdateBoundsCoordinates (bool forced, vec3 pointCoordinates)
	Updates the bounding box of coordinates (BoundsCoordinates), if the conditions are met, in such a way that the point with the specified coordinates fits witin it. More...

void	UpdateBoundsCoordinates (vec3 pointCoordinates)
	Updates the bounding box of coordinates (BoundsCoordinates), if the AutoUpdateBoundsCoordinates flag is true, in such a way that the point with the specified coordinates fits witin it. More...

abstract void	Create ()
	Creates the plot. More...

virtual void	ShowPlot ()
	Makes the associated plotter show the plots that are currently added. More...

virtual void	CreateAndShow ()
	Creates the plot and makes the associated plotter show it. More...

void	Dispose ()
	Implementation of IDisposable interface. More...

Public Attributes
double	_pointColorOpacity = 1

Static Public Attributes
static string	DefaultValuesFieldName = "values"
	Default name of the field that contains node values for plotted grids. More...

static bool	DefaultLinesVisible = true
	Default value of the flag indicating whether lines and contours will be shown. More...

static double	DefaultLineWidth = 2
	Default line thickness for new objects of this class. More...

static bool	DefaultLineColorIsScaled = false
	Default value of the flag indicating whether lines are plotted in color scale, for new plot objects of this class. Value false means that constant color is used, true means that color scale is used. More...

static ColorScale	DefaultLineColorScale = ColorScale.CreateGray(0,1)
	Default line color scale for new plot objects of this class. More...

static color	DefaultLineColor = new color(0, 0, 1)
	Default line color for new objects of this class. More...

static bool	DefaultSurfacesVisible = true
	Default value of the flag indicating whether surfaces will be shown. More...

static bool	DefaultSurfaceColorIsScaled = true
	Default value of the flag indicated whether surfaces are plotted in color scale, for new plot objects of this class. Value false means that constant color is used, true means that color scale is used. More...

static ColorScale	DefaultSurfaceColorScale
	Default surface color scale for new plot objects of this class. More...

static color	DefaultSurfaceColor = new color(0.5, 0.75, 1.0)
	Default surface color for new objects of this class. More...

static bool	DefaultPointsVisible = true
	Default value of the flag indicating whether points will be shown. More...

static double	DefaultPointSize = 2
	Default point size for new objects of this class. More...

static bool	DefaultPointColorIsScaled = false
	Default value of the flag indicated whether points are plotted in color scale, for new plot objects of this class. Value false means that constant color is used, true means that color scale is used. More...

static ColorScale	DefaultPointColorScale = ColorScale.Create(-1, 1, new color(0.1, 0, 0.3), new color(1, 0.5, 0))
	Default point color scale for new plot objects of this class. More...

static color	DefaultPointColor = new color(1, 0, 0)
	Default point color for new objects of this class. More...

Protected Member Functions
virtual void	InvalidateSettingDependencies ()
	Invalidates things that are dependent on any settings. More...

void	AddLineCell (double x1, double y1, double z1, double x2, double y2, double z2)
	Adds a line with specified endpoint coordinates to the array of line cells. More...

void	AddSurfaceCell (double x1, double y1, double z1, double x2, double y2, double z2, double x3, double y3, double z3)
	Adds a triangular surface cell with specified vertex coordinates to the array of surface cells. More...

void	AddSurfaceCell (double x1, double y1, double z1, double x2, double y2, double z2, double x3, double y3, double z3, double x4, double y4, double z4)
	Adds a quadrilateral surface cell with specified vertex coordinates to the array of quadrilateral cells. More...

void	AddPointCell (double x1, double y1, double z1)
	Adds a triangular point cell with specified point coordinates to the array of point cells. A triangular cell is added with coordinates of all three vertices being the same. More...

Protected Member Functions inherited from IG.Gr3d.VtkPlotBase
virtual void	Dispose (bool disposing)
	Does the job of freeing resources. More...

Properties
bool	LinesVisible `[get, set]`
	Whether line objects are shown in plots or not. More...

double	LineWidth `[get, set]`
	Line thickness used in plots. More...

bool	LineColorIsScaled `[get, set]`
	Whether a color scale is used for coloring lines (value true) or a fixed color is used (value false). More...

ColorScale	LineColorScale `[get, set]`
	Color scale used for plotting lines (when the flag LineColorIsScaled is true, otherwise fixed LineColor is uesd). More...

color	LineColor `[get, set]`
	Color used for lines (when the flag LineColorIsScaled is false, otherwise LineColorScale is uesd that depends on values assigned to line endpoints). More...

double	LineColorOpacity `[get, set]`
	Opacity of lines. More...

bool	SurfacesVisible `[get, set]`
	Whether surface objects are shown in plots or not. More...

bool	SurfaceColorIsScaled `[get, set]`
	Whether a color scale is used for coloring surfaces (value true) or a fixed color is used (value false). More...

ColorScale	SurfaceColorScale `[get, set]`
	Color scale used for plotting surfaces (when the flag SurfaceColorIsScaled is true, otherwise fixed SurfaceColor is uesd). More...

color	SurfaceColor `[get, set]`
	Color used for surfaces (when the flag SurfaceColorIsScaled is false, otherwise SurfaceColorScale is uesd that depends on values assigned to surface endpoints). More...

double	SurfaceColorOpacity `[get, set]`
	Opacity of surfaces. More...

bool	PointsVisible `[get, set]`
	Whether point objects are shown in plots or not. More...

double	PointSize `[get, set]`
	Point size used in plots. More...

bool	PointColorIsScaled `[get, set]`
	Whether a color scale is used for coloring points (value true) or a fixed color is used (value false). More...

ColorScale	PointColorScale `[get, set]`
	Color scale used for plotting points (when the flag PointColorIsScaled is true, otherwise fixed PointColor is uesd). More...

color	PointColor `[get, set]`
	Color used for points (when the flag PointColorIsScaled is false, otherwise PointColorScale is uesd that depends on values assigned to points). More...

double	PointColorOpacity `[get, set]`
	Opacity of points. More...

Properties inherited from IG.Gr3d.VtkPlotBase
object	Lock `[get]`
	This object's central lock object to be used by other object. Do not use this object for locking in class' methods, for this you should use InternalLock. More...

int	OutputLevel `[get, set]`
	Level of output to the console for the current object. The defalult output level for newly created object is specified by VtkPlotter.DefaultOutputLevel. More...

StopWatch1	Timer `[get]`
	Stopwatch that can be used to measure the time efficiency of actions. More...

color	BackGround `[get, set]`
	Sets background color of the plotter that is used by the current plot object. More...

VtkPlotter	Plotter `[get, set]`
	VTK plotter that is used for rendering graphics produeced by the current plotting class, on a VTK rendering window. More...

List< vtkActor >	Actors `[get, set]`
	List of actors contained on the current class. More...

List< vtkAlgorithm >	algorithms `[get, set]`
	List of algorithms contained on the current class. More...

List< vtkMapper >	Mappers `[get, set]`
	List of mappers contained on the current class. More...

List< vtkDataSet >	DataSets `[get, set]`
	List of datasets contained on the current class. More...

bool	AutoUpdateBoundsCoordinates `[get, set]`
	Determines whether bounds on plotted geometry are automatically updated when new primitives are added. More...

BoundingBox3d	BoundsCoordinates `[get, protected set]`
	Bounds on coordinates of points that define the plots. everything on the plot should fit in these bounds. More...

Properties inherited from IG.Lib.ILockable
object	Lock `[get]`

Private Member Functions
int	AddLinePoint (double x, double y, double z)
	Adds a point with specified coordinates to the array of line endpoints and returns its index. Current point index is increased by one. More...

int	AddSurfacePoint (double x, double y, double z)
	Adds a point with specified coordinates to the array of surface cell vertices and returns its index. Current point index is increased by one. More...

int	AddPointPoint (double x, double y, double z)
	Adds a point with specified coordinates to the array of surface cell vertices and returns its index. Current point index is increased by one. More...

Private Attributes
bool	_linesVisible = DefaultLinesVisible

double	_lineWidth = DefaultLineWidth

bool	_lineColorIsScaled = DefaultLineColorIsScaled

ColorScale	_lineColorScale = DefaultLineColorScale

color	_lineColor = DefaultLineColor

double	_lineColorOpacity = -1

bool	_surfacesVisible = DefaultSurfacesVisible

bool	_surfaceColorIsScaled = DefaultSurfaceColorIsScaled

ColorScale	_surfaceColorScale = DefaultSurfaceColorScale

color	_surfaceColor = DefaultSurfaceColor

double	_surfaceColorOpacity = -1

bool	_pointsVisible = DefaultPointsVisible

double	_pointSize = DefaultPointSize

bool	_pointColorIsScaled = DefaultPointColorIsScaled

ColorScale	_pointColorScale = DefaultPointColorScale

color	_pointColor = DefaultPointColor

int	_linePointIndex

vtkPoints	_linePoints

vtkCellArray	_lineCells

int	_surfacePointIndex

vtkPoints	_surfacePoints

vtkCellArray	_surfaceCells

int	_pointPointIndex

vtkPoints	_pointPoints

vtkCellArray	_pointCells

Additional Inherited Members
Static Public Member Functions inherited from IG.Gr3d.VtkPlotBase
static void	ExampleCustomSurfaceComparison ()
	Custom comparison of two surfaces in 3D defined as functions of two variables. More...

static void	ExampleCurvePlotLissajous ()
	Example curve plot. Plots a curve whose projection on the XY plane is a Lissajous curve, but which also oscillates in the Z direction. More...

static void	ExampleCurvePlotLissajous (int a, int b)
	Example curve plot. Plots a curve whose projection on the XY plane is a Lissajous curve, but which also oscillates in the Z direction. More...

static void	ExampleCurvePlotTorusKnot ()
	Example curve plot. Plots a curve whose projection on the XY plane is a Lissajous curve, but which also oscillates in the Z direction. More...

static void	ExampleCurvePlotTorusKnot (int p, int q)
	Example curve plot. Plots a two-parameters torus knot. Parameters must be coprimes. More...

static void	ExamplePlotterDecoration ()
	Example that demonstrates how various plotter decorations can be set up. More...

static void	ExampleSurfacePlot ()
	Example of surface plots. More...

static void	ExampleSurfacePlotScaled ()
	Example of surface plots where graph is scaled automaticallly. More...

static void	ExampleSurfacePlotScaled (int numX, int numY)
	Example of surface plots where graph is scaled automatically. More...

static void	ExampleSurfacePlotManualScaled ()
	Example of surface plots where mesh is generated manually. Also shows scaling of graph. More...

static void	ExampleSurfacePlotManualScaled (int numX, int numY)
	Example of surface plots where mesh is generated manually. Also shows scaling of graph. More...

static void	ExampleContourPlot ()
	Examples of contour plots. More...

static void	CopyBounds (Func3d2dExamples.ParametricSurface func, VtkSurfacePlot plot)
	Copies bounds on parameters from the function definition of parametric surface to a plot object for plotting surfaces. More...

static void	ExampleParametricSurfacePlots ()
	Examples of various parametric surface plots. More...

Protected Attributes inherited from IG.Gr3d.VtkPlotBase
List< vtkActor >	_actors

List< vtkAlgorithm >	_algorithms

List< vtkMapper >	_mappers

List< vtkDataSet >	_dataSets

bool	_autoUpdateBoundsCoordinates = true

Detailed Description

Contains basic settings for various surface and contour plots.

This is used as base class for surface and contour plots.

Beside its basic function, the class also contains methods for plotting basic graphic primitives (points, lines, triangular and quadrilateral surface or wireframe patches, etc.).

Plotting of basic primitives is added on this class for convenience, such that minor custom graphics can simply be added on surface plots and contour plots. Aleernative and somewhat cleaner approach would be to include methods for plotting simple primitives in a derived class, but it is considered that letting surface and contour plot classes access this functionality is beneficial.

$A Igor xx Oct11;

Constructor & Destructor Documentation

IG.Gr3d.VtkSurfacePlotBase.VtkSurfacePlotBase ( VtkPlotter plotter )

inline

Constructor. Just calls base constructor with the same name.

Parameters

plotter VTK plotter that is used for rendering graphics produeced by the current plotting class.

Member Function Documentation

virtual void IG.Gr3d.VtkSurfacePlotBase.InvalidateSettingDependencies ( )

inlineprotectedvirtual

Invalidates things that are dependent on any settings.

This function should be called anywhere seddings are changed.

void IG.Gr3d.VtkSurfacePlotBase.CreateCustomPlot ( )

inline

Updates custom plots that have been accumulates since the last update (or since construction of the current plot object).

For all primitives that have been added since the last update, actors are created and added to the plot. In this way, the current plotting settings (such as surface colors, line thickness, etc.) will take effect, and for primitives that are eventually added later, settings valid at that time will apply.

Referenced by IG.Gr3d.VtkPlotBase.ExampleSurfacePlot().

void IG.Gr3d.VtkSurfacePlotBase.CreateCustomPlotAndShow ( )

inline

int IG.Gr3d.VtkSurfacePlotBase.AddLinePoint	(	double	x,
		double	y,
		double	z
	)

inlineprivate

Adds a point with specified coordinates to the array of line endpoints and returns its index. Current point index is increased by one.

Parameters

x	X coordinate of the added point.
y	Y coordinate of the added point.
z	Z coordinate of the added point.

Returns: Index of the added pont on the list of points, which should be used when addressing the point when assembling line cells.

void IG.Gr3d.VtkSurfacePlotBase.AddLineCell	(	double	x1,
		double	y1,
		double	z1,
		double	x2,
		double	y2,
		double	z2
	)

inlineprotected

Adds a line with specified endpoint coordinates to the array of line cells.

Parameters

x1	X coordinate of the first point.
y1	Y coordinate of the first point.
z1	Z coordinate of the first point.
x2	X coordinate of the second point.
y2	Y coordinate of the second point.
z2	Z coordinate of the second point.

int IG.Gr3d.VtkSurfacePlotBase.AddSurfacePoint	(	double	x,
		double	y,
		double	z
	)

inlineprivate

Adds a point with specified coordinates to the array of surface cell vertices and returns its index. Current point index is increased by one.

Parameters

x	X coordinate of the added point.
y	Y coordinate of the added point.
z	Z coordinate of the added point.

Returns: Index of the added pont on the array of points, which should be used when addressing the point when assembling surface cells.

void IG.Gr3d.VtkSurfacePlotBase.AddSurfaceCell	(	double	x1,
		double	y1,
		double	z1,
		double	x2,
		double	y2,
		double	z2,
		double	x3,
		double	y3,
		double	z3
	)

inlineprotected

Adds a triangular surface cell with specified vertex coordinates to the array of surface cells.

Parameters

x1	X coordinate of the first point.
y1	Y coordinate of the first point.
z1	Z coordinate of the first point.
x2	X coordinate of the second point.
y2	Y coordinate of the second point.
z2	Z coordinate of the second point.
x3	X coordinate of the third point.
y3	Y coordinate of the third point.
z3	Z coordinate of the third point.

void IG.Gr3d.VtkSurfacePlotBase.AddSurfaceCell	(	double	x1,
		double	y1,
		double	z1,
		double	x2,
		double	y2,
		double	z2,
		double	x3,
		double	y3,
		double	z3,
		double	x4,
		double	y4,
		double	z4
	)

inlineprotected

Adds a quadrilateral surface cell with specified vertex coordinates to the array of quadrilateral cells.

Parameters

x1	X coordinate of the first point.
y1	Y coordinate of the first point.
z1	Z coordinate of the first point.
x2	X coordinate of the second point.
y2	Y coordinate of the second point.
z2	Z coordinate of the second point.
x3	X coordinate of the third point.
y3	Y coordinate of the third point.
z3	Z coordinate of the third point.
x4	X coordinate of the third point.
y4	Y coordinate of the third point.
z4	Z coordinate of the third point.

int IG.Gr3d.VtkSurfacePlotBase.AddPointPoint	(	double	x,
		double	y,
		double	z
	)

inlineprivate

Adds a point with specified coordinates to the array of surface cell vertices and returns its index. Current point index is increased by one.

Parameters

x	X coordinate of the added point.
y	Y coordinate of the added point.
z	Z coordinate of the added point.

Returns: Index of the added pont on the array of points, which should be used when addressing the point when assembling surface cells.

void IG.Gr3d.VtkSurfacePlotBase.AddPointCell	(	double	x1,
		double	y1,
		double	z1
	)

inlineprotected

Adds a triangular point cell with specified point coordinates to the array of point cells. A triangular cell is added with coordinates of all three vertices being the same.

Parameters

x1	X coordinate of the point.
y1	Y coordinate of the point.
z1	Z coordinate of the point.

void IG.Gr3d.VtkSurfacePlotBase.AddPoint	(	double	x,
		double	y,
		double	z
	)

inline

Adds a point with specified coordinates to the set of graphic primitives that will be plotted when CreateCustomPlot is called.

Current settings are used to define appearance of the added primitive.

Parameters

x	X coordinate of the point.
y	Y coordinate of the point.
z	Z coordinate of the point.

Referenced by IG.Gr3d.VtkPlotBase.ExampleSurfacePlot().

void IG.Gr3d.VtkSurfacePlotBase.AddPoint ( vec3 p )

inline

Adds a point with specified coordinates to the set of graphic primitives that will be plotted when CreateCustomPlot is called.

Current settings are used to define appearance of the added primitive.

Parameters

p	3D vector of point coordinates.

References IG.Num.vec3.x, IG.Num.vec3.y, and IG.Num.vec3.z.

void IG.Gr3d.VtkSurfacePlotBase.AddPoints ( params vec3[] points )

inline

Adds a set of points with specified coordinates to the set of graphic primitives that will be plotted when CreateCustomPlot is called.

Current settings are used to define appearance of the added primitives.

Parameters

points 3D vectors of coordinates of the individual points.

void IG.Gr3d.VtkSurfacePlotBase.AddLine	(	double	x1,
		double	y1,
		double	z1,
		double	x2,
		double	y2,
		double	z2
	)

inline

Adds a line with specified endpoint coordinates to the set of graphic primitives that will be plotted when CreateCustomPlot is called.

Current settings are used to define appearance of the added primitive.

Parameters

x1	X coordinate of the first endpoint.
y1	Y coordinate of the first endpoint.
z1	Z coordinate of the first endpoint.
x2	X coordinate of the second endpoint.
y2	Y coordinate of the second endpoint.
z2	Z coordinate of the second endpoint.

Referenced by IG.Gr3d.VtkPlotBase.ExampleSurfacePlot().

void IG.Gr3d.VtkSurfacePlotBase.AddLine	(	vec3	p1,
		vec3	p2
	)

inline

References IG.Num.vec3.x, IG.Num.vec3.y, and IG.Num.vec3.z.

void IG.Gr3d.VtkSurfacePlotBase.AddLines ( params vec3[] points )

inline

void IG.Gr3d.VtkSurfacePlotBase.AddTriangle	(	double	x1,
		double	y1,
		double	z1,
		double	x2,
		double	y2,
		double	z2,
		double	x3,
		double	y3,
		double	z3
	)

inline

void IG.Gr3d.VtkSurfacePlotBase.AddTriangle	(	vec3	p1,
		vec3	p2,
		vec3	p3
	)

inline

References IG.Num.vec3.x, IG.Num.vec3.y, and IG.Num.vec3.z.

void IG.Gr3d.VtkSurfacePlotBase.AddTriangularStrip ( params vec3[] points )

inline

void IG.Gr3d.VtkSurfacePlotBase.AddQuadrilateral	(	double	x1,
		double	y1,
		double	z1,
		double	x2,
		double	y2,
		double	z2,
		double	x3,
		double	y3,
		double	z3,
		double	x4,
		double	y4,
		double	z4
	)

inline

void IG.Gr3d.VtkSurfacePlotBase.AddQuadrilateral	(	vec3	p1,
		vec3	p2,
		vec3	p3,
		vec3	p4
	)

inline

References IG.Num.vec3.x, IG.Num.vec3.y, and IG.Num.vec3.z.

void IG.Gr3d.VtkSurfacePlotBase.AddFilledTriangle	(	double	x1,
		double	y1,
		double	z1,
		double	x2,
		double	y2,
		double	z2,
		double	x3,
		double	y3,
		double	z3
	)

inline

void IG.Gr3d.VtkSurfacePlotBase.AddFilledTriangle	(	vec3	p1,
		vec3	p2,
		vec3	p3
	)

inline

References IG.Num.vec3.x, IG.Num.vec3.y, and IG.Num.vec3.z.

void IG.Gr3d.VtkSurfacePlotBase.AddFilledTriangularStrip ( params vec3[] points )

inline

void IG.Gr3d.VtkSurfacePlotBase.AddBorderedTriangle	(	double	x1,
		double	y1,
		double	z1,
		double	x2,
		double	y2,
		double	z2,
		double	x3,
		double	y3,
		double	z3
	)

inline

void IG.Gr3d.VtkSurfacePlotBase.AddBorderedTriangle	(	vec3	p1,
		vec3	p2,
		vec3	p3
	)

inline

void IG.Gr3d.VtkSurfacePlotBase.AddBorderedTriangularStrip ( params vec3[] points )

inline

void IG.Gr3d.VtkSurfacePlotBase.AddFilledQuadrilateral	(	double	x1,
		double	y1,
		double	z1,
		double	x2,
		double	y2,
		double	z2,
		double	x3,
		double	y3,
		double	z3,
		double	x4,
		double	y4,
		double	z4
	)

inline

void IG.Gr3d.VtkSurfacePlotBase.AddFilledQuadrilateral	(	vec3	p1,
		vec3	p2,
		vec3	p3,
		vec3	p4
	)

inline

References IG.Num.vec3.x, IG.Num.vec3.y, and IG.Num.vec3.z.

void IG.Gr3d.VtkSurfacePlotBase.AddBorderedQuadrilateral	(	double	x1,
		double	y1,
		double	z1,
		double	x2,
		double	y2,
		double	z2,
		double	x3,
		double	y3,
		double	z3,
		double	x4,
		double	y4,
		double	z4
	)

inline

void IG.Gr3d.VtkSurfacePlotBase.AddBorderedQuadrilateral	(	vec3	p1,
		vec3	p2,
		vec3	p3,
		vec3	p4
	)

inline

Member Data Documentation

string IG.Gr3d.VtkSurfacePlotBase.DefaultValuesFieldName = "values"

static

Default name of the field that contains node values for plotted grids.

bool IG.Gr3d.VtkSurfacePlotBase.DefaultLinesVisible = true

static

Default value of the flag indicating whether lines and contours will be shown.

double IG.Gr3d.VtkSurfacePlotBase.DefaultLineWidth = 2

static

Default line thickness for new objects of this class.

bool IG.Gr3d.VtkSurfacePlotBase.DefaultLineColorIsScaled = false

static

Default value of the flag indicating whether lines are plotted in color scale, for new plot objects of this class. Value false means that constant color is used, true means that color scale is used.

ColorScale IG.Gr3d.VtkSurfacePlotBase.DefaultLineColorScale = ColorScale.CreateGray(0,1)

static

Default line color scale for new plot objects of this class.

color IG.Gr3d.VtkSurfacePlotBase.DefaultLineColor = new color(0, 0, 1)

static

Default line color for new objects of this class.

bool IG.Gr3d.VtkSurfacePlotBase.DefaultSurfacesVisible = true

static

Default value of the flag indicating whether surfaces will be shown.

bool IG.Gr3d.VtkSurfacePlotBase.DefaultSurfaceColorIsScaled = true

static

Default value of the flag indicated whether surfaces are plotted in color scale, for new plot objects of this class. Value false means that constant color is used, true means that color scale is used.

ColorScale IG.Gr3d.VtkSurfacePlotBase.DefaultSurfaceColorScale

static

Initial value:

= ColorScale.Create(0, 1,

System.Drawing.Color.DarkBlue, System.Drawing.Color.Green, System.Drawing.Color.Red, System.Drawing.Color.Yellow)

Default surface color scale for new plot objects of this class.

color IG.Gr3d.VtkSurfacePlotBase.DefaultSurfaceColor = new color(0.5, 0.75, 1.0)

static

Default surface color for new objects of this class.

bool IG.Gr3d.VtkSurfacePlotBase.DefaultPointsVisible = true

static

Default value of the flag indicating whether points will be shown.

double IG.Gr3d.VtkSurfacePlotBase.DefaultPointSize = 2

static

Default point size for new objects of this class.

bool IG.Gr3d.VtkSurfacePlotBase.DefaultPointColorIsScaled = false

static

Default value of the flag indicated whether points are plotted in color scale, for new plot objects of this class. Value false means that constant color is used, true means that color scale is used.

ColorScale IG.Gr3d.VtkSurfacePlotBase.DefaultPointColorScale = ColorScale.Create(-1, 1, new color(0.1, 0, 0.3), new color(1, 0.5, 0))

static

Default point color scale for new plot objects of this class.

color IG.Gr3d.VtkSurfacePlotBase.DefaultPointColor = new color(1, 0, 0)

static

Default point color for new objects of this class.

bool IG.Gr3d.VtkSurfacePlotBase._linesVisible = DefaultLinesVisible

private

double IG.Gr3d.VtkSurfacePlotBase._lineWidth = DefaultLineWidth

private

bool IG.Gr3d.VtkSurfacePlotBase._lineColorIsScaled = DefaultLineColorIsScaled

private

ColorScale IG.Gr3d.VtkSurfacePlotBase._lineColorScale = DefaultLineColorScale

private

color IG.Gr3d.VtkSurfacePlotBase._lineColor = DefaultLineColor

private

double IG.Gr3d.VtkSurfacePlotBase._lineColorOpacity = -1

private

bool IG.Gr3d.VtkSurfacePlotBase._surfacesVisible = DefaultSurfacesVisible

private

bool IG.Gr3d.VtkSurfacePlotBase._surfaceColorIsScaled = DefaultSurfaceColorIsScaled

private

ColorScale IG.Gr3d.VtkSurfacePlotBase._surfaceColorScale = DefaultSurfaceColorScale

private

color IG.Gr3d.VtkSurfacePlotBase._surfaceColor = DefaultSurfaceColor

private

double IG.Gr3d.VtkSurfacePlotBase._surfaceColorOpacity = -1

private

bool IG.Gr3d.VtkSurfacePlotBase._pointsVisible = DefaultPointsVisible

private

double IG.Gr3d.VtkSurfacePlotBase._pointSize = DefaultPointSize

private

bool IG.Gr3d.VtkSurfacePlotBase._pointColorIsScaled = DefaultPointColorIsScaled

private

ColorScale IG.Gr3d.VtkSurfacePlotBase._pointColorScale = DefaultPointColorScale

private

color IG.Gr3d.VtkSurfacePlotBase._pointColor = DefaultPointColor

private

double IG.Gr3d.VtkSurfacePlotBase._pointColorOpacity = 1

int IG.Gr3d.VtkSurfacePlotBase._linePointIndex

private

vtkPoints IG.Gr3d.VtkSurfacePlotBase._linePoints

private

vtkCellArray IG.Gr3d.VtkSurfacePlotBase._lineCells

private

int IG.Gr3d.VtkSurfacePlotBase._surfacePointIndex

private

vtkPoints IG.Gr3d.VtkSurfacePlotBase._surfacePoints

private

vtkCellArray IG.Gr3d.VtkSurfacePlotBase._surfaceCells

private

int IG.Gr3d.VtkSurfacePlotBase._pointPointIndex

private

vtkPoints IG.Gr3d.VtkSurfacePlotBase._pointPoints

private

vtkCellArray IG.Gr3d.VtkSurfacePlotBase._pointCells

private

Property Documentation

bool IG.Gr3d.VtkSurfacePlotBase.LinesVisible

getset

Whether line objects are shown in plots or not.

Referenced by IG.Forms.VectorFunctionPlotter2d.ApplySurfacePlotSettingsDefault(), IG.Gr3d.VtkPlotter.ExampleAddTestGraph(), IG.Gr3d.VtkPlotBase.ExampleContourPlot(), IG.Gr3d.VtkPlotBase.ExampleCurvePlotLissajous(), IG.Gr3d.VtkPlotBase.ExampleCurvePlotTorusKnot(), IG.Gr3d.VtkPlotBase.ExampleCustomSurfaceComparison(), IG.Gr3d.VtkControlBase.ExampleExternalLoadVtkGraphics_SurfacePlots(), IG.Gr3d.VtkFormsExamples.Plot3dFunctionVtkControl(), and IG.Gr3d.VtkControlBase.VtkControlBase_LoadVtkGraphics().

double IG.Gr3d.VtkSurfacePlotBase.LineWidth

getset

Line thickness used in plots.

Referenced by IG.Forms.VectorFunctionPlotter2d.ApplySurfacePlotSettingsDefault(), IG.Gr3d.VtkPlotter.ExampleAddTestGraph(), IG.Gr3d.VtkPlotBase.ExampleContourPlot(), IG.Gr3d.VtkPlotBase.ExampleCurvePlotLissajous(), IG.Gr3d.VtkPlotBase.ExampleCurvePlotTorusKnot(), IG.Gr3d.VtkPlotBase.ExampleCustomSurfaceComparison(), IG.Gr3d.VtkControlBase.ExampleExternalLoadVtkGraphics_SurfacePlots(), IG.Gr3d.VtkPlotBase.ExampleParametricSurfacePlots(), IG.Gr3d.VtkPlotBase.ExamplePlotterDecoration(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlot(), IG.Gr3d.VtkFormsExamples.Plot3dFunctionVtkControl(), IG.Script.ScriptGraphics3DBase.SetDefaultPlotProperties(), IG.Script.ScriptGraphics3DBase.SurfaceFunctionKleinBottle(), IG.Script.ScriptGraphics3DBase.SurfaceFunctionSnailShell(), and IG.Gr3d.VtkControlBase.VtkControlBase_LoadVtkGraphics().

bool IG.Gr3d.VtkSurfacePlotBase.LineColorIsScaled

getset

Whether a color scale is used for coloring lines (value true) or a fixed color is used (value false).

Referenced by IG.Gr3d.VtkPlotter.ExampleAddTestGraph(), IG.Gr3d.VtkPlotBase.ExampleContourPlot(), IG.Gr3d.VtkPlotBase.ExampleCurvePlotLissajous(), IG.Gr3d.VtkPlotBase.ExampleCurvePlotTorusKnot(), IG.Gr3d.VtkPlotBase.ExampleCustomSurfaceComparison(), IG.Gr3d.VtkControlBase.ExampleExternalLoadVtkGraphics_SurfacePlots(), IG.Gr3d.VtkPlotBase.ExampleParametricSurfacePlots(), IG.Gr3d.VtkPlotBase.ExamplePlotterDecoration(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlot(), IG.Gr3d.VtkFormsExamples.Plot3dFunctionVtkControl(), IG.Script.ScriptGraphics3DBase.SetDefaultPlotProperties(), and IG.Gr3d.VtkControlBase.VtkControlBase_LoadVtkGraphics().

ColorScale IG.Gr3d.VtkSurfacePlotBase.LineColorScale

getset

Color scale used for plotting lines (when the flag LineColorIsScaled is true, otherwise fixed LineColor is uesd).

Referenced by IG.Gr3d.VtkPlotBase.ExampleCurvePlotLissajous(), IG.Gr3d.VtkPlotBase.ExampleCurvePlotTorusKnot(), IG.Gr3d.VtkPlotBase.ExampleCustomSurfaceComparison(), and IG.Gr3d.VtkControlBase.VtkControlBase_LoadVtkGraphics().

color IG.Gr3d.VtkSurfacePlotBase.LineColor

getset

Color used for lines (when the flag LineColorIsScaled is false, otherwise LineColorScale is uesd that depends on values assigned to line endpoints).

Referenced by IG.Forms.VectorFunctionPlotter2d.ApplySurfacePlotSettingsDefault(), IG.Gr3d.VtkPlotBase.ExampleCurvePlotLissajous(), IG.Gr3d.VtkPlotBase.ExampleCurvePlotTorusKnot(), IG.Gr3d.VtkPlotBase.ExampleCustomSurfaceComparison(), IG.Gr3d.VtkPlotBase.ExampleParametricSurfacePlots(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlot(), IG.Script.ScriptGraphics3DBase.SetDefaultPlotProperties(), IG.Script.ScriptGraphics3DBase.SurfaceFunctionKleinBottle(), IG.Script.ScriptGraphics3DBase.SurfaceFunctionSnailShell(), and IG.Gr3d.VtkControlBase.VtkControlBase_LoadVtkGraphics().

double IG.Gr3d.VtkSurfacePlotBase.LineColorOpacity

getset

Opacity of lines.

If this property is not set separately then the opacity of LineColor is returned by getter.

Once this property is set, even when setitng a new value for LineColor property, the opacity on this property will be overridden by the value that has been set specially.

This property is unset by setting it to a negative value.

bool IG.Gr3d.VtkSurfacePlotBase.SurfacesVisible

getset

Whether surface objects are shown in plots or not.

Referenced by IG.Forms.VectorFunctionPlotter2d.ApplySurfacePlotSettingsDefault(), IG.Gr3d.VtkPlotter.ExampleAddTestGraph(), IG.Gr3d.VtkPlotBase.ExampleContourPlot(), IG.Gr3d.VtkPlotBase.ExampleCustomSurfaceComparison(), IG.Gr3d.VtkControlBase.ExampleExternalLoadVtkGraphics_SurfacePlots(), and IG.Gr3d.VtkFormsExamples.Plot3dFunctionVtkControl().

bool IG.Gr3d.VtkSurfacePlotBase.SurfaceColorIsScaled

getset

Whether a color scale is used for coloring surfaces (value true) or a fixed color is used (value false).

Referenced by IG.Forms.VectorFunctionPlotter2d.ApplySurfacePlotSettingsDefault(), IG.Gr3d.VtkPlotter.ExampleAddTestGraph(), IG.Gr3d.VtkPlotBase.ExampleContourPlot(), IG.Gr3d.VtkPlotBase.ExampleCustomSurfaceComparison(), IG.Gr3d.VtkControlBase.ExampleExternalLoadVtkGraphics_SurfacePlots(), IG.Gr3d.VtkPlotBase.ExampleParametricSurfacePlots(), IG.Gr3d.VtkPlotBase.ExamplePlotterDecoration(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlot(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlotManualScaled(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlotScaled(), IG.Gr3d.VtkFormsExamples.Plot3dFunctionVtkControl(), and IG.Script.ScriptGraphics3DBase.SetDefaultPlotProperties().

ColorScale IG.Gr3d.VtkSurfacePlotBase.SurfaceColorScale

getset

Color scale used for plotting surfaces (when the flag SurfaceColorIsScaled is true, otherwise fixed SurfaceColor is uesd).

Referenced by IG.Forms.VectorFunctionPlotter2d.ApplySurfacePlotSettingsDefault(), and IG.Gr3d.VtkPlotBase.ExampleCustomSurfaceComparison().

color IG.Gr3d.VtkSurfacePlotBase.SurfaceColor

getset

Color used for surfaces (when the flag SurfaceColorIsScaled is false, otherwise SurfaceColorScale is uesd that depends on values assigned to surface endpoints).

Referenced by IG.Forms.VectorFunctionPlotter2d.ApplySurfacePlotSettingsDefault(), IG.Gr3d.VtkPlotter.ExampleAddTestGraph(), IG.Gr3d.VtkPlotBase.ExampleContourPlot(), IG.Gr3d.VtkPlotBase.ExampleCustomSurfaceComparison(), IG.Gr3d.VtkControlBase.ExampleExternalLoadVtkGraphics_SurfacePlots(), IG.Gr3d.VtkPlotBase.ExampleParametricSurfacePlots(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlot(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlotManualScaled(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlotScaled(), IG.Gr3d.VtkFormsExamples.Plot3dFunctionVtkControl(), IG.Script.ScriptGraphics3DBase.SetDefaultPlotProperties(), IG.Script.ScriptGraphics3DBase.SurfaceFunctionKleinBottle(), IG.Script.ScriptGraphics3DBase.SurfaceFunctionSnailShell(), and IG.Script.ScriptGraphics3DBase.SurfaceFunctionTwoToruses().

double IG.Gr3d.VtkSurfacePlotBase.SurfaceColorOpacity

getset

Opacity of surfaces.

If this property is not set separately then the opacity of SurfaceColor is returned by getter.

Once this property is set, even when setitng a new value for SurfaceColor property, the opacity on that property will be overridden by the value that has been set specially.

This property is unset by setting it to a negative value.

Referenced by IG.Forms.VectorFunctionPlotter2d.ApplySurfacePlotSettingsDefault(), IG.Gr3d.VtkPlotter.ExampleAddTestGraph(), IG.Gr3d.VtkPlotBase.ExampleContourPlot(), IG.Gr3d.VtkPlotBase.ExampleCustomSurfaceComparison(), IG.Gr3d.VtkControlBase.ExampleExternalLoadVtkGraphics_SurfacePlots(), IG.Gr3d.VtkPlotBase.ExampleParametricSurfacePlots(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlot(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlotManualScaled(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlotScaled(), IG.Gr3d.VtkFormsExamples.Plot3dFunctionVtkControl(), IG.Script.ScriptGraphics3DBase.SetDefaultPlotProperties(), IG.Script.ScriptGraphics3DBase.SurfaceFunctionKleinBottle(), and IG.Script.ScriptGraphics3DBase.SurfaceFunctionSnailShell().

bool IG.Gr3d.VtkSurfacePlotBase.PointsVisible

getset

Whether point objects are shown in plots or not.

double IG.Gr3d.VtkSurfacePlotBase.PointSize

getset

Point size used in plots.

Referenced by IG.Gr3d.VtkPlotter.ExampleAddTestGraph(), IG.Gr3d.VtkPlotBase.ExampleContourPlot(), IG.Gr3d.VtkPlotBase.ExampleCurvePlotLissajous(), IG.Gr3d.VtkPlotBase.ExampleCurvePlotTorusKnot(), IG.Gr3d.VtkPlotBase.ExampleCustomSurfaceComparison(), IG.Gr3d.VtkControlBase.ExampleExternalLoadVtkGraphics_SurfacePlots(), IG.Gr3d.VtkPlotBase.ExampleParametricSurfacePlots(), IG.Gr3d.VtkPlotBase.ExamplePlotterDecoration(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlot(), IG.Gr3d.VtkFormsExamples.Plot3dFunctionVtkControl(), IG.Script.ScriptGraphics3DBase.SetDefaultPlotProperties(), and IG.Gr3d.VtkControlBase.VtkControlBase_LoadVtkGraphics().

bool IG.Gr3d.VtkSurfacePlotBase.PointColorIsScaled

getset

Whether a color scale is used for coloring points (value true) or a fixed color is used (value false).

Referenced by IG.Gr3d.VtkPlotBase.ExampleCurvePlotLissajous(), IG.Gr3d.VtkPlotBase.ExampleCurvePlotTorusKnot(), and IG.Gr3d.VtkControlBase.VtkControlBase_LoadVtkGraphics().

ColorScale IG.Gr3d.VtkSurfacePlotBase.PointColorScale

getset

Color scale used for plotting points (when the flag PointColorIsScaled is true, otherwise fixed PointColor is uesd).

Referenced by IG.Gr3d.VtkPlotBase.ExampleCurvePlotLissajous(), IG.Gr3d.VtkPlotBase.ExampleCurvePlotTorusKnot(), and IG.Gr3d.VtkControlBase.VtkControlBase_LoadVtkGraphics().

color IG.Gr3d.VtkSurfacePlotBase.PointColor

getset

Color used for points (when the flag PointColorIsScaled is false, otherwise PointColorScale is uesd that depends on values assigned to points).

Referenced by IG.Gr3d.VtkPlotBase.ExampleCurvePlotLissajous(), IG.Gr3d.VtkPlotBase.ExampleCurvePlotTorusKnot(), IG.Gr3d.VtkPlotBase.ExampleCustomSurfaceComparison(), IG.Gr3d.VtkPlotBase.ExampleSurfacePlot(), and IG.Gr3d.VtkControlBase.VtkControlBase_LoadVtkGraphics().

double IG.Gr3d.VtkSurfacePlotBase.PointColorOpacity

getset

Opacity of points.

If this property is not set separately then the opacity of PointColor is returned by getter.

Once this property is set, even when setitng a new value for PointColor property, the opacity on that property will be overridden by the value that has been set specially.

This property is unset by setting it to a negative value.

The documentation for this class was generated from the following file:

extensions/igplot3d/plot3d/vtkbased/VtkSurfacePlotBase.cs
