Base class for script classes with graphics examples. More...

Inheritance diagram for IG.Script.ScriptGraphics3DBase:

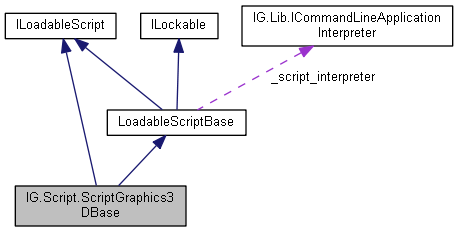

Collaboration diagram for IG.Script.ScriptGraphics3DBase:

Public Member Functions
	ScriptGraphics3DBase ()

override void	Script_AddCommands (ICommandLineApplicationInterpreter interpreter, SortedList< string, string > helpStrings)
	Adds commands to the internal interpreter. More...

string	TestMyTest (string[] arguments)
	Test action. More...

virtual string	TestCustom (string[] arguments)
	Custom test. More...

virtual string	TestVtkTest (string[] arguments)
	Runs various VTK tests. More...

virtual string	TestPlot3d (string[] arguments)
	Demonstration of various 3D plots. More...

virtual string	TestSurface3d (string[] arguments)
	Demonstration of surface plots. More...

Public Member Functions inherited from IG.Lib.LoadableScriptBase
	LoadableScriptBase ()
	Argument-less constructor. If argument-less constructor is called then initialization is not performed and will be performed later. More...

string	Run (string[] arguments)
	Performs the action of this object. Override this in derived classes! More...

void	Initialize (string[] arguments)
	Initializes the object. If not called explicitly, this method is automatically called at the first call to the Run method. More...

virtual string	Script_DefaultInitialize (string[] arguments)
	Default initialization method for scripts. More...

virtual string	Script_DefaultRun (string[] arguments)
	Default run method for the script. Can be used when only installed commands are run by hte script. More...

virtual ICommandLineApplicationInterpreter	Script_CreateInterpreterWithoutCommands ()
	Creates and returns an interpreter that can be used as script's internal interpreter for running script's commands. More...

delegate string	Script_CommandDelegate (string[] args)
	Delegate for commands that are installed on script's internal interpreter (property Script_Interpreter). More...

void	Script_AddCommand (string commandName, Script_CommandDelegate command, string helpString)
	Adds a new internal script command under specified name to the internal interpreter of the current script object. More...

virtual void	Script_AddCommand (ICommandLineApplicationInterpreter interpreter, SortedList< string, string > helpStrings, string commandName, Script_CommandDelegate command, string helpString)
	Adds a new internal script command under specified name to the internal interpreter of the current script object. More...

string	Script_GetHelpString (string scriptCommandName)
	Returns help string for internal script command with specified name, or null if help string is not installed for such a command. More...

void	Script_PrintCommandsHelp ()
	Prits help for the installed internal commands of the script. More...

virtual bool	Script_ContainsCommand (string commandName)
	Returns true if the internal script's interpreter contains a command with specified name, false otherwise. More...

virtual bool	Script_ContainsScriptCommand (string commandName)
	Returns true if the specified command is script command (i.e. its first argument is command-name and it is run through the Script_CommandAdapter object). More...

virtual void	Script_RemoveCommand (string commandName)
	Removes the specified internal script command from the internal interpreter of the current scripting object. More...

virtual void	Script_RemoveAllCommands ()
	Removes ALL internal script commands from the internal interpreter of the current scripting object. More...

string	Script_Run (string[] arguments)
	Runs internal script command. More...

string	Script_Run (string commandName, params string[] otherArguments)
	Runs internal script command. More...

virtual void	Script_PrintArguments (string messageString, string[] arguments)
	Prints the specified array of string arguments (usually passed as command-line arguments). More...

Public Attributes
const string	ConstMyTest = "MyTest"
	Name of the command that performs my custom test. More...

const string	ConstHelpMyTest = "Custom test function."

const string	ConstCustom = "Custom"
	Name of the command for custom test. More...

const string	ConstHelpCustom = "Custom test."

const string	ConstVtkTest = "VtkTest"
	Name of the command for VTK tests. More...

const string	ConstHelpVtkTest = "Various 3D tests using VTK. Run with ? argument to see which tests are available."

const string	ConstPlot3d = "Plot3d"
	Name of the command for 3D plots tests. More...

const string	ConstHelpPlot3d = "Various higher level 3D plots. Run with ? argument to see which tests are available."

const string	ConstSurface3d = "Surface3D"
	Name of the command for 3D surface examples. More...

const string	ConstHelpSurface3d = "Examples of 3D surfaces. Run with ? argument to see which surfaces are available."

const string	VtkStructuredGrid = "StructuredGrid"

const string	VtkQuadCells = "QuadCells"

const string	VtkCellGridContours = "CellGridContours"

const string	VtkStructuredGridVolumeContours = "StructuredGridVolumeContours"

const string	Plot3dVtkControl = "VtkControl"

const string	Plot3dCurvePlotLissajous = "CurvePlotLissajous"

const string	Plot3dSurfacePlot = "SurfacePlot"

const string	Plot3dSurfacePlotScaled = "SurfacePlotScaled"

const string	Plot3dSurfacePlotManualScaled = "SurfacePlotManualScaled"

const string	Plot3dContourPlot = "ContourPlot"

const string	Plot3dSurfaceComparison = "SurfaceComparison"

const string	Plot3dDecoration = "Decoration"

const string	surfaceKleinBottle = "KleinBottle"

const string	surfaceTwoToruses = "TwoToruses"

const string	surfaceSnailShell = "SnailShell"

Public Attributes inherited from IG.Lib.LoadableScriptBase
const string	ConstDefaultHelp = "Help"
	Default command name for help. More...

const string	ConstHelpDefaultUniversal = "?"
	Universal name of the help command. More...

const string	ConstDefaultTestScrip = "TestScript"
	Default command name for test method. More...

Protected Member Functions
override void	InitializeThis (string[] arguments)
	Initializes the current object. More...

override string	RunThis (string[] arguments)
	Runs action of the current object. More...

void	AddTestVtkCommand (string testName, CommandMethod surfaceMethod, string surfaceHelp)
	Adds a new command testing VTK. More...

virtual void	InitTestVtk ()
	Initializes VTK test commands. More...

virtual string	RunTestVtk (string[] args)
	Runs demonstration of surface plots according to arguments. More...

void	AddPlot3dCommand (string testName, CommandMethod surfaceMethod, string surfaceHelp)
	Adds a new command for a 3D graphics test. More...

virtual void	InitTestPlot3d ()
	Initializes commands for 3d graphic tests. More...

virtual string	RunTestPlot3d (string[] args)
	Runs demonstration of surface plots according to arguments. More...

void	AddSurfaceCommand (string surfaceName, CommandMethod surfaceMethod, string surfaceHelp)
	Adds a new command for plotting the specified surface. More...

virtual void	SetDefaultPlotProperties (VtkSurfacePlot plot)
	Sets default properties of the specified plot. More...

virtual void	SetPlotBounds (VtkSurfacePlot plot, string[] args)
	Sets plotting resolution and parameter bounds on the specified plot according to arguments. More...

virtual void	InitSurfaceCommands ()
	Initializes surface plotting commands. More...

virtual string	Run3DSurfaceTest (string[] args)
	Runs demonstration of surface plots according to arguments. More...

Protected Member Functions inherited from IG.Lib.LoadableScriptBase
delegate string	CommandMethod (string commandName, string[] args)
	Delegate for internal command methods. More...

ICommandLineApplicationInterpreter	Script_CreateInterpreter ()
	Creates and returns an interpreter that can be used as script's internal interpreter for running script's commands. More...

virtual string	Script_CommandHelp (string[] arguments)
	Prints help. More...

virtual string	Script_CommandTestScript (string[] arguments)
	Prints help. More...

Protected Attributes
List< string >	TestVtkNames = new List<string>()
	List of VTK test names. More...

List< string >	TestVtkHelpStrings = new List<string>()
	List of VTK tests' help strings. More...

List< CommandMethod >	TestVtkMethods = new List<CommandMethod>()
	List of methods used to perform VTK tests. More...

List< string >	TestPlot3dNames = new List<string>()
	List of installed 3D plotting test names. More...

List< string >	TestPlot3dHelpStrings = new List<string>()
	List of help strings corresponding to installed 3D plotting tests. More...

List< CommandMethod >	TestPlot3dMethods = new List<CommandMethod>()
	List of methods used to perform 3D plotting tests. More...

List< string >	SurfaceNames = new List<string>()
	List of surface names. More...

List< string >	SurfaceHelpStrings = new List<string>()
	List of surface methods' help strings. More...

List< CommandMethod >	SurfaceMethods = new List<CommandMethod>()
	List of methods used to plot surfaces. More...

Protected Attributes inherited from IG.Lib.LoadableScriptBase
string	_embeddedCommandName = null

int	_outputLevel = DefaultOutputLevel

ICommandLineApplicationInterpreter	_script_interpreter

Private Member Functions
string	VtkFunctionStructuredGrid (string surfaceName, string[] args)
	Demonstration of plotting structured grids. More...

string	VtkFunctionQuadCells (string surfaceName, string[] args)
	Example that demonstrates the ability to use simple primitives for plotting surfaces in 3D (graphs of functions of 2 variables or parametric surfaces). More...

string	VtkFunctionCellGridContours (string surfaceName, string[] args)
	Example of plotting contours on surfaces in 3D (graphs of functions of 2 variables or parametric surfaces) by using graphic primitives (cells) connected to polydata. More...

string	VtkFunctionStructuredGridVolumeContours (string surfaceName, string[] args)
	Example that demonstrates volume contours with structure grid. More...

string	Plot3dFunctionVtkControl (string surfaceName, string[] args)
	Tests use of VTK controls. More...

string	Plot3dFunctionCurvePlotLissajous (string surfaceName, string[] args)
	Demonstration of plotting 3d parametric curves. More...

string	Plot3dFunctionSurfacePlot (string surfaceName, string[] args)
	Demonstration of surface plots in 3D. More...

string	Plot3dFunctionSurfacePlotScaled (string surfaceName, string[] args)
	Demonstration of surface plots in 3D where mesh is manually composed. Automatic scaling of physical graph is also demonstrated. More...

string	Plot3dFunctionSurfacePlotManualScaled (string surfaceName, string[] args)
	Demonstration of surface plots in 3D where mesh is manually composed. Scaling of physical graph is also demonstrated. More...

string	Plot3dFunctionContourPlot (string surfaceName, string[] args)
	Demonstration contour plots in 3D. More...

string	Plot3dFunctionSurfaceComparison (string surfaceName, string[] args)
	Demonstration of comparison of 2 surfaces in 3D. More...

string	Plot3dFunctionDecoration (string surfaceName, string[] args)
	Demonstration of surface plots in 3D. More...

string	SurfaceFunctionKleinBottle (string surfaceName, string[] args)
	Plots the Klein's Bottle parametric surface. More...

string	SurfaceFunctionTwoToruses (string surfaceName, string[] args)
	Plots two interlocked toruses. More...

string	SurfaceFunctionSnailShell (string surfaceName, string[] args)
	Plots the Snail shell parametric surface. More...

Private Attributes
const string	VtkHelpStructuredGrid = VtkStructuredGrid + " <numX> <numY> <numZ> : Structured grid in 3D."

const string	VtkHelpQuadCells = VtkQuadCells + " <numX> <numY> : Using simple primitives in 3D graphics."

const string	VtkHelpCellGridContours = VtkCellGridContours + " <numX> <numY> <numContours> : Cotours on 3D surfaces by using cells."

const string	VtkHelpStructuredGridVolumeContours = VtkStructuredGridVolumeContours + " <numX> <numY> <numZ> <numContours> : Using volume contorus with structured grid."

bool	_TestVtkCommandInitialized = false

const string	Plot3dHelpVtkControl

const string	Plot3dHelpCurvePlotLissajous = Plot3dCurvePlotLissajous + " : Plot of Lissajous-derived curves in 3D."

const string	Plot3dHelpSurfacePlot = Plot3dSurfacePlot + " : Surface plot."

const string	Plot3dHelpSurfacePlotScaled = Plot3dSurfacePlotScaled + " <numX> <numY>: Surface plot with manual mesh, automatically scaled."

const string	Plot3dHelpSurfacePlotManualScaled = Plot3dSurfacePlotManualScaled + " <numX> <numY>: Surface plot with manual mesh, manually scaled."

const string	Plot3dHelpContourPlot = Plot3dContourPlot + " : Contour plot."

const string	Plot3dHelpSurfaceComparison = Plot3dSurfaceComparison + " : Comparison of 2 surfaces in 3D."

const string	Plot3dHelpDecoration = Plot3dDecoration + " : Decorations demo."

bool	_plot3dCommandsInitialized = false

const string	surfaceHelpKleinBottle = surfaceKleinBottle + " <numX> <numY> <formX> <toX> <fromY> <toY> : Klein's bottle"

const string	surfaceHelpTwoToruses = surfaceTwoToruses + " : Two interlocked toruses."

const string	surfaceHelpSnailShell = surfaceSnailShell + " <numX> <numY> <formX> <toX> <fromY> <toY> : Snail's shell surface"

bool	_surfaceCommandInitialized = false

Additional Inherited Members
Properties inherited from IG.Lib.LoadableScriptBase
string	EmbeddedCommandName `[get, set]`
	Command that was used to launch the current embedded application script. More...

object	Lock `[get]`
	This object's central lock object to be used by other object. Do not use this object for locking in class' methods, for this you should use InternalLock. More...

string[]	InitializationArguments `[get, set]`
	Arguments used by the initialization method. WARNING: arguments can only be set before initialization is performed. Initialization is performed either implicitly at the first call to the Run method or explicitly by calling the Initialize method. More...

virtual bool	IsInitialized `[get, protected set]`
	Whether the object has been initialized or not. More...

static int	DefaultOutputLevel `[get, set]`

int	OutputLevel `[get, set]`
	Level of output to console produced by some operations of the current object. More...

virtual ICommandLineApplicationInterpreter	Script_Interpreter `[get, protected set]`
	Script's internal interpreter that takes care for execution of installed internal commands. More...

SortedList< string, string >	Script_CommandHelpStrings `[get]`
	Contains help strings associated with script commands installed on interpreter. More...

Properties inherited from IG.Lib.ILoadableScript
string	EmbeddedCommandName `[get, set]`
	Command that was used to launch the current embedded application script. More...

string[]	InitializationArguments `[get, set]`
	Arguments used by the initialization method. More...

bool	IsInitialized `[get]`
	Whether the object has been initialized or not. More...

Properties inherited from IG.Lib.ILockable
object	Lock `[get]`

Detailed Description

Base class for script classes with graphics examples.

$A Igor xx Jul12;

Constructor & Destructor Documentation

IG.Script.ScriptGraphics3DBase.ScriptGraphics3DBase ( )

inline

Member Function Documentation

override void IG.Script.ScriptGraphics3DBase.InitializeThis ( string[] arguments )

inlineprotectedvirtual

Initializes the current object.

Implements IG.Lib.LoadableScriptBase.

override string IG.Script.ScriptGraphics3DBase.RunThis ( string[] arguments )

inlineprotectedvirtual

Runs action of the current object.

Parameters

arguments Command-line arguments of the action.

Implements IG.Lib.LoadableScriptBase.

override void IG.Script.ScriptGraphics3DBase.Script_AddCommands	(	ICommandLineApplicationInterpreter	interpreter,
		SortedList< string, string >	helpStrings
	)

inlinevirtual

Adds commands to the internal interpreter.

Parameters

interpreter	Interpreter where commands are executed.
helpStrings	List containg help strings.

Reimplemented from IG.Lib.LoadableScriptBase.

string IG.Script.ScriptGraphics3DBase.TestMyTest ( string[] arguments )

inline

Test action.

Parameters

arguments Array of command-line arguments.

virtual string IG.Script.ScriptGraphics3DBase.TestCustom ( string[] arguments )

inlinevirtual

Custom test.

void IG.Script.ScriptGraphics3DBase.AddTestVtkCommand	(	string	testName,
		CommandMethod	surfaceMethod,
		string	surfaceHelp
	)

inlineprotected

Adds a new command testing VTK.

Parameters

testName	VTK test name.
surfaceMethod	Method used to perform the test.
surfaceHelp	Eventual help string for the test.

string IG.Script.ScriptGraphics3DBase.VtkFunctionStructuredGrid	(	string	surfaceName,
		string[]	args
	)

inlineprivate

Demonstration of plotting structured grids.

References IG.Gr3d.TestVtkGraphicBase.ExampleStructuredGrid().

string IG.Script.ScriptGraphics3DBase.VtkFunctionQuadCells	(	string	surfaceName,
		string[]	args
	)

inlineprivate

Example that demonstrates the ability to use simple primitives for plotting surfaces in 3D (graphs of functions of 2 variables or parametric surfaces).

References IG.Gr3d.TestVtkGraphicBase.ExampleQuadCells().

string IG.Script.ScriptGraphics3DBase.VtkFunctionCellGridContours	(	string	surfaceName,
		string[]	args
	)

inlineprivate

Example of plotting contours on surfaces in 3D (graphs of functions of 2 variables or parametric surfaces) by using graphic primitives (cells) connected to polydata.

References IG.Gr3d.TestVtkGraphicBase.ExampleCellsGridContours().

string IG.Script.ScriptGraphics3DBase.VtkFunctionStructuredGridVolumeContours	(	string	surfaceName,
		string[]	args
	)

inlineprivate

Example that demonstrates volume contours with structure grid.

References IG.Gr3d.TestVtkGraphicBase.ExampleStructuredGridVolumeContours().

virtual void IG.Script.ScriptGraphics3DBase.InitTestVtk ( )

inlineprotectedvirtual

Initializes VTK test commands.

virtual string IG.Script.ScriptGraphics3DBase.RunTestVtk ( string[] args )

inlineprotectedvirtual

Runs demonstration of surface plots according to arguments.

virtual string IG.Script.ScriptGraphics3DBase.TestVtkTest ( string[] arguments )

inlinevirtual

Runs various VTK tests.

void IG.Script.ScriptGraphics3DBase.AddPlot3dCommand	(	string	testName,
		CommandMethod	surfaceMethod,
		string	surfaceHelp
	)

inlineprotected

Adds a new command for a 3D graphics test.

Parameters

testName	Test name.
surfaceMethod	Method used to perform the test.
surfaceHelp	Eventual help string for the test.

string IG.Script.ScriptGraphics3DBase.Plot3dFunctionVtkControl	(	string	surfaceName,
		string[]	args
	)

inlineprivate

Tests use of VTK controls.

References IG.Gr3d.VtkFormsExamples.Plot3dFunctionVtkControl().

string IG.Script.ScriptGraphics3DBase.Plot3dFunctionCurvePlotLissajous	(	string	surfaceName,
		string[]	args
	)

inlineprivate

Demonstration of plotting 3d parametric curves.

References IG.Gr3d.VtkPlotBase.ExampleCurvePlotLissajous().

string IG.Script.ScriptGraphics3DBase.Plot3dFunctionSurfacePlot	(	string	surfaceName,
		string[]	args
	)

inlineprivate

Demonstration of surface plots in 3D.

References IG.Gr3d.VtkPlotBase.ExampleSurfacePlot().

string IG.Script.ScriptGraphics3DBase.Plot3dFunctionSurfacePlotScaled	(	string	surfaceName,
		string[]	args
	)

inlineprivate

Demonstration of surface plots in 3D where mesh is manually composed. Automatic scaling of physical graph is also demonstrated.

References IG.Gr3d.VtkPlotBase.ExampleSurfacePlotScaled().

string IG.Script.ScriptGraphics3DBase.Plot3dFunctionSurfacePlotManualScaled	(	string	surfaceName,
		string[]	args
	)

inlineprivate

Demonstration of surface plots in 3D where mesh is manually composed. Scaling of physical graph is also demonstrated.

References IG.Gr3d.VtkPlotBase.ExampleSurfacePlotManualScaled().

string IG.Script.ScriptGraphics3DBase.Plot3dFunctionContourPlot	(	string	surfaceName,
		string[]	args
	)

inlineprivate

Demonstration contour plots in 3D.

References IG.Gr3d.VtkPlotBase.ExampleContourPlot().

string IG.Script.ScriptGraphics3DBase.Plot3dFunctionSurfaceComparison	(	string	surfaceName,
		string[]	args
	)

inlineprivate

Demonstration of comparison of 2 surfaces in 3D.

References IG.Gr3d.VtkPlotBase.ExampleCustomSurfaceComparison().

string IG.Script.ScriptGraphics3DBase.Plot3dFunctionDecoration	(	string	surfaceName,
		string[]	args
	)

inlineprivate

Demonstration of surface plots in 3D.

References IG.Gr3d.VtkPlotBase.ExamplePlotterDecoration().

virtual void IG.Script.ScriptGraphics3DBase.InitTestPlot3d ( )

inlineprotectedvirtual

Initializes commands for 3d graphic tests.

virtual string IG.Script.ScriptGraphics3DBase.RunTestPlot3d ( string[] args )

inlineprotectedvirtual

Runs demonstration of surface plots according to arguments.

virtual string IG.Script.ScriptGraphics3DBase.TestPlot3d ( string[] arguments )

inlinevirtual

Demonstration of various 3D plots.

void IG.Script.ScriptGraphics3DBase.AddSurfaceCommand	(	string	surfaceName,
		CommandMethod	surfaceMethod,
		string	surfaceHelp
	)

inlineprotected

Adds a new command for plotting the specified surface.

Parameters

surfaceName	Surface (and the corresponding plotting command) name.
surfaceMethod	Method used to plot the surface.
surfaceHelp	Eventual help string for the added surface.

virtual void IG.Script.ScriptGraphics3DBase.SetDefaultPlotProperties ( VtkSurfacePlot plot )

inlineprotectedvirtual

Sets default properties of the specified plot.

Parameters

plot

References IG.Gr3d.VtkSurfacePlotBase.LineColor, IG.Gr3d.VtkSurfacePlotBase.LineColorIsScaled, IG.Gr3d.VtkSurfacePlotBase.LineWidth, IG.Gr3d.VtkSurfacePlot.NumX, IG.Gr3d.VtkSurfacePlot.NumY, IG.Gr3d.VtkPlotBase.OutputLevel, IG.Gr3d.VtkSurfacePlotBase.PointSize, IG.Gr3d.VtkSurfacePlotBase.PointsVisible, IG.Gr3d.VtkSurfacePlot.SetBoundsParameters(), IG.Gr3d.VtkSurfacePlotBase.SurfaceColor, IG.Gr3d.VtkSurfacePlotBase.SurfaceColorIsScaled, and IG.Gr3d.VtkSurfacePlotBase.SurfaceColorOpacity.

virtual void IG.Script.ScriptGraphics3DBase.SetPlotBounds	(	VtkSurfacePlot	plot,
		string[]	args
	)

inlineprotectedvirtual

Sets plotting resolution and parameter bounds on the specified plot according to arguments.

Only things that are specified by arguments are set.

Arguments must follow in this order: NumX, NumY, fromX, toX, fromY, toY

Parameters

plot	Plot where resolution and bounds are set.

References IG.Gr3d.VtkSurfacePlot.BoundsParameters, IG.Gr3d.VtkSurfacePlot.NumX, IG.Gr3d.VtkSurfacePlot.NumY, IG.Num.BoundingBoxBase.SetMax(), and IG.Num.BoundingBoxBase.SetMin().

string IG.Script.ScriptGraphics3DBase.SurfaceFunctionKleinBottle	(	string	surfaceName,
		string[]	args
	)

inlineprivate

Plots the Klein's Bottle parametric surface.

See also: VtkPlotBase.ExampleParametricSurfacePlots

References IG.Gr3d.VtkPlotBase.CopyBounds(), IG.Gr3d.VtkPlotBase.CreateAndShow(), IG.Gr3d.VtkSurfacePlotBase.LineColor, IG.Gr3d.VtkSurfacePlotBase.LineWidth, IG.Gr3d.VtkSurfacePlot.SetSurfaceDefinition(), IG.Gr3d.VtkSurfacePlotBase.SurfaceColor, and IG.Gr3d.VtkSurfacePlotBase.SurfaceColorOpacity.

string IG.Script.ScriptGraphics3DBase.SurfaceFunctionTwoToruses	(	string	surfaceName,
		string[]	args
	)

inlineprivate

Plots two interlocked toruses.

See also: VtkPlotBase.ExampleParametricSurfacePlots

References IG.Gr3d.VtkPlotBase.CopyBounds(), IG.Gr3d.VtkSurfacePlot.Create(), IG.Gr3d.VtkSurfacePlot.SetSurfaceDefinition(), IG.Gr3d.VtkPlotBase.ShowPlot(), and IG.Gr3d.VtkSurfacePlotBase.SurfaceColor.

string IG.Script.ScriptGraphics3DBase.SurfaceFunctionSnailShell	(	string	surfaceName,
		string[]	args
	)

inlineprivate

Plots the Snail shell parametric surface.

See also: VtkPlotBase.ExampleParametricSurfacePlots

References IG.Gr3d.VtkPlotBase.CopyBounds(), IG.Gr3d.VtkPlotBase.CreateAndShow(), IG.Gr3d.VtkSurfacePlotBase.LineColor, IG.Gr3d.VtkSurfacePlotBase.LineWidth, IG.Gr3d.VtkSurfacePlot.SetSurfaceDefinition(), IG.Gr3d.VtkSurfacePlotBase.SurfaceColor, and IG.Gr3d.VtkSurfacePlotBase.SurfaceColorOpacity.

virtual void IG.Script.ScriptGraphics3DBase.InitSurfaceCommands ( )

inlineprotectedvirtual

Initializes surface plotting commands.

virtual string IG.Script.ScriptGraphics3DBase.Run3DSurfaceTest ( string[] args )

inlineprotectedvirtual

Runs demonstration of surface plots according to arguments.

virtual string IG.Script.ScriptGraphics3DBase.TestSurface3d ( string[] arguments )

inlinevirtual

Demonstration of surface plots.

Member Data Documentation

const string IG.Script.ScriptGraphics3DBase.ConstMyTest = "MyTest"

Name of the command that performs my custom test.

const string IG.Script.ScriptGraphics3DBase.ConstHelpMyTest = "Custom test function."

const string IG.Script.ScriptGraphics3DBase.ConstCustom = "Custom"

Name of the command for custom test.

const string IG.Script.ScriptGraphics3DBase.ConstHelpCustom = "Custom test."

const string IG.Script.ScriptGraphics3DBase.ConstVtkTest = "VtkTest"

Name of the command for VTK tests.

const string IG.Script.ScriptGraphics3DBase.ConstHelpVtkTest = "Various 3D tests using VTK. Run with ? argument to see which tests are available."

const string IG.Script.ScriptGraphics3DBase.ConstPlot3d = "Plot3d"

Name of the command for 3D plots tests.

const string IG.Script.ScriptGraphics3DBase.ConstHelpPlot3d = "Various higher level 3D plots. Run with ? argument to see which tests are available."

const string IG.Script.ScriptGraphics3DBase.ConstSurface3d = "Surface3D"

Name of the command for 3D surface examples.

const string IG.Script.ScriptGraphics3DBase.ConstHelpSurface3d = "Examples of 3D surfaces. Run with ? argument to see which surfaces are available."

List<string> IG.Script.ScriptGraphics3DBase.TestVtkNames = new List<string>()

protected

List of VTK test names.

List<string> IG.Script.ScriptGraphics3DBase.TestVtkHelpStrings = new List<string>()

protected

List of VTK tests' help strings.

List<CommandMethod> IG.Script.ScriptGraphics3DBase.TestVtkMethods = new List<CommandMethod>()

protected

List of methods used to perform VTK tests.

const string IG.Script.ScriptGraphics3DBase.VtkStructuredGrid = "StructuredGrid"

const string IG.Script.ScriptGraphics3DBase.VtkHelpStructuredGrid = VtkStructuredGrid + " <numX> <numY> <numZ> : Structured grid in 3D."

private

const string IG.Script.ScriptGraphics3DBase.VtkQuadCells = "QuadCells"

const string IG.Script.ScriptGraphics3DBase.VtkHelpQuadCells = VtkQuadCells + " <numX> <numY> : Using simple primitives in 3D graphics."

private

const string IG.Script.ScriptGraphics3DBase.VtkCellGridContours = "CellGridContours"

const string IG.Script.ScriptGraphics3DBase.VtkHelpCellGridContours = VtkCellGridContours + " <numX> <numY> <numContours> : Cotours on 3D surfaces by using cells."

private

const string IG.Script.ScriptGraphics3DBase.VtkStructuredGridVolumeContours = "StructuredGridVolumeContours"

const string IG.Script.ScriptGraphics3DBase.VtkHelpStructuredGridVolumeContours = VtkStructuredGridVolumeContours + " <numX> <numY> <numZ> <numContours> : Using volume contorus with structured grid."

private

bool IG.Script.ScriptGraphics3DBase._TestVtkCommandInitialized = false

private

List<string> IG.Script.ScriptGraphics3DBase.TestPlot3dNames = new List<string>()

protected

List of installed 3D plotting test names.

List<string> IG.Script.ScriptGraphics3DBase.TestPlot3dHelpStrings = new List<string>()

protected

List of help strings corresponding to installed 3D plotting tests.

List<CommandMethod> IG.Script.ScriptGraphics3DBase.TestPlot3dMethods = new List<CommandMethod>()

protected

List of methods used to perform 3D plotting tests.

const string IG.Script.ScriptGraphics3DBase.Plot3dVtkControl = "VtkControl"

const string IG.Script.ScriptGraphics3DBase.Plot3dHelpVtkControl

private

Initial value:

= Plot3dVtkControl + @" formType modal testPlotter testActorsIGLib testActorsVTK :
  Tests VTK controls.
    formType: type of the form ('plain', 'vtk').
    modal: if true then form is launched as modal form
    testPlotter: if true then some test IGLib graphics is plotted on the form through plotter
    testActorsIGLib: if true then some test IGLib graphics is plotted on the form internally
    testActorsVTK: if true then some test VTK graphics is added internally "

const string IG.Script.ScriptGraphics3DBase.Plot3dCurvePlotLissajous = "CurvePlotLissajous"

const string IG.Script.ScriptGraphics3DBase.Plot3dHelpCurvePlotLissajous = Plot3dCurvePlotLissajous + " : Plot of Lissajous-derived curves in 3D."

private

const string IG.Script.ScriptGraphics3DBase.Plot3dSurfacePlot = "SurfacePlot"

const string IG.Script.ScriptGraphics3DBase.Plot3dHelpSurfacePlot = Plot3dSurfacePlot + " : Surface plot."

private

const string IG.Script.ScriptGraphics3DBase.Plot3dSurfacePlotScaled = "SurfacePlotScaled"

const string IG.Script.ScriptGraphics3DBase.Plot3dHelpSurfacePlotScaled = Plot3dSurfacePlotScaled + " <numX> <numY>: Surface plot with manual mesh, automatically scaled."

private

const string IG.Script.ScriptGraphics3DBase.Plot3dSurfacePlotManualScaled = "SurfacePlotManualScaled"

const string IG.Script.ScriptGraphics3DBase.Plot3dHelpSurfacePlotManualScaled = Plot3dSurfacePlotManualScaled + " <numX> <numY>: Surface plot with manual mesh, manually scaled."

private

const string IG.Script.ScriptGraphics3DBase.Plot3dContourPlot = "ContourPlot"

const string IG.Script.ScriptGraphics3DBase.Plot3dHelpContourPlot = Plot3dContourPlot + " : Contour plot."

private

const string IG.Script.ScriptGraphics3DBase.Plot3dSurfaceComparison = "SurfaceComparison"

const string IG.Script.ScriptGraphics3DBase.Plot3dHelpSurfaceComparison = Plot3dSurfaceComparison + " : Comparison of 2 surfaces in 3D."

private

const string IG.Script.ScriptGraphics3DBase.Plot3dDecoration = "Decoration"

const string IG.Script.ScriptGraphics3DBase.Plot3dHelpDecoration = Plot3dDecoration + " : Decorations demo."

private

bool IG.Script.ScriptGraphics3DBase._plot3dCommandsInitialized = false

private

List<string> IG.Script.ScriptGraphics3DBase.SurfaceNames = new List<string>()

protected

List of surface names.

List<string> IG.Script.ScriptGraphics3DBase.SurfaceHelpStrings = new List<string>()

protected

List of surface methods' help strings.

List<CommandMethod> IG.Script.ScriptGraphics3DBase.SurfaceMethods = new List<CommandMethod>()

protected

List of methods used to plot surfaces.

const string IG.Script.ScriptGraphics3DBase.surfaceKleinBottle = "KleinBottle"

const string IG.Script.ScriptGraphics3DBase.surfaceHelpKleinBottle = surfaceKleinBottle + " <numX> <numY> <formX> <toX> <fromY> <toY> : Klein's bottle"

private

const string IG.Script.ScriptGraphics3DBase.surfaceTwoToruses = "TwoToruses"

const string IG.Script.ScriptGraphics3DBase.surfaceHelpTwoToruses = surfaceTwoToruses + " : Two interlocked toruses."

private

const string IG.Script.ScriptGraphics3DBase.surfaceSnailShell = "SnailShell"

const string IG.Script.ScriptGraphics3DBase.surfaceHelpSnailShell = surfaceSnailShell + " <numX> <numY> <formX> <toX> <fromY> <toY> : Snail's shell surface"

private

bool IG.Script.ScriptGraphics3DBase._surfaceCommandInitialized = false

private

The documentation for this class was generated from the following file:

extensions/iglibext/00testscriptsext/examples/ScriptGraphics3dBase.cs

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
