Plotter class that uses a ZedGraphControl object for plotting ordinary 2D graphs. More...

Inheritance diagram for IG.Gr.PlotterZedGraph:

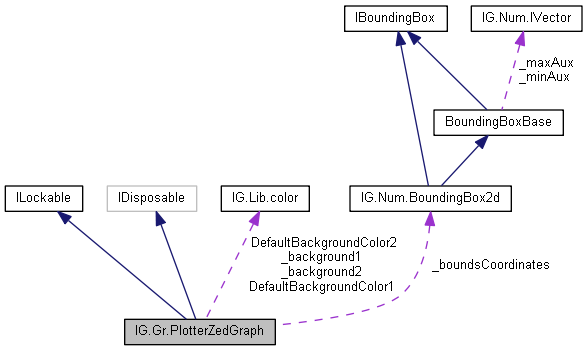

Collaboration diagram for IG.Gr.PlotterZedGraph:

Classes
class	ExampleSineFunctionForLissajous
	Sine function with the specified frequency factor and phase. Used in the ExampleLissajous. More...

Public Member Functions
	PlotterZedGraph (ZedGraphControl plotWindow)

bool	ContainsPlotObject (PlotZedGraphBase plotObject)
	Returns true if the specified plotting object is contained on (registered with) the current PlotterZedGraph object, or false otherwise. More...

void	AddPlotObject (PlotZedGraphBase plotObject)
	Adds the specified plotting object to the list of plotting objects of the current plotter. More...

void	AddPlotObjects (params PlotZedGraphBase[] plotObjects)
	Adds the specified plotting objects to the list of plotting objects of the current plotter. More...

void	RemoveAllPlotObjects ()
	Removes all plotting objects from the list of plotting objects of the current polotter. More...

void	RemovePlotObject (PlotZedGraphBase plotObject)
	Removes the specified plotting object from the list of plotting objects of the current plotter, and disposes unmanaged resources used by that object. More...

void	RemovePlotObjects (params PlotZedGraphBase[] plotObjects)
	Removes the specified plotting objects from the list of plotting objects of the current plotter, and disposes unmanaged resources used by that objects. More...

void	SetBounds (double minX, double maxX, double minY, double maxY)
	Sets graph bounds to the specified values. More...

void	SetBounds (IBoundingBox bounds)
	Sets graph bounds to the specified values. More...

void	SetBounds2 (double minX, double maxX, double minY, double maxY)
	Sets graph bounds for the second axes to the specified values. More...

void	SetBounds2 (IBoundingBox bounds)
	Sets graph bounds for the second axes to the specified values. More...

void	Update ()
	Updates the current plotter's settings such that they are reflected on the graph. More...

void	ResetView ()
	Resets the view (scale and position of the graph) in such a way that all plotted objects are visible. More...

void	Dispose ()
	Implementation of IDisposable interface. More...

Static Public Member Functions
static ZedGraphWindow	CreateWindow ()
	Creates a top-level window including a ZedGraph control (type ZedGraphControl) and returns it such that the ZedGraph control can be accessed and window opened. More...

static PlotterZedGraph	CreateDefault (ZedGraphControl window)

static void	ExampleDecorations ()
	Example that demonstrates how decorations (titles, labels, scales, etc.) can be sadjusted.. More...

static void	ExampleCurveStylesWithSave (string filePath)
	Tests plotting with ZedGraph. If file path is specified then graph contents is saved to the specified file. More...

static void	ExampleLissajous ()
	Plots a specific Lissayous curve. More...

static void	ExampleLissajous (int a, int b)
	Plots a Lissayous curve with the specified integer ratios of frequencies and phase difference zero. More...

static void	ExempleSinePlots ()
	Plots a set of sine surves with different (equally spaced) phases, in different colors on the same graph. More...

static void	ExempleSinePlots (int numCurves, int numPoints)
	Plots a set of sine surves with different (equally spaced) phases, in different colors on the same graph. More...

Public Attributes
int	DefaultPointValuePrecision = 4
	Default precision for point values displayed in tooltips. More...

Static Public Attributes
static color	DefaultBackgroundColor1 = new color(1, 1, 1)
	Default first background color for new windows. More...

static color	DefaultBackgroundColor2 = new color(1, 1, 1)
	Default second background color for new windows. More...

static double	DefaultBackgroundGradientAngle = 45.0
	Default angle of the background color gradient. More...

static bool	DefaultIsShowPointValues = true
	Default flag for showing point coordinates in tooltips. More...

static string	DefaultTitle = "Dependency"
	Default graph title used for new plotter objects when not specified explicitly. More...

static FontSpec	DefaultTitleFont
	Default font for graph title. More...

static FontSpec	DefaultAxisLabelFont
	Default font for axis labels. More...

static FontSpec	DefaultAxisScaleFont

static bool	DefaultScaleIsVisible = true
	Whether scale is visible by default. More...

static bool	DefaultAxes2IsVisible = false
	Whether the second axes are visible by default. More...

static bool	DefaultScale2IsVisible = false
	Whether scale on the second axes is visible by default. More...

static bool	DefaultZeroLine = true
	Default value of the flag specifying whether zero lines are shown. More...

static bool	DefaultMajorGridIsVisible = true
	Default value of the flag indicating whether major grid lines are shown. More...

static bool	DefaultMinorGridIsVisible = false
	Default value of the flag indicating whether minor grid lines are shown. More...

static bool	DefaultMajorGrid2IsVisible = true
	Default value of the flag indicating whether major grid lines for the second axes are shown. More...

static bool	DefaultMinorGrid2IsVisible = false
	Default value of the flag indicating whether minor grid lines for the second axes are shown. More...

static string	DefaultXAxisLabel = "X"
	Default label to for X axis for new plot objects. More...

static string	DefaultYAxisLabel = "Y"
	Default label for Y axis for new plot objects. More...

static string	DefaultX2AxisLabel = "X2"
	Default label to for the second X axis for new plot objects. More...

static string	DefaultY2AxisLabel = "Y2"
	Default label for the second Y axis for new plot objects. More...

Protected Member Functions
void	CalculateBoundsCoordinates ()
	Recalculates bounds for coordinates on the graphic objects currently contained in the graph. More...

virtual void	Dispose (bool disposing)
	Does the job of freeing resources. More...

Protected Attributes
List< PlotZedGraphBase >	_plotObjects

bool	_isShowPointValues = DefaultIsShowPointValues

int	_pointValuesPrecision = 4

string	_title = DefaultTitle

FontSpec	_titleFont

string	_xAxisLabel = DefaultXAxisLabel

FontSpec	_xAxisLabelFont

bool	_xAxisIsZeroLine = DefaultZeroLine

FontSpec	_xAxisScaleFont

bool	_xAxisMajorTicAccessed = false

bool	_xAxisMinorTicAccessed = false

string	_yAxisLabel = DefaultYAxisLabel

FontSpec	_yAxisLabelFont

bool	_yAxisIsZeroLine = DefaultZeroLine

FontSpec	_yAxisScaleFont

bool	_yAxisMajorTicAccessed = false

bool	_yAxisMinorTicAccessed = false

string	_x2AxisLabel = DefaultX2AxisLabel

FontSpec	_x2AxisLabelFont

bool	_x2AxisIsZeroLine = false

FontSpec	_x2AxisScaleFont

bool	_x2AxisMajorTicAccessed = false

bool	_x2AxisMinorTicAccessed = false

string	_y2AxisLabel = DefaultY2AxisLabel

FontSpec	_y2AxisLabelFont

bool	_y2AxisIsZeroLine = false

FontSpec	_y2AxisScaleFont

bool	_y2AxisMajorTicAccessed = false

bool	_y2AxisMinorTicAccessed = false

Static Protected Attributes
static int	_defaultOutputLevel = -1

Properties
object	Lock `[get]`
	This object's central lock object to be used by other object. Do not use this object for locking in class' methods, for this you should use InternalLock. More...

int	WindowWidth `[get, set]`
	Gets/sets width of the top level control containing the ZedGraph control. More...

int	WindowHeight `[get, set]`
	Gets/sets height of the top level control containing the ZedGraph control. More...

ZedGraphControl	Window `[get, set]`
	Zedgraph control used for plotting graphs. Warning: settes should only be used in constructors. More...

GraphPane	GraphPane `[get, protected set]`
	Gets a reference to the GraphPane instance in the current ZedGraphControl. More...

BoundingBox2d	BoundsCoordinates `[get]`
	Bounds of the current plot. More...

List< PlotZedGraphBase >	PlotObjects `[get, set]`
	List of plotting objects contained on the current class. More...

static int	DefaultOutputLevel `[get, set]`
	Gets or sets the default level of output for this class. More...

int	OutputLevel `[get, set]`
	Level of output to the console for the current object. More...

color	Background `[get, set]`
	Background color for the current plotter. More...

color	Background1 `[get, set]`
	The first background color of possibly two colors that define color gradient of the plotter window's background. More...

color	Background2 `[get, set]`
	The second background color of possibly two colors that define color gradient of the plotter window's background. More...

double	BackgroundGradientAngle `[get, set]`
	Angle of the background color gradient. More...

bool	ShowPlotTip `[get, set]`

bool	IsShowPointValues `[get, set]`
	Whether a tooltip with point coordinates is displayed when a mouse hovers over points. More...

int	PointValuePrecision `[get, set]`
	Precision of point values that are displayed in tooltips. More...

virtual string	Title `[get, set]`
	Graph title. More...

virtual FontSpec	TitleFont `[get, set]`
	Font used for graph title. More...

bool	XAxisIsVisible `[get, set]`
	Whether X axis is visible. More...

virtual XAxis	XAxis `[get]`
	Gets the X axis of the graph. More...

string	XAxisLabel `[get, set]`
	Label for X axis. More...

virtual FontSpec	XAxisLabelFont `[get, set]`
	Font used for X axis label. More...

bool	XAxisIsZeroLine `[get, set]`
	Whether zero line on X axis is plotted or not. More...

bool	XAxisScaleIsVisible `[get, set]`
	Whether scale is shown for X axis. More...

Scale	XAxisScale `[get]`
	Scale for X axis. More...

FontSpec	XAxisScaleFont `[get, set]`
	Settings for font on X scale. More...

MajorTic	XAxisMajorTic `[get]`
	Properties for major tixs on X axis. More...

MinorTic	XAxisMinorTic `[get]`
	Properties for minor tixs on X axis. More...

bool	XAxisMajorGridIsVisible `[get, set]`
	Whether major grid lines for X axis are shown. More...

MajorGrid	XAxisMajorGrid `[get]`
	Major grid lines properties for X axis. More...

bool	XAxisMinorGridIsVisible `[get, set]`
	Whether minor grid lines for X axis are shown. More...

MinorGrid	XAxisMinorGrid `[get]`
	Minor grid lines properties for X axis. More...

bool	YAxisIsVisible `[get, set]`
	Whether Y axis is visible. More...

virtual YAxis	YAxis `[get]`
	Gets the Y axis of the graph. More...

string	YAxisLabel `[get, set]`
	Label for Y axis. More...

virtual FontSpec	YAxisLabelFont `[get, set]`
	Font used for Y axis label. More...

bool	YAxisIsZeroLine `[get, set]`
	Whether zero line on Y axis is plotted or not. More...

bool	YAxisScaleIsVisible `[get, set]`
	Whether scale is shown for Y axis. More...

Scale	YAxisScale `[get]`
	Scale for Y axis. More...

FontSpec	YAxisScaleFont `[get, set]`
	Settings for font on Y scale. More...

MajorTic	YAxisMajorTic `[get]`
	Properties for major tixs on Y axis. More...

MinorTic	YAxisMinorTic `[get]`
	Properties for minor tixs on X axis. More...

bool	YAxisMajorGridIsVisible `[get, set]`
	Whether major grid lines for Y axis are shown. More...

MajorGrid	YAxisMajorGrid `[get]`
	Major grid lines properties for Y axis. More...

bool	YAxisMinorGridIsVisible `[get, set]`
	Whether minor grid lines for Y axis are shown. More...

MinorGrid	YAxisMinorGrid `[get]`
	Minor grid lines properties for Y axis. More...

bool	X2AxisIsVisible `[get, set]`
	Whether X2 axis is visible. More...

virtual X2Axis	X2Axis `[get]`
	Gets the X2 axis of the graph. More...

string	X2AxisLabel `[get, set]`
	Label for the second X axis. More...

virtual FontSpec	X2AxisLabelFont `[get, set]`
	Font used for the second X axis label. More...

bool	X2AxisIsZeroLine `[get, set]`
	Whether zero line on X2 axis is plotted or not. More...

bool	X2AxisScaleIsVisible `[get, set]`
	Whether scale is shown for X axis. More...

Scale	X2AxisScale `[get]`
	Scale for X axis. More...

FontSpec	X2AxisScaleFont `[get, set]`
	Settings for font on X scale. More...

MajorTic	X2AxisMajorTic `[get]`
	Properties for major tixs on X2 axis. More...

MinorTic	X2AxisMinorTic `[get]`
	Properties for minor tixs on X2 axis. More...

bool	X2AxisMajorGridIsVisible `[get, set]`
	Whether major grid lines for X2 axis are shown. More...

MajorGrid	X2AxisMajorGrid `[get]`
	Major grid lines properties for X2 axis. More...

bool	X2AxisMinorGridIsVisible `[get, set]`
	Whether minor grid lines for X2 axis are shown. More...

MinorGrid	X2AxisMinorGrid `[get]`
	Minor grid lines properties for X2 axis. More...

bool	Y2AxisIsVisible `[get, set]`
	Whether Y2 axis is visible. More...

virtual Y2Axis	Y2Axis `[get]`
	Gets the Y2 axis of the graph. More...

string	Y2AxisLabel `[get, set]`
	Label for the second Y axis. More...

virtual FontSpec	Y2AxisLabelFont `[get, set]`
	Font used for the second Y axis label. More...

bool	Y2AxisIsZeroLine `[get, set]`
	Whether zero line on Y2 axis is plotted or not. More...

bool	Y2AxisScaleIsVisible `[get, set]`
	Whether scale is shown for Y2 axis. More...

Scale	Y2AxisScale `[get]`
	Scale for Y2 axis. More...

FontSpec	Y2AxisScaleFont `[get, set]`
	Settings for font on Y2 scale. More...

MajorTic	Y2AxisMajorTic `[get]`
	Properties for major tixs on Y2 axis. More...

MinorTic	Y2AxisMinorTic `[get]`
	Properties for minor tixs on Y2 axis. More...

bool	Y2AxisMajorGridIsVisible `[get, set]`
	Whether major grid lines for Y2 axis are shown. More...

MajorGrid	Y2AxisMajorGrid `[get]`
	Major grid lines properties for Y2 axis. More...

bool	Y2AxisMinorGridIsVisible `[get, set]`
	Whether minor grid lines for Y2 axis are shown. More...

MinorGrid	Y2AxisMinorGrid `[get]`
	Minor grid lines properties for Y2 axis. More...

Properties inherited from IG.Lib.ILockable
object	Lock `[get]`

Private Member Functions
	PlotterZedGraph ()

string	MyPointValueHandler (ZedGraphControl control, GraphPane pane, CurveItem curve, int iPt)
	Displays customized tooltips when the mouse hovers over a point (event handler). More...

	~PlotterZedGraph ()

Private Attributes
object	_mainLock = new object()

ZedGraphControl	_window

GraphPane	_pane

BoundingBox2d	_boundsCoordinates

int	_outputLevel = DefaultOutputLevel

color	_background1 = DefaultBackgroundColor1

color	_background2 = DefaultBackgroundColor2

double	_backgroundGradientAngle = DefaultBackgroundGradientAngle

bool	_showPlotTip = false

bool	_xAxisIsVisible = true

bool	_xAxisScaleIsVisible = DefaultScaleIsVisible

bool	_xAxisMajorGridIsVisible = DefaultMajorGridIsVisible

bool	_xAxisMinorGridIsVisible = DefaultMinorGridIsVisible

bool	_yAxisIsVisible = true

bool	_yAxisScaleIsVisible = DefaultScaleIsVisible

bool	_yAxisMajorGridIsVisible = DefaultMajorGridIsVisible

bool	_yAxisMinorGridIsVisible = DefaultMinorGridIsVisible

bool	_x2AxisIsVisible = DefaultAxes2IsVisible

bool	_x2AxisScaleIsVisible = DefaultScale2IsVisible

bool	_x2AxisMajorGridIsVisible = DefaultMajorGrid2IsVisible

bool	_x2AxisMinorGridIsVisible = DefaultMinorGrid2IsVisible

bool	_y2AxisIsVisible = DefaultAxes2IsVisible

bool	_y2AxisScaleIsVisible = DefaultScale2IsVisible

bool	_y2AxisMajorGridIsVisible = DefaultMajorGrid2IsVisible

bool	_y2AxisMinorGridIsVisible = DefaultMinorGrid2IsVisible

bool	disposed = false

Detailed Description

Plotter class that uses a ZedGraphControl object for plotting ordinary 2D graphs.

$A Igor Jun09;

Constructor & Destructor Documentation

IG.Gr.PlotterZedGraph.PlotterZedGraph ( )

inlineprivate

IG.Gr.PlotterZedGraph.PlotterZedGraph ( ZedGraphControl plotWindow )

inline

IG.Gr.PlotterZedGraph.~PlotterZedGraph ( )

inlineprivate

Member Function Documentation

void IG.Gr.PlotterZedGraph.CalculateBoundsCoordinates ( )

inlineprotected

Recalculates bounds for coordinates on the graphic objects currently contained in the graph.

This recalculates, if necessary, the bounds of plots that are added on the current plotter (list PlotObjects).

References IG.Gr.PlotZedGraphBase.AutoUpdateBoundsCoordinates, IG.Gr.PlotZedGraphBase.BoundsCoordinates, and IG.Gr.PlotZedGraphBase.CalculateBoundsCoordinates().

bool IG.Gr.PlotterZedGraph.ContainsPlotObject ( PlotZedGraphBase plotObject )

inline

Returns true if the specified plotting object is contained on (registered with) the current PlotterZedGraph object, or false otherwise.

Parameters

plotObject Plotting object to be checked.

void IG.Gr.PlotterZedGraph.AddPlotObject ( PlotZedGraphBase plotObject )

inline

Adds the specified plotting object to the list of plotting objects of the current plotter.

If the object is already on the list of plotting objects then it is not inserted again.

Parameters

plotObject Zedgraph plotting object to be added on the currrent PlotterZedGraph object.

Referenced by IG.Gr.PlotZedGraphBase.PlotZedGraphBase().

void IG.Gr.PlotterZedGraph.AddPlotObjects ( params PlotZedGraphBase[] plotObjects )

inline

Adds the specified plotting objects to the list of plotting objects of the current plotter.

Parameters

plotObjects Objects to be added to the list.

void IG.Gr.PlotterZedGraph.RemoveAllPlotObjects ( )

inline

Removes all plotting objects from the list of plotting objects of the current polotter.

void IG.Gr.PlotterZedGraph.RemovePlotObject ( PlotZedGraphBase plotObject )

inline

Removes the specified plotting object from the list of plotting objects of the current plotter, and disposes unmanaged resources used by that object.

If the specified object is not on the list of plotting objects then nothing happens.

Parameters

plotObject Zedgraph plotting object to be removed from the currrent PlotterZedGraph object.

References IG.Gr.PlotZedGraphBase.Dispose(), and IG.Gr.PlotZedGraphBase.RemoveFromGraphPane().

void IG.Gr.PlotterZedGraph.RemovePlotObjects ( params PlotZedGraphBase[] plotObjects )

inline

Removes the specified plotting objects from the list of plotting objects of the current plotter, and disposes unmanaged resources used by that objects.

If no objects are specified then nothing happens. Also for the specified objects that are null or are not on the list, nothing happens. If removing one of the objects throws an exception then the remaining objects are removed without any disturbance.

Parameters

plotObjects Objects to be removed from the list.

void IG.Gr.PlotterZedGraph.SetBounds	(	double	minX,
		double	maxX,
		double	minY,
		double	maxY
	)

inline

Sets graph bounds to the specified values.

Parameters

minX	Lower bound in X coordinate.
maxX	Upper bound in X coordinate.
minY	Lower bound in Y coordinate.
maxY	Upper bound in Y coordinate.

void IG.Gr.PlotterZedGraph.SetBounds ( IBoundingBox bounds )

inline

Sets graph bounds to the specified values.

Parameters

bounds Bounds to which graph bounds are specified. Must be different than null and of dimension 2.

References IG.Num.IBoundingBox.Dimension, IG.Num.IBoundingBox.Max, and IG.Num.IBoundingBox.Min.

void IG.Gr.PlotterZedGraph.SetBounds2	(	double	minX,
		double	maxX,
		double	minY,
		double	maxY
	)

inline

Sets graph bounds for the second axes to the specified values.

Parameters

minX	Lower bound in X coordinate.
maxX	Upper bound in X coordinate.
minY	Lower bound in Y coordinate.
maxY	Upper bound in Y coordinate.

void IG.Gr.PlotterZedGraph.SetBounds2 ( IBoundingBox bounds )

inline

Sets graph bounds for the second axes to the specified values.

Parameters

bounds Bounds to which graph bounds are specified. Must be different than null and of dimension 2.

References IG.Num.IBoundingBox.Dimension, IG.Num.IBoundingBox.Max, and IG.Num.IBoundingBox.Min.

void IG.Gr.PlotterZedGraph.Update ( )

inline

Updates the current plotter's settings such that they are reflected on the graph.

References IG.Gr.PlotZedGraphBase.Update().

Referenced by IG.Gr.PlotterZedGraph.ExampleCurveStylesWithSave(), IG.Gr.PlotterZedGraph.ExampleDecorations(), IG.Gr.PlotterZedGraph.ExampleLissajous(), and IG.Gr.PlotterZedGraph.ExempleSinePlots().

void IG.Gr.PlotterZedGraph.ResetView ( )

inline

Resets the view (scale and position of the graph) in such a way that all plotted objects are visible.

string IG.Gr.PlotterZedGraph.MyPointValueHandler	(	ZedGraphControl	control,
		GraphPane	pane,
		CurveItem	curve,
		int	iPt
	)

inlineprivate

Displays customized tooltips when the mouse hovers over a point (event handler).

void IG.Gr.PlotterZedGraph.Dispose ( )

inline

Implementation of IDisposable interface.

virtual void IG.Gr.PlotterZedGraph.Dispose ( bool disposing )

inlineprotectedvirtual

Does the job of freeing resources.

This method can be eventually overridden in derived classes (if they use other resources that must be freed - in addition to such resources of the current class). In the case of overriding this method, you should usually call the base.Dispose(disposing ). in the overriding method.

Parameters

disposing Tells whether the method has been called form Dispose() method.

static ZedGraphWindow IG.Gr.PlotterZedGraph.CreateWindow ( )

inlinestatic

Creates a top-level window including a ZedGraph control (type ZedGraphControl) and returns it such that the ZedGraph control can be accessed and window opened.

Returns: A toplevel window containg a ZedGraph control.

static PlotterZedGraph IG.Gr.PlotterZedGraph.CreateDefault ( ZedGraphControl window )

inlinestatic

References IG.Gr.PlotterZedGraph.TitleFont, IG.Gr.PlotterZedGraph.X2AxisLabelFont, IG.Gr.PlotterZedGraph.XAxisLabelFont, IG.Gr.PlotterZedGraph.Y2AxisLabelFont, and IG.Gr.PlotterZedGraph.YAxisLabelFont.

Referenced by IG.Gr.PlotterZedGraph.ExampleCurveStylesWithSave(), IG.Gr.PlotterZedGraph.ExampleDecorations(), IG.Gr.PlotterZedGraph.ExampleLissajous(), and IG.Gr.PlotterZedGraph.ExempleSinePlots().

static void IG.Gr.PlotterZedGraph.ExampleDecorations ( )

inlinestatic

Example that demonstrates how decorations (titles, labels, scales, etc.) can be sadjusted..

Referenced by IG.Script.ScriptGraphics2dBase.GraphFunctionDecorations().

static void IG.Gr.PlotterZedGraph.ExampleCurveStylesWithSave ( string filePath )

inlinestatic

Tests plotting with ZedGraph. If file path is specified then graph contents is saved to the specified file.

Parameters

fileName Name of the file where graph is saved (as a bitmap). If the file already exists then it is not overwritten.

For saving graphics as metafile (i.e. in a vector graphics format), see the below:

Extend Zedgraph to produce SVG: http://stackoverflow.com/questions/2501302/extend-zedgraph-to-produce-svg

ZedGraph C# Graph Data Export to CSV Using a Custom Context Menu: http://www.smallguru.com/2009/06/zedgraph-csharp-graph-data-export-to-cs/

How to save an image as EMF? http://stackoverflow.com/questions/152729/gdi-c-how-to-save-an-image-as-emf

Graphs to clipboard as vector graphics http://forums.ni.com/t5/Measurement-Studio-for-NET/Graphs-to-clipboard-as-vector-graphics/td-p/537105

Referenced by IG.Script.ScriptGraphics2dBase.GraphFunctionCurveStylesWithSave().

static void IG.Gr.PlotterZedGraph.ExampleLissajous ( )

inlinestatic

Plots a specific Lissayous curve.

Referenced by IG.Script.ScriptGraphics2dBase.GraphFunctionCurvePlotLissajous().

static void IG.Gr.PlotterZedGraph.ExampleLissajous	(	int	a,
		int	b
	)

inlinestatic

Plots a Lissayous curve with the specified integer ratios of frequencies and phase difference zero.

Parameters

a	Frequency factor for function defining X coordinate.
b	Frequency factor for function defining Y coordinate.

References IG.Gr.PlotterZedGraph.CreateDefault(), IG.Gr.ZedGraphWindow.GraphControl, IG.Gr.PlotZedgraphCurve.LineColor, IG.Gr.PlotZedgraphCurve.LineSmoothing, IG.Gr.PlotZedgraphCurve.LineWidth, IG.Gr.PlotZedgraphCurve.MaxParam, IG.Gr.PlotZedgraphCurve.MinParam, IG.Gr.PlotZedgraphCurve.NumPoints, IG.Gr.PlotZedgraphCurve.PointsVisible, IG.Gr.PlotZedgraphCurve.SetCurveDefiniton(), and IG.Gr.PlotterZedGraph.Update().

static void IG.Gr.PlotterZedGraph.ExempleSinePlots ( )

inlinestatic

Plots a set of sine surves with different (equally spaced) phases, in different colors on the same graph.

Referenced by IG.Script.ScriptGraphics2dBase.GraphFunctionSinePlots().

static void IG.Gr.PlotterZedGraph.ExempleSinePlots	(	int	numCurves,
		int	numPoints
	)

inlinestatic

Plots a set of sine surves with different (equally spaced) phases, in different colors on the same graph.

Parameters

numCurves	Number of curves to be plotted.
numPoints	Number of points used to plot each curve.

References IG.Gr.PlotZedgraphCurve.AddPoint(), IG.Gr.PlotterZedGraph.CreateDefault(), IG.Lib.ColorScaleBase.CreateRainbow(), IG.Lib.ColorScaleBase.GetColor(), IG.Gr.ZedGraphWindow.GraphControl, IG.Gr.PlotZedGraphBase.LegendString, IG.Gr.PlotZedgraphCurve.LineColor, IG.Gr.PlotZedgraphCurve.PointFillColor, and IG.Gr.PlotterZedGraph.Update().

Member Data Documentation

object IG.Gr.PlotterZedGraph._mainLock = new object()

private

ZedGraphControl IG.Gr.PlotterZedGraph._window

private

GraphPane IG.Gr.PlotterZedGraph._pane

private

BoundingBox2d IG.Gr.PlotterZedGraph._boundsCoordinates

private

List<PlotZedGraphBase> IG.Gr.PlotterZedGraph._plotObjects

protected

int IG.Gr.PlotterZedGraph._defaultOutputLevel = -1

staticprotected

int IG.Gr.PlotterZedGraph._outputLevel = DefaultOutputLevel

private

color IG.Gr.PlotterZedGraph.DefaultBackgroundColor1 = new color(1, 1, 1)

static

Default first background color for new windows.

color IG.Gr.PlotterZedGraph.DefaultBackgroundColor2 = new color(1, 1, 1)

static

Default second background color for new windows.

color IG.Gr.PlotterZedGraph._background1 = DefaultBackgroundColor1

private

color IG.Gr.PlotterZedGraph._background2 = DefaultBackgroundColor2

private

double IG.Gr.PlotterZedGraph.DefaultBackgroundGradientAngle = 45.0

static

Default angle of the background color gradient.

double IG.Gr.PlotterZedGraph._backgroundGradientAngle = DefaultBackgroundGradientAngle

private

bool IG.Gr.PlotterZedGraph._showPlotTip = false

private

bool IG.Gr.PlotterZedGraph.DefaultIsShowPointValues = true

static

Default flag for showing point coordinates in tooltips.

bool IG.Gr.PlotterZedGraph._isShowPointValues = DefaultIsShowPointValues

protected

int IG.Gr.PlotterZedGraph.DefaultPointValuePrecision = 4

Default precision for point values displayed in tooltips.

int IG.Gr.PlotterZedGraph._pointValuesPrecision = 4

protected

string IG.Gr.PlotterZedGraph.DefaultTitle = "Dependency"

static

Default graph title used for new plotter objects when not specified explicitly.

string IG.Gr.PlotterZedGraph._title = DefaultTitle

protected

FontSpec IG.Gr.PlotterZedGraph.DefaultTitleFont

static

Initial value:

= new FontSpec("Times New Roman", 16 ,

Color.Blue, true , true , false )

Default font for graph title.

FontSpec IG.Gr.PlotterZedGraph.DefaultAxisLabelFont

static

Initial value:

= new FontSpec("Courier New", 12 ,

Color.Blue, true , false , false )

Default font for axis labels.

FontSpec IG.Gr.PlotterZedGraph.DefaultAxisScaleFont

static

Initial value:

= new FontSpec("Courier New", 10 ,

Color.Black, false , false , false )

bool IG.Gr.PlotterZedGraph.DefaultScaleIsVisible = true

static

Whether scale is visible by default.

bool IG.Gr.PlotterZedGraph.DefaultAxes2IsVisible = false

static

Whether the second axes are visible by default.

bool IG.Gr.PlotterZedGraph.DefaultScale2IsVisible = false

static

Whether scale on the second axes is visible by default.

bool IG.Gr.PlotterZedGraph.DefaultZeroLine = true

static

Default value of the flag specifying whether zero lines are shown.

bool IG.Gr.PlotterZedGraph.DefaultMajorGridIsVisible = true

static

Default value of the flag indicating whether major grid lines are shown.

bool IG.Gr.PlotterZedGraph.DefaultMinorGridIsVisible = false

static

Default value of the flag indicating whether minor grid lines are shown.

bool IG.Gr.PlotterZedGraph.DefaultMajorGrid2IsVisible = true

static

Default value of the flag indicating whether major grid lines for the second axes are shown.

bool IG.Gr.PlotterZedGraph.DefaultMinorGrid2IsVisible = false

static

Default value of the flag indicating whether minor grid lines for the second axes are shown.

FontSpec IG.Gr.PlotterZedGraph._titleFont

protected

bool IG.Gr.PlotterZedGraph._xAxisIsVisible = true

private

string IG.Gr.PlotterZedGraph.DefaultXAxisLabel = "X"

static

Default label to for X axis for new plot objects.

string IG.Gr.PlotterZedGraph._xAxisLabel = DefaultXAxisLabel

protected

FontSpec IG.Gr.PlotterZedGraph._xAxisLabelFont

protected

bool IG.Gr.PlotterZedGraph._xAxisIsZeroLine = DefaultZeroLine

protected

bool IG.Gr.PlotterZedGraph._xAxisScaleIsVisible = DefaultScaleIsVisible

private

FontSpec IG.Gr.PlotterZedGraph._xAxisScaleFont

protected

bool IG.Gr.PlotterZedGraph._xAxisMajorTicAccessed = false

protected

bool IG.Gr.PlotterZedGraph._xAxisMinorTicAccessed = false

protected

bool IG.Gr.PlotterZedGraph._xAxisMajorGridIsVisible = DefaultMajorGridIsVisible

private

bool IG.Gr.PlotterZedGraph._xAxisMinorGridIsVisible = DefaultMinorGridIsVisible

private

bool IG.Gr.PlotterZedGraph._yAxisIsVisible = true

private

string IG.Gr.PlotterZedGraph.DefaultYAxisLabel = "Y"

static

Default label for Y axis for new plot objects.

string IG.Gr.PlotterZedGraph._yAxisLabel = DefaultYAxisLabel

protected

FontSpec IG.Gr.PlotterZedGraph._yAxisLabelFont

protected

bool IG.Gr.PlotterZedGraph._yAxisIsZeroLine = DefaultZeroLine

protected

bool IG.Gr.PlotterZedGraph._yAxisScaleIsVisible = DefaultScaleIsVisible

private

FontSpec IG.Gr.PlotterZedGraph._yAxisScaleFont

protected

bool IG.Gr.PlotterZedGraph._yAxisMajorTicAccessed = false

protected

bool IG.Gr.PlotterZedGraph._yAxisMinorTicAccessed = false

protected

bool IG.Gr.PlotterZedGraph._yAxisMajorGridIsVisible = DefaultMajorGridIsVisible

private

bool IG.Gr.PlotterZedGraph._yAxisMinorGridIsVisible = DefaultMinorGridIsVisible

private

bool IG.Gr.PlotterZedGraph._x2AxisIsVisible = DefaultAxes2IsVisible

private

string IG.Gr.PlotterZedGraph.DefaultX2AxisLabel = "X2"

static

Default label to for the second X axis for new plot objects.

string IG.Gr.PlotterZedGraph._x2AxisLabel = DefaultX2AxisLabel

protected

FontSpec IG.Gr.PlotterZedGraph._x2AxisLabelFont

protected

bool IG.Gr.PlotterZedGraph._x2AxisIsZeroLine = false

protected

bool IG.Gr.PlotterZedGraph._x2AxisScaleIsVisible = DefaultScale2IsVisible

private

FontSpec IG.Gr.PlotterZedGraph._x2AxisScaleFont

protected

bool IG.Gr.PlotterZedGraph._x2AxisMajorTicAccessed = false

protected

bool IG.Gr.PlotterZedGraph._x2AxisMinorTicAccessed = false

protected

bool IG.Gr.PlotterZedGraph._x2AxisMajorGridIsVisible = DefaultMajorGrid2IsVisible

private

bool IG.Gr.PlotterZedGraph._x2AxisMinorGridIsVisible = DefaultMinorGrid2IsVisible

private

bool IG.Gr.PlotterZedGraph._y2AxisIsVisible = DefaultAxes2IsVisible

private

string IG.Gr.PlotterZedGraph.DefaultY2AxisLabel = "Y2"

static

Default label for the second Y axis for new plot objects.

string IG.Gr.PlotterZedGraph._y2AxisLabel = DefaultY2AxisLabel

protected

FontSpec IG.Gr.PlotterZedGraph._y2AxisLabelFont

protected

bool IG.Gr.PlotterZedGraph._y2AxisIsZeroLine = false

protected

bool IG.Gr.PlotterZedGraph._y2AxisScaleIsVisible = DefaultScale2IsVisible

private

FontSpec IG.Gr.PlotterZedGraph._y2AxisScaleFont

protected

bool IG.Gr.PlotterZedGraph._y2AxisMajorTicAccessed = false

protected

bool IG.Gr.PlotterZedGraph._y2AxisMinorTicAccessed = false

protected

bool IG.Gr.PlotterZedGraph._y2AxisMajorGridIsVisible = DefaultMajorGrid2IsVisible

private

bool IG.Gr.PlotterZedGraph._y2AxisMinorGridIsVisible = DefaultMinorGrid2IsVisible

private

bool IG.Gr.PlotterZedGraph.disposed = false

private

Property Documentation

object IG.Gr.PlotterZedGraph.Lock

get

This object's central lock object to be used by other object. Do not use this object for locking in class' methods, for this you should use InternalLock.

int IG.Gr.PlotterZedGraph.WindowWidth

getset

Gets/sets width of the top level control containing the ZedGraph control.

int IG.Gr.PlotterZedGraph.WindowHeight

getset

Gets/sets height of the top level control containing the ZedGraph control.

ZedGraphControl IG.Gr.PlotterZedGraph.Window

getset

Zedgraph control used for plotting graphs. Warning: settes should only be used in constructors.

Referenced by IG.Gr.PlotterZedGraph.ExampleCurveStylesWithSave().

GraphPane IG.Gr.PlotterZedGraph.GraphPane

getprotected set

Gets a reference to the GraphPane instance in the current ZedGraphControl.

BoundingBox2d IG.Gr.PlotterZedGraph.BoundsCoordinates

get

Bounds of the current plot.

If AutoUpdateBoundsCoordinates == true then the bounds are updated automatically when new points are added.

These bounds are usually used just for information, but they can also be used to adjust the bounds on scales.

List<PlotZedGraphBase> IG.Gr.PlotterZedGraph.PlotObjects

getsetprotected

List of plotting objects contained on the current class.

Setter is thread safe.

Lazy evaluation - list object is automatically generated when first accessed.

int IG.Gr.PlotterZedGraph.DefaultOutputLevel

staticgetset

Gets or sets the default level of output for this class.

When accessed for the first time, the current value of Util.OutputLevel is returned.

If set to less than 0 then the first subsequent set access will return the current the current value of Util.OutputLevel.

int IG.Gr.PlotterZedGraph.OutputLevel

getset

Level of output to the console for the current object.

color IG.Gr.PlotterZedGraph.Background

getset

Background color for the current plotter.

Setter sets both colors of the gradient to the specified color, making the background color uniform.

Getter returns the first color of the two colors that define background color gradient.

color IG.Gr.PlotterZedGraph.Background1

getset

The first background color of possibly two colors that define color gradient of the plotter window's background.

color IG.Gr.PlotterZedGraph.Background2

getset

The second background color of possibly two colors that define color gradient of the plotter window's background.

double IG.Gr.PlotterZedGraph.BackgroundGradientAngle

getset

Angle of the background color gradient.

bool IG.Gr.PlotterZedGraph.ShowPlotTip

getsetprivate

bool IG.Gr.PlotterZedGraph.IsShowPointValues

getset

Whether a tooltip with point coordinates is displayed when a mouse hovers over points.

Referenced by IG.Forms.VectorFunctionPlotter1d.ApplyPlotterSettingsDefault(), and IG.Forms.VectorFunctionPlotter2d.ApplyPlotterSettingsDefault().

int IG.Gr.PlotterZedGraph.PointValuePrecision

getset

Precision of point values that are displayed in tooltips.

virtual string IG.Gr.PlotterZedGraph.Title

getset

Graph title.

Referenced by IG.Gr.PlotterZedGraph.ExampleDecorations().

virtual FontSpec IG.Gr.PlotterZedGraph.TitleFont

getset

Font used for graph title.

Referenced by IG.Gr.PlotterZedGraph.CreateDefault().

bool IG.Gr.PlotterZedGraph.XAxisIsVisible

getsetprivate

Whether X axis is visible.

virtual XAxis IG.Gr.PlotterZedGraph.XAxis

get

Gets the X axis of the graph.

string IG.Gr.PlotterZedGraph.XAxisLabel

getset

Label for X axis.

Referenced by IG.Forms.VectorFunctionPlotter1d.ApplyPlotterSettingsDefault(), IG.Forms.VectorFunctionPlotter2d.ApplyPlotterSettingsDefault(), and IG.Gr.PlotterZedGraph.ExampleDecorations().

virtual FontSpec IG.Gr.PlotterZedGraph.XAxisLabelFont

getset

Font used for X axis label.

Referenced by IG.Gr.PlotterZedGraph.CreateDefault().

bool IG.Gr.PlotterZedGraph.XAxisIsZeroLine

getsetprivate

Whether zero line on X axis is plotted or not.

bool IG.Gr.PlotterZedGraph.XAxisScaleIsVisible

getsetprivate

Whether scale is shown for X axis.

Scale IG.Gr.PlotterZedGraph.XAxisScale

getprivate

Scale for X axis.

Referenced by IG.Gr.PlotterZedGraph.ExampleCurveStylesWithSave().

FontSpec IG.Gr.PlotterZedGraph.XAxisScaleFont

getset

Settings for font on X scale.

Referenced by IG.Gr.PlotterZedGraph.ExampleDecorations().

MajorTic IG.Gr.PlotterZedGraph.XAxisMajorTic

get

Properties for major tixs on X axis.

Referenced by IG.Gr.PlotterZedGraph.ExampleDecorations().

MinorTic IG.Gr.PlotterZedGraph.XAxisMinorTic

get

Properties for minor tixs on X axis.

bool IG.Gr.PlotterZedGraph.XAxisMajorGridIsVisible

getsetprivate

Whether major grid lines for X axis are shown.

MajorGrid IG.Gr.PlotterZedGraph.XAxisMajorGrid

getprivate

Major grid lines properties for X axis.

bool IG.Gr.PlotterZedGraph.XAxisMinorGridIsVisible

getsetprivate

Whether minor grid lines for X axis are shown.

MinorGrid IG.Gr.PlotterZedGraph.XAxisMinorGrid

getprivate

Minor grid lines properties for X axis.

bool IG.Gr.PlotterZedGraph.YAxisIsVisible

getsetprivate

Whether Y axis is visible.

virtual YAxis IG.Gr.PlotterZedGraph.YAxis

get

Gets the Y axis of the graph.

string IG.Gr.PlotterZedGraph.YAxisLabel

getset

Label for Y axis.

Referenced by IG.Forms.VectorFunctionPlotter1d.ApplyPlotterSettingsDefault(), IG.Forms.VectorFunctionPlotter2d.ApplyPlotterSettingsDefault(), and IG.Gr.PlotterZedGraph.ExampleDecorations().

virtual FontSpec IG.Gr.PlotterZedGraph.YAxisLabelFont

getset

Font used for Y axis label.

Referenced by IG.Gr.PlotterZedGraph.CreateDefault(), and IG.Gr.PlotterZedGraph.ExampleDecorations().

bool IG.Gr.PlotterZedGraph.YAxisIsZeroLine

getsetprivate

Whether zero line on Y axis is plotted or not.

bool IG.Gr.PlotterZedGraph.YAxisScaleIsVisible

getsetprivate

Whether scale is shown for Y axis.

Scale IG.Gr.PlotterZedGraph.YAxisScale

getprivate

Scale for Y axis.

Referenced by IG.Gr.PlotterZedGraph.ExampleCurveStylesWithSave().

FontSpec IG.Gr.PlotterZedGraph.YAxisScaleFont

getset

Settings for font on Y scale.

Referenced by IG.Gr.PlotterZedGraph.ExampleDecorations().

MajorTic IG.Gr.PlotterZedGraph.YAxisMajorTic

get

Properties for major tixs on Y axis.

MinorTic IG.Gr.PlotterZedGraph.YAxisMinorTic

get

Properties for minor tixs on X axis.

bool IG.Gr.PlotterZedGraph.YAxisMajorGridIsVisible

getsetprivate

Whether major grid lines for Y axis are shown.

Referenced by IG.Gr.PlotterZedGraph.ExampleDecorations().

MajorGrid IG.Gr.PlotterZedGraph.YAxisMajorGrid

getprivate

Major grid lines properties for Y axis.

bool IG.Gr.PlotterZedGraph.YAxisMinorGridIsVisible

getsetprivate

Whether minor grid lines for Y axis are shown.

Referenced by IG.Gr.PlotterZedGraph.ExampleDecorations().

MinorGrid IG.Gr.PlotterZedGraph.YAxisMinorGrid

getprivate

Minor grid lines properties for Y axis.

bool IG.Gr.PlotterZedGraph.X2AxisIsVisible

getsetprivate

Whether X2 axis is visible.

virtual X2Axis IG.Gr.PlotterZedGraph.X2Axis

get

Gets the X2 axis of the graph.

string IG.Gr.PlotterZedGraph.X2AxisLabel

getset

Label for the second X axis.

virtual FontSpec IG.Gr.PlotterZedGraph.X2AxisLabelFont

getset

Font used for the second X axis label.

Referenced by IG.Gr.PlotterZedGraph.CreateDefault().

bool IG.Gr.PlotterZedGraph.X2AxisIsZeroLine

getsetprivate

Whether zero line on X2 axis is plotted or not.

bool IG.Gr.PlotterZedGraph.X2AxisScaleIsVisible

getsetprivate

Whether scale is shown for X axis.

Scale IG.Gr.PlotterZedGraph.X2AxisScale

getprivate

Scale for X axis.

FontSpec IG.Gr.PlotterZedGraph.X2AxisScaleFont

getset

Settings for font on X scale.

MajorTic IG.Gr.PlotterZedGraph.X2AxisMajorTic

get

Properties for major tixs on X2 axis.

MinorTic IG.Gr.PlotterZedGraph.X2AxisMinorTic

get

Properties for minor tixs on X2 axis.

bool IG.Gr.PlotterZedGraph.X2AxisMajorGridIsVisible

getsetprivate

Whether major grid lines for X2 axis are shown.

MajorGrid IG.Gr.PlotterZedGraph.X2AxisMajorGrid

getprivate

Major grid lines properties for X2 axis.

bool IG.Gr.PlotterZedGraph.X2AxisMinorGridIsVisible

getsetprivate

Whether minor grid lines for X2 axis are shown.

MinorGrid IG.Gr.PlotterZedGraph.X2AxisMinorGrid

getprivate

Minor grid lines properties for X2 axis.

bool IG.Gr.PlotterZedGraph.Y2AxisIsVisible

getset

Whether Y2 axis is visible.

Referenced by IG.Gr.PlotterZedGraph.ExampleDecorations().

virtual Y2Axis IG.Gr.PlotterZedGraph.Y2Axis

get

Gets the Y2 axis of the graph.

string IG.Gr.PlotterZedGraph.Y2AxisLabel

getset

Label for the second Y axis.

Referenced by IG.Gr.PlotterZedGraph.ExampleDecorations().

virtual FontSpec IG.Gr.PlotterZedGraph.Y2AxisLabelFont

getset

Font used for the second Y axis label.

Referenced by IG.Gr.PlotterZedGraph.CreateDefault().

bool IG.Gr.PlotterZedGraph.Y2AxisIsZeroLine

getsetprivate

Whether zero line on Y2 axis is plotted or not.

bool IG.Gr.PlotterZedGraph.Y2AxisScaleIsVisible

getsetprivate

Whether scale is shown for Y2 axis.

Scale IG.Gr.PlotterZedGraph.Y2AxisScale

getprivate

Scale for Y2 axis.

FontSpec IG.Gr.PlotterZedGraph.Y2AxisScaleFont

getset

Settings for font on Y2 scale.

Referenced by IG.Gr.PlotterZedGraph.ExampleDecorations().

MajorTic IG.Gr.PlotterZedGraph.Y2AxisMajorTic

get

Properties for major tixs on Y2 axis.

MinorTic IG.Gr.PlotterZedGraph.Y2AxisMinorTic

get

Properties for minor tixs on Y2 axis.

bool IG.Gr.PlotterZedGraph.Y2AxisMajorGridIsVisible

getsetprivate

Whether major grid lines for Y2 axis are shown.

Referenced by IG.Gr.PlotterZedGraph.ExampleDecorations().

MajorGrid IG.Gr.PlotterZedGraph.Y2AxisMajorGrid

getprivate

Major grid lines properties for Y2 axis.

bool IG.Gr.PlotterZedGraph.Y2AxisMinorGridIsVisible

getsetprivate

Whether minor grid lines for Y2 axis are shown.

Referenced by IG.Gr.PlotterZedGraph.ExampleDecorations().

MinorGrid IG.Gr.PlotterZedGraph.Y2AxisMinorGrid

getprivate

Minor grid lines properties for Y2 axis.

The documentation for this class was generated from the following file:

extensions/igplot2d/plot2d/zedgraph/PlotterZedgraph.cs

Classes

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Properties

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

Property Documentation
