Base class for plots that are shown in a ZedGraphControl object. More...

Inheritance diagram for IG.Gr.PlotZedGraphBase:

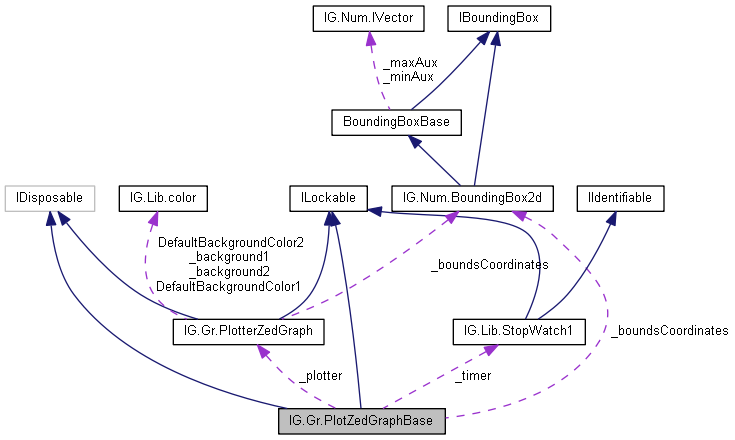

Collaboration diagram for IG.Gr.PlotZedGraphBase:

Public Member Functions
	PlotZedGraphBase (PlotterZedGraph plotter)
	Constructor. More...

abstract void	CalculateBoundsCoordinates ()
	Recalculates bounds for coordinates on the graphic objects currently contained in the graph. More...

abstract void	CreateData ()
	Creates data for the plot. Basically, this creates and updates the internal data structures used by the plot, while Update will also update the plot in the window where it is shown. More...

virtual void	Update ()
	Updates the plot. More...

abstract void	RemoveFromGraphPane ()
	Removes all items of the current plot from the graph pane. More...

void	Dispose ()
	Implementation of IDisposable interface. More...

Protected Member Functions
virtual void	Dispose (bool disposing)
	Does the job of freeing resources. More...

Protected Attributes
bool	_autoUpdateBoundsCoordinates = true

string	_legendString

Properties
object	Lock `[get]`
	This object's central lock object to be used by other object. Do not use this object for locking in class' methods, for this you should use InternalLock. More...

int	OutputLevel `[get, set]`
	Level of output to the console for the current object. The defalult output level for newly created object is specified by VtkPlotter.DefaultOutputLevel. More...

StopWatch1	Timer `[get]`
	Stopwatch that can be used to measure the time efficiency of actions. More...

color	BackGround `[get, set]`
	Sets background color of the plotter that is used by the current plot object. More...

PlotterZedGraph	Plotter `[get, set]`
	Zedgraph plotter that is used for plotting graphs produeced by the current plotting class, on a ZedGraph control. More...

GraphPane	GraphPane `[get]`
	Gets the GraphPane of the plotter on which the current line plot is plotted. More...

bool	AutoUpdateBoundsCoordinates `[get, set]`
	Determines whether bounds on plotted geometry are automatically updated when new primitives are added. More...

BoundingBox2d	BoundsCoordinates `[get]`
	Bounds of the current plot. More...

string	LegendString `[get, set]`
	String that is used for the current plot item in the legend. More...

Properties inherited from IG.Lib.ILockable
object	Lock `[get]`

Private Member Functions
	PlotZedGraphBase ()
	Prevent calling argument-less constructor in derived classes. More...

	~PlotZedGraphBase ()

Private Attributes
object	_mainLock = new object()

int	_outputLevel = PlotterZedGraph.DefaultOutputLevel

StopWatch1	_timer

PlotterZedGraph	_plotter

BoundingBox2d	_boundsCoordinates

bool	disposed = false

Detailed Description

Base class for plots that are shown in a ZedGraphControl object.

$A Igor Jun09;

Constructor & Destructor Documentation

IG.Gr.PlotZedGraphBase.PlotZedGraphBase ( )

inlineprivate

Prevent calling argument-less constructor in derived classes.

IG.Gr.PlotZedGraphBase.PlotZedGraphBase ( PlotterZedGraph plotter )

inline

Constructor.

Parameters

plotter ZedGraph plotter that is used for plotting graphs produeced by the current plotting class.

References IG.Gr.PlotterZedGraph.AddPlotObject().

IG.Gr.PlotZedGraphBase.~PlotZedGraphBase ( )

inlineprivate

Member Function Documentation

abstract void IG.Gr.PlotZedGraphBase.CalculateBoundsCoordinates ( )

pure virtual

Recalculates bounds for coordinates on the graphic objects currently contained in the graph.

Implemented in IG.Gr.PlotZedgraphCurve.

Referenced by IG.Gr.PlotterZedGraph.CalculateBoundsCoordinates().

abstract void IG.Gr.PlotZedGraphBase.CreateData ( )

pure virtual

Creates data for the plot. Basically, this creates and updates the internal data structures used by the plot, while Update will also update the plot in the window where it is shown.

Implemented in IG.Gr.PlotZedgraphCurve.

virtual void IG.Gr.PlotZedGraphBase.Update ( )

inlinevirtual

Updates the plot.

Reimplemented in IG.Gr.PlotZedgraphCurve.

Referenced by IG.Gr.PlotterZedGraph.Update().

abstract void IG.Gr.PlotZedGraphBase.RemoveFromGraphPane ( )

pure virtual

Removes all items of the current plot from the graph pane.

Must be overridden in derived classes.

Implemented in IG.Gr.PlotZedgraphCurve.

Referenced by IG.Gr.PlotterZedGraph.RemovePlotObject().

void IG.Gr.PlotZedGraphBase.Dispose ( )

inline

Implementation of IDisposable interface.

Referenced by IG.Gr.PlotterZedGraph.RemovePlotObject().

virtual void IG.Gr.PlotZedGraphBase.Dispose ( bool disposing )

inlineprotectedvirtual

Does the job of freeing resources.

This method can be eventually overridden in derived classes (if they use other resources that must be freed - in addition to such resources of the current class). In the case of overriding this method, you should usually call the base.Dispose(disposing ). in the overriding method.

Parameters

disposing Tells whether the method has been called form Dispose() method.

Member Data Documentation

object IG.Gr.PlotZedGraphBase._mainLock = new object()

private

int IG.Gr.PlotZedGraphBase._outputLevel = PlotterZedGraph.DefaultOutputLevel

private

StopWatch1 IG.Gr.PlotZedGraphBase._timer

private

PlotterZedGraph IG.Gr.PlotZedGraphBase._plotter

private

bool IG.Gr.PlotZedGraphBase._autoUpdateBoundsCoordinates = true

protected

BoundingBox2d IG.Gr.PlotZedGraphBase._boundsCoordinates

private

string IG.Gr.PlotZedGraphBase._legendString

protected

bool IG.Gr.PlotZedGraphBase.disposed = false

private

Property Documentation

object IG.Gr.PlotZedGraphBase.Lock

get

This object's central lock object to be used by other object. Do not use this object for locking in class' methods, for this you should use InternalLock.

int IG.Gr.PlotZedGraphBase.OutputLevel

getset

Level of output to the console for the current object. The defalult output level for newly created object is specified by VtkPlotter.DefaultOutputLevel.

StopWatch1 IG.Gr.PlotZedGraphBase.Timer

get

Stopwatch that can be used to measure the time efficiency of actions.

color IG.Gr.PlotZedGraphBase.BackGround

getset

Sets background color of the plotter that is used by the current plot object.

Task is delegated to the plotter.

PlotterZedGraph IG.Gr.PlotZedGraphBase.Plotter

getset

Zedgraph plotter that is used for plotting graphs produeced by the current plotting class, on a ZedGraph control.

Getter is not thread safe (for better efficiency).

GraphPane IG.Gr.PlotZedGraphBase.GraphPane

getprotected

Gets the GraphPane of the plotter on which the current line plot is plotted.

bool IG.Gr.PlotZedGraphBase.AutoUpdateBoundsCoordinates

getset

Determines whether bounds on plotted geometry are automatically updated when new primitives are added.

Referenced by IG.Gr.PlotterZedGraph.CalculateBoundsCoordinates().

BoundingBox2d IG.Gr.PlotZedGraphBase.BoundsCoordinates

get

Bounds of the current plot.

If AutoUpdateBoundsCoordinates == true then the bounds are updated automatically when new points are added.

These bounds are usually used just for information, but they can also be used to adjust the bounds on scales.

Referenced by IG.Gr.PlotterZedGraph.CalculateBoundsCoordinates().

string IG.Gr.PlotZedGraphBase.LegendString

getset

String that is used for the current plot item in the legend.

Referenced by IG.Gr.PlotterZedGraph.ExampleCurveStylesWithSave(), IG.Gr.PlotterZedGraph.ExampleDecorations(), and IG.Gr.PlotterZedGraph.ExempleSinePlots().

The documentation for this class was generated from the following file:

extensions/igplot2d/plot2d/zedgraph/PlotZedgraphBase.cs
