Base class for matrices. More...

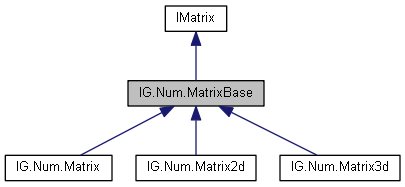

Inheritance diagram for IG.Num.MatrixBase: Collaboration diagram for IG.Num.MatrixBase:Public Member Functions | |
| abstract MatrixBase | GetCopyBase () |
| Creates and returns a copy of the current matrix. More... | |
| abstract MatrixBase | GetNewBase (int rowCount, int columnCount) |
| Creates and returns a new matrix with the specified dimensions, and of the same type as the current matrix. More... | |
| abstract MatrixBase | GetNewBase () |
| Creates and returns a new matrix with the same dimensions and of the same type as the current matrix. More... | |
| abstract VectorBase | GetNewVectorBase (int length) |
| Creates and returns a new vector with the specified dimension, and of the type that is consistent with the type of the current vector. More... | |
| virtual IMatrix | GetCopy () |
| Creates and returns a copy of the current matrix. More... | |
| virtual IMatrix | GetNew (int rowCount, int columnCount) |
| Creates and returns a new matrix with the specified dimensions, and of the same type as the current matrix. More... | |
| virtual IMatrix | GetNew () |
| Creates and returns a new matrix with the same dimensions and of the same type as the current matrix. More... | |
| virtual IVector | GetNewVector (int length) |
| Creates and returns a new vector with the specified dimension, and of the type that is consistent with the type of the current vector. More... | |
| virtual double[,] | ToArray () |
| Creates and returns a rectangular 2D array that contains a component-wise copy of the matrix. More... | |
| virtual double[][] | ToJaggedArray () |
| Creates and returns a jagged 2D array that contains a component-wise copy of the matrix. More... | |
| virtual int | Index (int row, int column) |
| Calculates and returns flat index corresponding to the specified row and column indices of the current matrix. More... | |
| virtual void | Indices (int flatIndex, out int row, out int column) |
| Returns (through output arguments) row and column indices corresponding to the specified flat index in the current matrix. More... | |
| virtual void | SetZero () |
| Sets all components of the current matrix to 0. More... | |
| virtual void | SetConstant (double elementValue) |
| Sets all components of the current matrix to the specified value. More... | |
| virtual void | SetIdentity () |
| Sets the current matrix to identity matrix. WARNING: Exception is thrown if a matrix is not square. For nonsquare matrices, use SetDiagonal(1.0)! More... | |
| virtual void | SetRandom () |
| Sets the current matrix such that it contains random elements on the interval (0,1]. More... | |
| virtual void | SetRandom (IRandomGenerator rnd) |
| Sets the current matrix such that it contains random elements on the interval (0,1]. More... | |
| virtual void | SetDiagonal (double diagonalElement) |
| Sets the current matrix to the diagonal matrix with all diagonal elements equal to the specified value. Matrix does not need to be a square matrix. More... | |
| virtual void | SetDiagonal (IVector diagonal) |
| Sets the current matrix to the diagonal matrix with diagonal element specified by a vector. More... | |
| virtual bool | IsSquare () |
| Returns true if the current matrix is a square matrix, and false if not. More... | |
| virtual bool | IsSymmetric () |
| Returns true if the current matrix is symmetric, and false if not. If the matrix is not a square matrix then false is returned. More... | |
| virtual bool | IsSymmetric (double relativeRMSTolerance=0.0) |
| Returns true if the specified matrix is symmetric within some tolerance, and false if not. If the matrix is null then false is returned. More... | |
| virtual void | Negate () |
| Negates the current matrix. More... | |
| virtual void | Transpose () |
| Transposes the current matrix. WARNING: this operation can only be done on square matrices! More... | |
| override int | GetHashCode () |
| Returns the hashRet code (hashRet function) of the current matrix. More... | |
| override bool | Equals (Object obj) |
| Returns a value indicating whether the specified object is equal to the current matrix. More... | |
| int | GetHashFunctionInt () |
| Returns an integer valued hashRet function of the current matrix object. More... | |
| string | GetHashFunctionString () |
| Returns a string valued hashRet function of the current matrix object. More... | |
| override string | ToString () |
| Returns string representation of the current matrix in the standard IGLib form. Rows and elements are printed in comma separated lists in curly brackets. More... | |
| virtual string | ToStringReadable (int accuracy=4, int padding=8) |
| Returns a readable an easily string form of a matrix, accuracy and padding can be set. More... | |
| virtual string | ToStringNewlines () |
| Returns a string representation of this matrix with newlines inserted after each row. Rows and elements are printed in comma separated lists in curly brackets. More... | |
| virtual string | ToStringNewlines (string elementFormat) |
| Returns a string representation of this matrix with newlines inserted after each row, with the specified format for elements of the matrix. Rows and elements are printed in comma separated lists in curly brackets. More... | |
| virtual string | ToStringMath () |
| Returns string representation of the current matrix in the standard IGLib form (Mathematica-like format but with C representation of numbers). Rows and elements are printed in comma separated lists in curly brackets. More... | |
| virtual string | ToString (string elementFormat) |
| Returns a string representation of the current matrix in a standard IGLib form (Mathematica-like format but with C representation of numbers), with the specified format for elements of the matrix. More... | |
| virtual string | ToStringMath (string elementFormat) |
| Returns a string representation of the current matrix in a standard IGLib form (Mathematica-like format but with C representation of numbers), with the specified format for elements of the matrix. More... | |
Static Public Member Functions | |
| static int | Index (int dim1, int dim2, int row, int column) |
| Returns flat index corresponding to the specified row and column indices of a matrix with specified dimensions. More... | |
| static int | Index (IMatrix mat, int row, int column) |
| Calculates and returns flat index corresponding to the specified row and column indices of the specified matrix. More... | |
| static void | Indices (int dim1, int dim2, int flatIndex, out int row, out int column) |
| Returns (through output arguments) row and column indices corresponding to the specified flat index in a matrix with the specified dimensions. More... | |
| static void | Indices (IMatrix mat, int flatIndex, out int row, out int column) |
| Returns (through output arguments) row and column indices corresponding to the specified flat index in the specified matrix. More... | |
| static void | SetZero (IMatrix mat) |
| Sets all components of the specified matrix to 0. More... | |
| static void | SetConstant (IMatrix mat, double elementValue) |
| Sets all components of the specified matrix to the specified value. More... | |
| static void | SetIdentity (IMatrix mat) |
| Sets the specified matrix to identity matrix. WARNING: Works only for square matrices (exception is thrown if matrix is not square). For nonsquare matrices, use SetDiagonal(1.0)! More... | |
| static void | SetDiagonal (IMatrix mat, IVector diagonal) |
| Sets the current matrix to the diagonal matrix with diagonal element specified by a vector. More... | |
| static void | SetDiagonal (IMatrix mat, double diagonalElement) |
| Sets the current matrix to the diagonal matrix with all diagonal elements equal to the specified value. Matrix does not need to be a square matrix. More... | |
| static void | SetRandom (IMatrix mat) |
| Sets the specified matrix such that it contains random elements on the interval (0,1]. More... | |
| static void | SetRandom (IMatrix mat, IRandomGenerator rnd=null) |
| Sets the current matrix such that it contains random elements on the interval (0,1]. More... | |
| static void | SetRandomSymmetric (IMatrix mat) |
| Sets the specified matrix such that it is symmetric and contains random elements on the interval (0,1]. More... | |
| static void | SetRandomSymmetric (IMatrix mat, IRandomGenerator rnd) |
| Sets the specified matrix such that it is symmetric and contains random elements on the interval (0,1]. More... | |
| static void | SetRandomAntiSymmetric (IMatrix mat) |
| Sets the specified matrix such that it is antisymmetric and contains random elements on the interval (0,1]. More... | |
| static void | SetRandomAntiSymmetric (IMatrix mat, IRandomGenerator rnd) |
| Sets the specified matrix such that it is antisymmetric and contains random elements on the interval (0,1]. More... | |
| static void | SetRandomLowerTriangular (IMatrix mat) |
| Sets the specified matrix such that it is lower triangular and contains random elements on the interval (0,1]. More... | |
| static void | SetRandomLowerTriangular (IMatrix mat, IRandomGenerator rnd) |
| Sets the specified matrix such that it is lower triangular and contains random elements on the interval (0,1]. More... | |
| static void | SetRandomUpperTriangular (IMatrix mat) |
| Sets the specified matrix such that it is upper triangular and contains random elements on the interval (0,1]. More... | |
| static void | SetRandomUpperTriangular (IMatrix mat, IRandomGenerator rnd) |
| Sets the specified matrix such that it is upper triangular and contains random elements on the interval (0,1]. More... | |
| static void | SetRandomSymmetricPositiveDefinite (IMatrix mat) |
| Sets the specified matrix such that it is positive definite and contains random elements on the interval (0,1]. More... | |
| static void | SetRandomSymmetricPositiveDefinite (IMatrix mat, IRandomGenerator rnd) |
| Sets the specified matrix such that it is positive definite and contains random elements. More... | |
| static void | SetRandomPositiveDiagonallyDominant (IMatrix mat, IRandomGenerator rnd=null, double dominancyFactor=100.0) |
| Sets the specified matrix such that it is has random elements and is diagonally dominant with positive diagonal elements, i.e. any diagonal element is greater by absolute value than sum of absolute values of nondiagonal elements in the corresponding column. More... | |
| static void | SetRandomPositiveDiagonallyDominant (IMatrix mat, double dominancyFactor) |
| Sets the specified matrix such that it is has random elements and is diagonally dominant with positive diagonal elements, i.e. any diagonal element is greater by absolute value than sum of absolute values of nondiagonal elements in the corresponding column. More... | |
| static void | SetRandomPositiveDiagonallyDominantSymmetric (IMatrix mat, IRandomGenerator rnd=null, double dominancyFactor=100.0) |
| Sets the specified matrix such that it is has random elements and is symmetric diagonally dominant with positive diagonal elements, i.e. any diagonal element is greater by absolute value than sum of absolute values of nondiagonal elements in the corresponding column. More... | |
| static void | SetRandomPositiveDiagonallyDominantSymmetric (IMatrix mat, double dominancyFactor) |
| Sets the specified matrix such that it is has random elements and is symmetric diagonally dominant with positive diagonal elements, i.e. any diagonal element is greater by absolute value than sum of absolute values of nondiagonal elements in the corresponding column. More... | |
| static double | SetRandomInvertible (IMatrix mat, IRandomGenerator rnd=null) |
| Sets the specified QUADRATIC matrix such that it is has random elements and is nonsingular. More... | |
| static double | SetRandomPositiveDefiniteSymmetric (IMatrix mat, IRandomGenerator rnd=null) |
| Sets the specified QUADRATIC matrix such that it is has random elements and is a symmetric positive definite matrix. More... | |
| static bool | IsSquare (IMatrix mat) |
| Returns true if the specified matrix is a square matrix, and false if not. If the matrix is null then false is returned. More... | |
| static bool | IsSymmetric (IMatrix mat) |
| Returns true if the specified matrix is symmetric, and false if not. If the matrix is null then false is returned. More... | |
| static bool | IsSymmetric (IMatrix mat, double relativeRMSTolerance) |
| Returns true if the specified matrix is symmetric within some tolerance, and false if not. If the matrix is null then false is returned. More... | |
| static int | Compare (IMatrix m1, IMatrix m2) |
| Compares two matrices and returns -1 if the first matrix is smaller than the second one, 0 if matrices are equal, and 1 if the first matrix is greater. Matrix that is null is considered smaller than a matrix that is not null. Two null matrices are considered equal. Matrix with smaller dimension is considered smaller than a matrix with greater dimension. Matrices with equal dimensions ar compared by elements. The first element that is different decides which matrix is considered greater. More... | |
| static void | Resize (ref IMatrix mat, IMatrix template, int rowCount, int columnCount) |
| Resizes, if necessary, the specified matrix according to the required dimensions. If the matrix is initially null then a new matrix is created. If in this case a template matrix is specified then the newly created matrix will be of the same type as that template matrix, because it is created by the GetNew() method on that matrix. If dimensions of the initial matrix do not match the required dim., then matrix is resized. If the specified matrix dimension is less or equal to 0 then matrix is resized with the same dimensions as those of the template matirx. If in this case the template matrix is null, an exception is thrown. WARNINGS: Components are NOT preserved and have in general undefined values after operation is performed. If matrix and template are both null then the type of nawly created matrix is Matrix. More... | |
| static void | Resize (ref IMatrix mat, int rowCount, int columnCount) |
| Resizes, if necessary, the specified matrix according to the required dimensions. If the matrix is initially null then a new matrix (of type Matrix) is created. If dimensions of the initial matrix do not match the required dimensions, then matrix is resized. Components are NOT preserved and have in general undefined values after operation is performed. WARNING: If the matrix is initially null then the type of the newly created matrix is Matrix. More... | |
| static void | Resize (ref IMatrix mat, IMatrix template) |
| Resizes, if necessary, the specified matrix according to the dimensions of the specified template matrix. If the matrix is initially null then a new matrix is created. In this case the newly created matrix will be of the same type as that template matrix, because it is created by the GetNew() method on that matrix. If dimensions of the initial matrix do not match the dimensions of the template matrix, then matrix is resized. If the template matrix is null, then an exception is thrown. WARNINGS: Components are NOT preserved and have in general undefined values after operation is performed. If matrix and template are null then the type of newly created matrix is Matrix. More... | |
| static void | CopyPlain (IMatrix a, IMatrix result) |
| Copies components of a matrix to another matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of the copied matrix and result storage must match. More... | |
| static void | Copy (IMatrix a, IMatrix result) |
| Copies components of a matrix to another matrix. WARNING: dimensions of the copied matrix and result storage must match. More... | |
| static void | Copy (IMatrix a, ref IMatrix result) |
| Copies components of a matrix to another matrix. Resulting matrix is allocated or reallocated if necessary. More... | |
| static void | CopyPlain (MatrixBase_MathNetNumerics a, IMatrix result) |
| Copies components of a matrix to another matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of the copied matrix and result storage must match. More... | |
| static void | Copy (MatrixBase_MathNetNumerics a, IMatrix result) |
| Copies components of a matrix to another matrix. WARNING: dimensions of the copied matrix and result storage must match. More... | |
| static void | Copy (MatrixBase_MathNetNumerics a, ref IMatrix result) |
| Copies components of a matrix to another matrix. Resulting matrix is allocated or reallocated if necessary. More... | |
| static void | CopyPlain (IMatrix a, Matrix_MathNetNumercs result) |
| Copies components of a matrix to another matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of the copied matrix and result storage must match. More... | |
| static void | Copy (IMatrix a, Matrix_MathNetNumercs result) |
| Copies components of a matrix to another matrix. WARNING: dimensions of the copied matrix and result storage must match. More... | |
| static void | Copy (IMatrix a, ref Matrix_MathNetNumercs result) |
| Copies components of a matrix to another matrix. Resulting matrix is allocated or reallocated if necessary. More... | |
| static void | NegatePlain (IMatrix a, IMatrix result) |
| Stores a negative matrix of the operand in another matrix. Can be done in-place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of the operand and result storage must match. More... | |
| static void | Negate (IMatrix a, IMatrix result) |
| Stores a negative matrix of the operand in another matrix. Can be done in-place. WARNING: dimensions of the operand and result storage must match. More... | |
| static void | Negate (IMatrix a, ref IMatrix result) |
| Stores a negative matrix of the operand in another matrix. Can be done in-place. Resulting matrix is allocated or reallocated if necessary. More... | |
| static void | TransposePlain (IMatrix a, IMatrix result) |
| Stores transpose of the operand in another matrix. Can be done in-place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of the operand and result storage must match. More... | |
| static void | Transpose (IMatrix a, IMatrix result) |
| Stores transpose of the operand in another matrix. Can be done in-place. WARNING: dimensions of the operand and result storage must match. More... | |
| static void | Transpose (IMatrix a, ref IMatrix result) |
| Stores transpose of the matrix operand in another matrix. Can be done in-place. Resulting matrix is allocated or reallocated if necessary. More... | |
| static void | SymmetrizePlain (IMatrix a, IMatrix sym, IMatrix antiSym) |
| Calculates symmetric and antisymmetric part of the specified matrix (symmetric part is stored in the first result argument but is calculated last, such that it overrides antisymmetric when both arguments point to the same matrix object). More... | |
| static void | Symmetrize (IMatrix a, IMatrix sym, IMatrix antiSym) |
| Calculates symmetric and antisymmetric part of the specified matrix (symmetric part is stored in the first result argument but is calculated last, such that it overrides antisymmetric when both arguments point to the same matrix object). More... | |
| static void | Symmetrize (IMatrix a, ref IMatrix sym, ref IMatrix antiSym) |
| Stores symmetrized and antisymmetirzed matrix obtained from the specified matrix. Resulting matrix is allocated or reallocated if necessary. More... | |
| static void | SymmetricPartPlain (IMatrix a, IMatrix result) |
| Stores symmetric part of a square matrix operand in another matrix. Symmetrization is performed by averaging of non-diagonal terms and their transposed terms. Can be done in-place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of the operand and result storage must match. More... | |
| static void | SymmetricPart (IMatrix a, IMatrix result) |
| Stores symmetric part of a square matrix operand in another matrix. Symmetrization is performed by averaging of non-diagonal terms and their transposed terms. Can be done in-place. WARNING: dimensions of the operand and result storage must match. More... | |
| static void | SymmetricPart (IMatrix a, ref IMatrix result) |
| Stores symmetric part of a square matrix operand in another matrix. Symmetrization is performed by averaging of non-diagonal terms and their transposed terms. Can be done in-place. Resulting matrix is allocated or reallocated if necessary. More... | |
| static void | AntisymmetricPartPlain (IMatrix a, IMatrix result) |
| Stores antisymmetric part of a square matrix operand in another matrix. Antisymmetrization is performed by subtracting non-diagonal terms and their transposed terms, division by 2 and storing result in one matrix element and its negative value in another element. Can be done in-place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of the operand and result storage must match. More... | |
| static void | AntisymmetricPart (IMatrix a, IMatrix result) |
| Stores antisymmetric part of a square matrix operand in another matrix. Antisymmetrization is performed by subtracting non-diagonal terms and their transposed terms, division by 2 and storing result in one matrix element and its negative value in another element. Can be done in-place. WARNING: dimensions of the operand and result storage must match. More... | |
| static void | AntisymmetricPart (IMatrix a, ref IMatrix result) |
| Stores antisymmetric part of a square matrix operand in another matrix. Antisymmetrization is performed by subtracting non-diagonal terms and their transposed terms, division by 2 and storing result in one matrix element and its negative value in another element. Can be done in-place. Resulting matrix is allocated or reallocated if necessary. More... | |
| static void | AddPlain (IMatrix a, IMatrix b, IMatrix result) |
| Sums two matrices and stores the result in the specified result matrix. Operation can be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | Add (IMatrix a, IMatrix b, IMatrix result) |
| Sums two matrices and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | Add (IMatrix a, IMatrix b, ref IMatrix result) |
| Sums two matrices and stores the result in the specified result matrix. Operation can be performed in place. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then teh result is re-allocated. More... | |
| static void | SubtractPlain (IMatrix a, IMatrix b, IMatrix result) |
| Subtracts two matrices and stores the result in the specified result matrix. Operation can be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | Subtract (IMatrix a, IMatrix b, IMatrix result) |
| Subtracts two matrices and stores the result in the specified result matrix. Operation can be performed in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | Subtract (IMatrix a, IMatrix b, ref IMatrix result) |
| Subtracts two matrices and stores the result in the specified result matrix. Operation can be performed in place. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then teh result is re-allocated. More... | |
| static void | ArrayMultiplyPlain (IMatrix a, IMatrix b, IMatrix result) |
| Element-by-element multiplication. This operation can be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | ArrayMultiply (IMatrix a, IMatrix b, IMatrix result) |
| Element-by-element multiplication. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | ArrayMultiply (IMatrix a, IMatrix b, ref IMatrix result) |
| Element-by-element multiplication. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then teh result is re-allocated. More... | |
| static void | ArrayDividePlain (IMatrix a, IMatrix b, IMatrix result) |
| Element-by-element division. This operation can be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | ArrayDivide (IMatrix a, IMatrix b, IMatrix result) |
| Element-by-element division. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | ArrayDivide (IMatrix a, IMatrix b, ref IMatrix result) |
| Element-by-element division. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then teh result is re-allocated. More... | |
| static void | ArrayPowerPlain (IMatrix a, double power, IMatrix result) |
| Element-by-element raise to power. This operation can be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | ArrayPower (IMatrix a, double power, IMatrix result) |
| Element-by-element raise to power. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | ArrayPower (IMatrix a, double power, ref IMatrix result) |
| Element-by-element raise to power. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then teh result is re-allocated. More... | |
| static void | ArrayMapPlain (IMatrix a, Converter< double, double > mapping, IMatrix result) |
| Element-by-element mapping of an arbitrary function. This operation can be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | ArrayMap (IMatrix a, Converter< double, double > mapping, IMatrix result) |
| Element-by-element mapping of an arbitrary function. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | ArrayMap (IMatrix a, Converter< double, double > mapping, ref IMatrix result) |
| Element-by-element mapping of an arbitrary function. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then teh result is re-allocated. More... | |
| static void | MultiplyPlain (IMatrix a, IMatrix b, IMatrix result) |
| R=A*B. Multiplies two matrices and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | Multiply (IMatrix a, IMatrix b, IMatrix result) |
| R=A*B. Multiplies two matrices and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | Multiply (IMatrix a, IMatrix b, ref IMatrix result) |
| R=A*B. Multiplies two matrices and stores the result in the specified result matrix. WARNING: dimensions of operands must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated. More... | |
| static void | MultiplyTranspMatPlain (IMatrix a, IMatrix b, IMatrix result) |
| R=A^T*B Calculates product of transposed matrix and a matrix, and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | MultiplyTranspMat (IMatrix a, IMatrix b, IMatrix result) |
| R=A^T*B Multiplies two matrices and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | MultiplyTranspMat (IMatrix a, IMatrix b, ref IMatrix result) |
| R=A^T*B Multiplies two matrices and stores the result in the specified result matrix. WARNING: dimensions of operands must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated. More... | |
| static void | MultiplyMatTranspPlain (IMatrix a, IMatrix b, IMatrix result) |
| R=A*B^T. Multiplies a matrix by transpose of another matrix and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | MultiplyMatTransp (IMatrix a, IMatrix b, IMatrix result) |
| R=A*B^T. Multiplies a matrix by transpose of another matrix and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | MultiplyMatTransp (IMatrix a, IMatrix b, ref IMatrix result) |
| R=A*B^T. Multiplies a matrix by transpose of another matrix and stores the result in the specified result matrix. WARNING: dimensions of operands must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated. More... | |
| static void | MultiplyTranspTranspPlain (IMatrix a, IMatrix b, IMatrix result) |
| R=A^T*B^T. Multiplies transposed matrix by another transposed matrix, and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | MultiplyTranspTransp (IMatrix a, IMatrix b, IMatrix result) |
| R=A^T*B^T. Multiplies transposed matrix by another transposed matrix, and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | MultiplyTranspTransp (IMatrix a, IMatrix b, ref IMatrix result) |
| R=A^T*B^T. Multiplies transposed matrix by another transposed matrix, and stores the result in the specified result matrix. WARNING: dimensions of operands must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated. More... | |
| static void | MultiplyPlain (IMatrix a, IMatrix b, IMatrix c, IMatrix result) |
| R=A*B*C. Multiplies three matrices and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | Multiply (IMatrix a, IMatrix b, IMatrix c, IMatrix result) |
| R=A*B*C. Multiplies three matrices and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | Multiply (IMatrix a, IMatrix b, IMatrix c, ref IMatrix result) |
| R=A*B*C. Multiplies three matrices and stores the result in the specified result matrix. WARNING: dimensions of operands must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated. More... | |
| static void | MultiplyTranspMatTranspPlain (IMatrix a, IMatrix b, IMatrix c, IMatrix result) |
| R=A^T*B*C^T. Multiplies three matrices (transposed first argument, second argument, and transposed third argument) and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of all arguments must be consistent, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | MultiplyTranspMatTransp (IMatrix a, IMatrix b, IMatrix c, IMatrix result) |
| R=A^T*B*C^T. Multiplies three matrices (transposed first argument, second argument, and transposed third argument) and stores the result in the specified result matrix. WARNING: dimensions of all arguments must be consistent, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | MultiplyTranspMatTransp (IMatrix a, IMatrix b, IMatrix c, ref IMatrix result) |
| R=A^T*B*C^T. Multiplies three matrices (transposed first argument, second argument, and transposed third argument) and stores the result in the specified result matrix. WARNING: dimensions of operands must be consistent, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated. More... | |
| static void | MultiplyTranspMatMatPlain (IMatrix a, IMatrix b, IMatrix c, IMatrix result) |
| R=A^T*B*C. Multiplies three matrices (transposed first argument, second argument, and third argument) and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of all arguments must be consistent, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | MultiplyTranspMatMat (IMatrix a, IMatrix b, IMatrix c, IMatrix result) |
| R=A^T*B*C. Multiplies three matrices (transposed first argument, second argument, and third argument) and stores the result in the specified result matrix. WARNING: dimensions of all arguments must be consistent, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | MultiplyTranspMatMat (IMatrix a, IMatrix b, IMatrix c, ref IMatrix result) |
| R=A^T*B*C. Multiplies three matrices (transposed first argument, second argument, and third argument) and stores the result in the specified result matrix. WARNING: dimensions of operands must be consistent, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated. More... | |
| static void | MultiplyMatMatTranspPlain (IMatrix a, IMatrix b, IMatrix c, IMatrix result) |
| R=A*B*C^T. Multiplies three matrices (first argumet, second argumet, and transposed third argument) and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | MultiplyMatMatTransp (IMatrix a, IMatrix b, IMatrix c, IMatrix result) |
| R=A*B*C^T. Multiplies three matrices (first argumet, second argumet, and transposed third argument) and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | MultiplyMatMatTransp (IMatrix a, IMatrix b, IMatrix c, ref IMatrix result) |
| R=A*B*C^T. Multiplies three matrices (first argumet, second argumet, and transposed third argument) and stores the result in the specified result matrix. WARNING: dimensions of operands must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated. More... | |
| static void | MultiplyMatTranspMatPlain (IMatrix a, IMatrix b, IMatrix c, IMatrix result) |
| R=A*B^T*C. Multiplies three matrices (first argument, transposed second argument, and third argument) and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | MultiplyMatTranspMat (IMatrix a, IMatrix b, IMatrix c, IMatrix result) |
| R=A*B^T*C. Multiplies three matrices (first argument, transposed second argument, and third argument) and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | MultiplyMatTranspMat (IMatrix a, IMatrix b, IMatrix c, ref IMatrix result) |
| R=A*B^T*C. Multiplies three matrices (first argument, transposed second argument, and third argument) and stores the result in the specified result matrix. WARNING: dimensions of operands must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated. More... | |
| static void | MultiplyTranspTranspTranspPlain (IMatrix a, IMatrix b, IMatrix c, IMatrix result) |
| R=A^T*B^T*C^T. Multiplies three matrices and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | MultiplyTranspTranspTransp (IMatrix a, IMatrix b, IMatrix c, IMatrix result) |
| R=A^T*B^T*C^T. Multiplies three matrices and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. More... | |
| static void | MultiplyTranspTranspTransp (IMatrix a, IMatrix b, IMatrix c, ref IMatrix result) |
| R=A^T*B^T*C^T. Multiplies three matrices and stores the result in the specified result matrix. WARNING: dimensions of operands must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated. More... | |
| static void | MultiplyPlain (IMatrix a, IVector b, IVector result) |
| R=A*b. Multiplies a matrix with a vector and stores the result in the specified result vector. Operation can not be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | Multiply (IMatrix a, IVector b, IVector result) |
| R=A*b. Multiplies a matrix with a vector and stores the result in the specified result vector. Operation can not be performed in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | Multiply (IMatrix a, IVector b, ref IVector result) |
| R=A*b. Multiplies matrix by scalar and stores the result in the specified result matrix. Operation can not be performed in place. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated. More... | |
| static void | MultiplyTranspVecPlain (IMatrix a, IVector b, IVector result) |
| R=A^T*b. Multiplies a transposed matrix with a vector and stores the result in the specified result vector. Operation can not be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | MultiplyTranspVec (IMatrix a, IVector b, IVector result) |
| R=A^T*b. Multiplies a transposed matrix with a vector and stores the result in the specified result vector. Operation can not be performed in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | MultiplyTranspVec (IMatrix a, IVector b, ref IVector result) |
| R=A^T*b. Multiplies transposed matrix by scalar and stores the result in the specified result matrix. Operation can not be performed in place. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated. More... | |
| static double | MultiplyPlain (IVector left, IMatrix a, IVector right) |
| R=a^T*M*b. Left-multiplies a matrix with a vector (transposed), right multiplies the result vith another vector, and returns the final result. Can be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static double | Multiply (IVector left, IMatrix a, IVector right) |
| R=a^T*M*b. Left-multiplies a matrix with a vector (transposed), right multiplies the result vith another vector, and returns the final result. Can be performed in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static double | Multiply (IVector left, IMatrix a, IVector right, ref IVector result) |
| R=a^T*M*b. Left-multiplies a matrix with a vector (transposed), right multiplies the result vith another vector, and returns the final result. Can be performed in place. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated. More... | |
| static void | MultiplyPlain (IMatrix a, double b, IMatrix result) |
| Multiplies matrix by scalar and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. This operation can be performed in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | Multiply (IMatrix a, double b, IMatrix result) |
| Multiplies matrix by scalar and stores the result in the specified result matrix. This operation can be performed in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | Multiply (IMatrix a, double b, ref IMatrix result) |
| Multiplies matrix by scalar and stores the result in the specified result matrix. This operation can be performed in place. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated. More... | |
| static void | DividePlain (IMatrix a, double b, IMatrix result) |
| Divides matrix by scalar and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. This operation can be performed in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | Divide (IMatrix a, double b, IMatrix result) |
| Divides matrix by scalar and stores the result in the specified result matrix. This operation can be performed in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | Divide (IMatrix a, double b, ref IMatrix result) |
| Divides matrix by scalar and stores the result in the specified result matrix. This operation can be performed in place. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated. More... | |
| static void | MultiplyDiagonalPlain (IVector diag, IMatrix a, IMatrix result) |
| Left-multiplies a matrix with a diagonal matrix, and stores the result in the specified result matrix. R=diag(d)*A This is a plain version of the method that does not perform any consistency checks. The operation can be done in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | MultiplyDiagonal (IVector diag, IMatrix a, IMatrix result) |
| Right-multiplies a matrix with a diagonal matrix, and stores the result in the specified result matrix. R=diag(d)*A WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | MultiplyDiagonal (IVector diag, IMatrix a, ref IMatrix result) |
| Right-multiplies a matrix with a diagonal matrix, and stores the result in the specified result matrix. R=diag(d)*A WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated. More... | |
| static void | MultiplyInverseDiagonalPlain (IVector diag, IMatrix a, IMatrix result) |
| Left-multiplies a matrix with inverse of a diagonal matrix, and stores the result in the specified result matrix. R=diag(d)^-1*A This is a plain version of the method that does not perform any consistency checks. The operation can be done in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | MultiplyInverseDiagonal (IVector diag, IMatrix a, IMatrix result) |
| Right-multiplies a matrix with inverse of a diagonal matrix, and stores the result in the specified result matrix. R=diag(d)^-1*A WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | MultiplyInverseDiagonal (IVector diag, IMatrix a, ref IMatrix result) |
| Right-multiplies a matrix with inverse of a diagonal matrix, and stores the result in the specified result matrix. R=diag(d)^-1*A WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated. More... | |
| static void | MultiplyDiagonalPlain (IMatrix a, IVector diag, IMatrix result) |
| Right-multiplies a matrix with a diagonal matrix, and stores the result in the specified result matrix. R=A*diag(d) This is a plain version of the method that does not perform any consistency checks. The operation can be done in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | MultiplyDiagonal (IMatrix a, IVector diag, IMatrix result) |
| Right-multiplies a matrix with a diagonal matrix, and stores the result in the specified result matrix. R=A*diag(d) WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | MultiplyDiagonal (IMatrix a, IVector diag, ref IMatrix result) |
| Right-multiplies a matrix with a diagonal matrix, and stores the result in the specified result matrix. R=A*diag(d) WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated. More... | |
| static void | MultiplyInverseDiagonalPlain (IMatrix a, IVector diag, IMatrix result) |
| Right-multiplies a matrix with inverse of a diagonal matrix, and stores the result in the specified result matrix. R=A*diag(d)^-1 This is a plain version of the method that does not perform any consistency checks. The operation can be done in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | MultiplyInverseDiagonal (IMatrix a, IVector diag, IMatrix result) |
| Right-multiplies a matrix with inverse of a diagonal matrix, and stores the result in the specified result matrix. R=A*diag(d)^-1 WARNING: dimensions of matrices must match, otherwise an exception is thrown. More... | |
| static void | MultiplyInverseDiagonal (IMatrix a, IVector diag, ref IMatrix result) |
| Right-multiplies a matrix with inverse of a diagonal matrix, and stores the result in the specified result matrix. R=A*diag(d)^-1 WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated. More... | |
| static int | GetHashCode (IMatrix mat) |
| Returns hashRet code of the specified matrix. More... | |
| static bool | Equals (IMatrix m1, IMatrix m2) |
| Returns true if the specified matrices are equal, false if not. More... | |
| static int | GetHashFunctionInt (IMatrix mat) |
| Returns an integer valued hashRet function of the specified matrix object. More... | |
| static string | GetHashFunctionString (IMatrix mat) |
| Returns a string valued hashRet function of the specified matrix object. More... | |
| static string | ToStringReadable (IMatrix mat, int accuracy=4, int padding=8) |
| Returns a readable string form of a matrix, accuracy and padding can be set. More... | |
| static string | ToStringNewlines (IMatrix mat) |
| Returns a string representation of the specified matrix with newlines inserted after each row. Rows and elements are printed in comma separated lists in curly brackets. More... | |
| static string | ToStringNewlines (IMatrix mat, string elementFormat) |
| Returns a string representation of the specified matrix with newlines inserted after each row, with the specified format for elements of the matrix. Rows and elements are printed in comma separated lists in curly brackets. More... | |
| static string | ToString (IMatrix mat) |
| Returns string representation of the current matrix in the standard IGLib form (Mathematica-like format but with C representation of numbers). Rows and elements are printed in comma separated lists in curly brackets. More... | |
| static string | ToStringMath (IMatrix mat) |
| Returns string representation of the current matrix in the standard IGLib form (Mathematica-like format but with C representation of numbers). Rows and elements are printed in comma separated lists in curly brackets. More... | |
| static string | ToString (IMatrix mat, string elementFormat) |
| Returns string representation of the current matrix in the standard IGLib form (Mathematica-like format but with C representation of numbers), with the specified format for elements of the matrix. Rows and elements are printed in comma separated lists in curly brackets. More... | |
| static string | ToStringMath (IMatrix mat, string elementFormat) |
| Returns string representation of the current matrix in the standard IGLib form (Mathematica-like format but with C representation of numbers), with the specified format for elements of the matrix. Rows and elements are printed in comma separated lists in curly brackets. More... | |
| static void | SaveJson (IMatrix mat, string filePath) |
| Saves (serializes) the specified matrix to the specified JSON file. File is owerwritten if it exists. More... | |
| static void | SaveJson (IMatrix mat, string filePath, bool append) |
| Saves (serializes) the specified matrix to the specified JSON file. More... | |
| static void | LoadJson (string filePath, ref IMatrix matRestored) |
| Restores (deserializes) a matrix object from the specified file in JSON format. More... | |
| static MatrixBase | operator+ (MatrixBase m) |
| Unary plus, returns the operand. More... | |
| static MatrixBase | operator- (MatrixBase m) |
| Unary negation, returns the negative operand. More... | |
| static MatrixBase | operator+ (MatrixBase a, MatrixBase b) |
| Matrix addition. More... | |
| static MatrixBase | operator- (MatrixBase a, MatrixBase b) |
| Matrix subtraction. More... | |
| static MatrixBase | operator* (MatrixBase a, MatrixBase b) |
| Product of two matrices. More... | |
| static VectorBase | operator* (MatrixBase a, VectorBase b) |
| Product of a matrix and a vector. More... | |
| static MatrixBase | operator* (MatrixBase a, double b) |
| Product of a matrix by a scalar. More... | |
| static MatrixBase | operator* (double a, MatrixBase b) |
| Product of a matrix by a scalar. More... | |
| static MatrixBase | operator/ (MatrixBase a, double b) |
| Matrix subtraction. More... | |
| static double | DeterminantSlow (IMatrix A) |
| Simpler but slower (compared to Determinant) implementation of determinant calculation of an arbitrary square real matrix. More... | |
| static double | Determinant (IMatrix A, ref int[] auxPermutations, ref IMatrix auxLU) |
| Calculates and returns determinant of a real-valued square matrix. More... | |
| static void | LuDecompose (IMatrix A, out int toggle, ref int[] perm, ref IMatrix result) |
| Calculates thr Doolittle LU decomposition with partial pivoting (LUP) of a square real matrix. More... | |
| static void | LuSolve (IMatrix luMatrix, int[] perm, IVector b, ref IVector auxVec, ref IVector x) |
| Solves a system of equations with the specified right-hand sides and the specified LU decomposition of the system matrix. More... | |
| static void | LuSolve (IMatrix luMatrix, int[] perm, IMatrix B, ref IVector auxVec, ref IVector auxRight, ref IVector auxX, ref IMatrix X) |
| Calculates inverse of the matrix from its specified LU decomposition. More... | |
| static void | LuInverse (IMatrix luMatrix, int[] perm, ref IVector auxRight, ref IVector auxX, ref IMatrix res) |
| Calculates inverse of the matrix from its specified LU decomposition. More... | |
| static double | LuDeterminant (IMatrix luMatrix, int toggle) |
| Calculates and returns matrix determinant form its specified LU decomposition. More... | |
| static void | LuExtractLower (IMatrix matLu, ref IMatrix result) |
| Extracts the lower part of the Doolittle specified LU decomposition (1s on diagonal, 0s in above diagonal) and stores it in the specified result matrix. More... | |
| static IMatrix | LuExtractUpper (IMatrix matLu, ref IMatrix result) |
| Extracts the upper part of the specified Doolittle LU decomposition 0s below diagonal) and stores it in the specified result matrix. More... | |
| static void | PermutationArrayToMatrix (int[] perm, ref IMatrix res) |
| Calculates and stores permutation matrix that correspond to the specified permutation array. More... | |
| static void | Permute (IMatrix A, int[] permutations, ref IMatrix result) |
| Permutes rows of the specified aquare matrix according to the specified permutations array. More... | |
| static void | UnPermute (IMatrix Apermuted, int[] permutations, ref int[] auxArray, ref IMatrix result) |
| Unpermutes the product of the specified DooLittle LU decomposition according to permutations array. More... | |
| static bool | TestLuDecomposition (int dim, int numRepetitions=1, double tol=1e-6, int outputLevel=0, IRandomGenerator randomGenerator=null, IMatrix A=null, IVector b=null) |
| Performs a test of calculatons performed via LU decomposition of a matrix. Calculation times and error extents are measured and reported (if specified). More... | |
| static void | TestLuDecompositionDemo () |
| Demonstration of usae of LU decomposition. More... | |
| static bool | LdltDecompose (IMatrix A, ref IMatrix result, double tol=1e-12) |
| Calculates LDLT decomposition of a real symmetric square matrix. More... | |
| static void | LdltSolve (IMatrix decomposed, IVector b, ref IVector x) |
| Solves a system of eauations with the specified LDLT decomposition of a real symmetric square matrix. More... | |
| static void | LdltSolve (IMatrix ldltMatrix, IMatrix B, ref IVector auxX, ref IMatrix X) |
| Calculates inverse of the matrix from its specified LDLT-decomposed matrix. More... | |
| static void | LdltInverse (IMatrix ldltMatrix, ref IVector auxX, ref IMatrix res) |
| Calculates inverse of the matrix from its specified LDLT decomposition. More... | |
| static double | LdltDeterminant (IMatrix ldltMatrix) |
| Calculates and returns determinant of a square symmetric matrix form its specified LDLT decomposition. More... | |
| static void | LdltExtractLower (IMatrix matLdlt, ref IMatrix result) |
| Extracts the lower part of the specified LDLT decomposition (1s on diagonal, 0s above diagonal) and stores it in the specified result matrix. More... | |
| static IMatrix | LdltExtractUpper (IMatrix matLdlt, ref IMatrix result) |
| Extracts the upper part of the specified LDLT decomposition (1s on diagonal, 0s in below diagonal) and stores it in the specified result matrix. More... | |
| static IMatrix | LdltExtractDiagonal (IMatrix matLdlt, ref IMatrix result) |
| Extracts the diagonal part of the specified LDLT decomposition and stores it in the specified result matrix. More... | |
| static bool | TestLdltDecomposition (int dim, int numRepetitions=1, double tol=1e-6, int outputLevel=0, IRandomGenerator randomGenerator=null, IMatrix A=null, IVector b=null) |
| Performs a test of calculatons performed via LDLT decomposition of a matrix. Calculation times and error extents are measured and reported (if specified). More... | |
| static bool | CholeskyDecompose (IMatrix A, ref IMatrix result, double tol=1e-12) |
| Calculates Cholesky decomposition of a real symmetric square matrix. More... | |
| static void | CholeskySolve (IMatrix decomposed, IVector b, ref IVector x) |
| Solves a system of eauations with the specified Cholesky decomposition of a real symmetric square matrix. More... | |
| static void | CholeskySolve (IMatrix CholeskyMatrix, IMatrix B, ref IVector auxX, ref IMatrix X) |
| Calculates inverse of the matrix from its specified Cholesky-decomposed matrix. More... | |
| static void | CholeskyInverse (IMatrix CholeskyMatrix, ref IVector auxX, ref IMatrix res) |
| Calculates inverse of the matrix from its specified Cholesky decomposition. More... | |
| static double | CholeskyDeterminant (IMatrix CholeskyMatrix) |
| Calculates and returns determinant of a square symmetric matrix form its specified Cholesky decomposition. More... | |
| static void | CholeskyExtractLower (IMatrix matCholesky, ref IMatrix result) |
| Extracts the lower part of the specified Cholesky decomposition (0s above diagonal) and stores it in the specified result matrix. More... | |
| static IMatrix | CholeskyExtractUpper (IMatrix matCholesky, ref IMatrix result) |
| Extracts the upper part of the specified Cholesky decomposition (0s in below diagonal) and stores it in the specified result matrix. More... | |
| static bool | TestCholeskyDecomposition (int dim, int numRepetitions=1, double tol=1e-6, int outputLevel=0, IRandomGenerator randomGenerator=null, IMatrix A=null, IVector b=null) |
| Performs test of calculatons performed via Cholesky decomposition of a matrix. Calculation times and error extents are measured and reported (if specified so). More... | |
| static void | TestCholeskyDecompositionDemo () |
| Demonstration of usae of Cholesky decomposition. More... | |
| static bool | QrDecomposeGrammSchmidt (IMatrix A, ref IMatrix resQ, ref IMatrix resR, double tol=1e-12) |
| Calculates QR decomposition of a real invertible matrix by using Gramm-Schmidt orthogonalization. More... | |
| static bool | QrDecompose (IMatrix A, ref IMatrix resQ, ref IMatrix resR, double tol=1e-12) |
| Calculates QR decomposition of a real invertible matrix. More... | |
| static void | QrSolve (IMatrix factorQ, IMatrix factorR, IVector b, ref IVector x) |
| Solves a system of eauations with the specified QR decomposition of a real symmetric square matrix. More... | |
| static void | QrSolve (IMatrix factorQ, IMatrix factorR, IMatrix B, ref IVector auxB, ref IVector auxX, ref IMatrix X) |
| Calculates inverse of the matrix from its specified LDLT-decomposed matrix. More... | |
| static void | QrInverse (IMatrix factorQ, IMatrix factorR, ref IVector auxB, ref IVector auxX, ref IMatrix res) |
| Calculates inverse of the matrix from its specified LDLT decomposition. More... | |
| static bool | TestMatrixProducts (bool printReports) |
| Tests various matrix and vector products with fixed tolerance of 1.0E-6. More... | |
| static bool | TestMatrixProducts (double tolerance) |
| Tests various matrix and vector products, without printing reports. More... | |
| static bool | TestMatrixProducts () |
| Tests various matrix and vector products with fixed tolerance of 1.0E-6 and without printing reports. More... | |
| static bool | TestMatrixProducts (double tolerance, bool printReports) |
| Tests various matrix and vector products. More... | |
| static void | TestStaticMethodCommon () |
| A test method, just prints some output. More... | |
| static void | TestStaticMethodSpecific () |
| A test method, just prints some output. More... | |
| static bool | TestIndices (int dim1=3, int dim2=4, IMatrix providedMatrix=null) |
| Performs test of converson between double indexing and flat indexing of matric elements,. Returns true if successful, false othwrwise. More... | |
Static Protected Member Functions | |
| static void | LuSolveNoPermutationsPlain (IMatrix luMatrix, IVector b, IVector x) |
| Solves a system of equations with the specified LU decomposition with already permuted b. More... | |
| static bool | CheckTestResult (IMatrix result, IMatrix referenceResult, double tolerance, bool printReports) |
| Checks whether the difference between matrix result of the tested operation and some reference result is within the specified tolerance. More... | |
| static bool | CheckTestResult (IVector result, IVector referenceResult, double tolerance, bool printReports) |
| Checks whether the difference between matrix result of the tested operation and some reference result is within the specified tolerance. More... | |
Properties | |
| abstract int | RowCount [get] |
| Gets the number of rows of the current matrix. More... | |
| abstract int | ColumnCount [get] |
| Gets the number of columns of the current matrix. More... | |
| virtual int | Count [get] |
| Gets total number of elements. More... | |
| virtual IMatrix | T [get] |
| Returns a new matrix that is transpose of the current matrix. More... | |
| virtual double | this[int flatIndex] [get, set] |
Gets or set the element indexed by a flat index in the Matrix. More... | |
| virtual double | this[int row, int column] [get, set] |
Gets or set the element indexed by (i, j) in the Matrix. More... | |
| virtual double | Trace [get] |
| Gets matrix trace (sum of diagonal terms). More... | |
| virtual double | NormForbenius [get] |
| Gets Forbenious (or Euclidean) norm of the matrix - square root of sum of squares of elements. More... | |
| virtual double | NormEuclidean [get] |
| Gets Forbenious (or Euclidean) norm of the matrix - square root of sum of squares of elements. More... | |
| virtual double | Norm [get] |
| Gets Forbenious (or Euclidean) norm of the matrix - square root of sum of squares of elements. More... | |
| static MatrixStore | MatrixStore [get] |
| Gets the matrix store for recycling auxiliary matrices. More... | |
Static Private Member Functions | |
| static bool | TestMultiplyTranspMat (double tolerance, bool printReports) |
| Tests product A^T*B. More... | |
| static bool | TestMultiplyMatTransp (double tolerance, bool printReports) |
| Tests product A*B^T. More... | |
| static bool | TestMultiplyTranspTransp (double tolerance, bool printReports) |
| Tests product A^T*B^T. More... | |
| static bool | TestMultiply3 (double tolerance, bool printReports) |
| Tests product A*B*C. More... | |
| static bool | TestMultiplyTranspMatTransp (double tolerance, bool printReports) |
| Tests product A^T*B*C^T. More... | |
| static bool | TestMultiplyTranspMatMat (double tolerance, bool printReports) |
| Tests product A^T*B*C. More... | |
| static bool | TestMultiplyMatMatTransp (double tolerance, bool printReports) |
| Tests product A*B*C^T. More... | |
| static bool | TestMultiplyMatTranspMat (double tolerance, bool printReports) |
| Tests product A*B^T*C. More... | |
| static bool | TestMultiplyTranspTranspTransp (double tolerance, bool printReports) |
| Tests product A^T*B^T*C^T. More... | |
Static Private Attributes | |
| static MatrixStore | _matrixStore |
Base class for matrices.
$A Igor Jan08 Jul10 Nov10;
|
pure virtual |
Creates and returns a copy of the current matrix.
Implemented in IG.Num.Matrix, IG.Num.Matrix3d, and IG.Num.Matrix2d.
Referenced by IG.Num.MatrixBase.operator+(), and IG.Num.MatrixBase.operator-().
|
pure virtual |
Creates and returns a new matrix with the specified dimensions, and of the same type as the current matrix.
| rowCount | Number fo rows of the newly created matrix. |
| columnCount | Number of columns of the newly created matrix. |
Implemented in IG.Num.Matrix, IG.Num.Matrix3d, and IG.Num.Matrix2d.
Referenced by IG.Num.MatrixBase.operator*(), and IG.Num.MatrixBase.operator/().
|
pure virtual |
Creates and returns a new matrix with the same dimensions and of the same type as the current matrix.
Implemented in IG.Num.Matrix, IG.Num.Matrix3d, and IG.Num.Matrix2d.
|
pure virtual |
Creates and returns a new vector with the specified dimension, and of the type that is consistent with the type of the current vector.
| length | Dimension of the newly created vector. |
Implemented in IG.Num.Matrix, IG.Num.Matrix3d, and IG.Num.Matrix2d.
|
inlinevirtual |
Creates and returns a copy of the current matrix.
Implements IG.Num.IMatrix.
|
inlinevirtual |
Creates and returns a new matrix with the specified dimensions, and of the same type as the current matrix.
| rowCount | Number fo rows of the newly created matrix. |
| columnCount | Number of columns of the newly created matrix. |
Implements IG.Num.IMatrix.
|
inlinevirtual |
Creates and returns a new matrix with the same dimensions and of the same type as the current matrix.
Implements IG.Num.IMatrix.
|
inlinevirtual |
Creates and returns a new vector with the specified dimension, and of the type that is consistent with the type of the current vector.
| length | Dimension of the newly created vector. |
Implements IG.Num.IMatrix.
|
inlinevirtual |
Creates and returns a rectangular 2D array that contains a component-wise copy of the matrix.
|
inlinevirtual |
Creates and returns a jagged 2D array that contains a component-wise copy of the matrix.
|
inlinestatic |
Returns flat index corresponding to the specified row and column indices of a matrix with specified dimensions.
| dim1 | First index. |
| dim2 | Second index. |
| row | Row number (0-based). |
| column | Coolumn number (0-based). |
Referenced by IG.Num.MatrixBase.TestIndices().
|
inlinestatic |
Calculates and returns flat index corresponding to the specified row and column indices of the specified matrix.
| mat | Matrix for which flat index is calculated. |
| row | Row number (0-based). |
| column | Coolumn number (0-based). |
|
inlinevirtual |
Calculates and returns flat index corresponding to the specified row and column indices of the current matrix.
| row | Row number (0-based). |
| column | Coolumn number (0-based). |
|
inlinestatic |
Returns (through output arguments) row and column indices corresponding to the specified flat index in a matrix with the specified dimensions.
| dim1 | First dimension of the matrix (number of rows). |
| dim2 | Second dimension of the matrix (number of columns). |
| flatIndex | Flat element index, i.e. one dimensional index of a matrix element when elements are expanded to one dimensional array. |
| row | Row index corresponding to the specified flat index. |
| column | Column index corresponding to the specified flat index. |
Referenced by IG.Num.MatrixBase.TestIndices().
|
inlinestatic |
Returns (through output arguments) row and column indices corresponding to the specified flat index in the specified matrix.
| mat | Matrix for which flat index is calculated. |
| flatIndex | Flat element index, i.e. one dimensional index of a matrix element obtained as if elements were expanded to one dimensional array. |
| row | Row index corresponding to the specified flat index. |
| column | Column index corresponding to the specified flat index. |
|
inlinevirtual |
Returns (through output arguments) row and column indices corresponding to the specified flat index in the current matrix.
| flatIndex | Flat element index, i.e. one dimensional index of a matrix element obtained as if elements were expanded to one dimensional array. |
| row | Row index corresponding to the specified flat index. |
| column | Column index corresponding to the specified flat index. |
|
inlinevirtual |
Sets all components of the current matrix to 0.
Referenced by IG.Num.MatrixBase.PermutationArrayToMatrix(), IG.Num.MatrixBase.TestCholeskyDecomposition(), IG.Num.MatrixBase.TestLdltDecomposition(), and IG.Num.MatrixBase.TestLuDecomposition().
|
inlinevirtual |
Sets all components of the current matrix to the specified value.
| elementValue | Value to which elements are set. |
Implements IG.Num.IMatrix.
|
inlinevirtual |
Sets the current matrix to identity matrix. WARNING: Exception is thrown if a matrix is not square. For nonsquare matrices, use SetDiagonal(1.0)!
Implements IG.Num.IMatrix.
Referenced by IG.Num.MatrixBase.TestCholeskyDecomposition(), IG.Num.MatrixBase.TestCholeskyDecompositionDemo(), IG.Num.MatrixBase.TestLdltDecomposition(), and IG.Num.MatrixBase.TestLuDecompositionDemo().
|
inlinevirtual |
Sets the current matrix such that it contains random elements on the interval (0,1].
Implements IG.Num.IMatrix.
Referenced by IG.Neural.NeuralAllpicationCommands.CmdTestJson(), IG.Num.Matrix2d.Random(), IG.Num.Matrix3d.Random(), IG.Num.Matrix.Random(), and IG.Num.MatrixBase.TestIndices().
|
inlinevirtual |
Sets the current matrix such that it contains random elements on the interval (0,1].
| rnd | Random generator used to generate matrix elements. |
Implements IG.Num.IMatrix.
|
inlinevirtual |
Sets the current matrix to the diagonal matrix with all diagonal elements equal to the specified value. Matrix does not need to be a square matrix.
| diagonalElement | Value of diagonal elements. |
Implements IG.Num.IMatrix.
|
inlinevirtual |
Sets the current matrix to the diagonal matrix with diagonal element specified by a vector.
| diagonal | Vector of diagonal elements. |
Implements IG.Num.IMatrix.
|
inlinevirtual |
Returns true if the current matrix is a square matrix, and false if not.
Implements IG.Num.IMatrix.
|
inlinevirtual |
Returns true if the current matrix is symmetric, and false if not. If the matrix is not a square matrix then false is returned.
Implements IG.Num.IMatrix.
Referenced by IG.Num.MatrixBase.TestCholeskyDecomposition(), and IG.Num.MatrixBase.TestLdltDecomposition().
|
inlinevirtual |
Returns true if the specified matrix is symmetric within some tolerance, and false if not. If the matrix is null then false is returned.
| relativeRMSTolerance | Tolerance on the ratio between RMS of differences between out of diagonal terms and their transposes and between RMS of out of diagonal terms, below which matrix is considered symmetric. |
Implements IG.Num.IMatrix.
|
inlinevirtual |
Negates the current matrix.
Referenced by IG.Num.MatrixBase.operator-().
|
inlinevirtual |
Transposes the current matrix. WARNING: this operation can only be done on square matrices!
Referenced by IG.Num.MatrixBase.TestMultiplyMatTransp(), IG.Num.MatrixBase.TestMultiplyTranspMat(), IG.Num.MatrixBase.TestMultiplyTranspMatMat(), IG.Num.MatrixBase.TestMultiplyTranspMatTransp(), and IG.Num.MatrixBase.TestMultiplyTranspTransp().
|
inline |
Returns the hashRet code (hashRet function) of the current matrix.
This method calls the MatrixBase.GetHashCode(IMatrix) to calculate the hashRet code, which is standard for all implementations of the IMatrix interface.
Two matrices that have the same dimensions and equal elements will produce the same hashRet codes.
Probability that two different matrices will produce the same hashRet code is small but it exists.
Overrides the object.GetHashCode method.
References IG.Num.MatrixBase.GetHashCode().
Referenced by IG.Num.Matrix2d.GetHashCode(), IG.Num.Matrix3d.GetHashCode(), IG.Num.MatrixBase.GetHashCode(), and IG.Num.Matrix.GetHashCode().
|
inline |
Returns a value indicating whether the specified object is equal to the current matrix.
True is returned if the object is a non-null matrix (i.e. it implements the IMatrix interface), and has the same dimension and equal elements as the current matrix.
This method calls the MatrixBase.Equals(IMatrix, IMatrix) to obtain the returned value, which is standard for all implementations of the IMatrix interface.
Overrides the object.Equals(Object) method.
References IG.Num.MatrixBase.Equals().
Referenced by IG.Num.Matrix2d.Equals(), IG.Num.Matrix3d.Equals(), IG.Num.MatrixBase.Equals(), and IG.Num.Matrix.Equals().
|
inline |
Returns an integer valued hashRet function of the current matrix object.
The returned value is calculated by the Util.GetHashFunctionInt method.
Implements IG.Num.IMatrix.
References IG.Lib.Util.GetHashFunctionInt().
|
inline |
Returns a string valued hashRet function of the current matrix object.
The returned value is calculated by the Util.GetHashFunctionString method.
The returned string is always of the same length, and is based on the ToString() method. Therefore it is convenient for use in file or directory names that have one part related to a specific matrix.
Implements IG.Num.IMatrix.
References IG.Lib.Util.GetHashFunctionString().
|
inlinestatic |
Sets all components of the specified matrix to 0.
| mat | Matrix whose components are set. |
|
inlinestatic |
Sets all components of the specified matrix to the specified value.
| mat | Matrix whose components are set. |
| elementValue | Value to which elements are set. |
|
inlinestatic |
Sets the specified matrix to identity matrix. WARNING: Works only for square matrices (exception is thrown if matrix is not square). For nonsquare matrices, use SetDiagonal(1.0)!
| mat | Matrix whose components are set. |
|
inlinestatic |
|
inlinestatic |
Sets the specified matrix such that it contains random elements on the interval (0,1].
| mat | Matrix whose components are set. |
References IG.Num.RandomGenerator.Global.
|
inlinestatic |
Sets the current matrix such that it contains random elements on the interval (0,1].
| mat | Matrix whose components are set. |
| rnd | Random generator used to generate matrix elements. If null then the default (global) random generator iis taken. |
References IG.Num.RandomGenerator.Global.
|
inlinestatic |
Sets the specified matrix such that it is symmetric and contains random elements on the interval (0,1].
| mat | Matrix whose components are set. |
References IG.Num.RandomGenerator.Global.
|
inlinestatic |
Sets the specified matrix such that it is symmetric and contains random elements on the interval (0,1].
| mat | Matrix whose components are set. |
| rnd | Random generator used to generate matrix elements. If null then the default (global) random generator iis taken. |
References IG.Num.RandomGenerator.Global, and IG.Num.IRandomGenerator.NextDouble().
|
inlinestatic |
Sets the specified matrix such that it is antisymmetric and contains random elements on the interval (0,1].
| mat | Matrix whose components are set. |
References IG.Num.RandomGenerator.Global.
|
inlinestatic |
Sets the specified matrix such that it is antisymmetric and contains random elements on the interval (0,1].
Matrix will have zero elements on the diagonal.
| mat | Matrix whose components are set. |
| rnd | Random generator used to generate matrix elements. If null then the default (global) random generator iis taken. |
References IG.Num.RandomGenerator.Global, and IG.Num.IRandomGenerator.NextDouble().
|
inlinestatic |
Sets the specified matrix such that it is lower triangular and contains random elements on the interval (0,1].
| mat | Matrix whose components are set. |
References IG.Num.RandomGenerator.Global.
|
inlinestatic |
Sets the specified matrix such that it is lower triangular and contains random elements on the interval (0,1].
| mat | Matrix whose components are set. |
| rnd | Random generator used to generate matrix elements. If null then the default (global) random generator iis taken. |
References IG.Num.RandomGenerator.Global, and IG.Num.IRandomGenerator.NextDouble().
|
inlinestatic |
Sets the specified matrix such that it is upper triangular and contains random elements on the interval (0,1].
| mat | Matrix whose components are set. |
References IG.Num.RandomGenerator.Global.
|
inlinestatic |
Sets the specified matrix such that it is upper triangular and contains random elements on the interval (0,1].
| mat | Matrix whose components are set. |
| rnd | Random generator used to generate matrix elements. If null then the default (global) random generator iis taken. |
References IG.Num.RandomGenerator.Global, and IG.Num.IRandomGenerator.NextDouble().
|
inlinestatic |
Sets the specified matrix such that it is positive definite and contains random elements on the interval (0,1].
| mat | Matrix whose components are set. |
References IG.Num.RandomGenerator.Global.
|
inlinestatic |
Sets the specified matrix such that it is positive definite and contains random elements.
| mat | Matrix whose components are set. |
| rnd | Random generator used to generate matrix elements. |
This method is relativley slow because of multiplication of two matrices. For quicker method use SetRandomPositiveDiagonallyDominantSymmetric(IMatrix, IRandomGenerator, double).
Matrix is created in such a way that a random lower triangular matrix with positive diagonal elements is created first, then it is multiplied by its transpose.
It seems that generation of positive definite matrices in this way is not stable when elements of the lower triangular matrix are random on the interval [0,1). For this reason, 1 is added to all diagonal elements of the lower triangular matrix.
|
inlinestatic |
Sets the specified matrix such that it is has random elements and is diagonally dominant with positive diagonal elements, i.e. any diagonal element is greater by absolute value than sum of absolute values of nondiagonal elements in the corresponding column.
| mat | Matrix whose components are set. |
| rnd | Random generator used to generate matrix elements. If null then global ranom generator is taken. |
| dominancyFactor | Factor such that any diagonal element is by absolute value at least by this factor greater than the sum of absolute values of nondiagonal elements in the corresponding column. |
References IG.Num.RandomGenerator.Global.
|
inlinestatic |
Sets the specified matrix such that it is has random elements and is diagonally dominant with positive diagonal elements, i.e. any diagonal element is greater by absolute value than sum of absolute values of nondiagonal elements in the corresponding column.
| mat | Matrix whose components are set. |
| dominancyFactor | The average ratio between absolute value of any diagonal term and the sum of absolute values of out of diagonal terms in the same column. Should be greater than 1. |
|
inlinestatic |
Sets the specified matrix such that it is has random elements and is symmetric diagonally dominant with positive diagonal elements, i.e. any diagonal element is greater by absolute value than sum of absolute values of nondiagonal elements in the corresponding column.
| mat | Matrix whose components are set. |
| rnd | Random generator used to generate matrix elements. If null then global random generator is taken. |
| dominancyFactor | Factor such that any diagonal element is by absolute value at least by this factor greater than the sum of absolute values of nondiagonal elements in the corresponding column. |
Referenced by IG.Num.SpeedTestCpu.TestComputationalTimesCholesky_Base(), IG.Num.SpeedTestCpu.TestComputationalTimesCholesky_IGLib(), and IG.Num.SpeedTestCpu.TestComputationalTimesLdlt_Base().
|
inlinestatic |
Sets the specified matrix such that it is has random elements and is symmetric diagonally dominant with positive diagonal elements, i.e. any diagonal element is greater by absolute value than sum of absolute values of nondiagonal elements in the corresponding column.
| mat | Matrix whose components are set. |
| dominancyFactor | The average ratio between absolute value of any diagonal term and the sum of absolute values of out of diagonal terms in the same column. Should be greater than 1. |
|
inlinestatic |
Sets the specified QUADRATIC matrix such that it is has random elements and is nonsingular.
Matrix elements are generated from a product of random lower triangular matrix with 1 on diagonal and a random upper triangular matrix with elements on the diagonal betweeen 1 and 2, both with nondiagonal terms between 0 (inclusive) and 1.
Determminant of the generated matrix is returned.
| mat | Matrix whose components are set. |
| rnd | Random generator used to generate matrix elements. If null then global random generator is taken. |
References IG.Num.RandomGenerator.Global.
Referenced by IG.Num.MatrixBase.TestLuDecomposition().
|
inlinestatic |
Sets the specified QUADRATIC matrix such that it is has random elements and is a symmetric positive definite matrix.
Matrix elements are generated from a product of random lower triangular matrix with diagonal elements betweeen 1 and 2, and below diagonal elements between 0 (inclusive) and 1, and its transpose (i.e. from random Cholesky factors).
Determminant of the generated matrix is returned.
| mat | Matrix whose components are set. |
| rnd | Random generator used to generate matrix elements. If null then global random generator is taken. |
References IG.Num.RandomGenerator.Global.
Referenced by IG.Num.MatrixBase.TestCholeskyDecomposition(), and IG.Num.MatrixBase.TestLdltDecomposition().
|
inlinestatic |
Returns true if the specified matrix is a square matrix, and false if not. If the matrix is null then false is returned.
| mat | Matrix that is tested for being square. |
|
inlinestatic |
Returns true if the specified matrix is symmetric, and false if not. If the matrix is null then false is returned.
| mat | Matrix that is tested for being symmetric. |
|
inlinestatic |
Returns true if the specified matrix is symmetric within some tolerance, and false if not. If the matrix is null then false is returned.
| mat | Matrix that is tested for being symmetric. |
| relativeRMSTolerance | Tolerance on the ratio between RMS of differences between out of diagonal terms and their transposes and between RMS of out of diagonal terms, below which matrix is considered symmetric. |
Compares two matrices and returns -1 if the first matrix is smaller than the second one, 0 if matrices are equal, and 1 if the first matrix is greater. Matrix that is null is considered smaller than a matrix that is not null. Two null matrices are considered equal. Matrix with smaller dimension is considered smaller than a matrix with greater dimension. Matrices with equal dimensions ar compared by elements. The first element that is different decides which matrix is considered greater.
| m1 | First matrix to be compared. |
| m2 | Second matrix to be compared. |
This comparison does not have any mathematical meaning, it is just used for sotting of matrices in data structures.
|
inlinestatic |
Resizes, if necessary, the specified matrix according to the required dimensions. If the matrix is initially null then a new matrix is created. If in this case a template matrix is specified then the newly created matrix will be of the same type as that template matrix, because it is created by the GetNew() method on that matrix. If dimensions of the initial matrix do not match the required dim., then matrix is resized. If the specified matrix dimension is less or equal to 0 then matrix is resized with the same dimensions as those of the template matirx. If in this case the template matrix is null, an exception is thrown. WARNINGS: Components are NOT preserved and have in general undefined values after operation is performed. If matrix and template are both null then the type of nawly created matrix is Matrix.
| mat | Matrix that is resized. |
| template | Matrix that is taken as template (for type of a newly created matrix or for dimensions if they are not specified). |
| rowCount | If greater than 0 then it specifies the number of rows to which matrix is resized. |
| columnCount | If greater than 0 then it specifies the number of columns to which matrix is resized. |
Referenced by IG.Num.AnalysisResults.PrepareResultStorage(), IG.Lib.UtilConsole.Read(), and IG.Num.LinearSolverBase.Solve().
|
inlinestatic |
Resizes, if necessary, the specified matrix according to the required dimensions. If the matrix is initially null then a new matrix (of type Matrix) is created. If dimensions of the initial matrix do not match the required dimensions, then matrix is resized. Components are NOT preserved and have in general undefined values after operation is performed. WARNING: If the matrix is initially null then the type of the newly created matrix is Matrix.
| mat | VMatrix that is resized. |
| rowCount | Dimension to which matrix is resized (if less than 1 then exception is thrown). |
| columnCount | Dimension to which matrix is resized (if less than 1 then exception is thrown). |
Resizes, if necessary, the specified matrix according to the dimensions of the specified template matrix. If the matrix is initially null then a new matrix is created. In this case the newly created matrix will be of the same type as that template matrix, because it is created by the GetNew() method on that matrix. If dimensions of the initial matrix do not match the dimensions of the template matrix, then matrix is resized. If the template matrix is null, then an exception is thrown. WARNINGS: Components are NOT preserved and have in general undefined values after operation is performed. If matrix and template are null then the type of newly created matrix is Matrix.
Copies components of a matrix to another matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of the copied matrix and result storage must match.
| a | Original matrix. |
| result | Matrix where copy will be stored. Dimensions must match dimensions of original. |
Referenced by IG.Num.AffineTransformationSquare.CalculateInverseTransformationMatrix(), IG.Num.AffineTransformationSquare.CalculateTransformationMatrix(), IG.Num.MatrixBase.CholeskyDecompose(), IG.Num.MatrixBase.LdltDecompose(), IG.Num.AffineTransformationSquare.TransformBackHessianPlain(), and IG.Num.AffineTransformationSquare.TransformHessianPlain().
Copies components of a matrix to another matrix. WARNING: dimensions of the copied matrix and result storage must match.
| a | Original matrix. |
| result | Matrix where copy will be stored. Dimensions must match dimensions of original. |
Referenced by IG.Num.MatrixBase.LuDecompose().
Copies components of a matrix to another matrix. Resulting matrix is allocated or reallocated if necessary.
| a | Original matrix. |
| result | Matrix where copy is stored. |
References IG.Num.IMatrix.GetNew().
|
inlinestatic |
Copies components of a matrix to another matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of the copied matrix and result storage must match.
| a | Original matrix. |
| result | Matrix where copy will be stored. Dimensions must match dimensions of original. |
|
inlinestatic |
Copies components of a matrix to another matrix. WARNING: dimensions of the copied matrix and result storage must match.
| a | Original matrix. |
| result | Matrix where copy will be stored. Dimensions must match dimensions of original. |
|
inlinestatic |
Copies components of a matrix to another matrix. Resulting matrix is allocated or reallocated if necessary.
| a | Original matrix. |
| result | Matrix where copy is stored. |
|
inlinestatic |
Copies components of a matrix to another matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of the copied matrix and result storage must match.
| a | Original matrix. |
| result | Matrix where copy will be stored. Dimensions must match dimensions of original. |
|
inlinestatic |
Copies components of a matrix to another matrix. WARNING: dimensions of the copied matrix and result storage must match.
| a | Original matrix. |
| result | Matrix where copy will be stored. Dimensions must match dimensions of original. |
|
inlinestatic |
Copies components of a matrix to another matrix. Resulting matrix is allocated or reallocated if necessary.
| a | Original matrix. |
| result | Matrix where copy is stored. |
Stores a negative matrix of the operand in another matrix. Can be done in-place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of the operand and result storage must match.
| a | Operand. |
| result | Matrix where result is stored. Dimensions must match dimensions of operand. |
Stores a negative matrix of the operand in another matrix. Can be done in-place. WARNING: dimensions of the operand and result storage must match.
| a | Operand. |
| result | Matrix where result is stored. Dimensions must match dimensions of operand. |
Stores a negative matrix of the operand in another matrix. Can be done in-place. Resulting matrix is allocated or reallocated if necessary.
| a | Original matrix. |
| result | Matrix where result of negation is be stored. |
References IG.Num.IMatrix.GetNew().
Stores transpose of the operand in another matrix. Can be done in-place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of the operand and result storage must match.
| a | Operand. |
| result | Matrix where result is stored. Dimensions must match dimensions of operand. |
Stores transpose of the operand in another matrix. Can be done in-place. WARNING: dimensions of the operand and result storage must match.
| a | Operand. |
| result | Matrix where result is stored. Dimensions must match dimensions of operand. |
Stores transpose of the matrix operand in another matrix. Can be done in-place. Resulting matrix is allocated or reallocated if necessary.
| a | Original matrix. |
| result | Matrix where result of negation is be stored. |
References IG.Num.IMatrix.GetNew().
|
inlinestatic |
Calculates symmetric and antisymmetric part of the specified matrix (symmetric part is stored in the first result argument but is calculated last, such that it overrides antisymmetric when both arguments point to the same matrix object).
Can be done in-place.
When both symmetric and antisymmetric result arguments point to the same matrix, symmetric part is stored in the matrix.
This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of the operand and result storage must match.
WARNING: If this antiSym points to the same matrix object as sym then symmetric part is stored in this matrix (because it overrides antisymmetric part).
| a | Matrix whose symmetric and antisymmetric part are calculated. |
| sym | Matrix where symmetric part of a is stored. |
| antiSym | Matrix where antisymmetric part of a is stored. |
WARNING: If this argument points to the same matrix object as sym then symmetric part is stored in this matrix (because it overrides antisymmetric part).
Calculates symmetric and antisymmetric part of the specified matrix (symmetric part is stored in the first result argument but is calculated last, such that it overrides antisymmetric when both arguments point to the same matrix object).
Can be done in-place.
When both symmetric and antisymmetric result arguments point to the same matrix, exception is thrown.
Dimensions of the operand and result storage must match, otherwise exception is thrown.
| a | Matrix whose symmetric and antisymmetric part are calculated. |
| sym | Matrix where symmetric part of a is stored. |
| antiSym | Matrix where antisymmetric part of a is stored. |
WARNING: If this argument points to the same matrix object as sym then exception is thrown.
|
inlinestatic |
Stores symmetrized and antisymmetirzed matrix obtained from the specified matrix. Resulting matrix is allocated or reallocated if necessary.
| a | Original matrix. |
| sym | Matrix where result of symmetrization is stored. |
| antiSym | Matrix where result of antisymmetrization is stored. |
References IG.Num.IMatrix.GetNew().
Stores symmetric part of a square matrix operand in another matrix. Symmetrization is performed by averaging of non-diagonal terms and their transposed terms. Can be done in-place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of the operand and result storage must match.
| a | Operand, must be a square matrix. |
| result | Matrix where result is stored. Dimensions must match dimensions of operand. |
Referenced by IG.Num.SampledDataSet.CreateExampleQuadratic().
Stores symmetric part of a square matrix operand in another matrix. Symmetrization is performed by averaging of non-diagonal terms and their transposed terms. Can be done in-place. WARNING: dimensions of the operand and result storage must match.
| a | Operand, must be a square matrix. |
| result | Matrix where result is stored. Dimensions must match dimensions of operand. |
Stores symmetric part of a square matrix operand in another matrix. Symmetrization is performed by averaging of non-diagonal terms and their transposed terms. Can be done in-place. Resulting matrix is allocated or reallocated if necessary.
| a | Original matrix, must be a square matrix. |
| result | Matrix where result of negation is be stored. |
References IG.Num.IMatrix.GetNew().
Stores antisymmetric part of a square matrix operand in another matrix. Antisymmetrization is performed by subtracting non-diagonal terms and their transposed terms, division by 2 and storing result in one matrix element and its negative value in another element. Can be done in-place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of the operand and result storage must match.
| a | Operand; must be a square matrix. |
| result | Matrix where result is stored. Dimensions must match dimensions of operand. |
Stores antisymmetric part of a square matrix operand in another matrix. Antisymmetrization is performed by subtracting non-diagonal terms and their transposed terms, division by 2 and storing result in one matrix element and its negative value in another element. Can be done in-place. WARNING: dimensions of the operand and result storage must match.
| a | Operand, must be a square matrix. |
| result | Matrix where result is stored. Dimensions must match dimensions of operand. |
Stores antisymmetric part of a square matrix operand in another matrix. Antisymmetrization is performed by subtracting non-diagonal terms and their transposed terms, division by 2 and storing result in one matrix element and its negative value in another element. Can be done in-place. Resulting matrix is allocated or reallocated if necessary.
| a | Original matrix, must be a square matrix. |
| result | Matrix where result of negation is be stored. |
References IG.Num.IMatrix.GetNew().
Sums two matrices and stores the result in the specified result matrix. Operation can be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| b | Second operand. |
| result | Matrix where result is stored. Dimensions must match dimensions of operands. |
Sums two matrices and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| b | Second operand. |
| result | Matrix where result is stored. Dimensions must match dimensions of operands. |
Sums two matrices and stores the result in the specified result matrix. Operation can be performed in place. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then teh result is re-allocated.
| a | First operand. |
| b | Second operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew().
Subtracts two matrices and stores the result in the specified result matrix. Operation can be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
Subtracts two matrices and stores the result in the specified result matrix. Operation can be performed in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
Referenced by IG.Num.ScalarFunctionUntransformedBase.Test(), IG.Num.MatrixBase.TestCholeskyDecomposition(), IG.Num.MatrixBase.TestCholeskyDecompositionDemo(), IG.Num.SpeedTestCpu.TestComputationalTimesCholesky_Base(), IG.Num.SpeedTestCpu.TestComputationalTimesCholesky_IGLib(), IG.Num.SpeedTestCpu.TestComputationalTimesLdlt_Base(), IG.Num.SpeedTestCpu.TestComputationalTimesLU_Base(), IG.Num.SpeedTestCpu.TestComputationalTimesLU_IGLib(), IG.Num.SpeedTestCpu.TestComputationalTimesQR_IGLib(), IG.Num.ScalarFunctionUntransformedBase.TestHessian(), IG.Num.MatrixBase.TestLdltDecomposition(), IG.Num.MatrixBase.TestLuDecomposition(), and IG.Num.MatrixBase.TestLuDecompositionDemo().
Subtracts two matrices and stores the result in the specified result matrix. Operation can be performed in place. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then teh result is re-allocated.
| a | First operand. |
| b | Second operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew().
|
inlinestatic |
Element-by-element multiplication. This operation can be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
Element-by-element multiplication. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
Element-by-element multiplication. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then teh result is re-allocated.
| a | First operand. |
| b | Second operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew().
|
inlinestatic |
Element-by-element division. This operation can be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
Element-by-element division. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
Element-by-element division. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then teh result is re-allocated.
| a | First operand. |
| b | Second operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew().
|
inlinestatic |
Element-by-element raise to power. This operation can be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| power | Power to which elements of the matrix are raised. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
Element-by-element raise to power. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| power | Power to which elements of the matrix are raised. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
Element-by-element raise to power. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then teh result is re-allocated.
| a | First operand. |
| power | Power to which elements of the matrix are raised. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew().
|
inlinestatic |
Element-by-element mapping of an arbitrary function. This operation can be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| mapping | Mapping applied to each element. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
Element-by-element mapping of an arbitrary function. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| mapping | Mapping applied to each element. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
Element-by-element mapping of an arbitrary function. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then teh result is re-allocated.
| a | First operand. |
| mapping | Mapping applied to each element. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew().
R=A*B. Multiplies two matrices and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
Referenced by IG.Num.ScalarFunctionQuadratic.GradientPlain(), IG.Num.AffineTransformationSquare.TransformBackCoordinatesPlain(), and IG.Num.AffineTransformationSquare.TransformCoordinatesPlain().
R=A*B. Multiplies two matrices and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
Referenced by IG.Num.MatrixBase.operator*(), IG.Num.MatrixBase.TestCholeskyDecomposition(), IG.Num.MatrixBase.TestCholeskyDecompositionDemo(), IG.Num.SpeedTestCpu.TestComputationalTimesCholesky_Base(), IG.Num.SpeedTestCpu.TestComputationalTimesCholesky_IGLib(), IG.Num.SpeedTestCpu.TestComputationalTimesLdlt_Base(), IG.Num.SpeedTestCpu.TestComputationalTimesLU_Base(), IG.Num.SpeedTestCpu.TestComputationalTimesLU_IGLib(), IG.Num.SpeedTestCpu.TestComputationalTimesQR_IGLib(), IG.Num.MatrixBase.TestLdltDecomposition(), IG.Num.MatrixBase.TestLuDecomposition(), IG.Num.MatrixBase.TestLuDecompositionDemo(), and IG.Num.ScalarFunctionQuadratic.Value().
R=A*B. Multiplies two matrices and stores the result in the specified result matrix. WARNING: dimensions of operands must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated.
| a | First operand. |
| b | Second operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew().
|
inlinestatic |
R=A^T*B Calculates product of transposed matrix and a matrix, and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
R=A^T*B Multiplies two matrices and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
R=A^T*B Multiplies two matrices and stores the result in the specified result matrix. WARNING: dimensions of operands must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated.
| a | First operand. |
| b | Second operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew().
|
inlinestaticprivate |
Tests product A^T*B.
| tolerance | Tolerance (on norm of the difference) for the test to pass |
| printReports | Specifies whether to print reports or not. |
References IG.Num.A, IG.Num.IMatrix.SetRandom(), and IG.Num.MatrixBase.Transpose().
|
inlinestatic |
R=A*B^T. Multiplies a matrix by transpose of another matrix and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
R=A*B^T. Multiplies a matrix by transpose of another matrix and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
R=A*B^T. Multiplies a matrix by transpose of another matrix and stores the result in the specified result matrix. WARNING: dimensions of operands must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated.
| a | First operand. |
| b | Second operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew().
|
inlinestaticprivate |
Tests product A*B^T.
| tolerance | Tolerance (on norm of the difference) for the test to pass |
| printReports | Specifies whether to print reports or not. |
References IG.Num.A, IG.Num.IMatrix.SetRandom(), and IG.Num.MatrixBase.Transpose().
|
inlinestatic |
R=A^T*B^T. Multiplies transposed matrix by another transposed matrix, and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
R=A^T*B^T. Multiplies transposed matrix by another transposed matrix, and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
R=A^T*B^T. Multiplies transposed matrix by another transposed matrix, and stores the result in the specified result matrix. WARNING: dimensions of operands must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated.
| a | First operand. |
| b | Second operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew().
|
inlinestaticprivate |
Tests product A^T*B^T.
| tolerance | Tolerance (on norm of the difference) for the test to pass |
| printReports | Specifies whether to print reports or not. |
References IG.Num.A, IG.Num.IMatrix.SetRandom(), and IG.Num.MatrixBase.Transpose().
|
inlinestatic |
R=A*B*C. Multiplies three matrices and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| c | Third operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
References IG.Num.m.
|
inlinestatic |
R=A*B*C. Multiplies three matrices and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| c | Third operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
References IG.Num.m.
|
inlinestatic |
R=A*B*C. Multiplies three matrices and stores the result in the specified result matrix. WARNING: dimensions of operands must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated.
| a | First operand. |
| b | Second operand. |
| c | Third operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew(), and IG.Num.m.
|
inlinestaticprivate |
Tests product A*B*C.
| tolerance | Tolerance (on norm of the difference) for the test to pass |
| printReports | Specifies whether to print reports or not. |
References IG.Num.A, and IG.Num.IMatrix.SetRandom().
|
inlinestatic |
R=A^T*B*C^T. Multiplies three matrices (transposed first argument, second argument, and transposed third argument) and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of all arguments must be consistent, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand, transpose of the first matrix factor. |
| b | Second operand, the second matrix factor. |
| c | Third operand, transpose of the third matrix factor. |
| result | Matrix where the result is stored. Dimensions must be consistent with dimensions of operands. |
References IG.Num.m.
|
inlinestatic |
R=A^T*B*C^T. Multiplies three matrices (transposed first argument, second argument, and transposed third argument) and stores the result in the specified result matrix. WARNING: dimensions of all arguments must be consistent, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| c | Third operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
References IG.Num.m.
|
inlinestatic |
R=A^T*B*C^T. Multiplies three matrices (transposed first argument, second argument, and transposed third argument) and stores the result in the specified result matrix. WARNING: dimensions of operands must be consistent, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated.
| a | First operand. |
| b | Second operand. |
| c | Third operand. |
| result | Matrix where result is stored. Allocated or reallocated if necessary. |
References IG.Num.IMatrix.GetNew(), and IG.Num.m.
|
inlinestaticprivate |
Tests product A^T*B*C^T.
| tolerance | Tolerance (on norm of the difference) for the test to pass |
| printReports | Specifies whether to print reports or not. |
References IG.Num.A, IG.Num.IMatrix.SetRandom(), and IG.Num.MatrixBase.Transpose().
|
inlinestatic |
R=A^T*B*C. Multiplies three matrices (transposed first argument, second argument, and third argument) and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of all arguments must be consistent, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand, transpose of the first matrix factor. |
| b | Second operand, the second matrix factor. |
| c | Third operand, transpose of the third matrix factor. |
| result | Matrix where the result is stored. Dimensions must be consistent with dimensions of operands. |
References IG.Num.m.
Referenced by IG.Num.AffineTransformationSquare.TransformBackHessianPlain(), and IG.Num.AffineTransformationSquare.TransformHessianPlain().
|
inlinestatic |
R=A^T*B*C. Multiplies three matrices (transposed first argument, second argument, and third argument) and stores the result in the specified result matrix. WARNING: dimensions of all arguments must be consistent, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| c | Third operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
References IG.Num.m.
|
inlinestatic |
R=A^T*B*C. Multiplies three matrices (transposed first argument, second argument, and third argument) and stores the result in the specified result matrix. WARNING: dimensions of operands must be consistent, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated.
| a | First operand. |
| b | Second operand. |
| c | Third operand. |
| result | Matrix where result is stored. Allocated or reallocated if necessary. |
References IG.Num.IMatrix.GetNew(), and IG.Num.m.
|
inlinestaticprivate |
Tests product A^T*B*C.
| tolerance | Tolerance (on norm of the difference) for the test to pass |
| printReports | Specifies whether to print reports or not. |
References IG.Num.A, IG.Num.IMatrix.SetRandom(), and IG.Num.MatrixBase.Transpose().
|
inlinestatic |
R=A*B*C^T. Multiplies three matrices (first argumet, second argumet, and transposed third argument) and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| c | Third operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
References IG.Num.m.
|
inlinestatic |
R=A*B*C^T. Multiplies three matrices (first argumet, second argumet, and transposed third argument) and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| c | Third operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
References IG.Num.m.
|
inlinestatic |
R=A*B*C^T. Multiplies three matrices (first argumet, second argumet, and transposed third argument) and stores the result in the specified result matrix. WARNING: dimensions of operands must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated.
| a | First operand. |
| b | Second operand. |
| c | Third operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew(), and IG.Num.m.
|
inlinestaticprivate |
Tests product A*B*C^T.
| tolerance | Tolerance (on norm of the difference) for the test to pass |
| printReports | Specifies whether to print reports or not. |
References IG.Num.A, and IG.Num.IMatrix.SetRandom().
|
inlinestatic |
R=A*B^T*C. Multiplies three matrices (first argument, transposed second argument, and third argument) and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| c | Third operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
References IG.Num.m.
|
inlinestatic |
R=A*B^T*C. Multiplies three matrices (first argument, transposed second argument, and third argument) and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| c | Third operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
References IG.Num.m.
|
inlinestatic |
R=A*B^T*C. Multiplies three matrices (first argument, transposed second argument, and third argument) and stores the result in the specified result matrix. WARNING: dimensions of operands must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated.
| a | First operand. |
| b | Second operand. |
| c | Third operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew(), and IG.Num.m.
|
inlinestaticprivate |
Tests product A*B^T*C.
| tolerance | Tolerance (on norm of the difference) for the test to pass |
| printReports | Specifies whether to print reports or not. |
References IG.Num.A, and IG.Num.IMatrix.SetRandom().
|
inlinestatic |
R=A^T*B^T*C^T. Multiplies three matrices and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| c | Third operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
References IG.Num.m.
|
inlinestatic |
R=A^T*B^T*C^T. Multiplies three matrices and stores the result in the specified result matrix. WARNING: dimensions of matrices must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place.
| a | First operand. |
| b | Second operand. |
| c | Third operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
References IG.Num.m.
|
inlinestatic |
R=A^T*B^T*C^T. Multiplies three matrices and stores the result in the specified result matrix. WARNING: dimensions of operands must match, otherwise an exception is thrown. WARNING: This operation can not be performed in place. If dimensions of the result do not match then the result is re-allocated.
| a | First operand. |
| b | Second operand. |
| c | Third operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew(), and IG.Num.m.
|
inlinestaticprivate |
Tests product A^T*B^T*C^T.
| tolerance | Tolerance (on norm of the difference) for the test to pass |
| printReports | Specifies whether to print reports or not. |
References IG.Num.A, and IG.Num.IMatrix.SetRandom().
R=A*b. Multiplies a matrix with a vector and stores the result in the specified result vector. Operation can not be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| b | Second operand. |
| result | Vector where the result is stored. Dimensions must match dimensions of operands. |
R=A*b. Multiplies a matrix with a vector and stores the result in the specified result vector. Operation can not be performed in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| b | Second operand. |
| result | Vector where the result is stored. Dimensions must match dimensions of operands. |
R=A*b. Multiplies matrix by scalar and stores the result in the specified result matrix. Operation can not be performed in place. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated.
| a | First operand. |
| b | Second operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNewVector().
|
inlinestatic |
R=A^T*b. Multiplies a transposed matrix with a vector and stores the result in the specified result vector. Operation can not be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| b | Second operand. |
| result | Vector where the result is stored. Dimensions must match dimensions of operands. |
Referenced by IG.Num.MatrixBase.QrSolve(), IG.Num.AffineTransformationSquare.TransformBackGradientPlain(), and IG.Num.AffineTransformationSquare.TransformGradientPlain().
|
inlinestatic |
R=A^T*b. Multiplies a transposed matrix with a vector and stores the result in the specified result vector. Operation can not be performed in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| b | Second operand. |
| result | Vector where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
R=A^T*b. Multiplies transposed matrix by scalar and stores the result in the specified result matrix. Operation can not be performed in place. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated.
| a | First operand. |
| b | Second operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNewVector().
|
inlinestatic |
R=a^T*M*b. Left-multiplies a matrix with a vector (transposed), right multiplies the result vith another vector, and returns the final result. Can be performed in place. This is a plain version of the method that does not perform any consistency checks. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| left | Left vector factor (transpose vector as one row matrix). |
| a | Matrix factor. |
| right | Right factor (vector as one column matrix). |
R=a^T*M*b. Left-multiplies a matrix with a vector (transposed), right multiplies the result vith another vector, and returns the final result. Can be performed in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| left | Left factor (vector as one row matrix). |
| a | Matrix factor. |
| right | Right factor (vector as one column matrix). |
|
inlinestatic |
R=a^T*M*b. Left-multiplies a matrix with a vector (transposed), right multiplies the result vith another vector, and returns the final result. Can be performed in place. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated.
Multiplies matrix by scalar and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. This operation can be performed in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
Multiplies matrix by scalar and stores the result in the specified result matrix. This operation can be performed in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
Multiplies matrix by scalar and stores the result in the specified result matrix. This operation can be performed in place. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated.
| a | First operand. |
| b | Second operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew().
Divides matrix by scalar and stores the result in the specified result matrix. This is a plain version of the method that does not perform any consistency checks. This operation can be performed in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
Divides matrix by scalar and stores the result in the specified result matrix. This operation can be performed in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| b | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
Divides matrix by scalar and stores the result in the specified result matrix. This operation can be performed in place. WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated.
| a | First operand. |
| b | Second operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew().
|
inlinestatic |
Left-multiplies a matrix with a diagonal matrix, and stores the result in the specified result matrix. R=diag(d)*A This is a plain version of the method that does not perform any consistency checks. The operation can be done in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| diag | First operand (a vector representing a diagonal matrix). |
| a | First operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
Right-multiplies a matrix with a diagonal matrix, and stores the result in the specified result matrix. R=diag(d)*A WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| diag | First operand (a vector representing a diagonal matrix). |
| a | First operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
Right-multiplies a matrix with a diagonal matrix, and stores the result in the specified result matrix. R=diag(d)*A WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated.
| diag | First operand (a vector representing a diagonal matrix). |
| a | First operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew().
|
inlinestatic |
Left-multiplies a matrix with inverse of a diagonal matrix, and stores the result in the specified result matrix. R=diag(d)^-1*A This is a plain version of the method that does not perform any consistency checks. The operation can be done in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| diag | First operand (a vector representing a diagonal matrix). |
| a | Second operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
Right-multiplies a matrix with inverse of a diagonal matrix, and stores the result in the specified result matrix. R=diag(d)^-1*A WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| diag | First operand (a vector representing a diagonal matrix). |
| a | First operand. |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
Right-multiplies a matrix with inverse of a diagonal matrix, and stores the result in the specified result matrix. R=diag(d)^-1*A WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated.
| diag | First operand (a vector representing a diagonal matrix). |
| a | First operand. |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew().
|
inlinestatic |
Right-multiplies a matrix with a diagonal matrix, and stores the result in the specified result matrix. R=A*diag(d) This is a plain version of the method that does not perform any consistency checks. The operation can be done in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| diag | Second operand (a vector representing a diagonal matrix). |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
Right-multiplies a matrix with a diagonal matrix, and stores the result in the specified result matrix. R=A*diag(d) WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| diag | Second operand (a vector representing a diagonal matrix). |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
Right-multiplies a matrix with a diagonal matrix, and stores the result in the specified result matrix. R=A*diag(d) WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated.
| a | First operand. |
| diag | Second operand (a vector representing a diagonal matrix). |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew().
|
inlinestatic |
Right-multiplies a matrix with inverse of a diagonal matrix, and stores the result in the specified result matrix. R=A*diag(d)^-1 This is a plain version of the method that does not perform any consistency checks. The operation can be done in place. WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| diag | Second operand (a vector representing a diagonal matrix). |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
Right-multiplies a matrix with inverse of a diagonal matrix, and stores the result in the specified result matrix. R=A*diag(d)^-1 WARNING: dimensions of matrices must match, otherwise an exception is thrown.
| a | First operand. |
| diag | Second operand (a vector representing a diagonal matrix). |
| result | Matrix where the result is stored. Dimensions must match dimensions of operands. |
|
inlinestatic |
Right-multiplies a matrix with inverse of a diagonal matrix, and stores the result in the specified result matrix. R=A*diag(d)^-1 WARNING: dimensions of operands must match, otherwise an exception is thrown. If dimensions of the result do not match then the result is re-allocated.
| a | First operand. |
| diag | Second operand (a vector representing a diagonal matrix). |
| result | Matrix where result is stored. |
References IG.Num.IMatrix.GetNew().
|
inlinestatic |
Returns hashRet code of the specified matrix.
| mat | Matrix whose hath code is returned. |
This method should be used when overriding the GetHashCode() in vector classes, in order to unify calculation of hashRet code over different vector classes.
Returns true if the specified matrices are equal, false if not.
| m1 | The first of the two matrices that are checked for equality. |
| m2 | The second of the two matrices that are checked for equality. |
This method should be used when overriding the Equals() method in matrix classes, in order to unify the equality check over different matrix classes.
If both matrices are null or both have one dimension less than 1 and the other dimension the same then then they considered equal.
This method is consistent with the MatrixBase.Compare method, i.e. it returns the same value as the expression MatrixBase.Compare(m1 , m2 ==0).
|
inlinestatic |
Returns an integer valued hashRet function of the specified matrix object.
The returned value is calculated by the Util.GetHashFunctionInt method.
| mat | Matrix object whose hashRet function is calculated and returned. |
References IG.Lib.Util.GetHashFunctionInt().
|
inlinestatic |
Returns a string valued hashRet function of the specified matrix object.
The returned value is calculated by the Util.GetHashFunctionString method.
| mat | Matrix object whose hashRet function is calculated and returned. |
References IG.Lib.Util.GetHashFunctionString().
|
inlinestatic |
Returns a readable string form of a matrix, accuracy and padding can be set.
| mat | Matrix whose string representation is returned. |
| accuracy | Accuracy of matrix elments representations. |
| padding | Padding of matrix elements. |
References IG.Lib.Util.NullRepresentationString, and IG.Num.IMatrix.ToString().
Referenced by IG.Num.MatrixExtensions.ToStringReadable(), and IG.Num.MatrixBase.ToStringReadable().
|
inlinestatic |
Returns a string representation of the specified matrix with newlines inserted after each row. Rows and elements are printed in comma separated lists in curly brackets.
| mat | Matrix whose string representation is returned. |
References IG.Num.IMatrix.ToString().
Referenced by IG.Num.MatrixExtensions.ToStringNewlines().
|
inlinestatic |
Returns a string representation of the specified matrix with newlines inserted after each row, with the specified format for elements of the matrix. Rows and elements are printed in comma separated lists in curly brackets.
| mat | Matrix whose string representation is returned. |
| elementFormat | Format specification for printing individual element. |
References IG.Num.IMatrix.ToString().
|
inlinestatic |
Returns string representation of the current matrix in the standard IGLib form (Mathematica-like format but with C representation of numbers). Rows and elements are printed in comma separated lists in curly brackets.
| mat | Matrix whose string representation is returned. |
Referenced by IG.Num.MatrixExtensions.ToString().
|
inlinestatic |
Returns string representation of the current matrix in the standard IGLib form (Mathematica-like format but with C representation of numbers). Rows and elements are printed in comma separated lists in curly brackets.
| mat | Matrix whose string representation is returned. |
References IG.Num.IMatrix.ToString().
Referenced by IG.Num.MatrixExtensions.ToStringMath(), and IG.Num.MatrixExtensions.ToStringMath1().
|
inlinestatic |
Returns string representation of the current matrix in the standard IGLib form (Mathematica-like format but with C representation of numbers), with the specified format for elements of the matrix. Rows and elements are printed in comma separated lists in curly brackets.
| mat | Matrix whose string representation is returned. |
| elementFormat | Format specification for printing individual element. |
|
inlinestatic |
Returns string representation of the current matrix in the standard IGLib form (Mathematica-like format but with C representation of numbers), with the specified format for elements of the matrix. Rows and elements are printed in comma separated lists in curly brackets.
| mat | Matrix whose string representation is returned. |
| elementFormat | Format specification for printing individual element. |
References IG.Num.IMatrix.ToString().
|
inlinestatic |
Saves (serializes) the specified matrix to the specified JSON file. File is owerwritten if it exists.
| mat | Object that is saved to a file. |
| filePath | Path to the file in which object is is saved. |
Referenced by IG.Neural.NeuralAllpicationCommands.CmdTestJson().
|
inlinestatic |
Saves (serializes) the specified matrix to the specified JSON file.
| mat | Object that is saved to a file. |
| filePath | Path to the file in which object is is saved. |
| append | Specifies whether serialized data is appended at the end of the file in the case that the file already exists. |
|
inlinestatic |
Restores (deserializes) a matrix object from the specified file in JSON format.
| filePath | File from which object data is restored. |
| matRestored | Object that is restored by deserialization. |
Referenced by IG.Neural.NeuralAllpicationCommands.CmdTestJson().
|
inline |
Returns string representation of the current matrix in the standard IGLib form. Rows and elements are printed in comma separated lists in curly brackets.
Implements IG.Num.IMatrix.
|
inlinevirtual |
Returns a readable an easily string form of a matrix, accuracy and padding can be set.
| accuracy | Accuracy of matrix elments representations. |
| padding | Paddind of matrix elements. |
Implements IG.Num.IMatrix.
References IG.Num.MatrixBase.ToStringReadable().
|
inlinevirtual |
Returns a string representation of this matrix with newlines inserted after each row. Rows and elements are printed in comma separated lists in curly brackets.
Implements IG.Num.IMatrix.
|
inlinevirtual |
Returns a string representation of this matrix with newlines inserted after each row, with the specified format for elements of the matrix. Rows and elements are printed in comma separated lists in curly brackets.
| elementFormat | Format specification for printing individual element. |
Implements IG.Num.IMatrix.
|
inlinevirtual |
Returns string representation of the current matrix in the standard IGLib form (Mathematica-like format but with C representation of numbers). Rows and elements are printed in comma separated lists in curly brackets.
Implements IG.Num.IMatrix.
|
inlinevirtual |
Returns a string representation of the current matrix in a standard IGLib form (Mathematica-like format but with C representation of numbers), with the specified format for elements of the matrix.
| elementFormat | Format specification for printing individual element. |
Implements IG.Num.IMatrix.
|
inlinevirtual |
Returns a string representation of the current matrix in a standard IGLib form (Mathematica-like format but with C representation of numbers), with the specified format for elements of the matrix.
| elementFormat | Format specification for printing individual element. |
Implements IG.Num.IMatrix.
|
inlinestatic |
Unary plus, returns the operand.
References IG.Num.MatrixBase.GetCopyBase().
|
inlinestatic |
Unary negation, returns the negative operand.
References IG.Num.MatrixBase.GetCopyBase(), and IG.Num.MatrixBase.Negate().
|
inlinestatic |
Matrix addition.
References IG.Num.MatrixBase.GetCopyBase().
|
inlinestatic |
Matrix subtraction.
References IG.Num.MatrixBase.GetCopyBase().
|
inlinestatic |
Product of two matrices.
References IG.Num.MatrixBase.ColumnCount, IG.Num.MatrixBase.GetNewBase(), and IG.Num.MatrixBase.RowCount.
|
inlinestatic |
Product of a matrix and a vector.
References IG.Num.VectorBase.GetNewBase().
|
inlinestatic |
Product of a matrix by a scalar.
References IG.Num.MatrixBase.GetNewBase(), and IG.Num.MatrixBase.Multiply().
|
inlinestatic |
Product of a matrix by a scalar.
References IG.Num.MatrixBase.GetNewBase().
|
inlinestatic |
Matrix subtraction.
References IG.Num.MatrixBase.GetNewBase().
|
inlinestatic |
Simpler but slower (compared to Determinant) implementation of determinant calculation of an arbitrary square real matrix.
Auxiliary variable are allocated internally by the function, which makes it slower with respect to Determinant where auxiliary parameters can be provided by the caller.
| A | Matrix whose determinant is calculated. |
|
inlinestatic |
Calculates and returns determinant of a real-valued square matrix.
This function is efficient when auxiliary parameters auxPermutations and auxLU are provided that are already initialized with the same dimensions as the matrix whose determinant is calculated.
| A | Matrix whose determinant is to be calculated. |
| auxPermutations | Auxiliary array where row permutations of LU decomposition of A will be stored. For best performance, caller should pass an array that is alredy initialized with the same dimensions. |
| auxLU | Auxiliary matrix where LU decomposition of A will be stored. For best performance, caller should pass a matrix that is alredy initialized with the same dimensions. |
|
inlinestatic |
Calculates thr Doolittle LU decomposition with partial pivoting (LUP) of a square real matrix.
Throws InvalidOperationException if the matrix is singular.
http://en.wikipedia.org/wiki/LU_decomposition#Doolittle_algorithm
| A | Square matrix whose decomposition is calculated. |
| toggle | Attains value 1 for even number of row swaps, or -1 for odd number of row swaps (important for calculation of matrix determinant). |
| perm | Array where the performed row permutations are stored. Reallocated if necessary. |
| result | Matrix where the resulting LU decomposition is stored. Reallocated if necessary. |
Result is lower triangular matrix L with 1s on diagonal (stored below diagonal), and upper triangular matrix.
$A Igor Dec14;
References IG.Num.MatrixBase.Copy().
Referenced by IG.Num.SpeedTestCpu.TestComputationalTimesLU_Base().
|
inlinestaticprotected |
Solves a system of equations with the specified LU decomposition with already permuted b.
Helper method. Before it is used, right-hand side vector must be permuted according to row permutations contained in LU decomposition.
Parameters must be of correct dimensions. No reallocations are performed.
No consistency checks are performed on arguments.
| luMatrix | Matrix containing LU decomposition of the originall system matrix. |
| b | Vector containing right-hand sides permuted according to permutations of LU decomposition. |
| x | Vector where permuted results are stored. |
$A Igor Dec14;
References IG.Num.VectorBase.CopyPlain().
|
inlinestatic |
Solves a system of equations with the specified right-hand sides and the specified LU decomposition of the system matrix.
| luMatrix | Matrix containing LU decomposition of the original matrix with permuted rows. |
| perm | Permutation array containing information about row permutations performed during LU decomposition. |
| b | Vextor of right-hand sides. |
| auxVec | Auxiliary vector of the same dimension as the system matrix. |
| x | Vector where the solution is stored. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNewVector().
Referenced by IG.Num.SpeedTestCpu.TestComputationalTimesLU_Base().
|
inlinestatic |
Calculates inverse of the matrix from its specified LU decomposition.
| luMatrix | Matrix containing the LU decomposition of the original matrix (with partial pivoting). |
| perm | Array containing information of row permutations from the LU decomposition procedure. |
| B | Matrix whose columns are right-hand sides of equations to be solved. |
| auxVec | Auxiliary vector of the same dimension as dimensions of the decomposed matrix. Reallocated if necessary. |
| auxRight | Auxiliary vector of the same dimension as dimensions of the decomposed matrix. Reallocated if necessary. |
| auxX | Another auxiliary vector of the same dimension as dimensions of the decomposed matrix. Reallocated if necessary. |
| X | Matrix where result will be stored. Reallocated if necessary. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNew(), and IG.Num.IMatrix.GetNewVector().
|
inlinestatic |
Calculates inverse of the matrix from its specified LU decomposition.
| luMatrix | Matrix containing the LU decomposition of the original matrix (with partial pivoting). |
| perm | Array containing information of row permutations from the LU decomposition procedure. |
| auxRight | Auxiliary vector of the same dimension as dimensions of the decomposed matrix. Reallocated if necessary. |
| auxX | Another auxiliary vector of the same dimension as dimensions of the decomposed matrix. Reallocated if necessary. |
| res | Matrix where result will be stored. Reallocated if necessary. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNew(), and IG.Num.IMatrix.GetNewVector().
|
inlinestatic |
Calculates and returns matrix determinant form its specified LU decomposition.
| luMatrix | Matrix containing the LU decomposition of the matrix whose determinant is to be calculated. |
| toggle | Toggle that contains information about number of row permutations when building LU decomposittion, 1 for even and -1 for odd number of permutations. |
$A Igor Dec14;
Extracts the lower part of the Doolittle specified LU decomposition (1s on diagonal, 0s in above diagonal) and stores it in the specified result matrix.
Although operatioin can be done in place, it is not allowed for input and output matrix to be the same. Reason is that the operation always done in in combination (with extracting all parts).
| matLu | Matrix containng the LU decomposition of some matrix. |
| result | Matrix where the lower part of the specified matrix is stored. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNew().
Referenced by IG.Num.SpeedTestCpu.TestComputationalTimesLU_Base().
Extracts the upper part of the specified Doolittle LU decomposition 0s below diagonal) and stores it in the specified result matrix.
Although operatioin can be done in place, it is not allowed for input and output matrix to be the same. Reason is that the operation always done in in combination (with extracting all parts).
| matLu | Matrix containng the LU decomposition of some matrix. |
| result | Matrix where the upper part of the specified matrix is stored. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNew().
Referenced by IG.Num.SpeedTestCpu.TestComputationalTimesLU_Base().
|
inlinestatic |
Calculates and stores permutation matrix that correspond to the specified permutation array.
Used only for testing.
| perm | Permutation array, contains information on how matrix rows were permted. |
| res | Matrix where the corresponding permutation matrix is sttored. Reallocated if necessary. |
$A Igor Dec14;
References IG.Num.MatrixBase.SetZero().
|
inlinestatic |
Permutes rows of the specified aquare matrix according to the specified permutations array.
Mainly used for testing.
| A | Matrix to be Permuted. |
| permutations | Array that contains information on row permutations that must be performed. |
| result | Matrix where resultt is stored, i.e. the original matrix with permuted rows. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNew().
|
inlinestatic |
Unpermutes the product of the specified DooLittle LU decomposition according to permutations array.
The method can be used for reversing any row permutation performed on a sqyare matrix.
| Apermuted | Matrix containing the permuted LU decomposition of some decomposed original matrix. Must be a square matrix. |
| permutations | Array that contains information on row permutations that were perfomed during the LU decomposition. |
| auxArray | Auxilliary array, should have the same dimension as permutations . |
| result | Matrix where resultt is stored, i.e. the unpermuted LU product. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNew().
Referenced by IG.Num.SpeedTestCpu.TestComputationalTimesLU_Base().
|
inlinestatic |
Performs a test of calculatons performed via LU decomposition of a matrix. Calculation times and error extents are measured and reported (if specified).
If relative errors are below the specified tolerance, true is returned, otherwise false is returned.
| dim | Dimension of the problems generated for tests. |
| numRepetitions | Number of repetitions of the tests. If greater than 1 then tests are repeated with inputs generated anew each time. |
| tol | Tolerance on relative errors of test results. |
| outputLevel | Level of output. If 0 then no reports are launched to the console. |
| randomGenerator | Random generator used for generation of test inputs. |
| A | System matrix used in the test. If specified (i.e., not null) then this matrix is LU decomposed and used in the first repetition of tests instead of a randomly generated matrix. In this case, its dimension overrides (when not the same) the specified dimension dim of test matrices and vectors. If there are more than one repetitions (parameter numRepetitions ) then subsequent repetitions still use randomly generated inputs. If specified (i.e., not null) then this vector is used in the first repetition of tests instead of a a randomly generated vector. Similar rules apply as for A . |
| b | Vector of right-hand sides used in the test. |
$A Igor Dec14;
References IG.Num.A, IG.Lib.StopWatch1.CpuTime, IG.Num.RandomGenerator.Global, IG.Num.Matrix.Identity(), IG.Num.MatrixBase.Multiply(), IG.Num.VectorBase.SetRandom(), IG.Num.MatrixBase.SetRandomInvertible(), IG.Num.MatrixBase.SetZero(), IG.Lib.StopWatch1.Start(), IG.Lib.StopWatch1.Stop(), IG.Num.VectorBase.Subtract(), IG.Num.MatrixBase.Subtract(), IG.Lib.StopWatch1.Time, IG.Lib.StopWatch1.TotalCpuTime, and IG.Lib.StopWatch1.TotalTime.
|
inlinestatic |
Demonstration of usae of LU decomposition.
$A Igor Dec14;
References IG.Num.IMatrix.GetNew(), IG.Num.m, IG.Num.MatrixBase.Multiply(), IG.Num.MatrixBase.SetIdentity(), IG.Num.MatrixBase.Subtract(), IG.Num.IVector.ToStringMath(), and IG.Num.IMatrix.ToStringReadable().
|
inlinestatic |
Calculates LDLT decomposition of a real symmetric square matrix.
L is lower triangular matrix with 1s on diagonal, and D is a diagonal matrix.
Decomposition can be done in place.
Can be done in place (input and result matrices can reference the same object).
| A | Matrix whose decomposition is calculated. |
| tol | Tolerance for detection of singularity (must be a small positive number greater or equal to 0). |
| result | Matrix where the result of calculation is stored. |
$A Igor Dec14;
References IG.Num.MatrixBase.CopyPlain(), and IG.Num.IMatrix.GetNew().
Referenced by IG.Num.SpeedTestCpu.TestComputationalTimesLdlt_Base().
|
inlinestatic |
Solves a system of eauations with the specified LDLT decomposition of a real symmetric square matrix.
Used in conjunction with the LdltDecompose method for calculation of decomposition.
Can be done in place (input and result vectors can reference the same object).
| decomposed | Decomposed original matrix (obtained by LdltDecompose). |
Matrix is in form of 1D flat arrat with row-wise element arrangement.
| b | Vector of the right-hand sides of the system of equations. |
| x | Vector where result is stored. |
$A Igor Dec14;
References IG.Num.VectorBase.Copy(), and IG.Num.IVector.GetNew().
Referenced by IG.Num.SpeedTestCpu.TestComputationalTimesLdlt_Base().
|
inlinestatic |
Calculates inverse of the matrix from its specified LDLT-decomposed matrix.
| ldltMatrix | Matrix containing the LDLT decomposition of the original matrix. |
| B | Matrix whose columns are right-hand sides of equations to be solved. |
| auxX | Auxiliary vector of the same dimension as dimensions of the decomposed matrix. Reallocated if necessary. |
| X | Matrix where result will be stored. Reallocated if necessary. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNew(), and IG.Num.IMatrix.GetNewVector().
|
inlinestatic |
Calculates inverse of the matrix from its specified LDLT decomposition.
| ldltMatrix | Matrix containing the LDLT decomposition of the original matrix (with partial pivoting). |
| auxX | Another auxiliary vector of the same dimension as dimensions of the decomposed matrix. Reallocated if necessary. |
| res | Matrix where result will be stored. Reallocated if necessary. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNew(), and IG.Num.IMatrix.GetNewVector().
|
inlinestatic |
Calculates and returns determinant of a square symmetric matrix form its specified LDLT decomposition.
| ldltMatrix | Matrix containing the LDLT decomposition of the matrix whose determinant is to be calculated. |
$A Igor Dec14;
Extracts the lower part of the specified LDLT decomposition (1s on diagonal, 0s above diagonal) and stores it in the specified result matrix.
Although operatioin can be done in place, it is not allowed for input and output matrix to be the same. Reason is that the operation always done in in combination (with extracting all parts).
| matLdlt | Matrix containng the LDLT decomposition of some matrix. |
| result | Matrix where the lower part of the decomposition is stored. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNew().
Referenced by IG.Num.SpeedTestCpu.TestComputationalTimesLdlt_Base().
|
inlinestatic |
Extracts the upper part of the specified LDLT decomposition (1s on diagonal, 0s in below diagonal) and stores it in the specified result matrix.
Although operatioin can be done in place, it is not allowed for input and output matrix to be the same. Reason is that the operation always done in in combination (with extracting all parts).
| matLdlt | Matrix containng the LDLT decomposition of some matrix. |
| result | Matrix where the upper part of the specified matrix is stored. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNew().
Referenced by IG.Num.SpeedTestCpu.TestComputationalTimesLdlt_Base().
|
inlinestatic |
Extracts the diagonal part of the specified LDLT decomposition and stores it in the specified result matrix.
Although operatioin can be done in place, it is not allowed for input and output matrix to be the same. Reason is that the operation always done in in combination (with extracting all parts).
| matLdlt | Matrix containng the LDLT decomposition of some matrix. |
| result | Matrix where the upper part of the specified matrix is stored. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNew().
|
inlinestatic |
Performs a test of calculatons performed via LDLT decomposition of a matrix. Calculation times and error extents are measured and reported (if specified).
If relative errors are below the specified tolerance, true is returned, otherwise false is returned.
| dim | Dimension of the problems generated for tests. |
| numRepetitions | Number of repetitions of the tests. If greater than 1 then tests are repeated with inputs generated anew each time. |
| tol | Tolerance on relative errors of test results. |
| outputLevel | Level of output. If 0 then no reports are launched to the console. |
| randomGenerator | Random generator used for generation of test inputs. |
| A | System matrix used in the test. If specified (i.e., not null) then this matrix is LDLT decomposed and used in the first repetition of tests instead of a randomly generated matrix. In this case, its dimension overrides (when not the same) the specified dimension dim of test matrices and vectors. If there are more than one repetitions (parameter numRepetitions ) then subsequent repetitions still use randomly generated inputs. If specified (i.e., not null) then this vector is used in the first repetition of tests instead of a a randomly generated vector. Similar rules apply as for A . |
| b | Vector of right-hand sides used in the test. |
$A Igor Dec14;
References IG.Num.A, IG.Lib.StopWatch1.CpuTime, IG.Num.RandomGenerator.Global, IG.Num.MatrixBase.IsSymmetric(), IG.Num.MatrixBase.Multiply(), IG.Num.MatrixBase.SetIdentity(), IG.Num.VectorBase.SetRandom(), IG.Num.MatrixBase.SetRandomPositiveDefiniteSymmetric(), IG.Num.MatrixBase.SetZero(), IG.Lib.StopWatch1.Start(), IG.Lib.StopWatch1.Stop(), IG.Num.VectorBase.Subtract(), IG.Num.MatrixBase.Subtract(), IG.Lib.StopWatch1.Time, IG.Lib.StopWatch1.TotalCpuTime, and IG.Lib.StopWatch1.TotalTime.
|
inlinestatic |
Calculates Cholesky decomposition of a real symmetric square matrix.
L is lower triangular matrix with 1s on diagonal, and D is a diagonal matrix.
Decomposition can be done in place.
Can be done in place (input and result matrices can reference the same object).
| A | Matrix whose decomposition is calculated. |
| tol | Tolerance for detection of singularity (must be a small positive number greater or equal to 0). |
| result | Matrix where the result of calculation is stored. |
$A Igor Dec14;
References IG.Num.MatrixBase.CopyPlain(), and IG.Num.IMatrix.GetNew().
Referenced by IG.Num.SpeedTestCpu.TestComputationalTimesCholesky_Base().
|
inlinestatic |
Solves a system of eauations with the specified Cholesky decomposition of a real symmetric square matrix.
Used in conjunction with the CholeskyDecompose method for calculation of decomposition.
Can be done in place (input and result vectors can reference the same object).
| decomposed | Decomposed original matrix (obtained by CholeskyDecompose). |
Matrix is in form of 1D flat arrat with row-wise element arrangement.
| b | Vector of the right-hand sides of the system of equations. |
| x | Vector where result is stored. |
$A Igor Dec14;
References IG.Num.VectorBase.Copy(), IG.Num.IVector.GetNew(), and IG.Num.IMatrix.GetNewVector().
Referenced by IG.Num.SpeedTestCpu.TestComputationalTimesCholesky_Base().
|
inlinestatic |
Calculates inverse of the matrix from its specified Cholesky-decomposed matrix.
| CholeskyMatrix | Matrix containing the Cholesky decomposition of the original matrix. |
| B | Matrix whose columns are right-hand sides of equations to be solved. |
| auxX | Auxiliary vector of the same dimension as dimensions of the decomposed matrix. Reallocated if necessary. |
| X | Matrix where result will be stored. Reallocated if necessary. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNew(), and IG.Num.IMatrix.GetNewVector().
|
inlinestatic |
Calculates inverse of the matrix from its specified Cholesky decomposition.
| CholeskyMatrix | Matrix containing the Cholesky decomposition of the original matrix (with partial pivoting). |
| auxX | Another auxiliary vector of the same dimension as dimensions of the decomposed matrix. Reallocated if necessary. |
| res | Matrix where result will be stored. Reallocated if necessary. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNew(), and IG.Num.IMatrix.GetNewVector().
|
inlinestatic |
Calculates and returns determinant of a square symmetric matrix form its specified Cholesky decomposition.
| CholeskyMatrix | Matrix containing the Cholesky decomposition of the matrix whose determinant is to be calculated. |
$A Igor Dec14;
|
inlinestatic |
Extracts the lower part of the specified Cholesky decomposition (0s above diagonal) and stores it in the specified result matrix.
Although operatioin can be done in place, it is not allowed for input and output matrix to be the same. Reason is that the operation always done in in combination (with extracting all parts).
| matCholesky | Matrix containng the Cholesky decomposition of some matrix. |
| result | Matrix where the lower part of the decomposition is stored. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNew().
Referenced by IG.Num.SpeedTestCpu.TestComputationalTimesCholesky_Base().
|
inlinestatic |
Extracts the upper part of the specified Cholesky decomposition (0s in below diagonal) and stores it in the specified result matrix.
Although operatioin can be done in place, it is not allowed for input and output matrix to be the same. Reason is that the operation always done in in combination (with extracting all parts).
| matCholesky | Matrix containng the Cholesky decomposition of some matrix. |
| result | Matrix where the upper part of the specified matrix is stored. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNew().
Referenced by IG.Num.SpeedTestCpu.TestComputationalTimesCholesky_Base().
|
inlinestatic |
Performs test of calculatons performed via Cholesky decomposition of a matrix. Calculation times and error extents are measured and reported (if specified so).
If relative errors are below the specified tolerance, true is returned, otherwise false is returned.
| dim | Dimension of the problems generated for tests. |
| numRepetitions | Number of repetitions of the tests. If greater than 1 then tests are repeated with inputs generated anew each time. |
| tol | Tolerance on relative errors of test results. |
| outputLevel | Level of output. If 0 then no reports are launched to the console. |
| randomGenerator | Random generator used for generation of test inputs. |
| A | System matrix used in the test. If specified (i.e., not null) then this matrix is Cholesky decomposed and used in the first repetition of tests instead of a randomly generated matrix. In this case, its dimension overrides (when not the same) the specified dimension dim of test matrices and vectors. If there are more than one repetitions (parameter numRepetitions ) then subsequent repetitions still use randomly generated inputs. If specified (i.e., not null) then this vector is used in the first repetition of tests instead of a a randomly generated vector. Similar rules apply as for A . |
| b | Vector of right-hand sides used in the test. |
$A Igor Dec14;
References IG.Num.A, IG.Lib.StopWatch1.CpuTime, IG.Num.RandomGenerator.Global, IG.Num.MatrixBase.IsSymmetric(), IG.Num.MatrixBase.Multiply(), IG.Num.MatrixBase.SetIdentity(), IG.Num.VectorBase.SetRandom(), IG.Num.MatrixBase.SetRandomPositiveDefiniteSymmetric(), IG.Num.MatrixBase.SetZero(), IG.Lib.StopWatch1.Start(), IG.Lib.StopWatch1.Stop(), IG.Num.VectorBase.Subtract(), IG.Num.MatrixBase.Subtract(), IG.Lib.StopWatch1.Time, IG.Lib.StopWatch1.TotalCpuTime, and IG.Lib.StopWatch1.TotalTime.
|
inlinestatic |
Demonstration of usae of Cholesky decomposition.
$A Igor Dec14;
References IG.Num.IMatrix.GetNew(), IG.Num.m, IG.Num.MatrixBase.Multiply(), IG.Num.MatrixBase.SetIdentity(), IG.Num.MatrixBase.Subtract(), IG.Num.IVector.ToStringMath(), and IG.Num.IMatrix.ToStringReadable().
|
inlinestatic |
Calculates QR decomposition of a real invertible matrix by using Gramm-Schmidt orthogonalization.
Q is orthogonal matrix (dot product of distinct columns is 0 and that of the same columns is 1), and R is upper triangular.
Decomposition can NOT be done in place.
| A | Matrix whose decomposition is calculated. |
| resQ | Matrix where the orthogonal factor Q is stored. |
| resR | Matrix where the uppker triangular factor R is stored. |
| tol | Tolerance for detection of singularity (must be a small positive number greater or equal to 0). |
See also:
http://en.wikipedia.org/wiki/QR_decomposition#Using_the_Gram.E2.80.93Schmidt_process
$A Igor Mar15;
References IG.Num.IMatrix.GetNew().
|
inlinestatic |
Calculates QR decomposition of a real invertible matrix.
Q is orthogonal matrix (dot product of distinct columns is 0 and that of the same columns is 1), and R is upper triangular.
Decomposition can NOT be done in place.
| A | Matrix whose decomposition is calculated. |
| resQ | Matrix where the orthogonal factor Q is stored. |
| resR | Matrix where the uppker triangular factor R is stored. |
| tol | Tolerance for detection of singularity (must be a small positive number greater or equal to 0). |
See also:
http://en.wikipedia.org/wiki/QR_decomposition
$A Igor Mar15;
|
inlinestatic |
Solves a system of eauations with the specified QR decomposition of a real symmetric square matrix.
Used in conjunction with the QrDecompose method for calculation of decomposition.
Can NOT be done in place (input and result vectors can reference the same object).
| factorQ | First factor of QR decomposition (orthogonal Q, obtained by QrDecompose). |
| factorR | Second factor of QR decomposition (upper triangular R, obtained by QrDecompose). |
| b | Vector of the right-hand sides of the system of equations. |
| x | Vector where result is stored. |
$A Igor Mar15;
References IG.Num.IVector.GetNew(), and IG.Num.MatrixBase.MultiplyTranspVecPlain().
|
inlinestatic |
Calculates inverse of the matrix from its specified LDLT-decomposed matrix.
| factorQ | First factor of QR decomposition (orthogonal Q, obtained by QrDecompose). |
| factorR | Second factor of QR decomposition (upper triangular R, obtained by QrDecompose). |
| B | Matrix whose columns are right-hand sides of equations to be solved. |
| auxB | Auxiliary vector of the same dimension as dimensions of the decomposed matrix. Reallocated if necessary. |
| auxX | Another auxiliary vector of the same dimension as dimensions of the decomposed matrix. Reallocated if necessary. May not be the same as auxB . |
| X | Matrix where result will be stored. Reallocated if necessary. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNew(), and IG.Num.IMatrix.GetNewVector().
|
inlinestatic |
Calculates inverse of the matrix from its specified LDLT decomposition.
| factorQ | Matrix containing the Q factor of the QR decomposition of the original matrix. |
| factorR | Matrix containing the R factor of the QR decomposition of the original matrix. |
| auxB | Auxiliary vector of the same dimension as dimensions of the decomposed matrix. |
| auxX | Another auxiliary vector of the same dimension as dimensions of the decomposed matrix. Reallocated if necessary. |
| res | Matrix where result will be stored. Reallocated if necessary. |
$A Igor Dec14;
References IG.Num.IMatrix.GetNew(), and IG.Num.IMatrix.GetNewVector().
|
inlinestaticprotected |
Checks whether the difference between matrix result of the tested operation and some reference result is within the specified tolerance.
| result | Matrix that is the result of the tested operation. |
| referenceResult | Reference result obtained in a different way. |
| tolerance | Tolerance on norm of the difference. Must be greater than 0. If norm is less or equal to the tolerance then the test passes. |
| printReports | If true then short reports are printed to console. |
|
inlinestaticprotected |
Checks whether the difference between matrix result of the tested operation and some reference result is within the specified tolerance.
| result | Matrix that is the result of the tested operation. |
| referenceResult | Reference result obtained in a different way. |
| tolerance | Tolerance on norm of the difference. Must be greater than 0. If norm is less or equal to the tolerance then the test passes. |
| printReports | If true then short reports are printed to console. |
References IG.Num.VectorBase.Subtract().
|
inlinestatic |
Tests various matrix and vector products with fixed tolerance of 1.0E-6.
| printReports | Specifies whether to print short reports to console or not. |
|
inlinestatic |
Tests various matrix and vector products, without printing reports.
| tolerance | Tolerance for difference between product and test expression below which any individual test passes. Must be greater than 0. |
|
inlinestatic |
Tests various matrix and vector products with fixed tolerance of 1.0E-6 and without printing reports.
|
inlinestatic |
Tests various matrix and vector products.
| tolerance | Tolerance for difference between product and test expression below which any individual test passes. Must be greater than 0. |
| printReports | Specifies whether to print short reports to console or not. |
|
inlinestatic |
A test method, just prints some output.
|
inlinestatic |
A test method, just prints some output.
|
inlinestatic |
Performs test of converson between double indexing and flat indexing of matric elements,. Returns true if successful, false othwrwise.
| dim1 | Number of rows. |
| dim2 | Number of columns. |
| providedMatrix | If not null, this matrix will be taken for testing indices. |
References IG.Num.MatrixBase.Index(), IG.Num.MatrixBase.Indices(), and IG.Num.MatrixBase.SetRandom().
|
staticprivate |
|
get |
Gets the number of rows of the current matrix.
Referenced by IG.Num.MatrixBase.operator*().
|
get |
Gets the number of columns of the current matrix.
Referenced by IG.Num.MatrixBase.operator*().
|
get |
Gets total number of elements.
Warning: this is usually done by multiplying RowCount and ColumnCount, so it is not a priceless operation.
|
get |
Returns a new matrix that is transpose of the current matrix.
|
getset |
Gets or set the element indexed by a flat index in the Matrix.
This method just provides a mechanism of addressing elements by a single (flat) index in derived classes where implementation adheres to addressing by a single index (e.g. where elements are stored in a two dimensional array). In other cases, this indexing operator will be overridden.
| flatIndex | Flat element index, i.e. one dimensional index of a matrix element when elements are expanded to one dimensional array. |
|
getset |
Gets or set the element indexed by (i, j) in the Matrix.
This method just provides a mechanism of addressing elements by two indices in derived classes where implementation adheres to addressing by a single index (e.g. where elements are stored in a one dimensional array). In other cases, this indexing operator will be overridden.
| row | Row index of the element. |
| column | Column index of the element. |
|
get |
Gets matrix trace (sum of diagonal terms).
|
get |
Gets Forbenious (or Euclidean) norm of the matrix - square root of sum of squares of elements.
|
get |
Gets Forbenious (or Euclidean) norm of the matrix - square root of sum of squares of elements.
|
get |
Gets Forbenious (or Euclidean) norm of the matrix - square root of sum of squares of elements.
|
staticget |
Gets the matrix store for recycling auxiliary matrices.
Matrix store is created only once, on the first access.
1.8.8
