IG.Num.IMatrix Interface Reference

Real matrix interface. More...

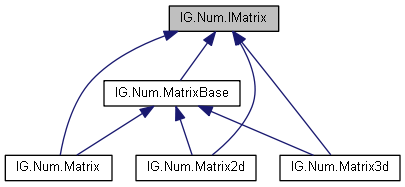

Inheritance diagram for IG.Num.IMatrix:

Public Member Functions
IMatrix	GetCopy ()
	Creates and returns a copy of the current matrix. More...
IMatrix	GetNew (int rowCount, int columnCount)
	Creates and returns a new matrix with the specified dimensions, and of the same type as the current matrix. More...
IMatrix	GetNew ()
	Creates and returns a new matrix with the same dimensions and of the same type as the current matrix. More...
IVector	GetNewVector (int length)
	Creates and returns a new vector with the specified dimension, and of the type that is consistent with the type of the current vector. More...
void	SetConstant (double elementValue)
	Sets all components of the current matrix to the specified value. More...
void	SetIdentity ()
	Sets the current matrix to identity matrix. More...
void	SetRandom ()
	Sets the current matrix such that it contains random elements on the interval (0,1]. More...
void	SetRandom (IRandomGenerator rnd)
	Sets the current matrix such that it contains random elements on the interval (0,1]. More...
void	SetDiagonal (double diagonalElement)
	Sets the current matrix to the diagonal matrix with all diagonal elements equal to the specified value. Matrix does not need to be a square matrix. More...
void	SetDiagonal (IVector diagonal)
	Sets the current matrix to the diagonal matrix with diagonal element specified by a vector. More...
bool	IsSquare ()
	Returns true if the current matrix is a square matrix, and false if not. More...
bool	IsSymmetric ()
	Returns true if the current matrix is symmetric, and false if not. If the matrix is not a square matrix then false is returned. More...
bool	IsSymmetric (double relativeRMSTolerance)
	Returns true if the specified matrix is symmetric within some tolerance, and false if not. If the matrix is null then false is returned. More...
string	ToStringReadable (int accuracy=4, int padding=8)
	Returns a readable an easily string form of a matrix, accuracy and padding can be set. More...
string	ToStringNewlines ()
	Returns a string representation of this matrix with newlines inserted after each row. Rows and elements are printed in comma separated lists in curly brackets. More...
string	ToStringNewlines (string elementFormat)
	Returns a string representation of this matrix with newlines inserted after each row, with the specified format for elements of the matrix. Rows and elements are printed in comma separated lists in curly brackets. More...
string	ToStringMath ()
	Returns string representation of the current matrix in the standard IGLib form (Mathematica-like format but with C representation of numbers). Rows and elements are printed in comma separated lists in curly brackets. More...
string	ToString ()
	Returns string representation of the current matrix in the standard IGLib form (Mathematica-like format but with C representation of numbers). Rows and elements are printed in comma separated lists in curly brackets. More...
string	ToString (string elementFormat)
	Returns a string representation of the current matrix in a standard IGLib form (Mathematica-like format but with C representation of numbers), with the specified format for elements of the matrix. More...
string	ToStringMath (string elementFormat)
	Returns a string representation of the current matrix in a standard IGLib form (Mathematica-like format but with C representation of numbers), with the specified format for elements of the matrix. More...
int	GetHashFunctionInt ()
	Returns an integer valued hashRet function of the current matrix object. More...
string	GetHashFunctionString ()
	Returns a string valued hashRet function of the current matrix object. More...

Detailed Description

Real matrix interface.

$A Igor Sep08 Dec09;

Member Function Documentation

IMatrix IG.Num.IMatrix.GetCopy

(

)

Creates and returns a copy of the current matrix.

Returns

A new copy of the current matrix. The copy is supposed to be of the same type as the current matrix.

Implemented in IG.Num.MatrixBase.

Referenced by IG.Num.AnalysisResults.SetConstraintHessian(), and IG.Num.VectorFunctionResults.SetHessian().

IMatrix IG.Num.IMatrix.GetNew	(	int	rowCount,
		int	columnCount
	)

Creates and returns a new matrix with the specified dimensions, and of the same type as the current matrix.

Parameters

rowCount	Number fo rows of the newly created matrix.
columnCount	Number of columns of the newly created matrix.

Returns

A newly created matrix of the specified dimensions and of the same type as the current matrix.

Implemented in IG.Num.MatrixBase.

Referenced by IG.Num.MatrixBase.Add(), IG.Num.MatrixBase.AntisymmetricPart(), IG.Num.MatrixBase.ArrayDivide(), IG.Num.MatrixBase.ArrayMap(), IG.Num.MatrixBase.ArrayMultiply(), IG.Num.MatrixBase.ArrayPower(), IG.Num.MatrixBase.CholeskyDecompose(), IG.Num.MatrixBase.CholeskyExtractLower(), IG.Num.MatrixBase.CholeskyExtractUpper(), IG.Num.MatrixBase.CholeskyInverse(), IG.Num.MatrixBase.CholeskySolve(), IG.Num.MatrixBase.Copy(), IG.Num.MatrixBase.Divide(), IG.Num.MatrixBase.LdltDecompose(), IG.Num.MatrixBase.LdltExtractDiagonal(), IG.Num.MatrixBase.LdltExtractLower(), IG.Num.MatrixBase.LdltExtractUpper(), IG.Num.MatrixBase.LdltInverse(), IG.Num.MatrixBase.LdltSolve(), IG.Num.MatrixBase.LuExtractLower(), IG.Num.MatrixBase.LuExtractUpper(), IG.Num.MatrixBase.LuInverse(), IG.Num.MatrixBase.LuSolve(), IG.Num.MatrixBase.Multiply(), IG.Num.MatrixBase.MultiplyDiagonal(), IG.Num.MatrixBase.MultiplyInverseDiagonal(), IG.Num.MatrixBase.MultiplyMatMatTransp(), IG.Num.MatrixBase.MultiplyMatTransp(), IG.Num.MatrixBase.MultiplyMatTranspMat(), IG.Num.MatrixBase.MultiplyTranspMat(), IG.Num.MatrixBase.MultiplyTranspMatMat(), IG.Num.MatrixBase.MultiplyTranspMatTransp(), IG.Num.MatrixBase.MultiplyTranspTransp(), IG.Num.MatrixBase.MultiplyTranspTranspTransp(), IG.Num.MatrixBase.Negate(), IG.Num.MatrixBase.Permute(), IG.Num.MatrixBase.QrDecomposeGrammSchmidt(), IG.Num.MatrixBase.QrInverse(), IG.Num.MatrixBase.QrSolve(), IG.Num.MatrixBase.Subtract(), IG.Num.MatrixBase.SymmetricPart(), IG.Num.MatrixBase.Symmetrize(), IG.Num.MatrixBase.TestCholeskyDecompositionDemo(), IG.Num.MatrixBase.TestLuDecompositionDemo(), IG.Num.AffineTransformationSquare.TransformBackHessian(), IG.Num.AffineTransformationSquare.TransformHessian(), IG.Num.MatrixBase.Transpose(), and IG.Num.MatrixBase.UnPermute().

IMatrix IG.Num.IMatrix.GetNew

(

)

Creates and returns a new matrix with the same dimensions and of the same type as the current matrix.

Implemented in IG.Num.MatrixBase.

IVector IG.Num.IMatrix.GetNewVector

(

int

length

)

Creates and returns a new vector with the specified dimension, and of the type that is consistent with the type of the current vector.

Parameters

length

Dimension of the newly created vector.

Returns

A newly created vector of the specified dimension and of the same type as the current vector.

Implemented in IG.Num.MatrixBase.

Referenced by IG.Num.MatrixBase.CholeskyInverse(), IG.Num.MatrixBase.CholeskySolve(), IG.Num.MatrixBase.LdltInverse(), IG.Num.MatrixBase.LdltSolve(), IG.Num.MatrixBase.LuInverse(), IG.Num.MatrixBase.LuSolve(), IG.Num.MatrixBase.Multiply(), IG.Num.MatrixBase.MultiplyTranspVec(), IG.Num.MatrixBase.QrInverse(), and IG.Num.MatrixBase.QrSolve().

void IG.Num.IMatrix.SetConstant

(

double

elementValue

)

Sets all components of the current matrix to the specified value.

Parameters

elementValue

Value to which elements are set.

Implemented in IG.Num.MatrixBase.

Referenced by IG.Num.ScalarFunctionUntransformedBase.TestHessian().

void IG.Num.IMatrix.SetIdentity

(

)

Sets the current matrix to identity matrix.

Implemented in IG.Num.MatrixBase.

void IG.Num.IMatrix.SetRandom

(

)

Sets the current matrix such that it contains random elements on the interval (0,1].

Implemented in IG.Num.MatrixBase.

Referenced by IG.Num.SampledDataSet.CreateExampleQuadratic(), IG.Num.MatrixBase.TestMultiply3(), IG.Num.MatrixBase.TestMultiplyMatMatTransp(), IG.Num.MatrixBase.TestMultiplyMatTransp(), IG.Num.MatrixBase.TestMultiplyMatTranspMat(), IG.Num.MatrixBase.TestMultiplyTranspMat(), IG.Num.MatrixBase.TestMultiplyTranspMatMat(), IG.Num.MatrixBase.TestMultiplyTranspMatTransp(), IG.Num.MatrixBase.TestMultiplyTranspTransp(), and IG.Num.MatrixBase.TestMultiplyTranspTranspTransp().

void IG.Num.IMatrix.SetRandom

(

IRandomGenerator

rnd

)

Sets the current matrix such that it contains random elements on the interval (0,1].

Parameters

rnd	Random generator used to generate matrix elements.

Implemented in IG.Num.MatrixBase.

void IG.Num.IMatrix.SetDiagonal

(

double

diagonalElement

)

Sets the current matrix to the diagonal matrix with all diagonal elements equal to the specified value. Matrix does not need to be a square matrix.

Parameters

diagonalElement

Value of diagonal elements.

Implemented in IG.Num.MatrixBase.

void IG.Num.IMatrix.SetDiagonal

(

IVector

diagonal

)

Sets the current matrix to the diagonal matrix with diagonal element specified by a vector.

Parameters

diagonal

Vector of diagonal elements.

Implemented in IG.Num.MatrixBase.

bool IG.Num.IMatrix.IsSquare

(

)

Returns true if the current matrix is a square matrix, and false if not.

Implemented in IG.Num.MatrixBase.

bool IG.Num.IMatrix.IsSymmetric

(

)

Returns true if the current matrix is symmetric, and false if not. If the matrix is not a square matrix then false is returned.

Implemented in IG.Num.MatrixBase.

bool IG.Num.IMatrix.IsSymmetric

(

double

relativeRMSTolerance

)

Returns true if the specified matrix is symmetric within some tolerance, and false if not. If the matrix is null then false is returned.

Parameters

relativeRMSTolerance

Tolerance on the ratio between RMS of differences between out of diagonal terms and their transposes and between RMS of out of diagonal terms, below which matrix is considered symmetric.

Implemented in IG.Num.MatrixBase.

string IG.Num.IMatrix.ToStringReadable	(	int	accuracy = 4,
		int	padding = 8
	)

Returns a readable an easily string form of a matrix, accuracy and padding can be set.

Parameters

accuracy	Accuracy of matrix elments representations.
padding	Paddind of matrix elements.

Returns

A readable string representation in tabular form.

Implemented in IG.Num.MatrixBase.

Referenced by IG.Num.MatrixBase.TestCholeskyDecompositionDemo(), and IG.Num.MatrixBase.TestLuDecompositionDemo().

string IG.Num.IMatrix.ToStringNewlines

(

)

Returns a string representation of this matrix with newlines inserted after each row. Rows and elements are printed in comma separated lists in curly brackets.

Implemented in IG.Num.MatrixBase.

string IG.Num.IMatrix.ToStringNewlines

(

string

elementFormat

)

Returns a string representation of this matrix with newlines inserted after each row, with the specified format for elements of the matrix. Rows and elements are printed in comma separated lists in curly brackets.

Parameters

elementFormat

Format specification for printing individual element.

Implemented in IG.Num.MatrixBase.

string IG.Num.IMatrix.ToStringMath

(

)

Returns string representation of the current matrix in the standard IGLib form (Mathematica-like format but with C representation of numbers). Rows and elements are printed in comma separated lists in curly brackets.

Implemented in IG.Num.MatrixBase.

string IG.Num.IMatrix.ToString

(

)

Returns string representation of the current matrix in the standard IGLib form (Mathematica-like format but with C representation of numbers). Rows and elements are printed in comma separated lists in curly brackets.

Implemented in IG.Num.MatrixBase.

Referenced by IG.Lib.InterfaceInverse.AppendValue(), IG.Num.ScalarFunctionUntransformedBase.TestSpeed(), IG.Num.MatrixBase.ToStringMath(), IG.Num.MatrixBase.ToStringNewlines(), and IG.Num.MatrixBase.ToStringReadable().

string IG.Num.IMatrix.ToString

(

string

elementFormat

)

Returns a string representation of the current matrix in a standard IGLib form (Mathematica-like format but with C representation of numbers), with the specified format for elements of the matrix.

Parameters

elementFormat

Format specification for printing individual element.

Implemented in IG.Num.MatrixBase.

string IG.Num.IMatrix.ToStringMath

(

string

elementFormat

)

Returns a string representation of the current matrix in a standard IGLib form (Mathematica-like format but with C representation of numbers), with the specified format for elements of the matrix.

Parameters

elementFormat

Format specification for printing individual element.

Implemented in IG.Num.MatrixBase.

int IG.Num.IMatrix.GetHashFunctionInt

(

)

Returns an integer valued hashRet function of the current matrix object.

The returned value is calculated by the Util.GetHashFunctionInt method.

See also

Util.GetHashFunctionInt

Implemented in IG.Num.MatrixBase.

string IG.Num.IMatrix.GetHashFunctionString

(

)

Returns a string valued hashRet function of the current matrix object.

The returned value is calculated by the Util.GetHashFunctionString method.

The returned string is always on the same length, and is based on the ToString() method. Therefore it is convenient for use in file or directory names that have one part related to a specific matrix.

See also

Util.GetHashFunctionString

Implemented in IG.Num.MatrixBase.

---

The documentation for this interface was generated from the following file:

• igbase/numeric/MatrixBase.cs
