IG.Num.IScalarFunctionParametric Interface Reference

Parameterized scalar functions with affine transformation of coordinates. More...

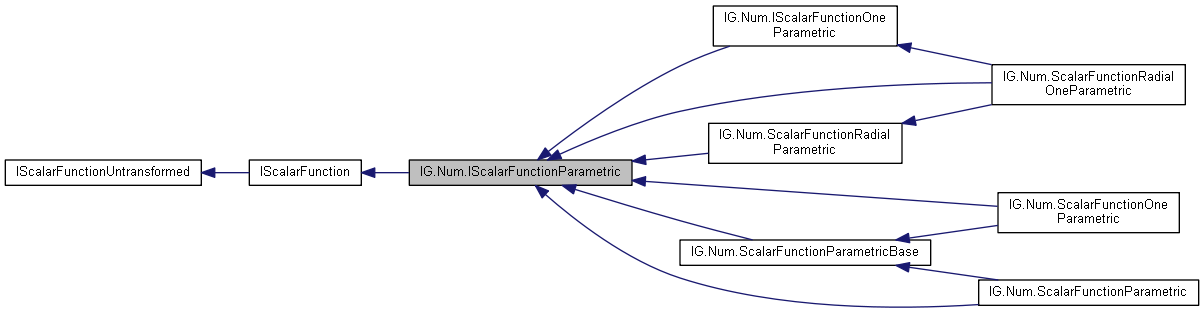

Inheritance diagram for IG.Num.IScalarFunctionParametric:

Collaboration diagram for IG.Num.IScalarFunctionParametric:

Public Member Functions
double[]	GetParameters ()
	Returns parameters of the current parametric function as an array. More...
void	SetParameters (double[] parameters)
	Sets parameters of the current parametric functions, where parameters are specified as array. More...
double	GetParameter (int which)
	Returns value of the specified parameter of the parameterized function. More...
void	SetParameter (int which, double value)
	Sets the specific parameters of the parameterized function. More...
Public Member Functions inherited from IG.Num.IScalarFunction
double	ReferenceValue (IVector parameters)
	Returns the value of this function at the specified parameter in the reference coordinate system. More...
void	ReferenceGradientPlain (IVector parameters, IVector gradient)
	Calculates the first derivative (gradient) of this function at the specified parameter in the reference coordinate system. More...
void	ReferenceHessianPlain (IVector parameters, IMatrix hessian)
	Calculates the second derivative (Hessian) of this function at the specified parameters in the reference coordinate system. More...
Public Member Functions inherited from IG.Num.IScalarFunctionUntransformed
void	Evaluate (IScalarFunctionResults data)
	Evaluates whatever needs to be evaluated and stores the results on the specified storage object. More...
double	Value (IVector x)
	Returns the value of this function at the specified parameter. More...
void	GradientPlain (IVector parameters, IVector gradient)
	Calculates first order derivatives (gradient) of this function at the specified parameters. WARNING: Plain function, does not check consistency of arguments. More...
void	Gradient (IVector parameters, ref IVector gradient)
	Calculates first order derivatives (gradient) of this function at the specified parameters. More...
void	HessianPlain (IVector parameters, IMatrix hessian)
	Calculates the second derivative (Hessian matrix) of this function at the specified parameters. WARNING: Plain function, does not check consistency of arguments. More...
void	Hessian (IVector parameters, ref IMatrix hessian)
	Calculates the second derivative (Hessian matrix) of this function at the specified parameters. More...

Properties
IVector	Parameters [get, set]
	Parameters that define the specific function out of parametric familiy of scalar functions. More...
int	NumParameters [get]
	Gets number of parameters that define the specific function out of parametric family of scalar functions. More...
Properties inherited from IG.Num.IScalarFunction
IAffineTransformation	Transformation [get, set]
	Affine transformation of parameters. Actual function is evaluated as reference function evaluated at inverse affine transformed parameters. More...
Properties inherited from IG.Num.IScalarFunctionUntransformed
string	Name [get]
	Returns a short name of the function. More...
string	Description [get]
	Returns a short description of the function. More...
bool	ValueDefined [get]
	Tells whether value of the function is defined by implementation. More...
bool	GradientDefined [get]
	Tells whether the first derivative is defined for this function (by implementation, not mathematically) More...
bool	HessianDefined [get]
	Tells whether the second derivative is defined for this function (by implementation, not mathematically) More...

Detailed Description

Parameterized scalar functions with affine transformation of coordinates.

$A Igor xx Dec10;

Member Function Documentation

double [] IG.Num.IScalarFunctionParametric.GetParameters

(

)

Returns parameters of the current parametric function as an array.

Usually, implementations use vector as natural representation of parameters, therefore this function creates an array and copies values.

Implemented in IG.Num.ScalarFunctionRadialParametric, IG.Num.ScalarFunctionRadialOneParametric, IG.Num.ScalarFunctionParametricBase, and IG.Num.ScalarFunctionOneParametric.

void IG.Num.IScalarFunctionParametric.SetParameters

(

double[]

parameters

)

Sets parameters of the current parametric functions, where parameters are specified as array.

Parameters

parameters

Array of parameters. Array length must correspond to actual number of parameters.

Implemented in IG.Num.ScalarFunctionRadialParametric, IG.Num.ScalarFunctionRadialOneParametric, IG.Num.ScalarFunctionParametricBase, and IG.Num.ScalarFunctionOneParametric.

double IG.Num.IScalarFunctionParametric.GetParameter

(

int

which

)

Returns value of the specified parameter of the parameterized function.

Parameters

which

Specifies which parameter is returned.

Implemented in IG.Num.ScalarFunctionRadialParametric, IG.Num.ScalarFunctionRadialOneParametric, IG.Num.ScalarFunctionParametricBase, and IG.Num.ScalarFunctionOneParametric.

void IG.Num.IScalarFunctionParametric.SetParameter	(	int	which,
		double	value
	)

Sets the specific parameters of the parameterized function.

Parameters

which	Specifies which parameter is set.
value	Value of the specified parameter.

Implemented in IG.Num.ScalarFunctionRadialParametric, IG.Num.ScalarFunctionRadialOneParametric, IG.Num.ScalarFunctionParametricBase, and IG.Num.ScalarFunctionOneParametric.

Property Documentation

IVector IG.Num.IScalarFunctionParametric.Parameters

getset

Parameters that define the specific function out of parametric familiy of scalar functions.

int IG.Num.IScalarFunctionParametric.NumParameters

get

Gets number of parameters that define the specific function out of parametric family of scalar functions.

---

The documentation for this interface was generated from the following file:

• igbase/numeric/FunctionScalarParametric.cs
