IG.Num.IScalarFunction Interface Reference

Scalar functions of vector arguments, with eventual affine transformation of parameters. If transformation is defined then actual function is evaluated as reference function evaluated at inverse affine transformed parameters. More...

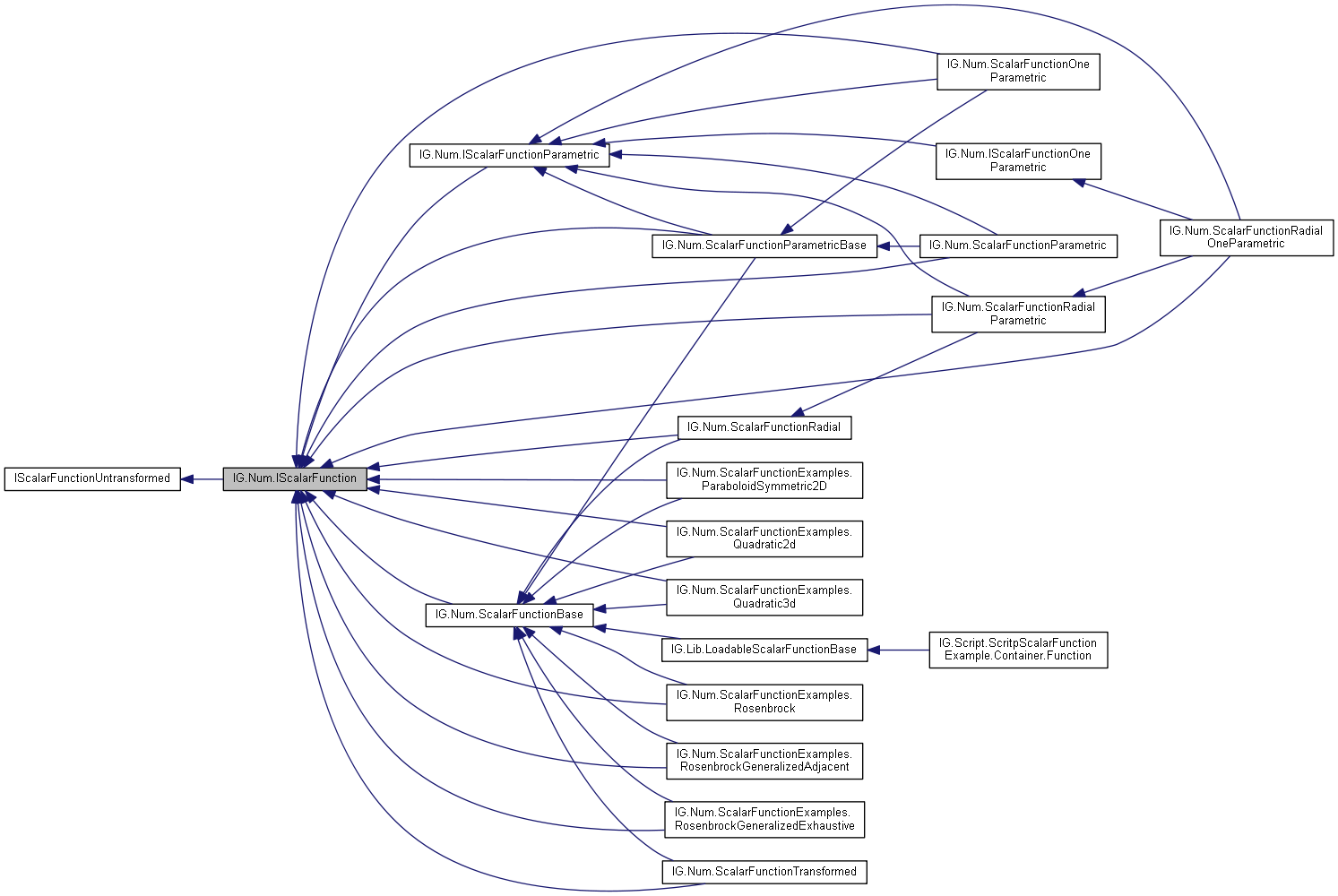

Inheritance diagram for IG.Num.IScalarFunction:

Collaboration diagram for IG.Num.IScalarFunction:

Public Member Functions
double	ReferenceValue (IVector parameters)
	Returns the value of this function at the specified parameter in the reference coordinate system. More...
void	ReferenceGradientPlain (IVector parameters, IVector gradient)
	Calculates the first derivative (gradient) of this function at the specified parameter in the reference coordinate system. More...
void	ReferenceHessianPlain (IVector parameters, IMatrix hessian)
	Calculates the second derivative (Hessian) of this function at the specified parameters in the reference coordinate system. More...
Public Member Functions inherited from IG.Num.IScalarFunctionUntransformed
void	Evaluate (IScalarFunctionResults data)
	Evaluates whatever needs to be evaluated and stores the results on the specified storage object. More...
double	Value (IVector x)
	Returns the value of this function at the specified parameter. More...
void	GradientPlain (IVector parameters, IVector gradient)
	Calculates first order derivatives (gradient) of this function at the specified parameters. WARNING: Plain function, does not check consistency of arguments. More...
void	Gradient (IVector parameters, ref IVector gradient)
	Calculates first order derivatives (gradient) of this function at the specified parameters. More...
void	HessianPlain (IVector parameters, IMatrix hessian)
	Calculates the second derivative (Hessian matrix) of this function at the specified parameters. WARNING: Plain function, does not check consistency of arguments. More...
void	Hessian (IVector parameters, ref IMatrix hessian)
	Calculates the second derivative (Hessian matrix) of this function at the specified parameters. More...

Properties
IAffineTransformation	Transformation [get, set]
	Affine transformation of parameters. Actual function is evaluated as reference function evaluated at inverse affine transformed parameters. More...
Properties inherited from IG.Num.IScalarFunctionUntransformed
string	Name [get]
	Returns a short name of the function. More...
string	Description [get]
	Returns a short description of the function. More...
bool	ValueDefined [get]
	Tells whether value of the function is defined by implementation. More...
bool	GradientDefined [get]
	Tells whether the first derivative is defined for this function (by implementation, not mathematically) More...
bool	HessianDefined [get]
	Tells whether the second derivative is defined for this function (by implementation, not mathematically) More...

Detailed Description

Scalar functions of vector arguments, with eventual affine transformation of parameters. If transformation is defined then actual function is evaluated as reference function evaluated at inverse affine transformed parameters.

$A Igor xx May10 Dec10;

Member Function Documentation

double IG.Num.IScalarFunction.ReferenceValue

(

IVector

parameters

)

Returns the value of this function at the specified parameter in the reference coordinate system.

Parameters

parameters

Vector of parameters (in the REFERENCE system) where function is evaluated.

Implemented in IG.Num.ScalarFunctionExamples.Quadratic3d, IG.Num.ScalarFunctionExamples.Quadratic2d, IG.Num.ScalarFunctionExamples.ParaboloidSymmetric2D, IG.Num.ScalarFunctionExamples.RosenbrockGeneralizedExhaustive, IG.Num.ScalarFunctionExamples.RosenbrockGeneralizedAdjacent, IG.Num.ScalarFunctionExamples.Rosenbrock, IG.Num.ScalarFunctionTransformed, IG.Lib.LoadableScalarFunctionBase, IG.Num.ScalarFunctionRadial, IG.Script.ScritpScalarFunctionExample.Container.Function, and IG.Num.ScalarFunctionBase.

void IG.Num.IScalarFunction.ReferenceGradientPlain	(	IVector	parameters,
		IVector	gradient
	)

Calculates the first derivative (gradient) of this function at the specified parameter in the reference coordinate system.

Parameters

parameters	Vector of parameters (in the REFERENCE system) where derivatives are evaluated.
gradient	Vector where first derivatives (gradient) are stored.

Implemented in IG.Num.ScalarFunctionExamples.Quadratic3d, IG.Num.ScalarFunctionExamples.Quadratic2d, IG.Num.ScalarFunctionExamples.ParaboloidSymmetric2D, IG.Num.ScalarFunctionExamples.RosenbrockGeneralizedExhaustive, IG.Num.ScalarFunctionExamples.RosenbrockGeneralizedAdjacent, IG.Num.ScalarFunctionExamples.Rosenbrock, IG.Num.ScalarFunctionTransformed, IG.Num.ScalarFunctionRadial, IG.Lib.LoadableScalarFunctionBase, IG.Script.ScritpScalarFunctionExample.Container.Function, and IG.Num.ScalarFunctionBase.

void IG.Num.IScalarFunction.ReferenceHessianPlain	(	IVector	parameters,
		IMatrix	hessian
	)

Calculates the second derivative (Hessian) of this function at the specified parameters in the reference coordinate system.

Parameters

parameters	Vector of parameters (in the REFERENCE system) where Hessian is evaluated.
hessian	Matrix where second derivatives (Hessian) are stored.

Implemented in IG.Num.ScalarFunctionExamples.Quadratic3d, IG.Num.ScalarFunctionExamples.Quadratic2d, IG.Num.ScalarFunctionExamples.ParaboloidSymmetric2D, IG.Num.ScalarFunctionExamples.RosenbrockGeneralizedExhaustive, IG.Num.ScalarFunctionExamples.RosenbrockGeneralizedAdjacent, IG.Num.ScalarFunctionExamples.Rosenbrock, IG.Num.ScalarFunctionTransformed, IG.Num.ScalarFunctionRadial, IG.Lib.LoadableScalarFunctionBase, IG.Script.ScritpScalarFunctionExample.Container.Function, and IG.Num.ScalarFunctionBase.

Property Documentation

IAffineTransformation IG.Num.IScalarFunction.Transformation

getset

Affine transformation of parameters. Actual function is evaluated as reference function evaluated at inverse affine transformed parameters.

---

The documentation for this interface was generated from the following file:

• igbase/numeric/FunctionScalarInt.cs
