Utilities for communication with the web service Calypso. More...

Inheritance diagram for LabexBis.Calypso:

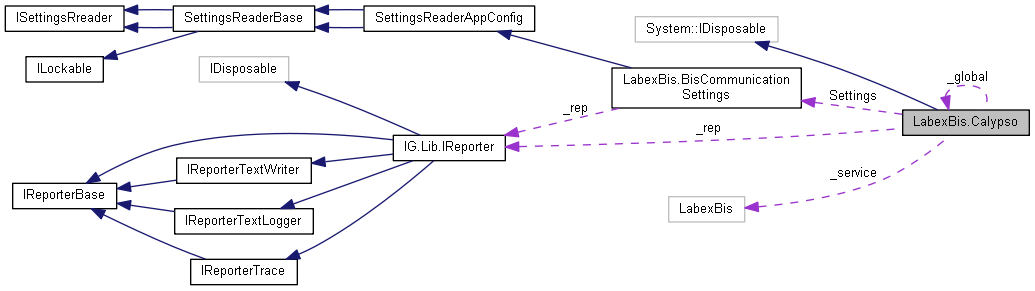

Collaboration diagram for LabexBis.Calypso:

Public Member Functions
void	TestAfterReceiverStarted ()
	Performs some tests after the receiver has been started. This function is here for debuggind purposes. It should be called after the receiver is started, and it can be empty in the release version of the application. More...

bool	TestWs (out string Id)
	Returns true if the communication web service is responding, and false if it is not. More...

bool	TestWs ()
	Returns true if the communication web service is responding, and false if it is not. More...

string	GetUniqueID ()
	Gets a unique ID from the Calypso web service and returns it. More...

void	SendMessageToMyself (string message, string msgid)
	Sends a msg that is contained in msg, to the Labex queue. If necessary then the msg is modified such that the right receiver is set in it (i.e. Labex) More...

void	SendMessageToBis (string message, string msgid)
	Sends a msg that is contained in msg, to the Bis queue. More...

void	SendMessage (string message, string receiver, string msgid)
	Sends a msg to the specified receiver through the calypso WS. More...

void	SendOoNullifyToBis (string connectionstring, int IdRsr)
	Sends nullification message for the specified Observation order, to the Bis queue. Original observation order message (as stored in the database) is modified in such a way that the right action code, receiver, sender and responder are set in it, and the specified comment is set in the message. Original message XML is obtained from the message table through the ID in tbl01_RSR. More...

void	SendOoNullifyToBis (MsgObervationOrder msg, string comment)
	Sends nullification message for the Observation order that is contained in msg, to the Bis queue. msg is modified in such a way that the right action code, receiver, sender and responder are set in it, and the specified comment is set. More...

void	SendOoNullifyToBis (string message, string msgid, string comment)
	Sends nullification message for the Observation order that is contained in message, to the Bis queue. message is modified in such a way that the right action code, receiver, sender and responder are set in it, and the specified comment is set. More...

void	ConfirmMessageReceipt (string Id)
	Sends confirmation back to the WS massage queue that the msg with the specified ID has been received and treated and that it doed not need to be kept in the queue any more. More...

void	ConfirmMessageReceipt (string Id, string queueName)
	Sends confirmation back to the WS massage queue that the msg with the specified ID has been received and treated and that it doed not need to be kept in the queue any more. More...

void	SaveIncomingMessage (MsgBase msg)
	Saves the msg Xml to a file. File name is determined according to seddings. No GUID is added to file name. More...

void	SaveIncomingMessage (MsgBase msg, bool addGuid)
	Saves the msg Xml to a file. File name is determined according to seddings. More...

void	SaveIncomingMessage (MsgBase msg, string filename)
	Saves the msg Xml to a file with a specified name. More...

MsgBase	GetMessage ()
	Receives the last msg from the Calypso web service and returns msg object. More...

void	GetMessage (out string Id, out string MessageText)
	Receives a msg from the Calypso web service and returns msg Id and Text. More...

LabexBis.WebReference.Message	GetNextMessage ()
	Receives a new msg from the Calypso web service and returns it. The msg is also stored to a file whose name is determined from the msg ID. More...

void	Dispose ()

Public Attributes
BisCommunicationSettings	Settings = new BisCommunicationSettings()

Protected Member Functions
MsgBase	GetMessage (string hl7version)
	Receives the last msg from the Calypso web service and returns msg object. The message is also storedto a file whose name is determined from the msg ID. Version of the standard must also be specified. More...

void	GetMessage (string HL7Version, out string Id, out string MessageText)
	Receives a msg from the Calypso web service and returns msg Id and Text. More...

LabexBis.WebReference.Message	GetNextMessage (string hl7version)
	Receives a new msg from the Calypso web service and returns it. More...

Properties
static IReporter	R `[get]`
	Reporter for this class. More...

MsgConst	Const `[get]`
	Gets objects that contains all constants related to communication messages. More...

static Calypso	Global `[get]`
	Global communication object (application-wide). More...

LabexBis.WebReference.CalypsoWSNSService	Service `[get]`
	Web service used for sending messages between systems. More...

string	ReceiverBis `[get]`

string	ReceiverLabex `[get]`

Private Member Functions
void	ReceiveAndProcessMessage (bool ReadFromWS)
	Receives and processes one msg from the callypso server. Dependent on Pado server settings, msg can aldo be read from a file (for testing purposes). More...

void	ReceiverThreadMain ()
	Periodically receives messages from Calypso and works them. More...

void	SendMessage (string hl7version, string msg, string receiver, string msgid)
	Sending a msg to WS with HL7 version specification. More...

Private Attributes
LabexBis.WebReference.CalypsoWSNSService	_service = null

const string	QueueNameLabex = "Labex"

const string	QueueNameBis = ""

const string	HL7Version = "v30"

bool	_dbCmdInitialized = false

int	PauseBetweenReads_ms = 5000

int	PauseBeforeReads_ms = 400

bool	ControlOutputs = true

bool	ReceiverRun = false

Static Private Attributes
static IReporter	_rep = new ReporterConsole()

static Calypso	_global = null

Detailed Description

Utilities for communication with the web service Calypso.

Member Function Documentation

void LabexBis.Calypso.ReceiveAndProcessMessage ( bool ReadFromWS )

inlineprivate

Receives and processes one msg from the callypso server. Dependent on Pado server settings, msg can aldo be read from a file (for testing purposes).

Parameters

ReadFromWs If false then msg is not read from the web service but from a file.

void LabexBis.Calypso.ReceiverThreadMain ( )

inlineprivate

Periodically receives messages from Calypso and works them.

void LabexBis.Calypso.TestAfterReceiverStarted ( )

inline

Performs some tests after the receiver has been started. This function is here for debuggind purposes. It should be called after the receiver is started, and it can be empty in the release version of the application.

bool LabexBis.Calypso.TestWs ( out string Id )

inline

Returns true if the communication web service is responding, and false if it is not.

Parameters

Id	Output parameter through which a unique Id returned by the web service is obtained when the web service is responding properly.

Returns

References LabexBis.Calypso.GetUniqueID().

Referenced by IGTest.ProgramIGTest.TestCalypsoWs().

bool LabexBis.Calypso.TestWs ( )

inline

Returns true if the communication web service is responding, and false if it is not.

string LabexBis.Calypso.GetUniqueID ( )

inline

Gets a unique ID from the Calypso web service and returns it.

Returns: The ID received from the web service.

References IG.Lib.IReporterBase.Depth, LabexBis.Calypso.R, IG.Lib.IReporterBase.ReportError(), IG.Lib.IReporterBase.ReportInfo(), IG.Lib.ReporterBase.ReviseException(), LabexBis.Calypso.Service, and IG.Lib.IReporterBase.TreatInfo.

Referenced by IGTest.ProgramIGTest.TestcalypsoWsSimple(), and LabexBis.Calypso.TestWs().

void LabexBis.Calypso.SendMessageToMyself	(	string	message,
		string	msgid
	)

inline

Sends a msg that is contained in msg, to the Labex queue. If necessary then the msg is modified such that the right receiver is set in it (i.e. Labex)

Parameters

msg	Xml document containing the msg to be sent.
msgid	Message Id.

References LabexBis.Calypso.ReceiverLabex, and LabexBis.Calypso.SendMessage().

Referenced by IGTest.ProgramIGTest.TestCalypsoWs().

void LabexBis.Calypso.SendMessageToBis	(	string	message,
		string	msgid
	)

inline

Sends a msg that is contained in msg, to the Bis queue.

If necessary then the msg is modified such that the right receiver is set in it (i.e. Bis)

Parameters

msg	Xml document containing the msg to be sent.
msgid	Message Id.

References LabexBis.Calypso.ReceiverBis, and LabexBis.Calypso.SendMessage().

Referenced by LabexBis.Calypso.SendOoNullifyToBis(), IGTest.ProgramIGTest.TestMsgFinancialTransaction(), and IGTest.ProgramIGTest.TestMsgObservationEvent().

void LabexBis.Calypso.SendMessage	(	string	message,
		string	receiver,
		string	msgid
	)

inline

Sends a msg to the specified receiver through the calypso WS.

Parameters

msg	Xml document containing the msg to be sent.
receiver	Code of the application that will receive the msg.
msgid	Message Id.

References LabexBis.Calypso.HL7Version.

Referenced by LabexBis.Calypso.SendMessageToBis(), and LabexBis.Calypso.SendMessageToMyself().

void LabexBis.Calypso.SendMessage	(	string	hl7version,
		string	msg,
		string	receiver,
		string	msgid
	)

inlineprivate

Sending a msg to WS with HL7 version specification.

Parameters

hl7version	Version of the HL7 specification.
msg	Xml document containing the msg to be sent.
receiver	Code of the application that will receive the msg.
msgid	Message Id.

References IG.Lib.IReporterBase.Depth, LabexBis.Calypso.HL7Version, LabexBis.BisCommunicationSettings.OutgoingFileName(), LabexBis.Calypso.R, IG.Lib.IReporterBase.ReportError(), IG.Lib.IReporterBase.ReportInfo(), LabexBis.Calypso.Service, IG.Lib.MsgBase.SetMessageReceiver(), and IG.Lib.IReporterBase.TreatInfo.

void LabexBis.Calypso.SendOoNullifyToBis	(	string	connectionstring,
		int	IdRsr
	)

inline

Sends nullification message for the specified Observation order, to the Bis queue. Original observation order message (as stored in the database) is modified in such a way that the right action code, receiver, sender and responder are set in it, and the specified comment is set in the message. Original message XML is obtained from the message table through the ID in tbl01_RSR.

Parameters

ConnectionString
IdRsR
comment

References LabexBis.Calypso.R, IG.Lib.IReporterBase.ReportError(), and IG.Lib.IReporterBase.ReportInfo().

Referenced by IGTest.ProgramIGTest.TestMsgObservationOrderNullifySend().

void LabexBis.Calypso.SendOoNullifyToBis	(	MsgObervationOrder	msg,
		string	comment
	)

inline

Sends nullification message for the Observation order that is contained in msg, to the Bis queue. msg is modified in such a way that the right action code, receiver, sender and responder are set in it, and the specified comment is set.

Parameters

msg	Xml document containing the original observation order to be nullified.
msgid	Message Id.
comment	Comment that is set in the message.

References IG.Lib.ParsableXmlObject.Doc, IG.Lib.MsgBase.MessageId, IG.Lib.MsgBase.MessageNumber, IG.Lib.MsgObervationOrder.PrepareOoNullify(), LabexBis.Calypso.SendMessageToBis(), and IG.Lib.MsgBase.Type.

void LabexBis.Calypso.SendOoNullifyToBis	(	string	message,
		string	msgid,
		string	comment
	)

inline

Sends nullification message for the Observation order that is contained in message, to the Bis queue. message is modified in such a way that the right action code, receiver, sender and responder are set in it, and the specified comment is set.

Parameters

message	Xml document containing the original observation order to be nullified.
msgid	Message Id. Needed to form the file name where message is stored before sending.
comment	Comment that is set in the message.

References IG.Lib.MsgObervationOrder.PrepareOoNullify(), and LabexBis.Calypso.SendMessageToBis().

void LabexBis.Calypso.ConfirmMessageReceipt ( string Id )

inline

Sends confirmation back to the WS massage queue that the msg with the specified ID has been received and treated and that it doed not need to be kept in the queue any more.

Parameters

Id	Id of the received msg (as obtained from the web service).

References LabexBis.Calypso.QueueNameLabex.

Referenced by IGTest.ProgramIGTest.ReceiveSpecimenObservationOrder().

void LabexBis.Calypso.ConfirmMessageReceipt	(	string	Id,
		string	queueName
	)

inline

Sends confirmation back to the WS massage queue that the msg with the specified ID has been received and treated and that it doed not need to be kept in the queue any more.

Parameters

Id	Id of the received msg (as obtained from the web service).
queuwName	Name of the queue from which the msg has been picked.

References IG.Lib.IReporterBase.Depth, LabexBis.Calypso.R, IG.Lib.IReporterBase.ReportError(), IG.Lib.IReporterBase.ReportInfo(), LabexBis.Calypso.Service, and IG.Lib.IReporterBase.TreatInfo.

void LabexBis.Calypso.SaveIncomingMessage ( MsgBase msg )

inline

Saves the msg Xml to a file. File name is determined according to seddings. No GUID is added to file name.

Parameters

msg	Message to be saved.

References LabexBis.BisCommunicationSettings.IncomingFileName(), and IG.Lib.MsgBase.MessageId.

Referenced by IGTest.ProgramIGTest.ReceiveSpecimenObservationOrder(), and LabexBis.Calypso.SaveIncomingMessage().

void LabexBis.Calypso.SaveIncomingMessage	(	MsgBase	msg,
		bool	addGuid
	)

inline

Saves the msg Xml to a file. File name is determined according to seddings.

Parameters

msg	Message to be saved.
addGuid	If true then GUID is added to file name.

References LabexBis.BisCommunicationSettings.IncomingFileName(), IG.Lib.MsgBase.MessageId, and LabexBis.Calypso.SaveIncomingMessage().

void LabexBis.Calypso.SaveIncomingMessage	(	MsgBase	msg,
		string	filename
	)

inline

Saves the msg Xml to a file with a specified name.

Parameters

msg	Message object whose Xml is saved.
filename	Name of a file into which the object is saved.

References IG.Lib.MsgBase.MessageXml.

MsgBase LabexBis.Calypso.GetMessage ( )

inline

Receives the last msg from the Calypso web service and returns msg object.

References LabexBis.Calypso.HL7Version.

Referenced by LabexBis.Calypso.GetMessage(), IGTest.ProgramIGTest.ReceiveSpecimenObservationOrder(), IGTest.ProgramIGTest.TestCalypsoWs(), and IGTest.ProgramIGTest.TestcalypsoWsSimple().

MsgBase LabexBis.Calypso.GetMessage ( string hl7version )

inlineprotected

Receives the last msg from the Calypso web service and returns msg object. The message is also storedto a file whose name is determined from the msg ID. Version of the standard must also be specified.

References LabexBis.Calypso.GetMessage(), IG.Lib.MsgBase.GetMessageType(), LabexBis.BisCommunicationSettings.IncomingFileName(), IG.Lib.MsgBase.MessageFile, IG.Lib.MsgBase.MessageId, IG.Lib.MsgBase.MessageXml, LabexBis.Calypso.R, IG.Lib.IReporterBase.ReportError(), IG.Lib.IReporterBase.ReportInfo(), and IG.Lib.IReporterBase.TreatInfo.

void LabexBis.Calypso.GetMessage	(	out string	Id,
		out string	MessageText
	)

inline

Receives a msg from the Calypso web service and returns msg Id and Text.

Parameters

Id	messagestr ID that is a part of the received msg.
MessageText	messagestr itself.

References LabexBis.Calypso.GetMessage(), and LabexBis.Calypso.HL7Version.

void LabexBis.Calypso.GetMessage	(	string	HL7Version,
		out string	Id,
		out string	MessageText
	)

inlineprotected

Receives a msg from the Calypso web service and returns msg Id and Text.

Parameters

hl7version	Version of the HL7 standard according to which the msg is assembled.
Id	messagestr ID that is a part of the received msg.
MessageText	messagestr itself.

References IG.Lib.IReporterBase.Depth, LabexBis.Calypso.GetNextMessage(), LabexBis.Calypso.R, IG.Lib.IReporterBase.ReportError(), IG.Lib.IReporterBase.ReportInfo(), and IG.Lib.IReporterBase.TreatInfo.
