Unstructured mesh in 1D embedded in 3D space. More...

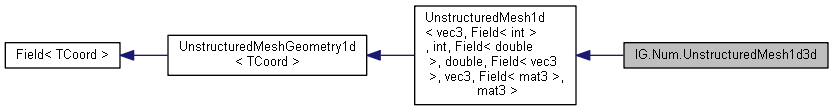

Inheritance diagram for IG.Num.UnstructuredMesh1d3d:

Collaboration diagram for IG.Num.UnstructuredMesh1d3d:

Public Member Functions
	UnstructuredMesh1d3d ()
	Constructs a new empty 1D (unconnected) unstructured grid (no elements contained) with no name and no description. More...

	UnstructuredMesh1d3d (int length)
	Constructs a new 1D (unconnected) unstructured grid with the specified size, name and description. Array of elements is allocated. More...

	UnstructuredMesh1d3d (int length, string fieldName)
	Constructs a new 1D (unconnected) unstructured grid with the specified size, name and description. Array of elements is allocated. More...

	UnstructuredMesh1d3d (int length, string fieldName, string fieldDescription)
	Constructs a new 1D (unconnected) unstructured grid with the specified size, name and description. Array of elements is allocated. More...

	UnstructuredMesh1d3d (int dimx, int dimy, string fieldName, string fieldDescription, double minx, double maxx, double miny, double maxy)
	Constructs a (unconnected) unstructured grid based on 1D regular grid with grid direction parallel to coordinate axes, with specified name and description. Array of elements is allocated. More...

	UnstructuredMesh1d3d (int dimx, string fieldName, string fieldDescription, double minxRef, double maxxRef, IRealFunction fx, IRealFunction fy, IRealFunction fz)
	Constructs an (unconnected) unstructured grid of nodes based on 1D structured grid obtained by transformation of co-ordinates of a regular equidistant grid. Array of elements is allocated. More...

void	GenerateCoordinates (int dimx, double minxRef, double maxxRef)
	Generates an (unconnected) unstructured grid of nodes based on a 1D regular grid with grid directions parallel to coordinate axes and equidistant nodes in all directions. More...

void	GenerateCoordinates (int dimx, double minxRef, double maxxRef, IRealFunction fx, IRealFunction fy, IRealFunction fz)
	Generates coordinates of an (unconnected) unstructured grid of points based on coordinates of a structured mesh for a parametric volume according to functions specifying the x, y, and z coordinates in terms of three scalar functions of 3 variables. More...

Public Member Functions inherited from IG.Num.UnstructuredMesh1d< TCoord, TIndexField, TIndex, TScalarField, TScalar, TVectorField, TVector, TTensorField, TTensor >
	UnstructuredMesh1d ()
	Constructs a new empty unstructured mesh (no elements contained) with no name and no description. More...

	UnstructuredMesh1d (int numElements)
	Creates a new unstructured mesh with the specified number of elements. More...

	UnstructuredMesh1d (int numElements, string fieldName)
	Constructs a new unstructured mesh with the specified number of nodes and name. More...

	UnstructuredMesh1d (int numElements, string fieldName, string fieldDescription)
	Constructs a new unstructured mesh with the specified number of nodes, name and description. Table of elements is allocated. More...

TIndexField	GetIndexField (string name)
	Returns index field with the specified name. More...

TIndexField	GetIndexField (int index)
	Returns the index field with the specified index. More...

virtual TIndexField	CreateIndexField (string fieldName, string fieldDescription)
	Creates and returns a new index field of dimensions that match dimensions of the current structured mesh, and with specified name and description. More...

void	AddIndexField (string fieldName, string fieldDescription)
	Creates a new index field of dimensions that match dimensions of the current 1D structuredmesh, and specified with name and description, and adds it to the current collection. More...

void	AddIndexField (TIndexField field, string name)
	Adds the specified index field to the collection of index fields under the specified name. More...

void	AddIndexField (TIndexField field)
	Adds the specified index field to the collection of index fields. More...

void	RemoveIndexField (string fieldName)
	Removed the field with the specified name from the current field collection. More...

TScalarField	GetScalarField (string name)
	Returns scalar field with the specified name. More...

TScalarField	GetScalarField (int index)
	Returns the scalar field with the specified index. More...

virtual TScalarField	CreateScalarField (string fieldName, string fieldDescription)
	Creates and returns a new scalar field of dimensions that match dimensions of the current structured mesh, and with specified name and description. More...

TScalarField	AddScalarField (string fieldName, string fieldDescription)
	Creates and returns a new scalar field of dimensions that match dimensions of the current 1D structuredmesh, and specified with name and description, and adds it to the current collection. More...

void	AddScalarField (TScalarField field, string name)
	Adds the specified scalar field to the collection of scalar fields under the specified name. More...

void	AddScalarField (TScalarField field)
	Adds the specified scalar field to the collection of scalar fields. More...

void	RemoveScalarField (string fieldName)
	Removed the field with the specified name from the current field collection. More...

TVectorField	GetVectorField (string name)
	Returns vector field with the specified name. More...

TVectorField	GetVectorField (int index)
	Returns the vector field with the specified index. More...

virtual TVectorField	CreateVectorField (string fieldName, string fieldDescription)
	Creates and returns a new vector field of dimensions that match dimensions of the current structured mesh, and with specified name and description. More...

TVectorField	AddVectorField (string fieldName, string fieldDescription)
	Creates and returns a new vector field of dimensions that match dimensions of the current 1D structuredmesh, and specified with name and description, and adds it to the current collection. More...

void	AddVectorField (TVectorField field, string name)
	Adds the specified vector field to the collection of vector fields under the specified name. More...

void	AddVectorField (TVectorField field)
	Adds the specified vector field to the collection of vector fields. More...

void	RemoveVectorField (string fieldName)
	Removed the field with the specified name from the current field collection. More...

TTensorField	GetTensorField (string name)
	Returns tensor field with the specified name. More...

TTensorField	GetTensorField (int index)
	Returns the tensor field with the specified index. More...

virtual TTensorField	CreateTensorField (string fieldName, string fieldDescription)
	Creates and returns a new tensor field of dimensions that match dimensions of the current structured mesh, and with specified name and description. More...

TTensorField	AddTensorField (string fieldName, string fieldDescription)
	Creates a new tensor field of dimensions that match dimensions of the current 1D structuredmesh, and specified with name and description, and adds it to the current collection. More...

void	AddTensorField (TTensorField field, string name)
	Adds the specified tensor field to the collection of tensor fields under the specified name. More...

void	AddTensorField (TTensorField field)
	Adds the specified tensor field to the collection of tensor fields. More...

void	RemoveTensorField (string fieldName)
	Removed the field with the specified name from the current field collection. More...

Public Member Functions inherited from IG.Num.UnstructuredMeshGeometry1d< TCoord >
	UnstructuredMeshGeometry1d ()
	Constructs a new empty unstructured grid (no elements contained) with no name and no description. More...

	UnstructuredMeshGeometry1d (int numElements)
	Creates a new unstructured grid with the specified number of elements. More...

	UnstructuredMeshGeometry1d (int numElements, string fieldName)
	Constructs a new unstructured grid with the specified number of elements and name. More...

	UnstructuredMeshGeometry1d (int numElements, string fieldName, string fieldDescription)
	Constructs a new unstructured grid with the specified number of elements, name and description. Table of elements is allocated. More...

Public Member Functions inherited from IG.Num.Field< TElement >
	Field ()
	Constructs a new empty field (no elements contained) with no name and no description. More...

	Field (int numElements)
	Creates a new field with the specified number of elements. More...

	Field (int numElements, string fieldName)
	Constructs a new field with the specified number of elements and name. More...

	Field (int numElements, string fieldName, string fieldDescription)
	Constructs a new field with the specified number of elements, name and description. Table of elements is allocated. More...

virtual void	SetLength (int newLength)
	Sets the length of the current field to the specified value. More...

TElement	GetValue (int index)
	Returns element of the field at the specified index. More...

void	SetValue (int index, TElement value)
	Sets the element at the specified index to the specified value. More...

Additional Inherited Members
Static Public Member Functions inherited from IG.Num.Field< TElement >
static void	UpdateBounds (Field< double > field, IBoundingBox bounds, int componentIndex)
	Updates the specified component of the specified bounds (object of type IBoundingBox) in such a way that all elements of the specified field will fit within the bounds. More...

static void	UpdateBounds< TEl > (Field< TEl > field, IBoundingBox bounds)
	Updates the specified bounds (object of type IBoundingBox) in such a way that all non-null vectors on the specified field will fit within the bounds. More...

static void	UpdateBounds (Field< vec3 > field, IBoundingBox bounds)
	Updates the specified bounds (object of type IBoundingBox) in such a way that all 3D vector elements of type vec3 of the specified field will fit within the bounds. More...

static void	MapCoordinatesPlain (Field< vec3 > referenceField, Field< vec3 > targetField, IFunc3d fx, IFunc3d fy, IFunc3d fz)
	Generates coordinates of a set of unstructured 3D points (point cloud) from a reference set according to 3 scalar functions of 3 variables that map coordinates of the reference points to components of the mapped points. More...

static void	MapCoordinates (Field< vec3 > referenceField, Field< vec3 > targetField, IFunc3d fx, IFunc3d fy, IFunc3d fz)
