Unstructured mesh in 1D embedded in 2D space. More...

Inheritance diagram for IG.Num.UnstructuredMesh1d2d:

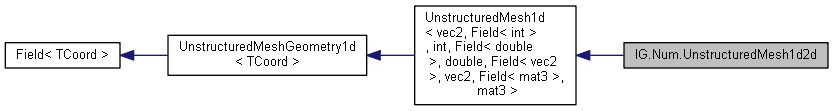

Collaboration diagram for IG.Num.UnstructuredMesh1d2d:

Public Member Functions
	UnstructuredMesh1d2d ()
	Constructs a new empty 1D (unconnected) unstructured grid (no elements contained) with no name and no description. More...

	UnstructuredMesh1d2d (int length)
	Constructs a new 1D (unconnected) unstructured grid with the specified size, name and description. Array of elements is allocated. More...

	UnstructuredMesh1d2d (int length, string fieldName)
	Constructs a new 1D (unconnected) unstructured grid with the specified size, name and description. Array of elements is allocated. More...

	UnstructuredMesh1d2d (int length, string fieldName, string fieldDescription)
	Constructs a new 1D (unconnected) unstructured grid with the specified size, name and description. Array of elements is allocated. More...

	UnstructuredMesh1d2d (int dimx, int dimy, string fieldName, string fieldDescription, double minx, double maxx, double miny, double maxy)
	Constructs a (unconnected) unstructured grid based on 1D regular grid with grid direction parallel to coordinate axes, with specified name and description. Array of elements is allocated. More...

	UnstructuredMesh1d2d (int dimx, string fieldName, string fieldDescription, double minxRef, double maxxRef, IRealFunction fx, IRealFunction fy, IRealFunction fz)
	Constructs an (unconnected) unstructured grid of nodes based on 1D structured grid obtained by transformation of co-ordinates of a regular equidistant grid. Array of elements is allocated. More...

void	GenerateCoordinates (int dimx, double minxRef, double maxxRef)
	Generates an (unconnected) unstructured grid of nodes based on a 1D regular grid with grid directions parallel to coordinate axes and equidistant nodes in all directions. More...

void	GenerateCoordinates (int dimx, double minxRef, double maxxRef, IRealFunction fx, IRealFunction fy)
	Generates coordinates of an (unconnected) unstructured grid of points based on coordinates of a structured mesh for a parametric volume according to functions specifying the x, y, and z coordinates in terms of three scalar functions of 3 variables. More...
