Data Transfer Object (DTO) for matrixs of type IG.Num.Matrix. Used to store, transfer, serialize and deserialize objects of type IMatrix. More...

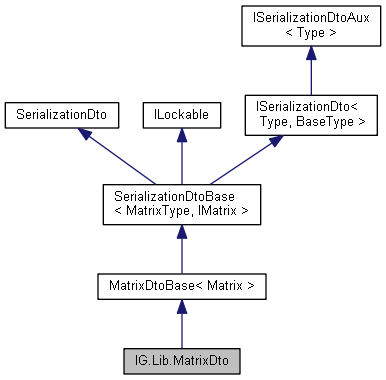

Inheritance diagram for IG.Lib.MatrixDto:

Collaboration diagram for IG.Lib.MatrixDto:

Public Member Functions
	MatrixDto ()
	Creates a DTO for storing state of a matrix object of any matrix type More...

	MatrixDto (int rowCnt, int columnCnt)
	Creates a DTO for storing a matrix object of the Matrix type, with specified dimension. More...

override Matrix	CreateMatrix (int rowCnt, int columnCnt)
	Creates and returns a new matrix of the specified dimension. More...

Public Member Functions inherited from IG.Lib.MatrixDtoBase< MatrixType >
	MatrixDtoBase ()
	Default constructor, sets IsNull to true. More...

	MatrixDtoBase (int rowCnt, int columnCnt)
	Constructor, prepares the current DTO for storing a matrix of the specified dimension. More...

override MatrixType	CreateObject ()
	Creates and returns a new matrix of the specified type and dimension. More...

Public Member Functions inherited from IG.Lib.SerializationDtoBase< Type, BaseType >
	SerializationDtoBase ()

virtual bool	GetNull ()
	Returns a flag indicating whether the object represented by the current DTO is null. More...

virtual void	SetNull (bool isNull)
	Sets a flag indicating whether the object represented by the current DTO is null. More...

virtual void	CopyFromBase (BaseType obj)
	Copies data to the current DTO from an object of type BaseType. More...

virtual void	CopyToBase (ref BaseType obj)
	Copies data from the current DTO to an object of the base type. Object is created anew if necessary by using the CreateObject() method. More...

virtual void	CopyFrom (Type obj)
	Copies data to the current DTO from an object of type Type. More...

virtual void	CopyTo (ref Type obj)
	Copies data from the current DTO to an object of type Type. Object is created anew if necessary by using the CreateObject() method. More...

virtual void	CopyFromObject (object obj)
	Copies data to the current DTO from an object of type object. The necessary casts are performed. More...

virtual void	CopyToObject (ref object obj)
	Copies data from the current DTO to an object of type object. Object is created anew if necessary by using the CreateObject() method. The necessary casts are performed. More...

override string	ToString ()
	Creates and returns string representation of the current DTO (data transfer object). More...

Additional Inherited Members
Static Public Member Functions inherited from IG.Lib.SerializationDto
static ObjectType	CopyToObjectReturned< DtoType, ObjectType > (DtoType dto, ObjectType obj)
	Replacement for CopyToObject for cases where object can not be passed by reference. The returned object must be assigned to object (property, list element, etc.) to which object state is copied. More...

static void	CopyToObject< DtoType, ObjectType > (DtoType dto, ref ObjectType obj)
	Copies object state form the specified DTO (data transfer object) to the specified object. More...

static DtoType	CopyFromObjectReturned< DtoType, ObjectType > (ObjectType obj, DtoType dto)
	Replacement for CopyFromObject for cases where object can not be passed by reference. The returned object must be assigned to object (property, list element, etc.) to which object state is copied. More...

static void	CopyFromObject< DtoType, ObjectType > (ObjectType obj, ref DtoType dto)
	Copies object state form the specified object to the corresponding DTO (data transfer object). More...

static ObjectType[]	CopyArrayToObjectReturned< DtoType, ObjectType > (DtoType[] tabDto, ObjectType[] tabObj)
	Replacement for CopyArrayToObject for cases where object can not be passed by reference. The returned object must be assigned to object (property, list element, etc.) to which data is copied. More...

static void	CopyArrayToObject< DtoType, ObjectType > (DtoType[] tabDto, ref ObjectType[] tabObj)
	Copies array of DTOs (Data Transfer Objects) to an array of appropriate objects. More...

static DtoType[]	CopyArrayFromObjectReturned< DtoType, ObjectType > (ObjectType[] tabObj, DtoType[] tabDto)
	Replacement for CopyArrayFromObject for cases where object can not be passed by reference. The returned object must be assigned to object (property, list element, etc.) to which data is copied. More...

static void	CopyArrayFromObject< DtoType, ObjectType > (ObjectType[] tabObj, ref DtoType[] tabDto)
	Copies array of objects to an array of DTOs. More...

static List< ObjectType >	CopyListToObjectReturned< DtoType, ObjectType > (DtoType[] tabDto, List< ObjectType > listObj)
	Replacement for CopyListToObject for cases where object can not be passed by reference. The returned object must be assigned to object (property, list element, etc.) to which data is copied. More...

static void	CopyListToObject< DtoType, ObjectType > (DtoType[] tabDto, ref List< ObjectType > listObj)
	Copies array of DTOs (Data Transfer Objects) to a list of appropriate objects. More...

static DtoType[]	CopyListFromObjectReturned< DtoType, ObjectType > (List< ObjectType > tabObj, DtoType[] tabDto)
	Replacement for CopyArrayFromObject for cases where object can not be passed by reference. The returned object must be assigned to object (property, list element, etc.) to which data is copied. More...

static void	CopyListFromObject< DtoType, ObjectType > (List< ObjectType > tabObj, ref DtoType[] tabDto)
	Copies array of objects to a list of DTOs. More...

Protected Member Functions inherited from IG.Lib.MatrixDtoBase< MatrixType >
virtual void	AllocateComponents (int rowCnt, int columnCnt)
	Allocates the array that stores matrix elements. More...

override void	CopyFromPlain (IMatrix mat)
	Copies data to the current DTO from a matrix object. More...

override void	CopyToPlain (ref IMatrix mat)
	Copies data from the current DTO to a matrix object. More...

Protected Member Functions inherited from IG.Lib.SerializationDtoBase< Type, BaseType >
abstract void	CopyFromPlain (BaseType obj)
	Copies contents of the specified object to the current DTO (Data Transfer Object). More...

abstract void	CopyToPlain (ref BaseType obj)
	Copies contents of the current DTO (Data Transfer Object) to the specified object. More...

Protected Member Functions inherited from IG.Lib.SerializationDto
	SerializationDto ()

Protected Attributes inherited from IG.Lib.MatrixDtoBase< MatrixType >
int	_rowCount

int	_columnCount

double[][]	_elements

Protected Attributes inherited from IG.Lib.SerializationDtoBase< Type, BaseType >
bool	_isNull = false

Properties inherited from IG.Lib.MatrixDtoBase< MatrixType >
virtual int	RowCount `[get, set]`
	Number of rows of the matrix. More...

virtual int	ColumnCount `[get, set]`
	Number of columns of the matrix. More...

double[][]	Components `[get, set]`
	Matrix elements. More...

Properties inherited from IG.Lib.SerializationDtoBase< Type, BaseType >
object	Lock `[get]`
	This object's central lock object to be used by other object. Do not use this object for locking in class' methods, for this you should use InternalLock. More...

Properties inherited from IG.Lib.ILockable
object	Lock `[get]`

Detailed Description

Data Transfer Object (DTO) for matrixs of type IG.Num.Matrix. Used to store, transfer, serialize and deserialize objects of type IMatrix.

$A Igor Aug09;

Constructor & Destructor Documentation

IG.Lib.MatrixDto.MatrixDto ( )

inline

Creates a DTO for storing state of a matrix object of any matrix type

IG.Lib.MatrixDto.MatrixDto	(	int	rowCnt,
		int	columnCnt
	)

inline

Creates a DTO for storing a matrix object of the Matrix type, with specified dimension.

Parameters

rowCnt	First dimension of the matrix (number of rows).
columnCnt	Second dimension of the matrix (number of columns).

Member Function Documentation

override Matrix IG.Lib.MatrixDto.CreateMatrix	(	int	rowCnt,
		int	columnCnt
	)

inlinevirtual

Creates and returns a new matrix of the specified dimension.

Parameters

rowCnt	First dimension of the matrix (number of rows).
columnCnt	Second dimension of the matrix (number of columns).

Implements IG.Lib.MatrixDtoBase< MatrixType >.

The documentation for this class was generated from the following file:

igbase/data/serialization/dtos/MatrixDto.cs
