Performs elementary operations for optimization and analysis servers and clients that exchange data and messages through files. Each such server can serve a single request at a time (single thread of execution). Client-server pair (or pairs, when both analysis and optimization are performed in this way) has (or have) a single directory for exchanging data and messages. If there is a need for analyses running in parallel, each thread must have its own directory and its own client-server pair. More...

Inheritance diagram for IG.Num.OptFileManager:

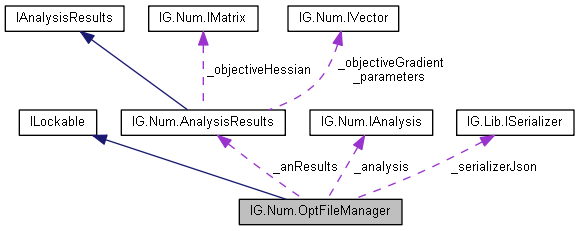

Collaboration diagram for IG.Num.OptFileManager:

Public Member Functions
	OptFileManager (string directoryPath)
	Creates a new optimization file server manager. More...

string	GetPath (string relativePath)
	Returns full path of the file or directory with the specified relative path within the data and messages exchange directory. More...

bool	LockFileMutexCheckAbandoned ()
	Check whether the filesystem locking mutex (property LockFileMutex) has been abandoned, and returns true if it has been (otherwise, false is returned). More...

virtual bool	IsAnInputReady ()
	Gets a flag telling whether analysis input data is ready. More...

virtual void	WaitAnInputReady ()
	Waits until analysis data is ready. REMARK: Currently this file just checks existence of the file in a loop. This should be changed in the future because it is not the best solution. More...

virtual void	ClearAnInputReady ()
	Clears the analysis data ready flag. More...

virtual void	SetAnInputReady ()
	Sets the analysis input ready flag. More...

virtual bool	IsAnResultsReady ()
	Gets a flag telling whether analysis output data is ready. More...

virtual void	WaitAnResultsReady ()
	Waits until analysis data is ready. REMARK: Currently this file just checks existence of the file in a loop. This should be changed in the future because it is not the best solution. More...

virtual void	ClearAnResultsReady ()
	Clears the analysis results ready flag. More...

virtual void	SetAnResultsReady ()
	Sets the analysis results ready flag. More...

virtual bool	IsAnBusy ()
	Gets a flag telling whether direct analysis is busy. More...

virtual void	WaitAnReady ()
	Waits until analysis is ready. REMARK: Currently this file just checks existence of the file in a loop. This should be changed in the future because it is not the best solution. More...

virtual void	ClearAnBusy ()
	Clears the analysis busy flag. More...

virtual void	SetAnBusy ()
	Sets the analysis busy flag. More...

void	ClearMessages ()
	Clears messages from the working directory. More...

virtual void	ClientWriteAnInput (AnalysisResults anInput)
	Client writes analysis input data for calculation of analysis results. Messages are set nad cleared appropriately. More...

virtual void	ClientReadAnOutput (ref AnalysisResults anres)
	Client reads analysis results. Messages are set and cleared appropriately. More...

virtual void	ClientSendAnalysisRequest ()
	Sends request to the server for calculation of analysis response. More...

virtual void	ClientCalculateAnalysisResults (ref AnalysisResults anRes)
	Calculates analysis results by using the analysis server. Writes analysis input, sends request to the server, and reads the calculated results. More...

virtual void	ClientTestCalculateAnalysisResults (string inputFilePath, bool reqObjective, bool reqConstraints, bool reqObjectiveGradient, bool reqConstraintGradients, string outputFilePath)
	Performs client-side test calculation of analysis response. More...

virtual void	ServerAnalyse ()
	Performs direct analysis (in optimization) with prescribed analysis input data, and saves results. Messages are set and cleared appropriately. This method reads analysis input from standard location, performs calculation, calculates analysis results and stores them to the standard location. More...

Protected Member Functions
virtual void	WriteAnalysisInputMath (string filePath, AnalysisResults anpt)
	Stores analysis input data to the specified file in the standard format (Mathematica-like, but with C style numbers). Does not perform any locking. More...

virtual void	WriteAnalysisInputJson (string filePath, AnalysisResults anpt)
	Stores analysis input data to the specified file in the JSON format. Does not perform any locking. More...

virtual void	WriteAnalysisInputXml (string filePath, AnalysisResults anpt)
	Stores analysis input data to the specified file in the XML format Does not perform any locking. More...

virtual void	ReadAnalysisInputMath (string filePath, ref AnalysisResults anpt)
	Reads analysis input data (request) from the specified file in the standard IGLib format, and stores the data in the specified object. More...

virtual void	ReadAnalysisInputJson (string filePath, ref AnalysisResults anpt)
	Reads analysis input data (request) from the specified file in the JSON format, and stores the data in the specified object. More...

virtual void	ReadAnalysisInputXml (string filePath, ref AnalysisResults anpt)
	Reads analysis input data (request) from the specified file in the XML format, and stores the data in the specified object. More...

virtual void	WriteAnalysisOutputMath (string filePath, AnalysisResults anpt)
	Stores analysis results to the specified file in the standard format (Mathematica-like, but with C style numbers). Does not perform any locking. More...

virtual void	WriteAnalysisOutputJson (string filePath, AnalysisResults anpt)
	Stores analysis output data to the specified file in the JSON format Does not perform any locking. More...

virtual void	WriteAnalysisOutputXml (string filePath, AnalysisResults anpt)
	Stores analysis output data to the specified file in the XML format . Does not perform any locking. More...

virtual void	ReadAnalysisOutputMath (string filePath, ref AnalysisResults anpt)
	Reads analysis output data (request) from the specified file in the standard IGLib format, and stores the data in the specified object. More...

virtual void	ReadAnalysisOutputJson (string filePath, ref AnalysisResults anpt)
	Reads analysis output data (request) from the specified file in the JSON format, and stores the data in the specified object. More...

virtual void	ReadAnalysisOutputXml (string filePath, ref AnalysisResults anpt)
	Reads analysis output data (request) from the specified file in the XML format, and stores the data in the specified object. More...

Protected Attributes
string	_directory = null

string	_anInMathFilename = OptFileConst.AnInMathFileName

string	_msgAnBusyFileName = OptFileConst.MsgAnBusyFilename

string	_invOptCommandFilename = OptFileConst.InvOptCommandFilename

string	_lockFileMutexName = OptFileConst.LockFileMutexName

Mutex	_lockFileMutex

Properties
object	Lock `[get]`
	This object's central lock object to be used by other object. Do not use this object for locking in class' methods, for this you should use InternalLock. More...

string	DataDirectory `[get, protected set]`
	Directory for data and messages exchange through files. More...

string	LockFileMutexName `[get, protected set]`
	Name of the mutex for system-wide locking of files. More...

Mutex	LockFileMutex `[get]`
	Mutex for system-wide exclusive locks for file system operations related to the current class. More...

string	AnInMathPath `[get, protected set]`
	File path of the analysis input file in standard IGLib format. Setter takes only pure file name, without path information. If set to null then file path is set to null and will be recalculated when getter is called. More...

string	AnInJsonPath `[get, protected set]`
	File path of the analysis input file in Json format. Setter takes only pure file name, without path information. If set to null then file path is set to null and will be recalculated when getter is called. More...

string	AnInXmlPath `[get, protected set]`
	File path of the analysis input file in XML format. Setter takes only pure file name, without path information. If set to null then file path is set to null and will be recalculated when getter is called. More...

string	AnOutMathPath `[get, protected set]`
	File path of the analysis output file in standard IGLib format. Setter takes only pure file name, without path information. If set to null then fle path is set to null and will be recalculated when getter is called. More...

string	AnOutJsonPath `[get, protected set]`
	File path of the analysis output file in JSON format. Setter takes only pure file name, without path information. If set to null then file path is set to null and will be recalculated when getter is called. More...

string	AnOutXmlPath `[get, protected set]`
	File path of the analysis output file in XML format. Setter takes only pure file name, without path information. If set to null then file path is set to null and will be recalculated when getter is called. More...

string	MsgAnBusyPath `[get, protected set]`
	File path of the analysis busy flag file. Setter takes only pure file name, without path information. If set to null then path is set to null and will be recalculated when getter is called. More...

string	MsgAnInputReadyPath `[get, protected set]`
	File path of the analysis input data ready flag file. Setter takes only pure file name, without path information. If set to null then path is set to null and will be recalculated when getter is called. More...

string	MsgAnResultsReadyPath `[get, protected set]`
	File path of the analysis results ready flag file. Setter takes only pure file name, without path information. If set to null then path is set to null and will be recalculated when getter is called. More...

string	MsgOptBusyPath `[get, protected set]`
	File path of the optimization busy flag file. Setter takes only pure file name, without path information. If set to null then path is set to null and will be recalculated when getter is called. More...

string	MsgOptInputReadyPath `[get, protected set]`
	File path of the optimization input data ready flag file. Setter takes only pure file name, without path information. If set to null then path is set to null and will be recalculated when getter is called. More...

string	MsgOptResultsReadyPath `[get, protected set]`
	File path of the optimization resutlts ready flag file. Setter takes only pure file name, without path information. If set to null then path is set to null and will be recalculated when getter is called. More...

string	InvOptCommandPath `[get, protected set]`
	File path of the optimization command file for program Inverse (Inverse interface). Setter takes only pure file name, without path information. If set to null then path is set to null and will be recalculated when getter is called. More...

string	InvAnCommandFilePath `[get, protected set]`
	File path of the analysis command file for program Inverse (Inverse interface). Setter takes only pure file name, without path information. If set to null then path is set to null and will be recalculated when getter is called. More...

ISerializer	SerializerJson `[get]`
	Serializer for JSON format. More...

bool	AnFormatMath `[get, set]`
	Gets or sets the flag indicating whether analysis input and output is written Math format. More...

bool	AnFormatJson `[get, set]`
	Gets or sets the flag indicating whether analysis input and output is written JSON format. More...

bool	AnFormatXml `[get, set]`
	Gets or sets the flag indicating whether analysis input and output is written XML format. More...

AnalysisResults	AnResults `[get]`
	Analysis reaults whae analysis request data and analysis results ar stored. More...

virtual IAnalysis	Analysis `[get, set]`

Properties inherited from IG.Lib.ILockable
object	Lock `[get]`

Private Attributes
object	_mainLock = new object()

string	_anInMathPath = null

string	_anInJsonFilename = OptFileConst.AnInJsonFilename

string	_anInJsonPath = null

string	_anInXmlFilename = OptFileConst.AnInXmlFileName

string	_anInXmlPath = null

string	_anOutMathFilename = OptFileConst.AnOutMathFilename

string	_anOutMathPath = null

string	_anOutJsonFilename = OptFileConst.AnOutJsonFilename

string	_anOutJsonPath = null

string	_anOutXmlFilename = OptFileConst.AnOutXmlFilename

string	_anOutXmlPath = null

string	_msgAnBusyPath = null

string	_msgAnInputReadyFileName = OptFileConst.MsgAnInputReadyFilename

string	_msgAnInputReadyPath = null

string	_msgAnResultsReadyFileName = OptFileConst.MsgAnResultsReadyFilename

string	_msgAnResultsReadyPath = null

string	_msgOptBusyFilename = OptFileConst.MsgOptBusyFilename

string	_msgOptBusyPath = null

string	_msgOptInputReadyFilename = OptFileConst.MsgOptDataReadyFilename

string	_msgOptInputReadyPath = null

string	_msgOptResultsReadyFilename = OptFileConst.MsgOptResultsReadyFilename

string	_msgOptResultsReadyPath = null

string	_invOptCommandPath = null

string	_invAnCommandFilename = OptFileConst.InvAnCommandFilename

string	_invAnCommandPath = null

ISerializer	_serializerJson

bool	_anFormatMath = true

bool	_anFormatJson = true

bool	_anFormatXml = false

AnalysisResults	_anResults

IAnalysis	_analysis

Detailed Description

Performs elementary operations for optimization and analysis servers and clients that exchange data and messages through files. Each such server can serve a single request at a time (single thread of execution). Client-server pair (or pairs, when both analysis and optimization are performed in this way) has (or have) a single directory for exchanging data and messages. If there is a need for analyses running in parallel, each thread must have its own directory and its own client-server pair.

WARNING: This module is taken from Dragonfly opt. server and adapted for purpose of some projects. If necessary to further develop, synchronize (and possibly merge) with Dragonfly, otherwise there will be problems with consistent development of both branches.

$A Igor jul08 Mar11;

Constructor & Destructor Documentation

IG.Num.OptFileManager.OptFileManager ( string directoryPath )

inline

Creates a new optimization file server manager.

Parameters

directoryPath Path to the working directory for the current manager. This is the directory where all data and commmunication (data transfer and messaging) files are located.

Member Function Documentation

string IG.Num.OptFileManager.GetPath ( string relativePath )

inline

Returns full path of the file or directory with the specified relative path within the data and messages exchange directory.

Parameters

relativePath Relative path (with respect to data and messages exchange directory)

Returns

bool IG.Num.OptFileManager.LockFileMutexCheckAbandoned ( )

inline

Check whether the filesystem locking mutex (property LockFileMutex) has been abandoned, and returns true if it has been (otherwise, false is returned).

After the call, mutex is no longer in abandoned state (WaitOne() will not throw an exception) if it has been before the call.

Call does not block.

Returns: true if mutex has been abandoned, false otherwise.

References IG.Lib.Util.MutexCheckAbandoned().

virtual bool IG.Num.OptFileManager.IsAnInputReady ( )

inlinevirtual

Gets a flag telling whether analysis input data is ready.

virtual void IG.Num.OptFileManager.WaitAnInputReady ( )

inlinevirtual

Waits until analysis data is ready. REMARK: Currently this file just checks existence of the file in a loop. This should be changed in the future because it is not the best solution.

virtual void IG.Num.OptFileManager.ClearAnInputReady ( )

inlinevirtual

Clears the analysis data ready flag.

virtual void IG.Num.OptFileManager.SetAnInputReady ( )

inlinevirtual

Sets the analysis input ready flag.

virtual bool IG.Num.OptFileManager.IsAnResultsReady ( )

inlinevirtual

Gets a flag telling whether analysis output data is ready.

virtual void IG.Num.OptFileManager.WaitAnResultsReady ( )

inlinevirtual

Waits until analysis data is ready. REMARK: Currently this file just checks existence of the file in a loop. This should be changed in the future because it is not the best solution.

virtual void IG.Num.OptFileManager.ClearAnResultsReady ( )

inlinevirtual

Clears the analysis results ready flag.

virtual void IG.Num.OptFileManager.SetAnResultsReady ( )

inlinevirtual

Sets the analysis results ready flag.

virtual bool IG.Num.OptFileManager.IsAnBusy ( )

inlinevirtual

Gets a flag telling whether direct analysis is busy.

virtual void IG.Num.OptFileManager.WaitAnReady ( )

inlinevirtual

Waits until analysis is ready. REMARK: Currently this file just checks existence of the file in a loop. This should be changed in the future because it is not the best solution.

virtual void IG.Num.OptFileManager.ClearAnBusy ( )

inlinevirtual

Clears the analysis busy flag.

virtual void IG.Num.OptFileManager.SetAnBusy ( )

inlinevirtual

Sets the analysis busy flag.

void IG.Num.OptFileManager.ClearMessages ( )

inline

Clears messages from the working directory.

virtual void IG.Num.OptFileManager.WriteAnalysisInputMath	(	string	filePath,
		AnalysisResults	anpt
	)

inlineprotectedvirtual

Stores analysis input data to the specified file in the standard format (Mathematica-like, but with C style numbers). Does not perform any locking.

Parameters

filePath	Full path of the file that data is written to.
anpt	Analysis input data.

References IG.Num.AnalysisResults.SaveRequestMath().

virtual void IG.Num.OptFileManager.WriteAnalysisInputJson	(	string	filePath,
		AnalysisResults	anpt
	)

inlineprotectedvirtual

Stores analysis input data to the specified file in the JSON format. Does not perform any locking.

Parameters

filePath	Full path of the file that data is written to.
anpt	Analysis input data.

virtual void IG.Num.OptFileManager.WriteAnalysisInputXml	(	string	filePath,
		AnalysisResults	anpt
	)

inlineprotectedvirtual

Stores analysis input data to the specified file in the XML format Does not perform any locking.

Parameters

filePath	Full path of the file that data is written to.
anpt	Analysis results.

virtual void IG.Num.OptFileManager.ReadAnalysisInputMath	(	string	filePath,
		ref AnalysisResults	anpt
	)

inlineprotectedvirtual

Reads analysis input data (request) from the specified file in the standard IGLib format, and stores the data in the specified object.

Parameters

filePath	Path to the file that data is read from.
anpt	Analysis results object where the data is stored.

References IG.Num.AnalysisResults.LoadRequestMath().

virtual void IG.Num.OptFileManager.ReadAnalysisInputJson	(	string	filePath,
		ref AnalysisResults	anpt
	)

inlineprotectedvirtual

Reads analysis input data (request) from the specified file in the JSON format, and stores the data in the specified object.

Parameters

filePath	Path to the file that data is read from.
anpt	Analysis results object where the data is stored.

virtual void IG.Num.OptFileManager.ReadAnalysisInputXml	(	string	filePath,
		ref AnalysisResults	anpt
	)

inlineprotectedvirtual

Reads analysis input data (request) from the specified file in the XML format, and stores the data in the specified object.

Parameters

filePath	Path to the file that data is read from.
anpt	Analysis results object where the data is stored.

virtual void IG.Num.OptFileManager.WriteAnalysisOutputMath	(	string	filePath,
		AnalysisResults	anpt
	)

inlineprotectedvirtual

Stores analysis results to the specified file in the standard format (Mathematica-like, but with C style numbers). Does not perform any locking.

Parameters

filePath	Full path of the file that data is written to.
anpt	Analysis output data.

References IG.Num.AnalysisResults.SaveMath().

virtual void IG.Num.OptFileManager.WriteAnalysisOutputJson	(	string	filePath,
		AnalysisResults	anpt
	)

inlineprotectedvirtual

Stores analysis output data to the specified file in the JSON format Does not perform any locking.

Parameters

filePath	Full path of the file that data is written to.
anpt	Analysis results.

virtual void IG.Num.OptFileManager.WriteAnalysisOutputXml	(	string	filePath,
		AnalysisResults	anpt
	)

inlineprotectedvirtual

Stores analysis output data to the specified file in the XML format . Does not perform any locking.

Parameters

filePath	Full path of the file that data is written to.
anpt	Analysis results.

virtual void IG.Num.OptFileManager.ReadAnalysisOutputMath	(	string	filePath,
		ref AnalysisResults	anpt
	)

inlineprotectedvirtual

Reads analysis output data (request) from the specified file in the standard IGLib format, and stores the data in the specified object.

Parameters

filePath	Path to the file that data is read from.
anpt	Analysis results object where the data is stored.

References IG.Num.AnalysisResults.LoadMath().

virtual void IG.Num.OptFileManager.ReadAnalysisOutputJson	(	string	filePath,
		ref AnalysisResults	anpt
	)

inlineprotectedvirtual

Reads analysis output data (request) from the specified file in the JSON format, and stores the data in the specified object.

Parameters

filePath	Path to the file that data is read from.
anpt	Analysis results object where the data is stored.

virtual void IG.Num.OptFileManager.ReadAnalysisOutputXml	(	string	filePath,
		ref AnalysisResults	anpt
	)

inlineprotectedvirtual

Reads analysis output data (request) from the specified file in the XML format, and stores the data in the specified object.

Parameters

filePath	Path to the file that data is read from.
anpt	Analysis results object where the data is stored.

virtual void IG.Num.OptFileManager.ClientWriteAnInput ( AnalysisResults anInput )

inlinevirtual

Client writes analysis input data for calculation of analysis results. Messages are set nad cleared appropriately.

Parameters

anInput Parameters to be written.

virtual void IG.Num.OptFileManager.ClientReadAnOutput ( ref AnalysisResults anres )

inlinevirtual

Client reads analysis results. Messages are set and cleared appropriately.

Parameters

anres Object where results are written.

virtual void IG.Num.OptFileManager.ClientSendAnalysisRequest ( )

inlinevirtual

Sends request to the server for calculation of analysis response.

virtual void IG.Num.OptFileManager.ClientCalculateAnalysisResults ( ref AnalysisResults anRes )

inlinevirtual

Calculates analysis results by using the analysis server. Writes analysis input, sends request to the server, and reads the calculated results.

Parameters

anRes Analysis results object where approximation output values are stored.

virtual void IG.Num.OptFileManager.ClientTestCalculateAnalysisResults	(	string	inputFilePath,
		bool	reqObjective,
		bool	reqConstraints,
		bool	reqObjectiveGradient,
		bool	reqConstraintGradients,
		string	outputFilePath
	)

inlinevirtual

Performs client-side test calculation of analysis response.

Parameters

inputFilePath	Path to the JSON file where input parameters are read from. The file pointed at must exist.
reqObjective	Flag indicating whether objective function must be calculated.
reqConstraints	Flag indicating whether constraint functions must be calculated.
reqObjectiveGradient	Flag indicating whether objective function gradientmust be calculated.
reqConstraintGradients	Fleg indicating whether constraint function gradients must be calculated.
outputFilePath	Path of a file where the calculated analysis response in JSON is written to. It can be null or empty string, in this case response is not written to a file (but it is output on console).

References IG.Num.VectorBase.LoadJson(), IG.Num.AnalysisResults.Parameters, IG.Num.AnalysisResults.ReqConstraintGradients, IG.Num.AnalysisResults.ReqConstraints, IG.Num.AnalysisResults.ReqObjective, IG.Num.AnalysisResults.ReqObjectiveGradient, and IG.Num.AnalysisResults.SaveJson().

virtual void IG.Num.OptFileManager.ServerAnalyse ( )

inlinevirtual

Performs direct analysis (in optimization) with prescribed analysis input data, and saves results. Messages are set and cleared appropriately. This method reads analysis input from standard location, performs calculation, calculates analysis results and stores them to the standard location.

References IG.Num.AnalysisResults.ResetResults().

Member Data Documentation

object IG.Num.OptFileManager._mainLock = new object()

private

string IG.Num.OptFileManager._directory = null

protected

string IG.Num.OptFileManager._anInMathFilename = OptFileConst.AnInMathFileName

protected

string IG.Num.OptFileManager._anInMathPath = null

private

string IG.Num.OptFileManager._anInJsonFilename = OptFileConst.AnInJsonFilename

private

string IG.Num.OptFileManager._anInJsonPath = null

private

string IG.Num.OptFileManager._anInXmlFilename = OptFileConst.AnInXmlFileName

private

string IG.Num.OptFileManager._anInXmlPath = null

private

string IG.Num.OptFileManager._anOutMathFilename = OptFileConst.AnOutMathFilename

private

string IG.Num.OptFileManager._anOutMathPath = null

private

string IG.Num.OptFileManager._anOutJsonFilename = OptFileConst.AnOutJsonFilename

private

string IG.Num.OptFileManager._anOutJsonPath = null

private

string IG.Num.OptFileManager._anOutXmlFilename = OptFileConst.AnOutXmlFilename

private

string IG.Num.OptFileManager._anOutXmlPath = null

private

string IG.Num.OptFileManager._msgAnBusyFileName = OptFileConst.MsgAnBusyFilename

protected

string IG.Num.OptFileManager._msgAnBusyPath = null

private

string IG.Num.OptFileManager._msgAnInputReadyFileName = OptFileConst.MsgAnInputReadyFilename

private

string IG.Num.OptFileManager._msgAnInputReadyPath = null

private

string IG.Num.OptFileManager._msgAnResultsReadyFileName = OptFileConst.MsgAnResultsReadyFilename

private

string IG.Num.OptFileManager._msgAnResultsReadyPath = null

private

string IG.Num.OptFileManager._msgOptBusyFilename = OptFileConst.MsgOptBusyFilename

private

string IG.Num.OptFileManager._msgOptBusyPath = null

private

string IG.Num.OptFileManager._msgOptInputReadyFilename = OptFileConst.MsgOptDataReadyFilename

private

string IG.Num.OptFileManager._msgOptInputReadyPath = null

private

string IG.Num.OptFileManager._msgOptResultsReadyFilename = OptFileConst.MsgOptResultsReadyFilename

private

string IG.Num.OptFileManager._msgOptResultsReadyPath = null

private

string IG.Num.OptFileManager._invOptCommandFilename = OptFileConst.InvOptCommandFilename

protected

string IG.Num.OptFileManager._invOptCommandPath = null

private

string IG.Num.OptFileManager._invAnCommandFilename = OptFileConst.InvAnCommandFilename

private

string IG.Num.OptFileManager._invAnCommandPath = null

private

string IG.Num.OptFileManager._lockFileMutexName = OptFileConst.LockFileMutexName

protected

Mutex IG.Num.OptFileManager._lockFileMutex

protected

ISerializer IG.Num.OptFileManager._serializerJson

private

bool IG.Num.OptFileManager._anFormatMath = true

private

bool IG.Num.OptFileManager._anFormatJson = true

private

bool IG.Num.OptFileManager._anFormatXml = false

private

AnalysisResults IG.Num.OptFileManager._anResults

private

IAnalysis IG.Num.OptFileManager._analysis

private

Property Documentation

object IG.Num.OptFileManager.Lock

get

This object's central lock object to be used by other object. Do not use this object for locking in class' methods, for this you should use InternalLock.

string IG.Num.OptFileManager.DataDirectory

getprotected set

Directory for data and messages exchange through files.

string IG.Num.OptFileManager.LockFileMutexName

getprotected set

Name of the mutex for system-wide locking of files.

Mutex IG.Num.OptFileManager.LockFileMutex

getprotected

Mutex for system-wide exclusive locks for file system operations related to the current class.

string IG.Num.OptFileManager.AnInMathPath

getprotected set

File path of the analysis input file in standard IGLib format. Setter takes only pure file name, without path information. If set to null then file path is set to null and will be recalculated when getter is called.

string IG.Num.OptFileManager.AnInJsonPath

getprotected set

File path of the analysis input file in Json format. Setter takes only pure file name, without path information. If set to null then file path is set to null and will be recalculated when getter is called.

string IG.Num.OptFileManager.AnInXmlPath

getprotected set

File path of the analysis input file in XML format. Setter takes only pure file name, without path information. If set to null then file path is set to null and will be recalculated when getter is called.

string IG.Num.OptFileManager.AnOutMathPath

getprotected set

File path of the analysis output file in standard IGLib format. Setter takes only pure file name, without path information. If set to null then fle path is set to null and will be recalculated when getter is called.

string IG.Num.OptFileManager.AnOutJsonPath

getprotected set

File path of the analysis output file in JSON format. Setter takes only pure file name, without path information. If set to null then file path is set to null and will be recalculated when getter is called.

string IG.Num.OptFileManager.AnOutXmlPath

getprotected set

File path of the analysis output file in XML format. Setter takes only pure file name, without path information. If set to null then file path is set to null and will be recalculated when getter is called.

string IG.Num.OptFileManager.MsgAnBusyPath

getprotected set

File path of the analysis busy flag file. Setter takes only pure file name, without path information. If set to null then path is set to null and will be recalculated when getter is called.

string IG.Num.OptFileManager.MsgAnInputReadyPath

getprotected set

File path of the analysis input data ready flag file. Setter takes only pure file name, without path information. If set to null then path is set to null and will be recalculated when getter is called.

string IG.Num.OptFileManager.MsgAnResultsReadyPath

getprotected set

File path of the analysis results ready flag file. Setter takes only pure file name, without path information. If set to null then path is set to null and will be recalculated when getter is called.

string IG.Num.OptFileManager.MsgOptBusyPath

getprotected set

File path of the optimization busy flag file. Setter takes only pure file name, without path information. If set to null then path is set to null and will be recalculated when getter is called.

string IG.Num.OptFileManager.MsgOptInputReadyPath

getprotected set

File path of the optimization input data ready flag file. Setter takes only pure file name, without path information. If set to null then path is set to null and will be recalculated when getter is called.

string IG.Num.OptFileManager.MsgOptResultsReadyPath

getprotected set

File path of the optimization resutlts ready flag file. Setter takes only pure file name, without path information. If set to null then path is set to null and will be recalculated when getter is called.

string IG.Num.OptFileManager.InvOptCommandPath

getprotected set

File path of the optimization command file for program Inverse (Inverse interface). Setter takes only pure file name, without path information. If set to null then path is set to null and will be recalculated when getter is called.

string IG.Num.OptFileManager.InvAnCommandFilePath

getprotected set

File path of the analysis command file for program Inverse (Inverse interface). Setter takes only pure file name, without path information. If set to null then path is set to null and will be recalculated when getter is called.

ISerializer IG.Num.OptFileManager.SerializerJson

getprotected

Serializer for JSON format.

bool IG.Num.OptFileManager.AnFormatMath

getset

Gets or sets the flag indicating whether analysis input and output is written Math format.

bool IG.Num.OptFileManager.AnFormatJson

getset

Gets or sets the flag indicating whether analysis input and output is written JSON format.

bool IG.Num.OptFileManager.AnFormatXml

getset

Gets or sets the flag indicating whether analysis input and output is written XML format.

AnalysisResults IG.Num.OptFileManager.AnResults

getprotected

Analysis reaults whae analysis request data and analysis results ar stored.

virtual IAnalysis IG.Num.OptFileManager.Analysis

getset

The documentation for this class was generated from the following file:

igbase/optimization/fileserver/OptFileManager.cs

Public Member Functions

Protected Member Functions

Protected Attributes

Properties

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

Property Documentation
