IG.Gr3d.VtkControlWin Class Reference

Control for presenting VTK graphics, intended for use in stand-alone windows. More...

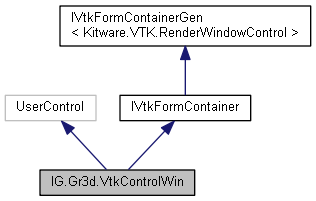

Inheritance diagram for IG.Gr3d.VtkControlWin:

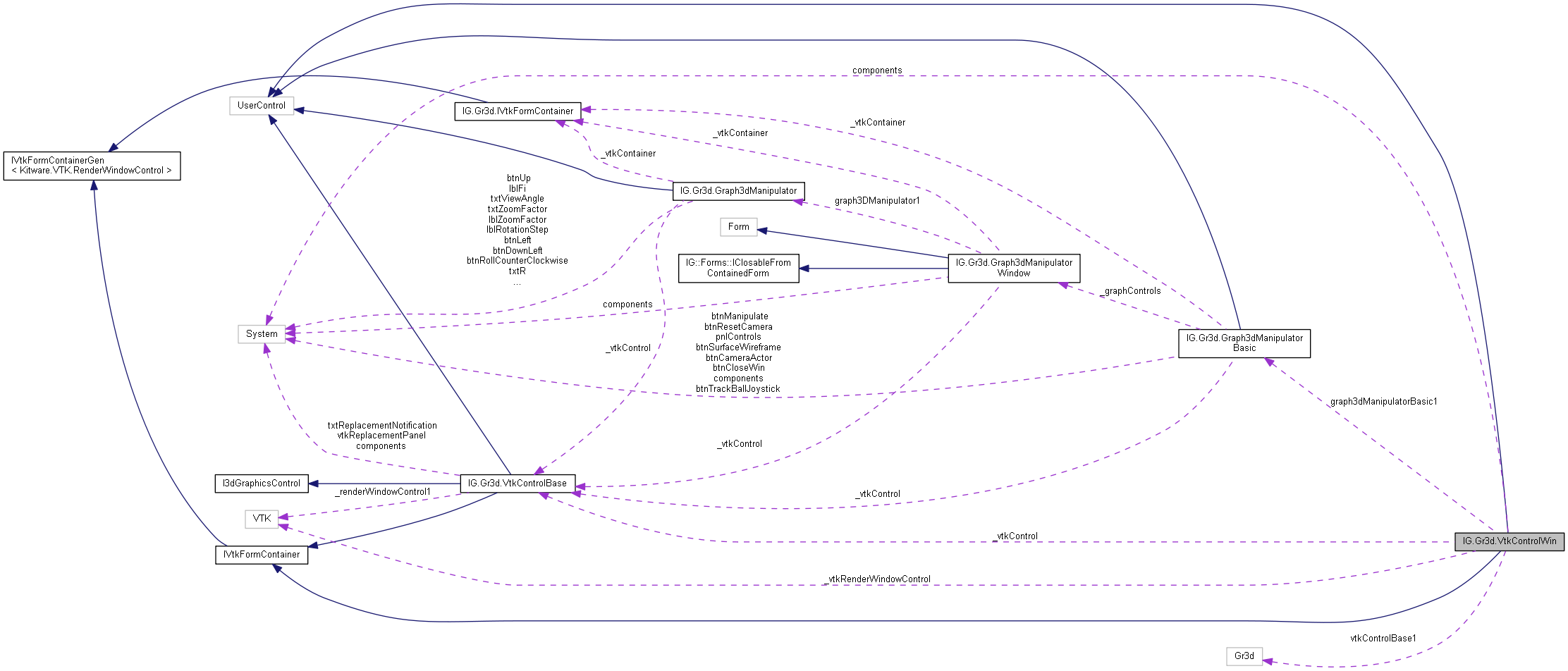

Collaboration diagram for IG.Gr3d.VtkControlWin:

Public Member Functions
	VtkControlWin ()

Protected Member Functions
override void	Dispose (bool disposing)
	Clean up any resources being used. More...

Properties
VtkControlBase	VtkControl [get]
	Gets the control of type VtkControlBase through which VTK functionality is controlled. More...
Kitware.VTK.RenderWindowControl	VtkRenderWindowControl [get]
	VTK's control that is actually used for rendering graphics and through which VTK can be interacted directly. More...
Properties inherited from IG.Gr3d.IVtkFormContainerGen< VtkControlType >
VtkControlBase	VtkControl [get]
	Base windows forms control through which the basic VTK functionality and all additional features can be accessed. More...
VtkControlType	VtkRenderWindowControl [get]
	VTK's control that is actually used for rendering graphics and through which VTK can be interacted directly. More...

Private Member Functions
void	InitializeComponent ()
	Required method for Designer support - do not modify the contents of this method with the code editor. More...

Private Attributes
VtkControlBase	_vtkControl
Kitware.VTK.RenderWindowControl	_vtkRenderWindowControl
System.ComponentModel.IContainer	components = null
	Required designer variable. More...
IG.Gr3d.VtkControlBase	vtkControlBase1
Graph3dManipulatorBasic	graph3dManipulatorBasic1

Detailed Description

Control for presenting VTK graphics, intended for use in stand-alone windows.

This control contains the VtkControlBase control with sme additional controls, e.g. for closing the containing toplevel window.

$A Igor xx May13;

Constructor & Destructor Documentation

IG.Gr3d.VtkControlWin.VtkControlWin ( )

inline

Member Function Documentation

override void IG.Gr3d.VtkControlWin.Dispose ( bool  disposing )

inlineprotected

Clean up any resources being used.

Parameters

disposing

true if managed resources should be disposed; otherwise, false.

void IG.Gr3d.VtkControlWin.InitializeComponent ( )

inlineprivate

Required method for Designer support - do not modify the contents of this method with the code editor.

Member Data Documentation

VtkControlBase IG.Gr3d.VtkControlWin._vtkControl

private

Kitware.VTK.RenderWindowControl IG.Gr3d.VtkControlWin._vtkRenderWindowControl

private

System.ComponentModel.IContainer IG.Gr3d.VtkControlWin.components = null

private

Required designer variable.

IG.Gr3d.VtkControlBase IG.Gr3d.VtkControlWin.vtkControlBase1

private

Graph3dManipulatorBasic IG.Gr3d.VtkControlWin.graph3dManipulatorBasic1

private

Property Documentation

VtkControlBase IG.Gr3d.VtkControlWin.VtkControl

get

Gets the control of type VtkControlBase through which VTK functionality is controlled.

Kitware.VTK.RenderWindowControl IG.Gr3d.VtkControlWin.VtkRenderWindowControl

get

VTK's control that is actually used for rendering graphics and through which VTK can be interacted directly.

Instead of accessing this control directly, you should normally access it through the VtkControlBase.VtkControl property of the VtkControl property.

---

The documentation for this class was generated from the following files:

• extensions/igplot3d/plot3d/vtkbased/Forms/VtkControlWin.cs
• extensions/igplot3d/plot3d/vtkbased/Forms/VtkControlWin.Designer.cs
