Inheritance diagram for IG.Num.OptimizerBase:

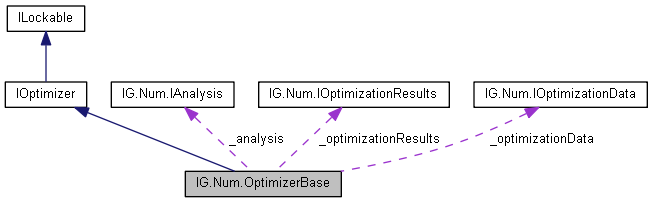

Collaboration diagram for IG.Num.OptimizerBase:

Public Member Functions
virtual void	SetOptimizationData (IOptimizationData data)
	Sets the optimization data where information about optimization problem and algorithm parameters can be obtained. More...

virtual void	SetOptimizationResults (IOptimizationResults results)
	Sets the optimization data where information about optimization problem and algorithm parameters can be obtained. More...

abstract void	Optimize ()
	Performs optimization. This method should be overridden in derived classes. More...

Protected Member Functions
virtual void	BeforeOptimization ()
	Auxiliary housekeeping method that should be called at the beginning of Optimize. More...

virtual void	AfterOptimization ()
	Auxiliary housekeeping method that should be called at the end of Optimize. More...

Protected Attributes
bool	_keepBestGuess = false

Properties
object	Lock `[get]`
	This object's central lock object to be used by other object. Do not use this object for locking in class' methods, for this you should use InternalLock. More...

virtual IOptimizationData	OptimizationData `[get, set]`
	Gets optimization data used by the current optimizer. This structure contains information about optimization problem and algorithm parameters. More...

virtual IOptimizationResults	OptimizationResults `[get, set]`
	Gets optimization results. More...

virtual bool	CopyReferences `[get, set]`
	Indicates whether just references can be copied when setting optimization parameters or results. If false then deep copy is always be performed. Default is false. More...

int	NumParameters `[get, protected set]`
	Number of parameters. More...

int	NumObjectives `[get, protected set]`
	Number of objective functions (normally 1 for this type, but can be 0). More...

int	NumConstraints `[get, protected set]`
	Number of constraints. More...

int	NumEqualityConstraints `[get, protected set]`
	Number of equality constraints. More...

IAnalysis	Analysis `[get, set]`
	Definition of the direct problem (direct analysis). More...

IVector	InitialGuess `[get, set]`
	Gets or sets initial guess used in optimization. More...

IVector	InitialStep `[get, set]`
	Gets or sets initial step used in optimization. More...

double	Tolerance `[get, set]`
	Gets or sets the main tolerance (its exact meaning depends on the algorithm in use). More...

int	MaxIterations `[get, set]`
	Gets or sets maximal number of iterations. More...

int	MaxAnalyses `[get, set]`
	Gets or sets maximal number of analyses. More...

bool	Calculated `[get, protected set]`

virtual IAnalysisResults	Results `[get, protected set]`
	Optimization results. More...

virtual bool	KeepCurrentGuess `[get, set]`
	Whether current guess is kept or not. More...

virtual IAnalysisResults	CurrentGuess `[get, protected set]`
	Results of the current guess (usually last analysis that has been performed). More...

virtual bool	KeepBestGuess `[get, set]`
	Whether best results are kept or not. More...

virtual IAnalysisResults	BestGuess `[get, protected set]`
	The best results so far. More...

Properties inherited from IG.Num.IOptimizer
bool	CopyReferences `[get, set]`
	Indicates whether just references can be copied when setting optimization parameters or results or auxiliary data. If false then deep copy is always be performed. Default is false. More...

int	NumParameters `[get]`
	Number of parameters. More...

int	NumObjectives `[get]`
	Number of objective functions (normally 1 for this type, but can be 0). More...

int	NumConstraints `[get]`
	Number of constraints. More...

int	NumEqualityConstraints `[get]`
	Number of equality constraints. More...

IAnalysis	Analysis `[get, set]`
	Definition of the direct problem (direct analysis that calculates the response functions). More...

IVector	InitialGuess `[get, set]`
	Gets or sets initial guess used in optimization. More...

IVector	InitialStep `[get, set]`
	Gets or sets initial step used in optimization. More...

double	Tolerance `[get, set]`
	Gets or sets the main tolerance (its exact meaning depends on the algorithm in use). More...

int	MaxIterations `[get, set]`
	Gets or sets maximal number of iterations. More...

int	MaxAnalyses `[get, set]`
	Gets or sets maximal number of analyses. More...

IAnalysisResults	Results `[get]`
	Optimization results. More...

bool	KeepCurrentGuess `[get]`
	Whether current guess is kept or not. More...

IAnalysisResults	CurrentGuess `[get]`
	Results of the current guess (usually last analysis that has been performed). More...

bool	KeepBestGuess `[get]`
	Whether best results are kept or not. More...

IAnalysisResults	BestGuess `[get]`
	The best results so far. More...

Properties inherited from IG.Lib.ILockable
object	Lock `[get]`

Private Attributes
object	_mainLock = new object()

IOptimizationData	_optimizationData

IOptimizationResults	_optimizationResults

IAnalysis	_analysis

Member Function Documentation

virtual void IG.Num.OptimizerBase.SetOptimizationData ( IOptimizationData data )

inlinevirtual

Sets the optimization data where information about optimization problem and algorithm parameters can be obtained.

Parameters

data

virtual void IG.Num.OptimizerBase.SetOptimizationResults ( IOptimizationResults results )

inlinevirtual

Sets the optimization data where information about optimization problem and algorithm parameters can be obtained.

Parameters

results object on which results are set.

abstract void IG.Num.OptimizerBase.Optimize ( )

pure virtual

Performs optimization. This method should be overridden in derived classes.

Methods BeforeOptimization() and AfterOptimization() should be called at the beginning and end of this method.

Implements IG.Num.IOptimizer.

virtual void IG.Num.OptimizerBase.BeforeOptimization ( )

inlineprotectedvirtual

Auxiliary housekeeping method that should be called at the beginning of Optimize.

virtual void IG.Num.OptimizerBase.AfterOptimization ( )

inlineprotectedvirtual

Auxiliary housekeeping method that should be called at the end of Optimize.

Member Data Documentation

object IG.Num.OptimizerBase._mainLock = new object()

private

IOptimizationData IG.Num.OptimizerBase._optimizationData

private

IOptimizationResults IG.Num.OptimizerBase._optimizationResults

private

IAnalysis IG.Num.OptimizerBase._analysis

private

bool IG.Num.OptimizerBase._keepBestGuess = false

protected

Property Documentation

object IG.Num.OptimizerBase.Lock

get

This object's central lock object to be used by other object. Do not use this object for locking in class' methods, for this you should use InternalLock.

virtual IOptimizationData IG.Num.OptimizerBase.OptimizationData

getset

Gets optimization data used by the current optimizer. This structure contains information about optimization problem and algorithm parameters.

Protected internal setter. Setter should be overridden by overriding the SetOptimizationData() method!

virtual IOptimizationResults IG.Num.OptimizerBase.OptimizationResults

getset

Gets optimization results.

This property has protected internal setter.

virtual bool IG.Num.OptimizerBase.CopyReferences

getset

Indicates whether just references can be copied when setting optimization parameters or results. If false then deep copy is always be performed. Default is false.

int IG.Num.OptimizerBase.NumParameters

getprotected set

Number of parameters.

int IG.Num.OptimizerBase.NumObjectives

getprotected set

Number of objective functions (normally 1 for this type, but can be 0).

int IG.Num.OptimizerBase.NumConstraints

getprotected set

Number of constraints.

int IG.Num.OptimizerBase.NumEqualityConstraints

getprotected set

Number of equality constraints.

IAnalysis IG.Num.OptimizerBase.Analysis

getset

Definition of the direct problem (direct analysis).

IVector IG.Num.OptimizerBase.InitialGuess

getset

Gets or sets initial guess used in optimization.

IVector IG.Num.OptimizerBase.InitialStep

getset

Gets or sets initial step used in optimization.

double IG.Num.OptimizerBase.Tolerance

getset

Gets or sets the main tolerance (its exact meaning depends on the algorithm in use).

int IG.Num.OptimizerBase.MaxIterations

getset

Gets or sets maximal number of iterations.

int IG.Num.OptimizerBase.MaxAnalyses

getset

Gets or sets maximal number of analyses.

bool IG.Num.OptimizerBase.Calculated

getprotected set

virtual IAnalysisResults IG.Num.OptimizerBase.Results

getprotected set

Optimization results.

virtual bool IG.Num.OptimizerBase.KeepCurrentGuess

getset

Whether current guess is kept or not.

virtual IAnalysisResults IG.Num.OptimizerBase.CurrentGuess

getprotected set

Results of the current guess (usually last analysis that has been performed).

virtual bool IG.Num.OptimizerBase.KeepBestGuess

getset

Whether best results are kept or not.

virtual IAnalysisResults IG.Num.OptimizerBase.BestGuess

getprotected set

The best results so far.

The documentation for this class was generated from the following file:

igbase/optimization/Optimizer.cs
