Base class for input or output data element mapping definition. More...

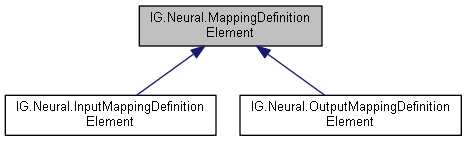

Inheritance diagram for IG.Neural.MappingDefinitionElement:

Public Member Functions
	MappingDefinitionElement (int originalElementIndex, int mappedElementIndex, string originalName, string originalTitle, string originalDescription)
	Constructor. More...

	MappingDefinitionElement (string name)
	Constructor. Element index is unknown, there is no element description. More...

	MappingDefinitionElement (string name, string title)
	Constructor. Element index is unknown. More...

	MappingDefinitionElement (string name, string title, string description)
	Constructor. Element index is unknown. More...

Protected Attributes
int	_originalElementIndex = -1

bool	_originalElementindexSpecified = false

int	_mappedElementIndex = -1

bool	_mappedElementindexSpecified = false

string	_originalName

string	_orirginalTitle

string	_originalDescription

Properties
virtual int	OriginalElementIndex `[get, set]`
	Specifies the original index of the element described by the mapped definition, within the data vextor (either input or output). More...

virtual bool	OriginalElementIndexSpecified `[get, set]`
	Specifies whether original element index is specified for the data element described by the mapped definition. More...

virtual int	MappedElementIndex `[get, set]`
	Specifies the mapped index of the element described by the current definition, within the data vextor (either input or output). More...

virtual bool	MappedElementIndexSpecified `[get, set]`
	Specifies whether mapped element index is specified for the data element described by the mapped definition. More...

virtual string	OriginalName `[get, set]`
	Unique name of the data element described by the mapped definition. Considered a kind of variable name that distinguishes between data by short names. More...

virtual string	OriginalTitle `[get, set]`
	A title describing what given data element represents. Titles can contain special characters and spaces, but should be shorter than descriptions. More...

virtual string	OriginalDescription `[get, set]`
	Describes the meaning of a data element used as part of neural network input or output data. More...

Detailed Description

Base class for input or output data element mapping definition.

$A Igor Jul 19; tako78 Jul 19

Constructor & Destructor Documentation

IG.Neural.MappingDefinitionElement.MappingDefinitionElement	(	int	originalElementIndex,
		int	mappedElementIndex,
		string	originalName,
		string	originalTitle,
		string	originalDescription
	)

inline

Constructor.

Parameters

originalElementIndex	Index of the original input or output data element specified by the definision. If less than 0 is specified then it is considered that element index is not known or defined in the current context.
mappedElementIndex	Index of the mapped input or output data element specified by the current definision. If less than 0 is specified then it is considered that element index is not known or defined in the current context.
originalName	Element name. Should comply with conventions for valid variable names in languages C++, C# and Java.
originalTitle	Short descriptive title (like name, but can contain spaces and special characters).
originalDescription	Element description. Can be an arbvitrary string.

$A Igor Jul 19; tako78 Jul 19

IG.Neural.MappingDefinitionElement.MappingDefinitionElement ( string name )

inline

Constructor. Element index is unknown, there is no element description.

Parameters

name	Element name. Should comply with conventions for valid variable names in languages C++, C# and Java.

$A Igor Jul 19; tako78 Jul 19

IG.Neural.MappingDefinitionElement.MappingDefinitionElement	(	string	name,
		string	title
	)

inline

Constructor. Element index is unknown.

Parameters

name	Element name. Should comply with conventions for valid variable names in languages C++, C# and Java.
title	Short descriptive title (like name, but can contain spaces and special characters).

$A Igor Jul 19; tako78 Jul 19

IG.Neural.MappingDefinitionElement.MappingDefinitionElement	(	string	name,
		string	title,
		string	description
	)

inline

Constructor. Element index is unknown.

Parameters

name	Element name. Should comply with conventions for valid variable names in languages C++, C# and Java.
title	Short descriptive title (like name, but can contain spaces and special characters).
description	Element description. Can be an arbitrary string.

$A Igor Jul 19; tako78 Jul 19

Member Data Documentation

int IG.Neural.MappingDefinitionElement._originalElementIndex = -1

protected

bool IG.Neural.MappingDefinitionElement._originalElementindexSpecified = false

protected

int IG.Neural.MappingDefinitionElement._mappedElementIndex = -1

protected

bool IG.Neural.MappingDefinitionElement._mappedElementindexSpecified = false

protected

string IG.Neural.MappingDefinitionElement._originalName

protected

string IG.Neural.MappingDefinitionElement._orirginalTitle

protected

string IG.Neural.MappingDefinitionElement._originalDescription

protected

Property Documentation

virtual int IG.Neural.MappingDefinitionElement.OriginalElementIndex

getset

Specifies the original index of the element described by the mapped definition, within the data vextor (either input or output).

If not specified, then by agreement the OriginalElementIndex is set to -1. Getter of this property automatically set OriginalElementIndexSpecified flag to false if the property is set to less than 0, and to true otherwise.

$A Igor Jul 19; tako78 Jul 19

Referenced by IG.Neural.MapNeuralImputOutputElementDefinitionDto< ElementType >.CopyFromPlain(), IG.Neural.MappingDefinition.IsInputDataConsistent(), IG.Neural.MappingDefinition.IsOutputDataConsistent(), IG.Neural.DataMapperSimple.MapInput(), and IG.Neural.DataMapperSimple.MapOutput().

virtual bool IG.Neural.MappingDefinitionElement.OriginalElementIndexSpecified

getset

Specifies whether original element index is specified for the data element described by the mapped definition.

If not specified, then by agreement the OriginalElementIndex is set to -1. Getter of this property automatically set OriginalElementIndex to -1 if the property is set to false.

$A Igor Jul 19; tako78 Jul 19

Referenced by IG.Neural.MapNeuralImputOutputElementDefinitionDto< ElementType >.CopyFromPlain().

virtual int IG.Neural.MappingDefinitionElement.MappedElementIndex

getset

Specifies the mapped index of the element described by the current definition, within the data vextor (either input or output).

If not specified, then by agreement the MappedElementIndex is set to -1. Getter of this property automatically set MappedElementIndexSpecified flag to false if the property is set to less than 0, and to true otherwise.

$A Igor Jul 19; tako78 Jul 19

Referenced by IG.Neural.MapNeuralImputOutputElementDefinitionDto< ElementType >.CopyFromPlain(), IG.Neural.MappingDefinition.IsInputDataConsistent(), and IG.Neural.MappingDefinition.IsOutputDataConsistent().

virtual bool IG.Neural.MappingDefinitionElement.MappedElementIndexSpecified

getset

Specifies whether mapped element index is specified for the data element described by the mapped definition.

If not specified, then by agreement the MappedElementIndex is set to -1. Getter of this property automatically set MappedElementIndex to -1 if the property is set to false.

$A Igor Jul 19; tako78 Jul 19

Referenced by IG.Neural.MapNeuralImputOutputElementDefinitionDto< ElementType >.CopyFromPlain().

virtual string IG.Neural.MappingDefinitionElement.OriginalName

getset

Unique name of the data element described by the mapped definition. Considered a kind of variable name that distinguishes between data by short names.

There is an agreement that element names should follow conventions for valid variable names in programming languages C++, C# and Java.

$A Igor Jul 19; tako78 Jul 19

Referenced by IG.Neural.MapNeuralImputOutputElementDefinitionDto< ElementType >.CopyFromPlain(), IG.Neural.MappingDefinition.IsInputDataConsistent(), and IG.Neural.MappingDefinition.IsOutputDataConsistent().

virtual string IG.Neural.MappingDefinitionElement.OriginalTitle

getset

A title describing what given data element represents. Titles can contain special characters and spaces, but should be shorter than descriptions.

$A Igor Jul 19; tako78 Jul 19

Referenced by IG.Neural.MapNeuralImputOutputElementDefinitionDto< ElementType >.CopyFromPlain().

virtual string IG.Neural.MappingDefinitionElement.OriginalDescription

getset

Describes the meaning of a data element used as part of neural network input or output data.

$A Igor Jul 19; tako78 Jul 19

Referenced by IG.Neural.MapNeuralImputOutputElementDefinitionDto< ElementType >.CopyFromPlain().

The documentation for this class was generated from the following file:

igbase/numeric/approximation/neural/testneural/NeuralMapData.cs
