Provides a framework for blocking execution until the specified condition becomes satisfied. Function Wait() does that. The function continuously check the unblocking condition until it becomes satisfied, sleeping a certain amount of time between consecutive checks. Time plan of checks (i.e. the amount of sleepin time between them) can be adjusted by public properties SleepFirst, MinSleepMs, MaxSleepMs, and MaxRelativeLatency. These properties can be adjusted while waiting. Blocking condition is evaluated by the (public) function Condition() and can be adjusted in one of the following ways: More...

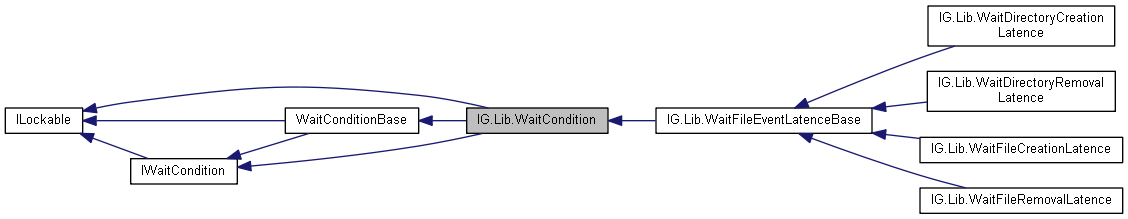

Inheritance diagram for IG.Lib.WaitCondition:

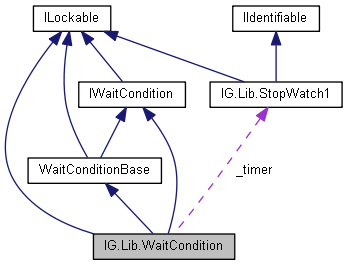

Collaboration diagram for IG.Lib.WaitCondition:

Public Member Functions
	WaitCondition ()
	Creates event waiter with properties initialized to default values. More...

	WaitCondition (int minSleepMs, double maxRelativeLatency)
	Creates event waiter with properties initialized to specified values (or to default valuse for those parameters that are not specified). More...

	WaitCondition (int minSleepMs, int maxSleepMs, double maxRelativeLatency, bool sleepFirst)
	Creates event waiter with properties initialized to specified values (or to default valuse for those parameters that are not specified). More...

override bool	Condition ()
	Function that returns true if unblocking condition is satisfied, and false otherwise. If the condition delegate is set then the delegate is used to evaluate the condition, otherwise the protected method ConditionFunction() is used. The condition can therefore be adjusted in one of the following ways: More...

override void	Wait ()
	Blocks until the specified condition gets satisfied. See class description for details. More...

override string	ToString ()

Public Member Functions inherited from IG.Lib.WaitConditionBase
virtual void	CancelOne ()
	Cancels the current waiting for the condition (if one is going on) and unblocks the thread on which waiting was called (possibly with some latency). More...

virtual void	CancelAll ()
	Cancel the current waiting for the condition on all threads. More...

Protected Member Functions
virtual void	InitWaitCondition ()
	Initializes object properties with default values. More...

virtual void	InitWaitCondition (int minSleepMs, double maxRelativeLatency)
	Initializes blocking parameters to the specified values (or to default values for those parameters that are not specified). More...

virtual void	InitWaitCondition (int minSleepMs, int maxSleepMs, double maxRelativeLatency, bool sleepFirst)
	Initializes blocking parameters. More...

virtual bool	ConditionFunction ()
	Evaluates blocking condition in the case that the condition delegate is not specified. More...

Protected Attributes
ConditionDelegateBase	_conditionDelegate = null

int	_minSleepMs = 1

StopWatch1	_timer = null

Properties
virtual ConditionDelegateBase	ConditionDelegate `[protected get, set]`
	Contains function that is called to evaluate the unblocking condition. If this delegate is set and Condition() is not overridden then the delegate is used to check whether the unblocking condition is satisfied. More...

virtual int	MinSleepMs `[get, set]`
	Minimal sleeping time, in milliseconds, between successive condition checks. If less than 0 then minimal sleeping time is not specified, so there may be no sleeping. More...

virtual int	MaxSleepMs `[get, set]`
	Maximal sleeping time, in milliseconds, between successive condition checks. If less than 0 then maximal sleeping time is not specified and sleeping interval is not bounded above. If set to 0 then no sleeping will be performed between successive checks (max. sleeping time overrides the minimal sleeping time). More...

virtual double	MaxRelativeLatency `[get, set]`
	Maximal relative latency of waiting procedure. Sleeping time chosen between two successive condition check willl be chosen smaller or equal to total elapsed waiting time multiplied by this number. If less than 0 then maximal relative latency is not specified. If minimal sleeping time is specified then it overrides the sleeping time calculated according to this parameter. More...

virtual bool	SleepFirst `[get, set]`
	If true and if minimal sleeping time is larger than 0, then sleep for minimal sleeping time will be performed before the first check for unblocking condition. More...

StopWatch1	Timer `[get]`
	Timer that measures the total time elapsed when waiting for fulfillment of unblocking condition. Used to evaluate appropriate sleeping times that will not cause too much latency. More...

Properties inherited from IG.Lib.WaitConditionBase
object	Lock `[get]`
	This object's central lock object to be used by other object. Do not use this object for locking in class' methods, for this you should use InternalLock. More...

object	InternalLock `[get]`
	Used internally for locking access to internal fields. More...

object	WaitLock `[get]`
	Must be used only for locking waiting the Waiting() block (since it is potentially time consuming). More...

virtual bool	IsWaiting `[get, protected set]`
	True if waiting for unblocking condition is currently performed, and false otherwise. Setting should only be done within the waiting function. More...

virtual bool	CancelFlag `[get, set]`
	If this flag is set then the current waiting (if one is going on) will be cancelled. More...

Properties inherited from IG.Lib.IWaitCondition
bool	IsWaiting `[get]`
	Returns true if waiting for unblocking condition is currently performed, and false otherwise. Setting should only be done within the waiting function. More...

Properties inherited from IG.Lib.ILockable
object	Lock `[get]`

Private Attributes
int	_maxSleepMs = -1

double	_maxRelativeLatency = 0.05

bool	_sleepFirst = false

Detailed Description

Provides a framework for blocking execution until the specified condition becomes satisfied. Function Wait() does that. The function continuously check the unblocking condition until it becomes satisfied, sleeping a certain amount of time between consecutive checks. Time plan of checks (i.e. the amount of sleepin time between them) can be adjusted by public properties SleepFirst, MinSleepMs, MaxSleepMs, and MaxRelativeLatency. These properties can be adjusted while waiting. Blocking condition is evaluated by the (public) function Condition() and can be adjusted in one of the following ways:

by setting the delegate ConditionDelegate.
by overriding the protected ConditionFunction() in a derived class and setting ConditionDelegate to null.
by overriding the Condition() function itself.

$A Igor Jun10;

Constructor & Destructor Documentation

IG.Lib.WaitCondition.WaitCondition ( )

inline

Creates event waiter with properties initialized to default values.

IG.Lib.WaitCondition.WaitCondition	(	int	minSleepMs,
		double	maxRelativeLatency
	)

inline

Creates event waiter with properties initialized to specified values (or to default valuse for those parameters that are not specified).

IG.Lib.WaitCondition.WaitCondition	(	int	minSleepMs,
		int	maxSleepMs,
		double	maxRelativeLatency,
		bool	sleepFirst
	)

inline

Creates event waiter with properties initialized to specified values (or to default valuse for those parameters that are not specified).

Member Function Documentation

virtual void IG.Lib.WaitCondition.InitWaitCondition ( )

inlineprotectedvirtual

Initializes object properties with default values.

virtual void IG.Lib.WaitCondition.InitWaitCondition	(	int	minSleepMs,
		double	maxRelativeLatency
	)

inlineprotectedvirtual

Initializes blocking parameters to the specified values (or to default values for those parameters that are not specified).

virtual void IG.Lib.WaitCondition.InitWaitCondition	(	int	minSleepMs,
		int	maxSleepMs,
		double	maxRelativeLatency,
		bool	sleepFirst
	)

inlineprotectedvirtual

Initializes blocking parameters.

override bool IG.Lib.WaitCondition.Condition ( )

inline

Function that returns true if unblocking condition is satisfied, and false otherwise. If the condition delegate is set then the delegate is used to evaluate the condition, otherwise the protected method ConditionFunction() is used. The condition can therefore be adjusted in one of the following ways:

by setting the ConditionDelegate field
by overriding the ConditionFunction and leaving ConditionDelegate null.

Implements IG.Lib.IWaitCondition.

virtual bool IG.Lib.WaitCondition.ConditionFunction ( )

inlineprotectedvirtual

Evaluates blocking condition in the case that the condition delegate is not specified.

Returns: True if the unblocking condition is satisfied (such that the thread will continue with execution) after the condition is being evaluated.

Reimplemented in IG.Lib.WaitFileEventLatenceBase.

override void IG.Lib.WaitCondition.Wait ( )

inline

Blocks until the specified condition gets satisfied. See class description for details.

This method will normally not be overridden, except with intention to change the condition check time plan. When overriding, use the original method as template.

Implements IG.Lib.IWaitCondition.

Referenced by IG.Lib.WaitFileEventBaseByProxyLatence.Wait().

override string IG.Lib.WaitCondition.ToString ( )

inline

Referenced by IG.Lib.WaitFileEventBaseByProxyLatence.ToString().

Member Data Documentation

ConditionDelegateBase IG.Lib.WaitCondition._conditionDelegate = null

protected

int IG.Lib.WaitCondition._minSleepMs = 1

protected

int IG.Lib.WaitCondition._maxSleepMs = -1

private

double IG.Lib.WaitCondition._maxRelativeLatency = 0.05

private

bool IG.Lib.WaitCondition._sleepFirst = false

private

StopWatch1 IG.Lib.WaitCondition._timer = null

protected

Property Documentation

virtual ConditionDelegateBase IG.Lib.WaitCondition.ConditionDelegate

protected getset

Contains function that is called to evaluate the unblocking condition. If this delegate is set and Condition() is not overridden then the delegate is used to check whether the unblocking condition is satisfied.

virtual int IG.Lib.WaitCondition.MinSleepMs

getset

Minimal sleeping time, in milliseconds, between successive condition checks. If less than 0 then minimal sleeping time is not specified, so there may be no sleeping.

virtual int IG.Lib.WaitCondition.MaxSleepMs

getset

Maximal sleeping time, in milliseconds, between successive condition checks. If less than 0 then maximal sleeping time is not specified and sleeping interval is not bounded above. If set to 0 then no sleeping will be performed between successive checks (max. sleeping time overrides the minimal sleeping time).

virtual double IG.Lib.WaitCondition.MaxRelativeLatency

getset

Maximal relative latency of waiting procedure. Sleeping time chosen between two successive condition check willl be chosen smaller or equal to total elapsed waiting time multiplied by this number. If less than 0 then maximal relative latency is not specified. If minimal sleeping time is specified then it overrides the sleeping time calculated according to this parameter.

virtual bool IG.Lib.WaitCondition.SleepFirst

getset

If true and if minimal sleeping time is larger than 0, then sleep for minimal sleeping time will be performed before the first check for unblocking condition.

StopWatch1 IG.Lib.WaitCondition.Timer

getprotected

Timer that measures the total time elapsed when waiting for fulfillment of unblocking condition. Used to evaluate appropriate sleeping times that will not cause too much latency.

The documentation for this class was generated from the following file:

igbase/0unsorted/WaitCondition.cs
