Compares two sets of analysis results in various different ways. More...

Inheritance diagram for IG.Num.AnalysisComparer:

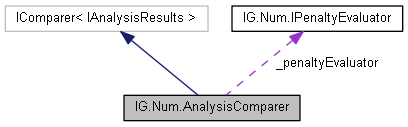

Collaboration diagram for IG.Num.AnalysisComparer:

Public Member Functions
	AnalysisComparer ()

	AnalysisComparer (double barrierLength, double barrierHeight)
	Creates analysis results comparer with initialized penalty evaluator containing one penalty function (common for all constraints) initialized to the default penalty function with specified characteristic barrier length and height. More...

	AnalysisComparer (double barrierLength, double barrierHeight, double maxZero)
	Creates analysis results comparer with initialized penalty evaluator with penalty function (common for all constraints) initialized to the default penalty function with specified characteristic barrier length and height and transition point where penalty function becomes non-zero. More...

int	Compare (IAnalysisResults an1, IAnalysisResults an2)
	Compares two sets of analysis results points. More...

Protected Attributes
double	_equalityConstraintTolerance

bool	_cmpNumViolated = false

bool	_cmpMaxResidual = false

bool	_cmpSumResiduals = true

bool	_cmpMaxPenalty = false

bool	_cmpSumPenalties = false

bool	_cmpObjectiveFunction = true

Properties
double	EqualityConstraintTolerance `[get, set]`
	Gets or sets tolerance for equality constraints. When absolute value of a constraint function is below this tolerance, the corresponding constraint is not considered violated. Tolerance must not be negative. More...

IPenaltyEvaluator	PenaltyEvaluator `[get, set]`
	Gets or sets evaluator of penalty terms. This is needed when e.g. sums of penalty terms are defined. More...

bool	CompareNumViolated `[get, set]`
	Whether number of violated constraints is compared. More...

bool	CompareMaxResidual `[get, set]`
	Whether maximal constraint residual is compared. More...

bool	CompareSumResiduals `[get, set]`
	Whether sum of constraint residuals is compared. More...

bool	CompareMaxPenalty `[get, set]`
	Whether maximal penalty term is compared. More...

bool	CompareSumPenalties `[get, set]`
	Whether sum of penalty terms is compared. More...

bool	CompareObjectiveFunction `[get, set]`
	Whether value of the objective function is compared. More...

Private Attributes
IPenaltyEvaluator	_penaltyEvaluator = null

Detailed Description

Compares two sets of analysis results in various different ways.

Constructor & Destructor Documentation

IG.Num.AnalysisComparer.AnalysisComparer ( )

inline

IG.Num.AnalysisComparer.AnalysisComparer	(	double	barrierLength,
		double	barrierHeight
	)

inline

Creates analysis results comparer with initialized penalty evaluator containing one penalty function (common for all constraints) initialized to the default penalty function with specified characteristic barrier length and height.

Parameters

barrierLength	Characteristic barrrier length. Within this length the created penalty function grows approximately from 0 to characteristic height.
barrierHeight	Characteristic barrier height.

IG.Num.AnalysisComparer.AnalysisComparer	(	double	barrierLength,
		double	barrierHeight,
		double	maxZero
	)

inline

Creates analysis results comparer with initialized penalty evaluator with penalty function (common for all constraints) initialized to the default penalty function with specified characteristic barrier length and height and transition point where penalty function becomes non-zero.

Parameters

barrierLength	Characteristic barrrier length. Within this length the created penalty function grows approximately from 0 to characteristic height.
barrierHeight	Characteristic barrier height.
maxZero	Maximal argument for which the created function is 0.

Member Function Documentation

int IG.Num.AnalysisComparer.Compare	(	IAnalysisResults	an1,
		IAnalysisResults	an2
	)

inline

Compares two sets of analysis results points.

Parameters

an1	First set of analysis results.
an2	Second set of analysis results.

Returns: 0 if result sets are equal, -1 if the first set is smaller than the second, and 1 if the first set is larger than the second.

References IG.Num.IAnalysisResults.GetMaximalResidual(), IG.Num.IAnalysisResults.GetMaxPenaltyTerm(), IG.Num.IAnalysisResults.GetNumViolatedConstraints(), IG.Num.IAnalysisResults.GetSumPenaltyTerms(), and IG.Num.IAnalysisResults.Objective.

Member Data Documentation

double IG.Num.AnalysisComparer._equalityConstraintTolerance

protected

IPenaltyEvaluator IG.Num.AnalysisComparer._penaltyEvaluator = null

private

bool IG.Num.AnalysisComparer._cmpNumViolated = false

protected

bool IG.Num.AnalysisComparer._cmpMaxResidual = false

protected

bool IG.Num.AnalysisComparer._cmpSumResiduals = true

protected

bool IG.Num.AnalysisComparer._cmpMaxPenalty = false

protected

bool IG.Num.AnalysisComparer._cmpSumPenalties = false

protected

bool IG.Num.AnalysisComparer._cmpObjectiveFunction = true

protected

Property Documentation

double IG.Num.AnalysisComparer.EqualityConstraintTolerance

getset

Gets or sets tolerance for equality constraints. When absolute value of a constraint function is below this tolerance, the corresponding constraint is not considered violated. Tolerance must not be negative.

IPenaltyEvaluator IG.Num.AnalysisComparer.PenaltyEvaluator

getsetprivate

Gets or sets evaluator of penalty terms. This is needed when e.g. sums of penalty terms are defined.

bool IG.Num.AnalysisComparer.CompareNumViolated

getset

Whether number of violated constraints is compared.

bool IG.Num.AnalysisComparer.CompareMaxResidual

getset

Whether maximal constraint residual is compared.

bool IG.Num.AnalysisComparer.CompareSumResiduals

getset

Whether sum of constraint residuals is compared.

bool IG.Num.AnalysisComparer.CompareMaxPenalty

getset

Whether maximal penalty term is compared.

bool IG.Num.AnalysisComparer.CompareSumPenalties

getset

Whether sum of penalty terms is compared.

bool IG.Num.AnalysisComparer.CompareObjectiveFunction

getset

Whether value of the objective function is compared.

The documentation for this class was generated from the following file:

igbase/optimization/AnalysisComparer.cs
