Distance comparer for point clouds where point type is SampledDataElement. More...

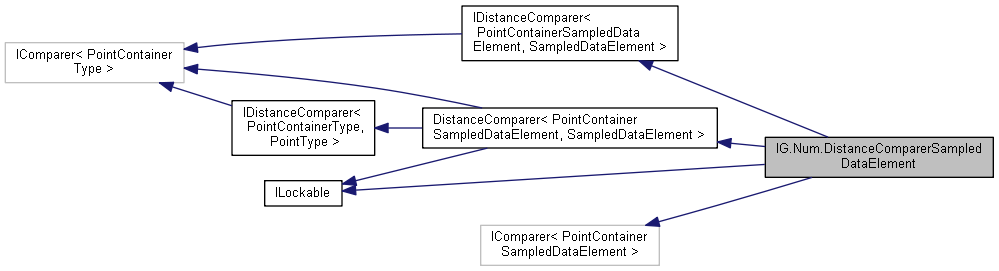

Inheritance diagram for IG.Num.DistanceComparerSampledDataElement:

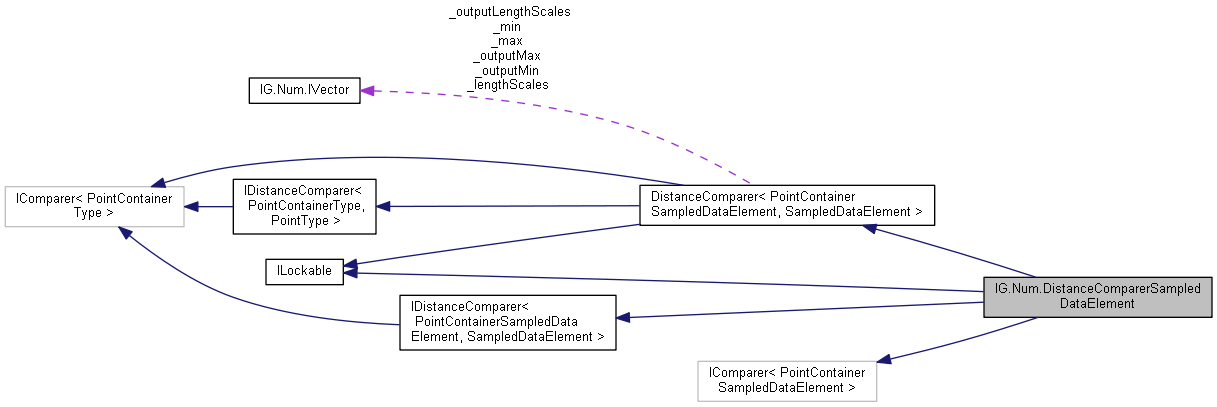

Collaboration diagram for IG.Num.DistanceComparerSampledDataElement:

Public Member Functions
	DistanceComparerSampledDataElement (PointContainerSampledDataElement referencePoint)
	Constructs a new training element comparer according to the distance to the reference point. More...

	DistanceComparerSampledDataElement (PointContainerSampledDataElement referencePoint, DistanceDelegate< SampledDataElement > distanceFunction)
	Constructs a new comparer according to input distance to a reference poiont (type SampledDataElement). More...

	DistanceComparerSampledDataElement (PointContainerSampledDataElement referencePoint, DistanceDelegate< SampledDataElement > distanceFunction, IVector lengthScales)
	Constructs a new comparer according to input distance to a reference poiont (type SampledDataElement). More...

override void	GetPointCoordinates (SampledDataElement pt, ref IVector coord)
	Gets vector of coordinates of the specified point and stores it in the specified variable. More...

Public Member Functions inherited from IG.Num.DistanceComparer< PointContainerType, PointType >
	DistanceComparer (PointContainerType referencePoint, DistanceDelegate< PointType > distanceFunction)
	Constructs a new comparer according to input distance to a reference poiont (type IVector). More...

	DistanceComparer (PointContainerType referencePoint, DistanceDelegate< PointType > distanceFunction, IVector lengthScales)
	Constructs a new comparer according to input distance to a reference poiont (type IVector). More...

abstract void	GetPointCoordinates (PointType pt, ref IVector coord)
	Gets vector of coordinates of the specified point and stores it in the specified variable. More...

void	SetCoordinateScales (IVector min, IVector max, IVector lengthScales)
	Sets parameters that affect default calculation of distance and relative point coordinates. More...

void	GetRelativeCoordinates (IVector coord, ref IVector relativeCoortinates)
	Converts the specified coordinates to relative coordinates where compponents run from 0 to 1 if original coordinates run from minimal to maximal value. More...

void	SetOutputScales (IVector min, IVector max, IVector lengthScales)
	Sets parameters that affect default calculation of output distance and output relative coordinates. More...

void	GetOutputRelativeCoordinates (IVector coord, ref IVector relativeCoortinates)
	Converts the specified OUTPUT coordinates to relative coordinates where compponents run from 0 to 1 if original coordinates run from minimal to maximal value. More...

virtual double	OutputDistance (PointContainerType pt1, PointContainerType pt2)
	Returns output distance between two point containers. More...

virtual int	Compare (PointContainerType pt1, PointContainerType pt2)
	Compares two points according to the current comparer definition. More...

virtual double	Distance (PointType pt1, PointType pt2)
	Returns distance between the specified two points. More...

double	Distance (PointContainerType boxedPt1, PointContainerType boxedPt2)
	Returns distance between the specified two points enclosed in PointContainer{} objects, as defined by the distance calculation delegate (property DistanceFunction) of the current object. More...

double	Distance (PointContainerType boxedPt1, PointType pt2)
	Returns distance between the specified point encolosed in an PointContainer{...} object and a non-enclosed point, as defined by the distance calculation delegate (property DistanceFunction) of the current object. More...

double	Distance (PointType pt1, PointContainerType boxedPt2)
	Returns distance between the specified point and the second point encolosed in an PointContainer{...} object, as defined by the distance calculation delegate (property DistanceFunction) of the current object. More...

double	Distance (PointType pt)
	Returns distance between the specified point and the reference point (property ReferencePoint) of the current object (enclosed in PointContainer{PointType} object), as defined by the distance calculation delegate of the current comparer object (property DistanceFunction). More...

double	Distance (PointContainerType boxedPt)
	Returns distance between the specified point (enclosed in PointContainer{PointType} object) and the reference point (property ReferencePoint) of the current object (property ReferencePoint), as defined by the distance calculation delegate of the current comparer object (property DistanceFunction). More...

void	Sort (List< PointContainerType > list)
	Sorts a list of point containers with the current comparer. More...

void	SortUsingStoredDistance (List< PointContainerType > list)
	Sorts a list of point containers with the current comparer. More...

Additional Inherited Members
Protected Member Functions inherited from IG.Num.DistanceComparer< PointContainerType, PointType >
virtual double	OutputDistance (IVector outVec1, IVector outVec2)
	Returns output distance between two output vectors. More...

virtual double	DefaultDistanceFunction (PointType pt1, PointType pt2)
	Default distance funciton for the current class, used when distance calculation delegate is not specified. More...

Protected Attributes inherited from IG.Num.DistanceComparer< PointContainerType, PointType >
PointContainerType	_referencePoint

DistanceDelegate< PointType >	_distanceFunction

IVector	_lengthScales = null

IVector	_min = null

IVector	_max = null

IVector	_outputLengthScales = null

IVector	_outputMin = null

IVector	_outputMax = null

Properties inherited from IG.Num.DistanceComparer< PointContainerType, PointType >
object	Lock `[get]`
	This object's central lock object to be used by other object. Do not use this object for locking in class' methods, for this you should use InternalLock. More...

PointContainerType	ReferencePoint `[get, set]`
	Reference point. More...

DistanceDelegate< PointType >	DistanceFunction `[get, set]`
	Delegate that calculates distance between two vectors. More...

IVector	LengthScales `[protected get, set]`
	Sets the vector of length scales that are used for calculation of distances. More...

IVector	Min `[protected get, set]`
	Sets the vector of minimal values for point coordinates. Needed for calculation of relative coordinate vector. More...

IVector	Max `[protected get, set]`
	Sets the vector of maximal values point coordinates. Needed for calculation of relative coordinate vector. More...

IVector	OutputLengthScales `[protected get, set]`
	Sets the vector of OUTPUT vector's length scales that are used for calculation of distances and relative coordinates. More...

IVector	OutputMin `[protected get, set]`
	Sets the vector of minimal values for point OUTPUT values. Needed for calculation of relative coordinate vector. More...

IVector	OutputMax `[protected get, set]`
	Sets the vector of maximal values point OUTPUT values. Needed for calculation of relative coordinate vector. More...

IComparer< PointContainerType >	StoredDistanceComparer `[get]`
	Gets comparer that compares two point containers of type PointContainerType by the stored distance stored on those points. More...

Properties inherited from IG.Num.IDistanceComparer< PointContainerType, PointType >
PointContainerType	ReferencePoint `[get, set]`
	Reference point. More...

IVector	LengthScales `[set]`
	Sets the vector of length scales that are used for calculation of distances. More...

IVector	Min `[set]`
	Sets the vector of minimal values for point coordinates. Needed for calculation of relative coordinate vector. More...

IVector	Max `[set]`
	Sets the vector of maximal values point coordinates. Needed for calculation of relative coordinate vector. More...

IVector	OutputLengthScales `[set]`
	Sets the vector of OUTPUT vector's length scales that are used for calculation of distances and relative coordinates. More...

IVector	OutputMin `[set]`
	Sets the vector of minimal values for point OUTPUT values. Needed for calculation of relative coordinate vector. More...

IVector	OutputMax `[set]`
	Sets the vector of maximal values point OUTPUT values. Needed for calculation of relative coordinate vector. More...

IComparer< PointContainerType >	StoredDistanceComparer `[get]`
	Gets comparer that compares two point containers of type PointContainerType{} by the stored distance stored on those points. More...

Properties inherited from IG.Lib.ILockable
object	Lock `[get]`

Detailed Description

Distance comparer for point clouds where point type is SampledDataElement.

Constructor & Destructor Documentation

IG.Num.DistanceComparerSampledDataElement.DistanceComparerSampledDataElement ( PointContainerSampledDataElement referencePoint )

inline

Constructs a new training element comparer according to the distance to the reference point.

Default methods for distance calculation is used.

Parameters

referencePoint Reference points.

IG.Num.DistanceComparerSampledDataElement.DistanceComparerSampledDataElement	(	PointContainerSampledDataElement	referencePoint,
		DistanceDelegate< SampledDataElement >	distanceFunction
	)

inline

Constructs a new comparer according to input distance to a reference poiont (type SampledDataElement).

Parameters

referencePoint	Reference point. Training elements are compared by their distance to this point.
distanceFunction	Delegate used for calculation of distance between two points.

IG.Num.DistanceComparerSampledDataElement.DistanceComparerSampledDataElement	(	PointContainerSampledDataElement	referencePoint,
		DistanceDelegate< SampledDataElement >	distanceFunction,
		IVector	lengthScales
	)

inline

Constructs a new comparer according to input distance to a reference poiont (type SampledDataElement).

Parameters

referencePoint	Reference point. Training elements are compared by their distance to this point.
distanceFunction	Delegate used for calculation of distance between two points.
lengthScales	Vector of legth scales that defines how different co-ordinates are scaled by when calculating distances (this applies to the default length calculation function, ).

Member Function Documentation

override void IG.Num.DistanceComparerSampledDataElement.GetPointCoordinates	(	SampledDataElement	pt,
		ref IVector	coord
	)

inline

Gets vector of coordinates of the specified point and stores it in the specified variable.

Where the type of point object itself contains vector of coordinates, only reference is stored. The obtained vector should therefore not be modified in any way.

Parameters

pt	Point for which vector of coordinates is obtained.
coord	Vector variable where extracted vector of coordinates is stored.

References IG.Num.SampledDataElement.InputParameters.

The documentation for this class was generated from the following file:

igbase/numeric/approximation/sampleddata/PointCloudSampledDataElement.cs
